NSN 4730-01-054-6052 B16.5, B165, 703IN
Product Details | BLIND PIPE FLANGE
4730-01-054-6052 An item used for covering or closing the end of a flanged pipe fitting. The face may be drilled for connecting bolts or studs. Excludes FLANGE, PIPE.
Part Alternates: B16.5, B165, 703IN, 70-3IN, 4730-01-054-6052, 01-054-6052, 4730010546052, 010546052
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 22 JAN 1978 | 01-054-6052 | 03793 ( FLANGE, PIPE, BLIND ) |

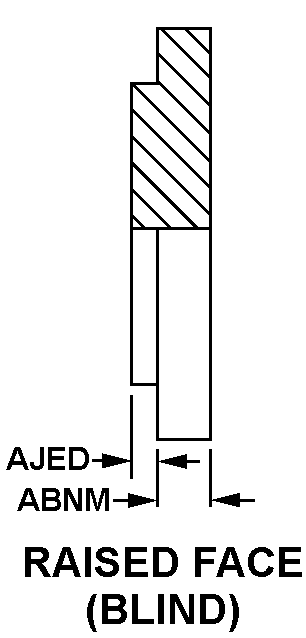

Drawings & Photos | NSN 4730-01-054-6052
Demand History | NSN 4730-01-054-6052
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| B165 | 2015-07-193 | 15 | United States |
| 4730-01-054-6052 | 2012-06-173 | 2 | DIBBS |
| 4730-01-054-6052 | 2008-12-337 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-054-6052
Related Products | NSN 4730-01-054-6052
Technical Data | NSN 4730-01-054-6052
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A105 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PRIMER |
| STYLE DESIGNATOR | 1 ROUND, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 6.000 INCHES NOMINAL |
| FLANGE DIAMETER | 7.500 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.750 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |
| FLANGE SECTION STYLE | 24 RAISED FACE |
| THICKNESS | 0.940 INCHES MINIMUM |
| RAISED FACE HEIGHT | 0.062 INCHES NOMINAL |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 3.000 INCHES |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 150.0 POUNDS PER SQUARE INCH GAS |
| FACE SEATING SURFACE CONDITION | MACHINED |
| SPECIFICATION/STANDARD DATA | 80204-ANSI B16.5 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
