NSN 4730-01-044-1910 AN818L6D, BACN10DP6D, BACN10DP-6D

Product Details | TUBE COUPLING NUT

4730-01-044-1910 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.

Part Alternates: AN818L6D, BACN10DP6D, BACN10DP-6D, 4730-01-044-1910, 01-044-1910, 4730010441910, 010441910

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	08 JUL 1977	01-044-1910	03859 ( NUT, TUBE COUPLING )

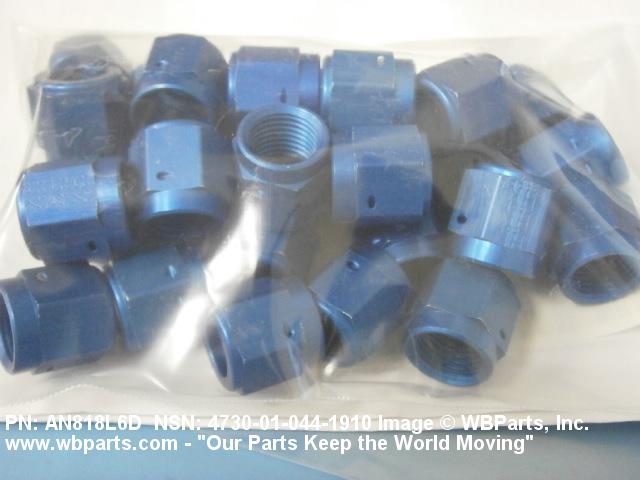

Drawings & Photos | NSN 4730-01-044-1910

Part Number	Request Date	QTY	Origin
4730-01-044-1910	2023-09-271	158	DIBBS
AN818L6D	2020-03-69	254	US
4730-01-044-1910	2020-01-07	340	DIBBS
4730-01-044-1910	2019-07-185	221	DIBBS
4730-01-044-1910	2019-04-115	433	DIBBS
4730-01-044-1910	2018-12-340	208	DIBBS
4730-01-044-1910	2016-03-88	413	DIBBS
AN818L6D	2011-12-347	30	United Kingdom
AN818L6D	2011-12-339	10	United Kingdom

Cross Reference | NSN 4730-01-044-1910

Part Number	Cage Code	Manufacturer
AN818L6D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
BACN10DP-6D	82918	THE BOEING COMPANY DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-044-1910

Compare

Related Products | NSN 4730-01-044-1910

4730-01-044-1911, 4730-01-044-1912, 4730-01-044-1913, 4730-01-044-1914, 4730-01-044-1915

Technical Data | NSN 4730-01-044-1910

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.562 INCHES
THREAD QUANTITY PER INCH	18
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	ALUMINUM ALLOY OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
NUT STYLE	A353 TUBE COUPLING
NUT HEIGHT	0.724 INCHES NOMINAL
WIDTH ACROSS FLATS	0.684 INCHES MINIMUM AND 0.691 INCHES MAXIMUM
LENGTH TO SHOULDER	0.603 INCHES NOMINAL
SMALLEST INSIDE DIAMETER	0.440 INCHES MINIMUM AND 0.443 INCHES MAXIMUM
SEAT ANGLE	0.45 DEGREES NOMINAL
FABRICATION METHOD	ANY ACCEPTABLE
NOMINAL TUBE OUTSIDE DIAMETER	0.375 INCHES
SPECIAL FEATURES	DRILLED FOR LOCKWIRE
III END ITEM IDENTIFICATION	AIRCRAFT APPLICATION
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN818L6D

Restrictions/Controls & Freight Information | NSN 4730-01-044-1910

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013540	ALUM NUTS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	576	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-044-1910

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
