NSN 4730-01-037-8988 NS2693212, NS269-3212, FIGURE5157-SIZE CODE396
Product Details | PIPE REDUCER
4730-01-037-8988 A straight pipe fitting having a different size connection on each end. It is designed to join two pipes of different sizes or two pipe fittings of different sizes. Excludes BUSHING (as modified).
Part Alternates: NS2693212, NS269-3212, FIGURE5157-SIZE CODE396, FIGURE5157SIZECODE396, MILF1183, MIL-F-1183, 00699067572416, 5157396, 5157-396, 4730-01-037-8988, 01-037-8988, 4730010378988, 010378988
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 26 MAR 1977 | 01-037-8988 | 08505 ( REDUCER, PIPE ) |

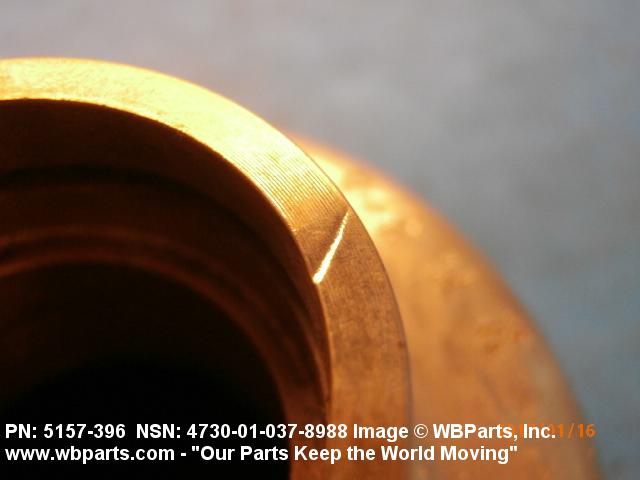

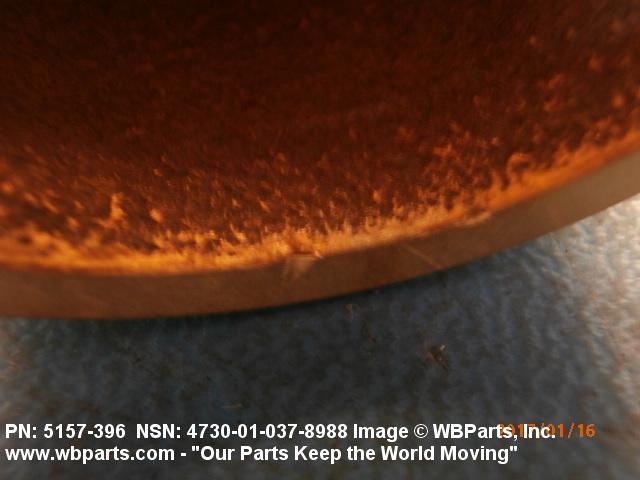

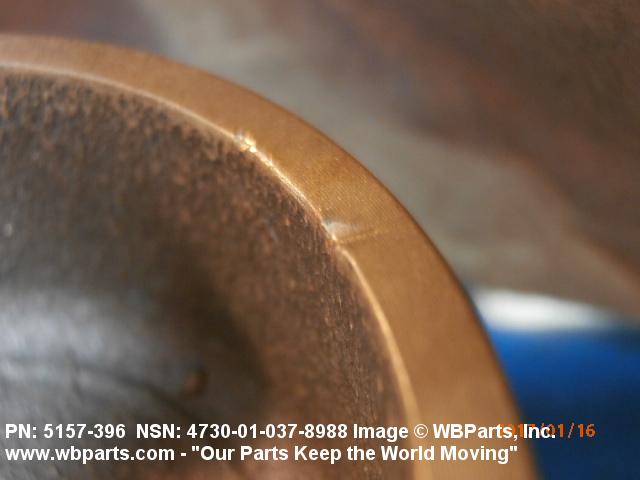

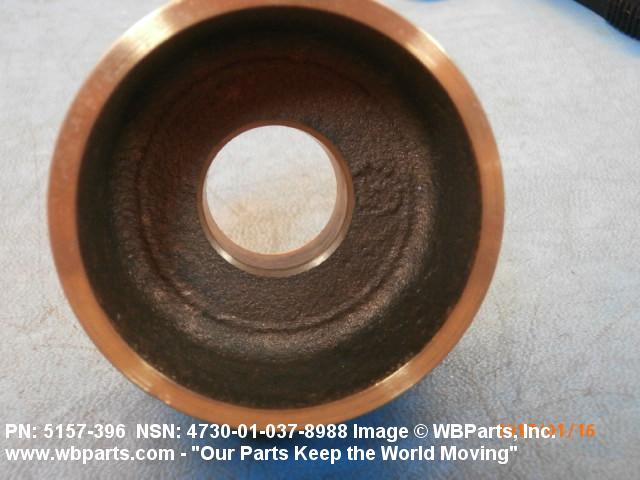

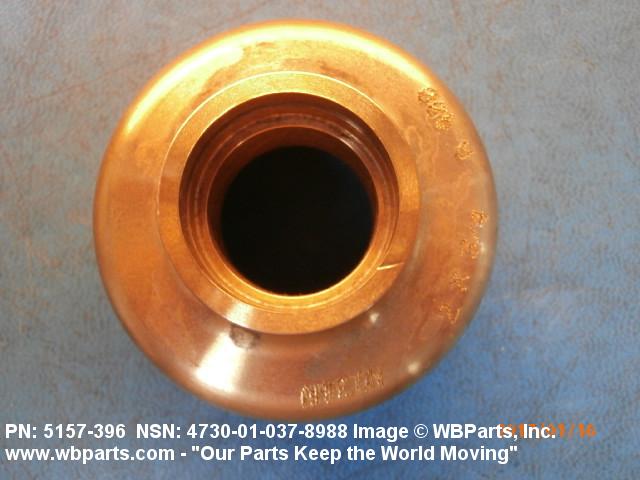

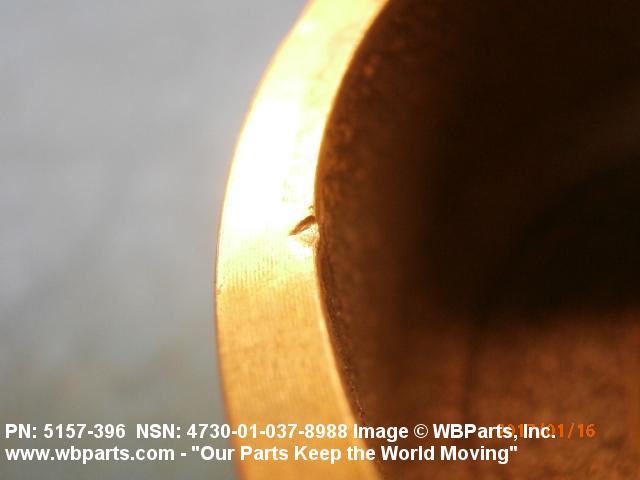

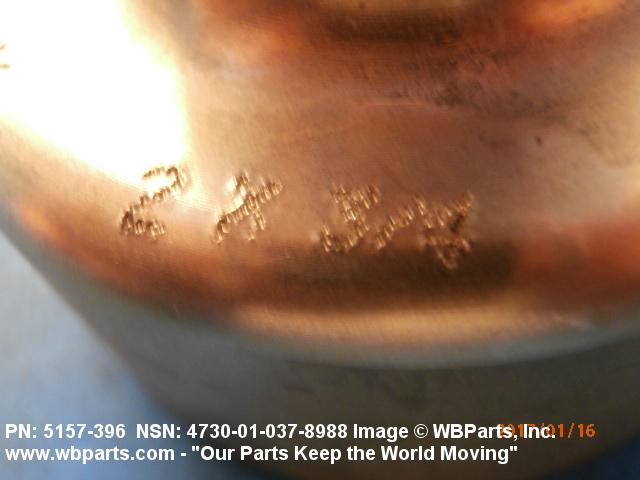

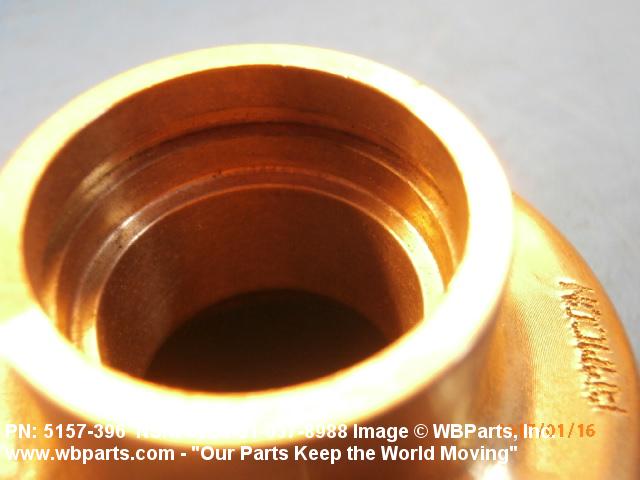

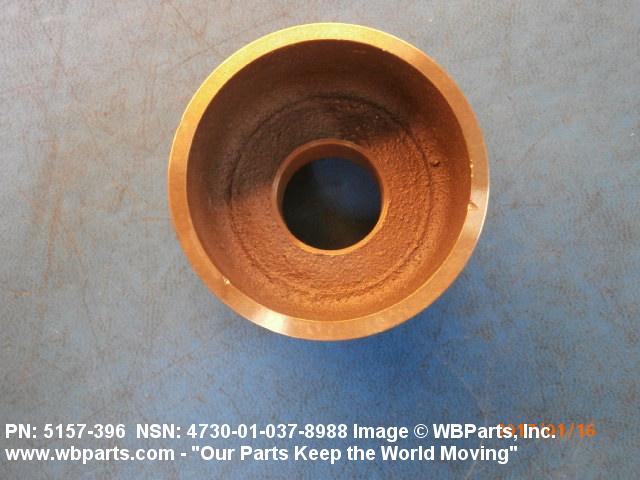

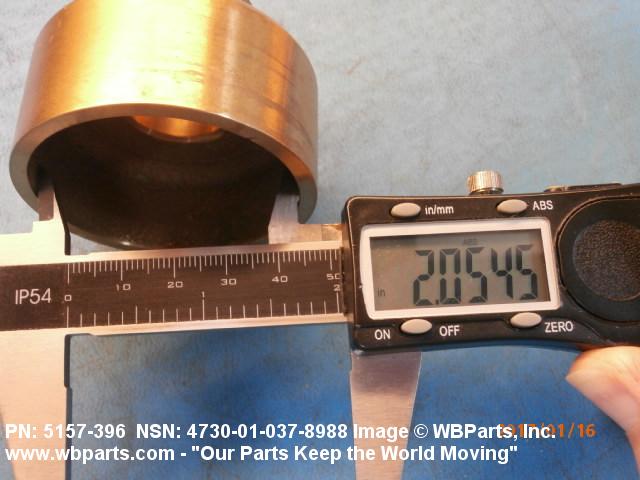

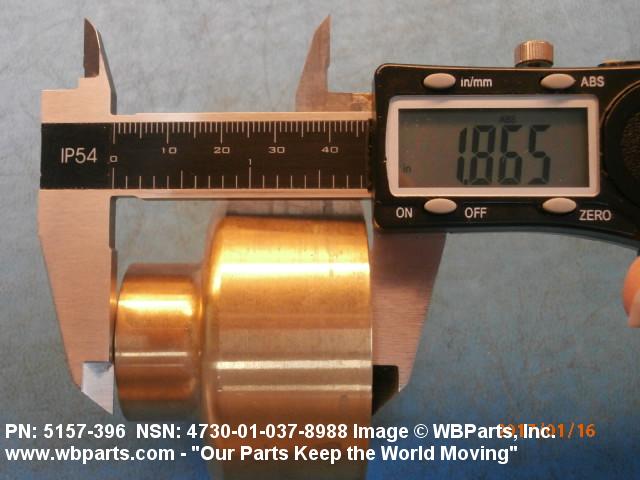

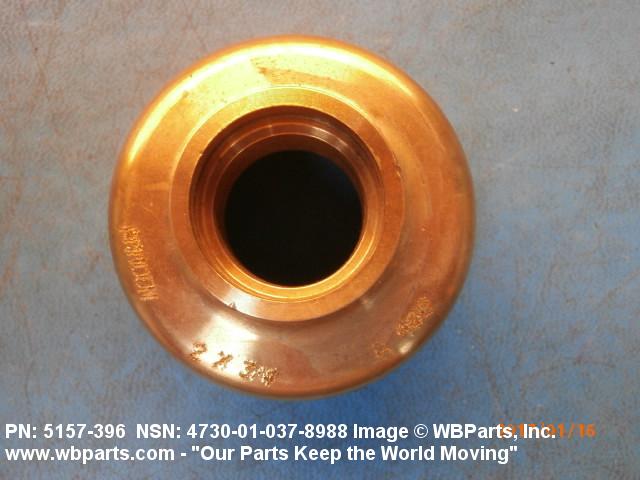

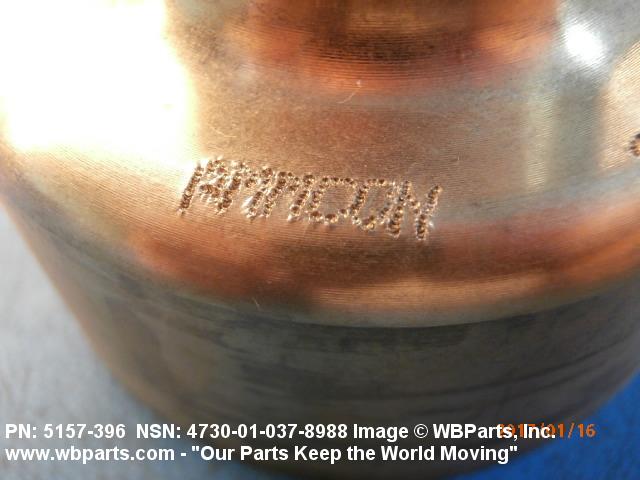

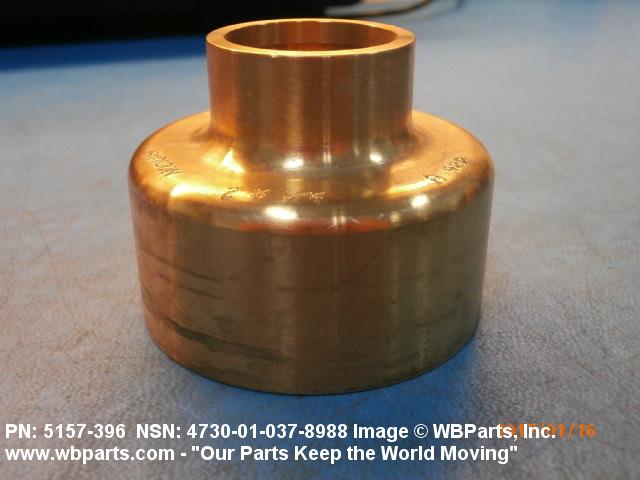

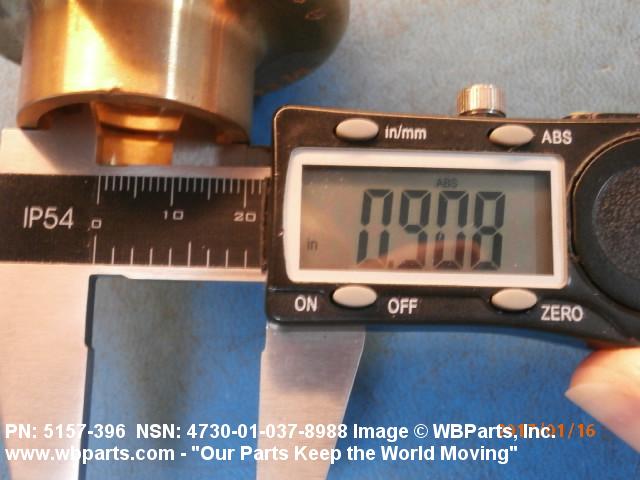

Drawings & Photos | NSN 4730-01-037-8988
Demand History | NSN 4730-01-037-8988
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5157-396 | 2019-07-185 | 63 | DIBBS |
| MILF1183 | 2019-03-63 | 8 | US |
| MILF1183 | 2017-05-137 | 1 | United States |
| 4730-01-037-8988 | 2017-01-30 | 64 | DIBBS |
| 010378988 | 2017-01-03 | 2 | United States |
| 4730-01-037-8988 | 2017-01-01 | 2 | United States |
| 4730-01-037-8988 | 2013-02-32 | 61 | DIBBS |
| 4730-01-037-8988 | 2012-03-68 | 9 | DIBBS |
| MILF1183 | 2010-11-329 | 100 | FR |
| 4730-01-037-8988 | 2008-11-317 | 11 | DIBBS |
Cross Reference | NSN 4730-01-037-8988
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00699067572416 | 72423 | FLAGG STANLEY G & CO INC DBA FLAGG BRASS |
| 5157-396 | 33152 | LBC AQUISITIONS LLC DBA LEE BRASS |
| 5157-396 | 72423 | FLAGG STANLEY G & CO INC DBA FLAGG BRASS |
| FIGURE5157-SIZE CODE396 | 72423 | FLAGG STANLEY G & CO INC DBA FLAGG BRASS |
| MIL-F-1183 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NS269-3212 | 64113 | SIGNAL-HILL CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-037-8988
Related Products | NSN 4730-01-037-8988
Technical Data | NSN 4730-01-037-8988
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MAXIMUM OPERATING PRESSURE | 400.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 218.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | UNTHREADED INTERNAL PIPE 1ST END UNTHREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B41B SOCKET BRAZING RING 1ST END B100B PLAIN 2ND END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.750 INCHES 1ST END 2.000 INCHES 2ND END |
| NOMINAL OVERALL LENGTH | 1.875 INCHES |
| REDUCER TYPE | CONCENTRIC |
| FURNISHED ITEMS AND QUANTITY | 1 PREINSERTED BRAZING RING |
Restrictions/Controls & Freight Information | NSN 4730-01-037-8988
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-037-8988
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
