NSN 4730-01-037-9241 31052, 50713, 01-037-9241
Product Details | UNION NUT
4730-01-037-9241 An internally threaded nut which has an internal seat or shoulder designed to engage the nut retaining flange of a union tailpiece. The threaded portion is used to engage the thread piece of a union, union elbor or the like. Excludes NUT (1), TUBE COUPLING.202109000004730000000
Part Alternates: 31052, 50713, 4730-01-037-9241, 01-037-9241, 4730010379241, 010379241
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 26 MAR 1977 | 01-037-9241 | 19964 ( NUT, UNION ) |

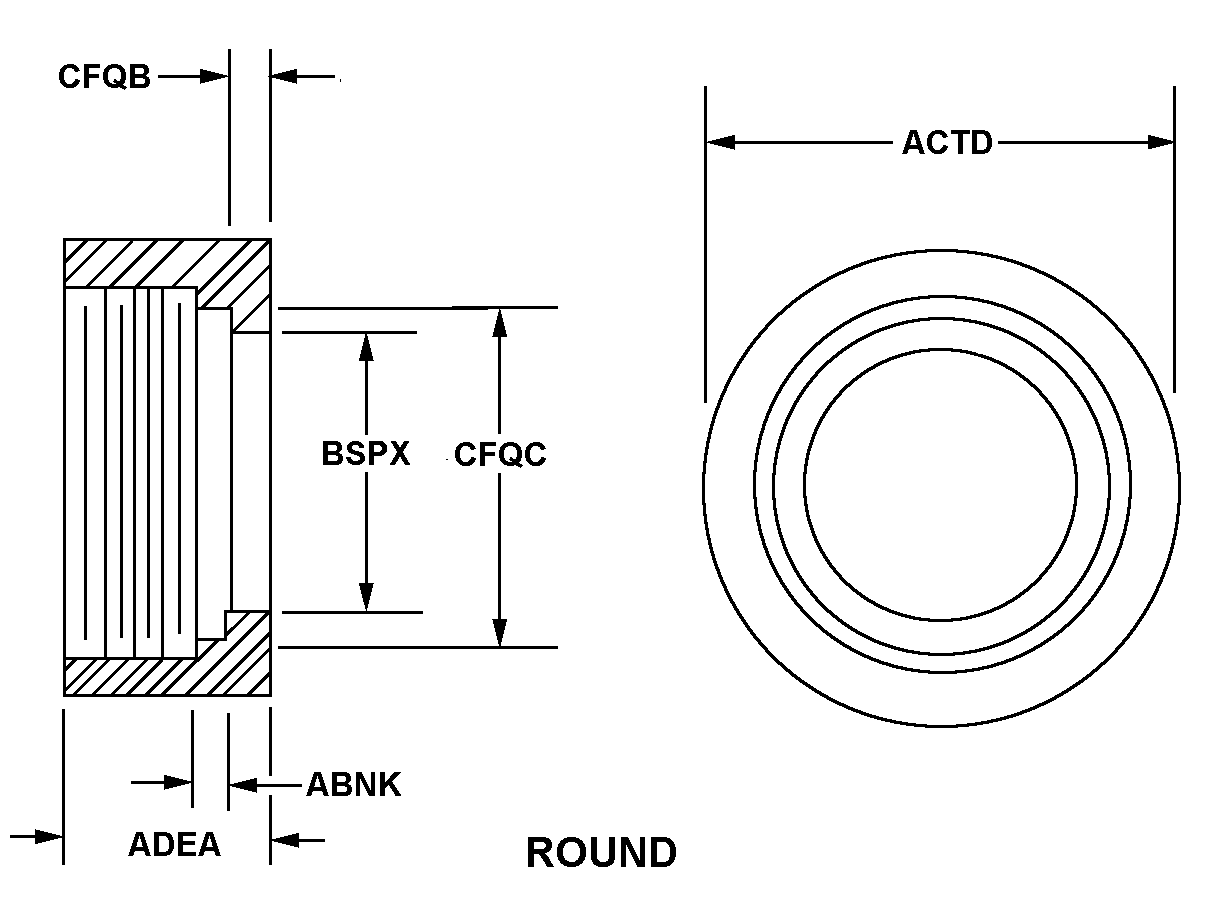

Drawings & Photos | NSN 4730-01-037-9241
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-037-9241
Technical Data | NSN 4730-01-037-9241
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UN |
| NOMINAL THREAD SIZE | 1.625 INCHES |
| THREAD QUANTITY PER INCH | 6 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A370 ROUND |
| SHOULDER WIDTH | 0.219 INCHES NOMINAL |
| NUT DIAMETER | 1.875 INCHES NOMINAL |
| NUT HEIGHT | 1.438 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 1.281 INCHES NOMINAL |
| SHOULDER STEP WIDTH | 0.188 INCHES NOMINAL |
| SHOULDER SEAT DIAMETER | 1.438 INCHES NOMINAL |
| TEMP RATING | NOT RATED |
| MAXIMUM WORKING PRESSURE RATING AND SERVICE FOR WHICH DESIGNED | NOT RATED |
Restrictions/Controls & Freight Information | NSN 4730-01-037-9241
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-037-9241
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
