NSN 4730-01-028-4585 M2435660SC, M24356-60-SC, MILC24356
Product Details | HOSE CLAMP
4730-01-028-4585 A clamp in which the body (band or wire) completely encircles an item and distributes a relatively even amount of pressure throughout the entire 360 degrees (6.282 radians) of the periphery of the item to be compressed. Its compression quality is dependent upon an integral screw mechanism, (screw, bolt spring compression and the like mechanical fasteners), or it may be applied by a device not integral with the clamp itself. It is specifically designed to prevent leakage between a hose and its attaching connection(s) when the body of the clamp is round or circular. For square, rectangular, or irregularly shaped items, see CLAMP, HOSE, SPECIAL-SHAPED. Excludes CLAMP, ELECTRICAL; CLAMP, LOOP; CLAMP, FIRE HOSE, SHUTOFF; FERRULE (as modified); and HAND SCREW.
Part Alternates: M2435660SC, M24356-60-SC, MILC24356, MIL-C-24356, 4730-01-028-4585, 01-028-4585, 4730010284585, 010284585
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 OCT 1976 | 01-028-4585 | 13566 ( CLAMP, HOSE ) |

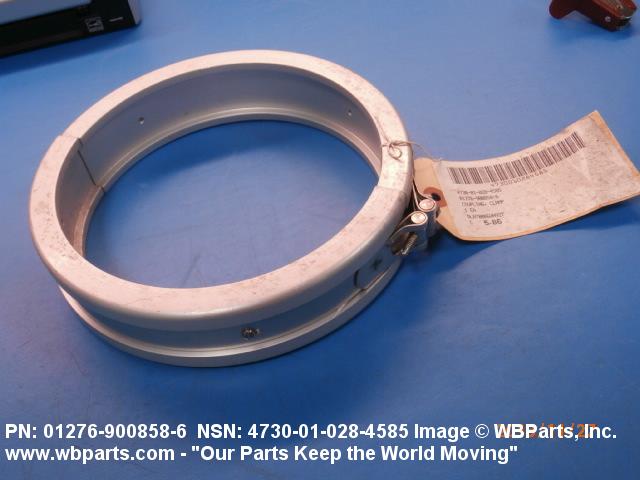

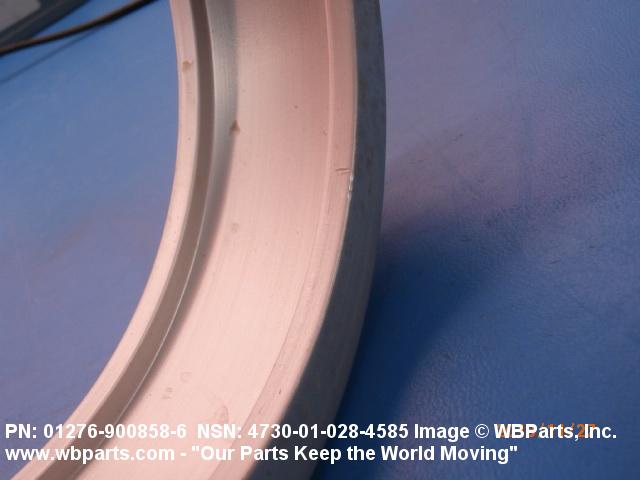

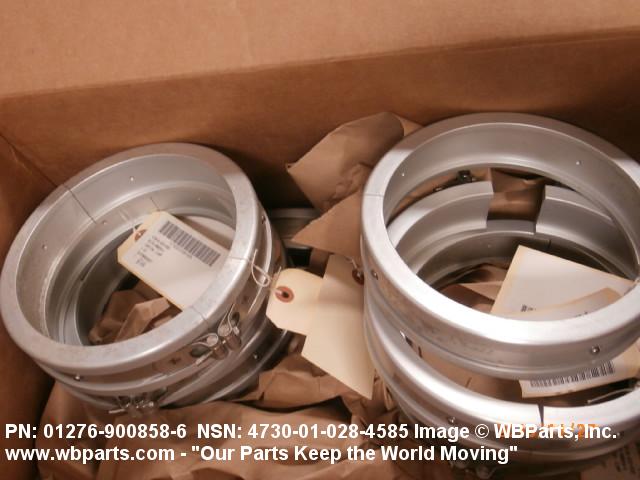

Drawings & Photos | NSN 4730-01-028-4585
Demand History | NSN 4730-01-028-4585
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-028-4585 | 2013-10-298 | 20 | United States |
| 4730-01-028-4585 | 2013-02-46 | 16 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-028-4585
Technical Data | NSN 4730-01-028-4585
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 BAND STEEL COMP 316 SCREW |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B-221,T6 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM B-247,T6 ASSN STD SINGLE MATERIAL RESPONSE BAND ASTM A276 ASSN STD SINGLE MATERIAL RESPONSE SCREW |
| SURFACE TREATMENT | ANODIZE BAND |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 1 MIL SPEC SINGLE TREATMENT RESPONSE BAND |
| STYLE DESIGNATOR | C28 GENERAL PURPOSE USE |

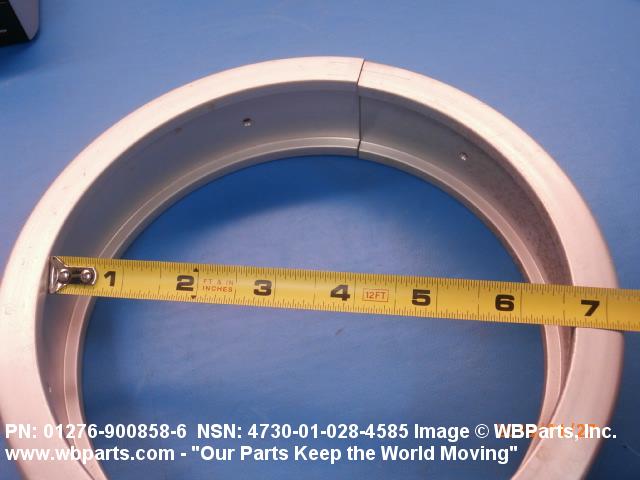

| INSIDE DIAMETER | 6.000 INCHES NOMINAL |

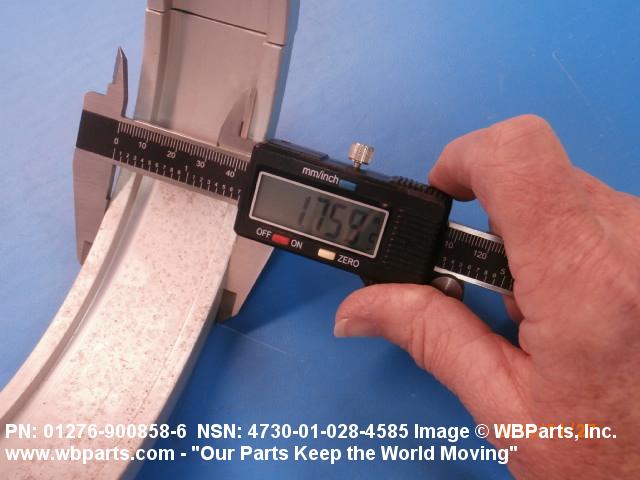

| OVERALL WIDTH | 1.750 INCHES NOMINAL |

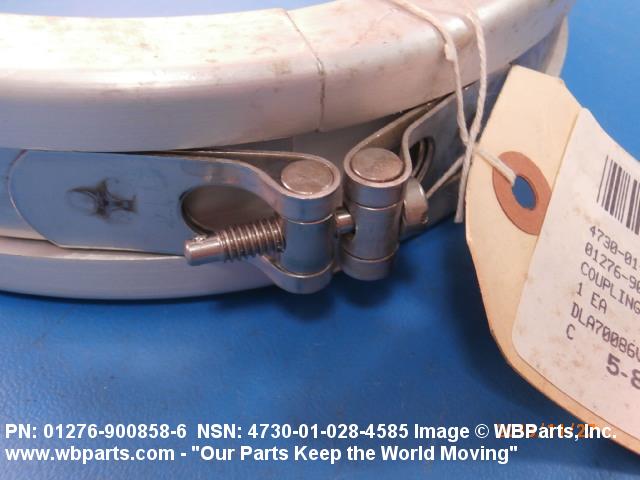

| FASTENING DEVICE TYPE | PLAIN SLOTTED HEAD SCREW |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-24356 GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | SC TYPE AND 60 SIZE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-24356 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24356-60-SC |
Restrictions/Controls & Freight Information | NSN 4730-01-028-4585
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | JS | Naval ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-028-4585
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
