NSN 4730-01-008-5969 MS518255SS, MS51825-5SS, MS518255SSA
Product Details | TUBE FITTING CLINCH SLEEVE
4730-01-008-5969 A flanged cylindrical item having a sharp cutting surface on the inside diameter at the end opposite the flange. The cutting edge, in use, is designed to imbed in the tubing due to pressure exerted when the outside diameter of the sleeve is forced into and against an angular seat. This firmly attaches the sleeve to the tubing and the flanged end then serves as a bearing surface for the coupling nut to bring the tubing into the mating fitting.
Part Alternates: MS518255SS, MS51825-5SS, MS518255SSA, MS51825-5SSA, SAE J514 , SAEJ514, D30114 FIND NO 104, D30114FINDNO104, J5146080115AS, J514-6080115AS , 6TUSS, 6TUSS38IN, 6TU-SS3-8IN, 4730-01-008-5969, 01-008-5969, 4730010085969, 010085969
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 26 AUG 1975 | 01-008-5969 | 18025 ( SLEEVE, CLINCH, TUBE FITTING ) |

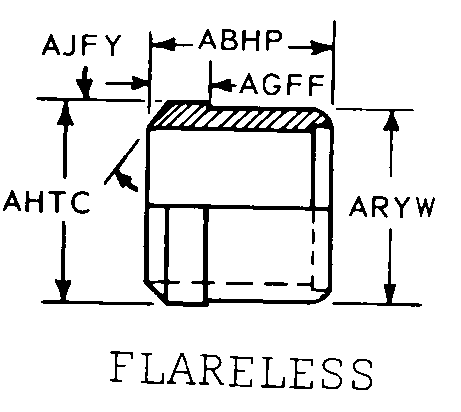

Drawings & Photos | NSN 4730-01-008-5969
Demand History | NSN 4730-01-008-5969
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-008-5969 | 2024-11-309 | 964 | DIBBS |
| MS518255SSA | 2023-10-283 | 50 | United States |
| J5146080115AS | 2022-02-59 | 1 | us |
| 4730-01-008-5969 | 2020-01-16 | 50 | US |
| 6TUSS | 2016-05-148 | 500 | Singapore |
| 6TUSS | 2014-12-356 | 300 | Singapore |
| 4730-01-008-5969 | 2014-09-267 | 4 | MANUAL |
| MS51825-5SS | 2014-09-267 | 4 | GR |
| 4730-01-008-5969 | 2013-10-280 | 3236 | DIBBS |
| 4730-01-008-5969 | 2012-02-48 | 2458 | DIBBS |
| 4730-01-008-5969 | 2011-11-311 | 2570 | DIBBS |
| 4730-01-008-5969 | 2010-05-127 | 22 | US |
| 4730-01-008-5969 | 2010-05-127 | 44 | US |
| SAEJ514 | 2008-11-316 | 400 | US |
Cross Reference | NSN 4730-01-008-5969
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6TU-SS3-8IN | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 6TUSS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 6TUSS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| D30114 FIND NO 104 | 3X894 | CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV |
| J514-6080115AS | 0U583 | SAE INTERNATIONAL |
| MS51825-5SS | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51825-5SSA | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SAE J514 | 0U583 | SAE INTERNATIONAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-008-5969
Related Products | NSN 4730-01-008-5969
Technical Data | NSN 4730-01-008-5969
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| SURFACE TREATMENT | CADMIUM |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.375 INCHES NOMINAL |
| STYLE DESIGNATOR | L2 FLARELESS |
| OVERALL LENGTH | 0.390 INCHES MINIMUM AND 0.393 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 0.492 INCHES MINIMUM AND 0.497 INCHES MAXIMUM |
| SEAT ANGLE IN DEG | 40.0 |
| SLEEVE OUTSIDE DIAMETER | 0.437 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51825-5SSA |
