NSN 4730-00-971-0617 42A8301, 42A8303, 42A8304

Product Details | SELF-SEALING COUPLING HALF

4730-00-971-0617 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an external or internal thread for connecting a mating part to form a self-sealing coupling assembly. The fitting has either a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half, or, if it has no self-sealing feature, is specifically designed to mate with a fitting with a self-sealing feature. For self-sealing fittings with a quick disconnect end, see COUPLING HALF, QUICK DISCONNECT. For fluid line fittings without a self-sealing feature, see COUPLING (as modified).

Part Alternates: 42A8301, 42A8303, 42A8304, 42A8306, 42A8307, 42A8308, 43A13905, 4730-00-971-0617, 00-971-0617, 4730009710617, 009710617

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1962	00-971-0617	18281 ( COUPLING HALF, SELF-SEALING )

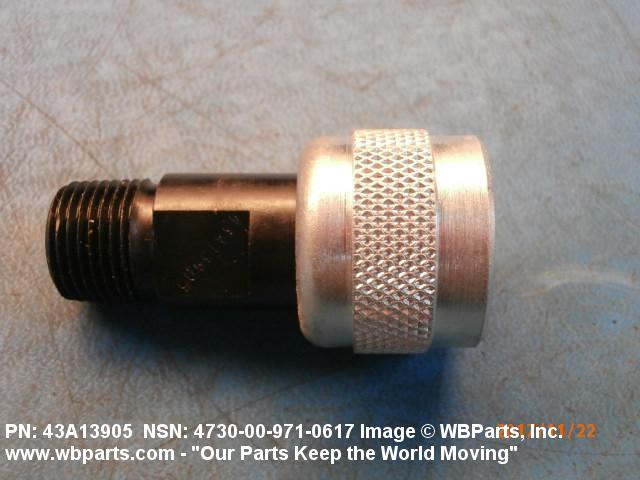

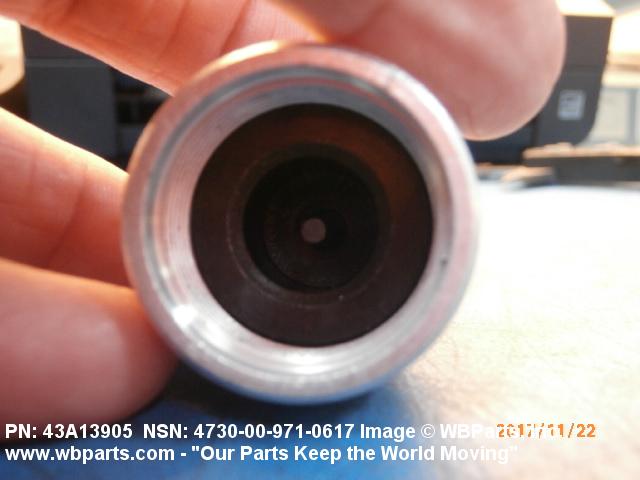

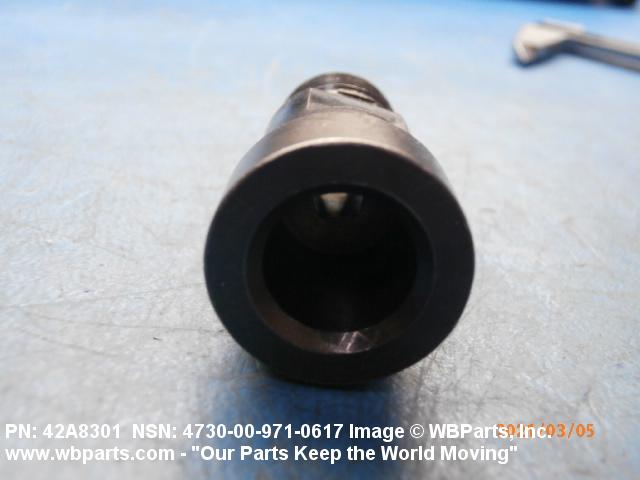

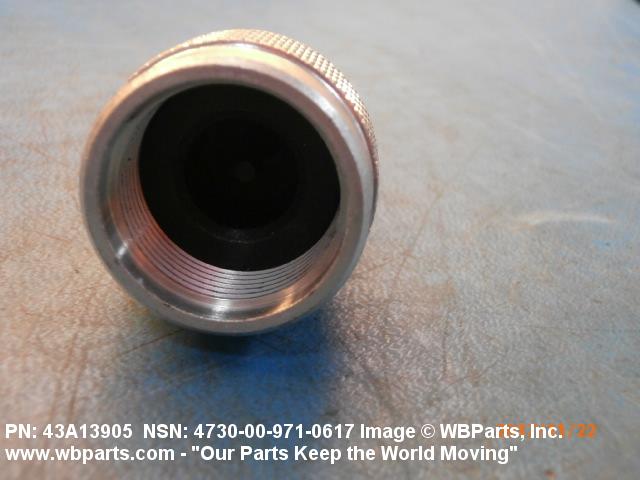

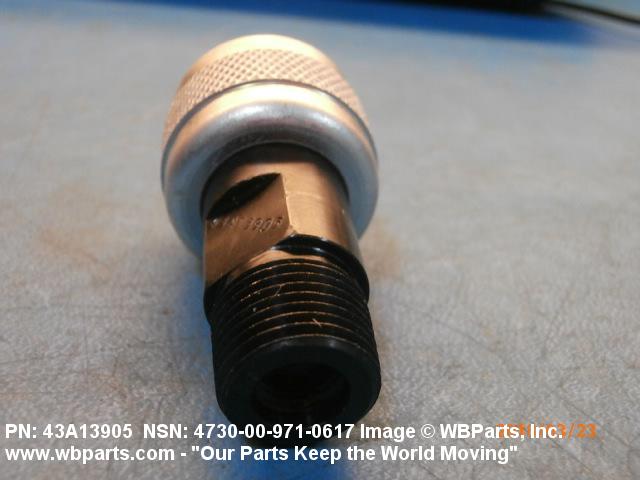

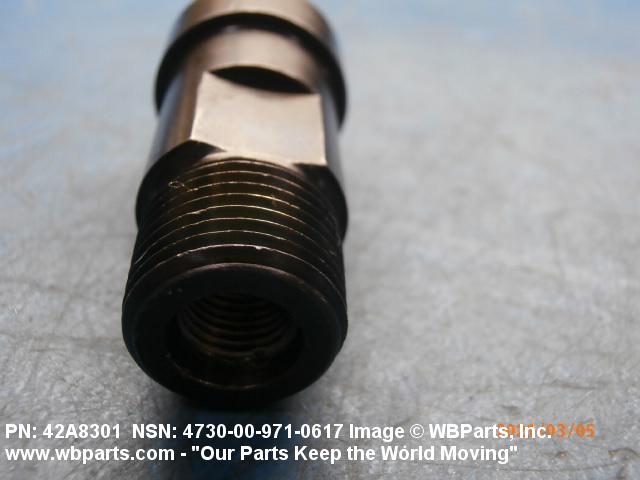

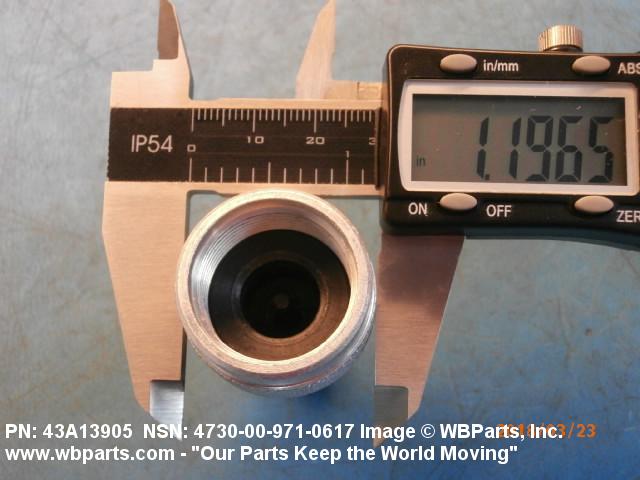

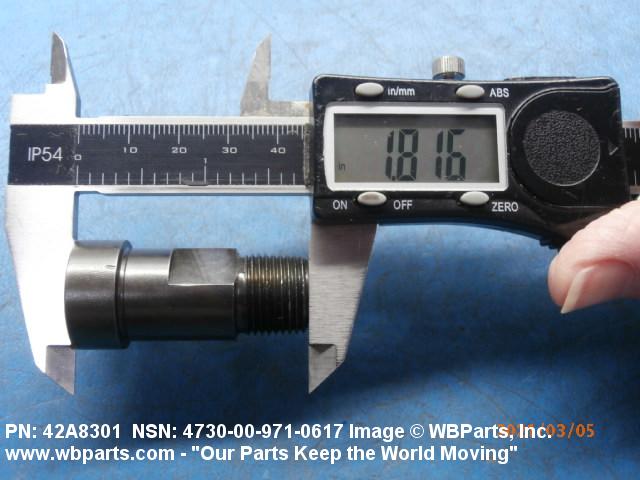

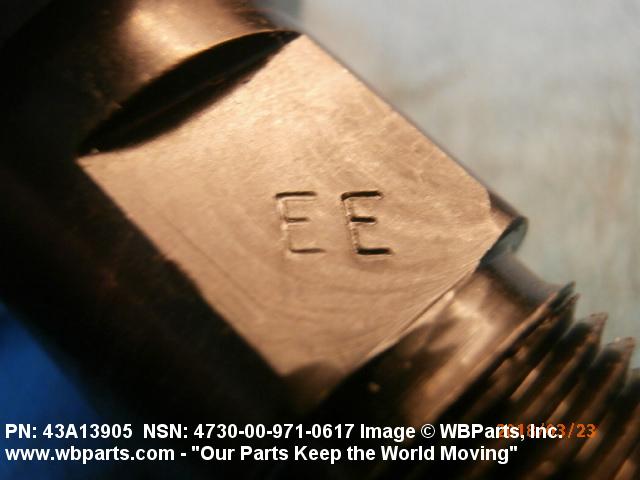

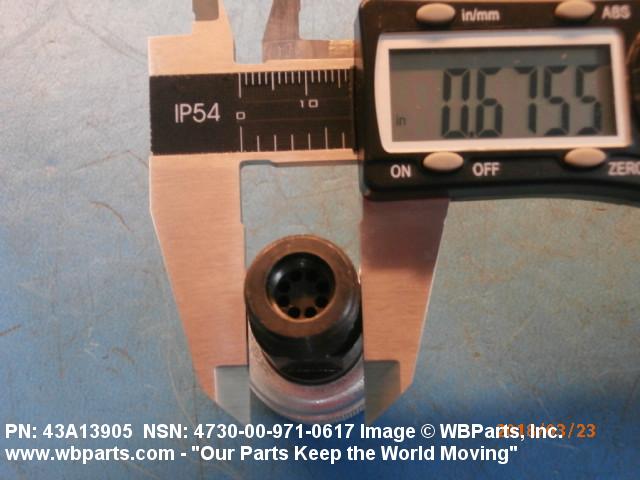

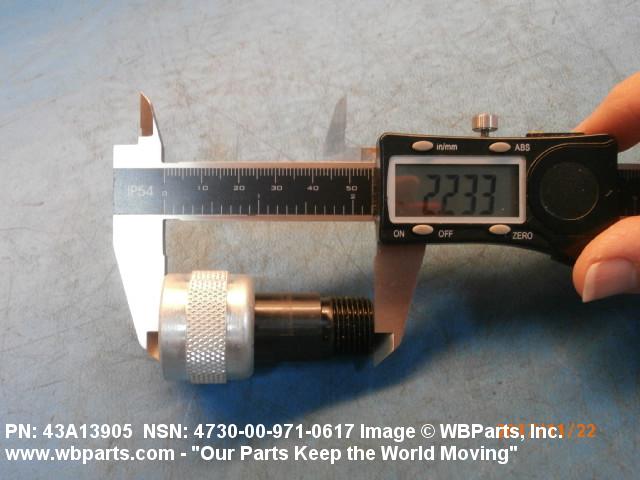

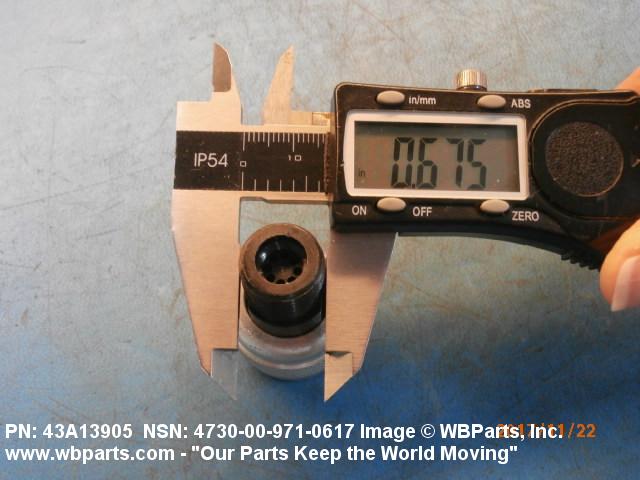

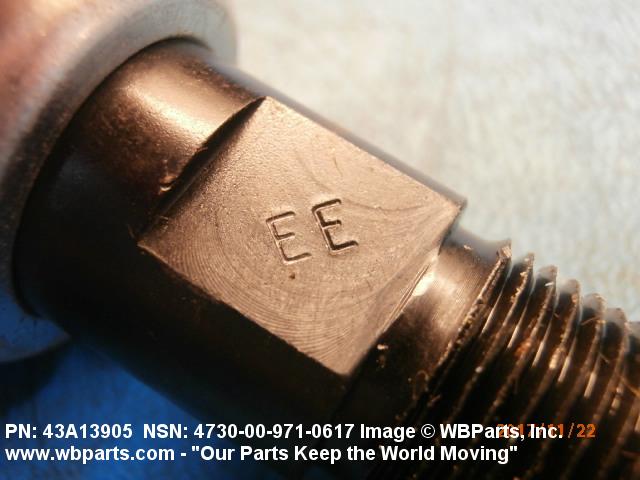

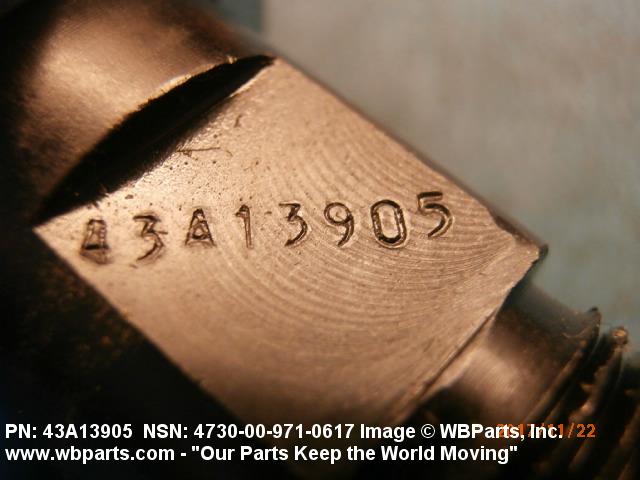

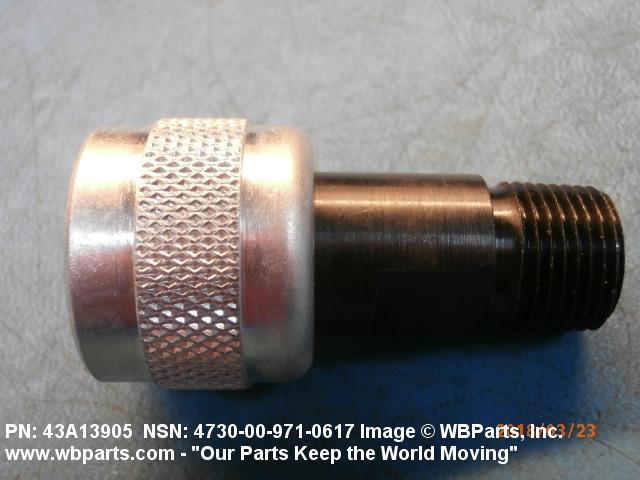

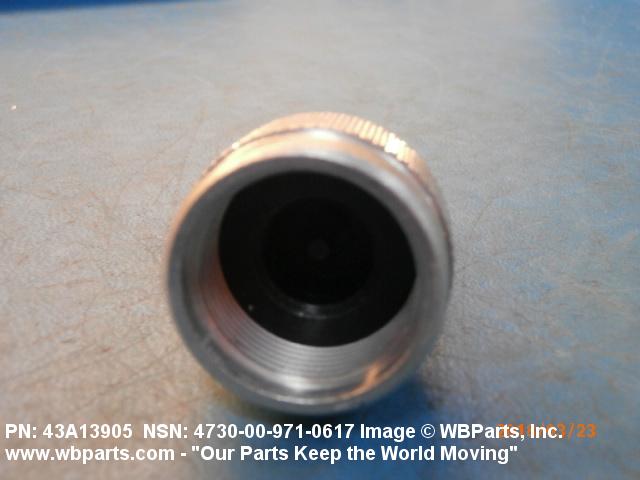

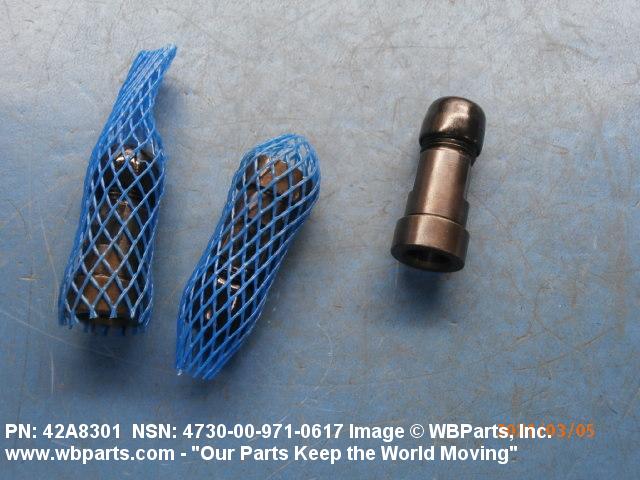

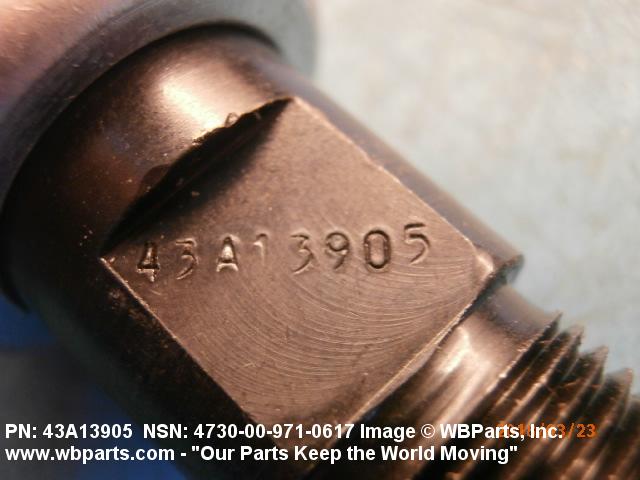

Drawings & Photos | NSN 4730-00-971-0617

Part Number	Request Date	QTY	Origin
4730-00-971-0617	2024-03-72	6	United States
4730-00-971-0617	2024-02-39	1	US
4730-00-971-0617	2023-04-96	60	DIBBS
4730-00-971-0617	2022-11-305	10	US
4730-00-971-0617	2021-09-266	195	DIBBS
4730-00-971-0617	2021-09-252	196	DIBBS
4730-00-971-0617	2021-03-63	1	DIBBS-RFPs
4730-00-971-0617	2021-02-49	810	DIBBS
4730-00-971-0617	2021-02-46	1	United States
4730-00-971-0617	2021-02-43	1	United States
4730-00-971-0617	2021-01-28	456	DIBBS
4730-00-971-0617	2020-11-310	131	DIBBS
4730-00-971-0617	2020-08-233	23	DIBBS
4730-00-971-0617	2020-07-203	250	DIBBS
4730-00-971-0617	2020-03-72	553	DIBBS
4730-00-971-0617	2019-12-336	263	DIBBS
4730-00-971-0617	2019-05-122	226	DIBBS
43A13905	2019-03-60	2	United Kingdom
43A13905	2019-02-51	8	United States
43A13905	2018-08-214	2	United Kingdom
43A13905	2018-02-57	1	United States
43A13905	2018-01-17	1	United States
43A13905	2017-11-320	1	United States
4730-00-971-0617	2017-01-09	307	DIBBS
4730-00-971-0617	2016-04-119	41	DIBBS
4730-00-971-0617	2016-03-83	205	DIBBS
4730-00-971-0617	2016-01-19	2	Taiwan
43A13905	2015-12-349	1	Singapore
4730-00-971-0617	2015-10-298	308	DIBBS
4730-00-971-0617	2015-10-286	2	Taiwan
4730-00-971-0617	2014-09-252	332	DIBBS
4730-00-971-0617	2014-04-98	298	DIBBS
4730-00-971-0617	2014-01-21	494	DIBBS
4730-00-971-0617	2013-12-349	239	DIBBS
4730-00-971-0617	2013-12-349	144	DIBBS
43A13905	2013-06-156	1	US
4730-00-971-0617	2012-01-11	184	DIBBS
4730-00-971-0617	2011-10-293	86	DIBBS
4730-00-971-0617	2011-09-271	189	DIBBS
4730-00-971-0617	2011-07-211	182	DIBBS
4730-00-971-0617	2011-03-69	207	DIBBS
4730-00-971-0617	2011-01-20	112	DIBBS
4730-00-971-0617	2010-12-340	193	DIBBS
4730-00-971-0617	2008-11-318	1580	US
4730-00-971-0617	2008-11-316	1580	DIBBS
4730-00-971-0617	2008-10-289	1043	DIBBS

Cross Reference | NSN 4730-00-971-0617

Part Number	Cage Code	Manufacturer
42A8301	98750	SAN ANTONIO AIR LOGISTICS CENTER
42A8303	98750	SAN ANTONIO AIR LOGISTICS CENTER
42A8304	98750	SAN ANTONIO AIR LOGISTICS CENTER
42A8306	98750	SAN ANTONIO AIR LOGISTICS CENTER
42A8307	98750	SAN ANTONIO AIR LOGISTICS CENTER
42A8308	98750	SAN ANTONIO AIR LOGISTICS CENTER
43A13905	98750	SAN ANTONIO AIR LOGISTICS CENTER
43A13905	98752	WARNER ROBINS AIR LOGISTICS CENTER

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-971-0617

Compare

Related Products | NSN 4730-00-971-0617

4730-00-971-0618, 4730-00-971-1545, 4730-00-971-2600, 4730-00-971-2602, 4730-00-971-2746

Technical Data | NSN 4730-00-971-0617

Characteristic	Specifications
BODY MATERIAL	STEEL
BODY SURFACE TREATMENT	OXIDE AND ZINC
BODY STYLE	1 COUPLING HALF
FIRST LEG LENGTH	1.234 INCHES MINIMUM AND 1.312 INCHES MAXIMUM
MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED	NOT RATED
MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED	NOT RATED

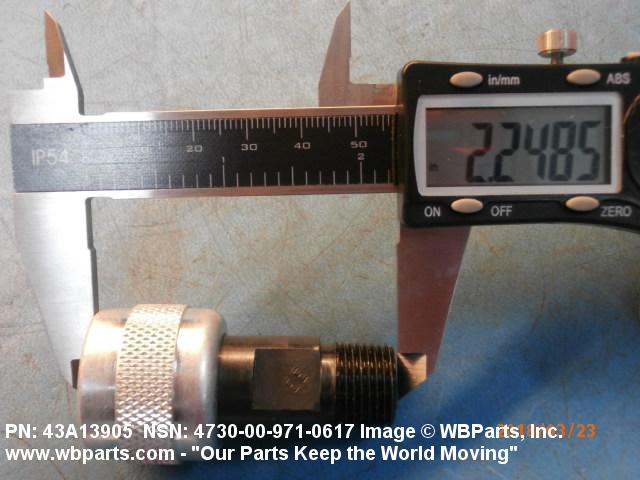

OVERALL LENGTH	2.250 INCHES NOMINAL
FIRST FLUID END CONNECTION TYPE	THREADED EXTERNAL PIPE
FIRST END STYLE DESIGNATOR	D2 PLAIN
FIRST END THREAD SERIES DESIGNATOR	NPTF
FIRST END NOMINAL THREAD SIZE	0.375 INCHES
FEATURES PROVIDED	SELF-SEALING
SPECIAL FEATURES	SUPPORTS GRUMMAN A10 AIRCRAFT

Restrictions/Controls & Freight Information | NSN 4730-00-971-0617

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-971-0617

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
