NSN 4730-00-967-4216 2518168, 5070750, 5070-750
Product Details | PIPE FLANGE
4730-00-967-4216 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: 2518168, 5070750, 5070-750, 81013858928, 810-1385892-8, 4730-00-967-4216, 00-967-4216, 4730009674216, 009674216
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-967-4216 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-00-967-4216
Demand History | NSN 4730-00-967-4216
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-967-4216 | 2024-04-95 | 8 | DIBBS |
| 4730-00-967-4216 | 2020-03-83 | 2 | DIBBS |
| 4730-00-967-4216 | 2020-03-71 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-967-4216
Technical Data | NSN 4730-00-967-4216
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| STYLE DESIGNATOR | 1 ROUND, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 11.750 INCHES NOMINAL |
| FLANGE DIAMETER | 13.500 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.875 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 8 |

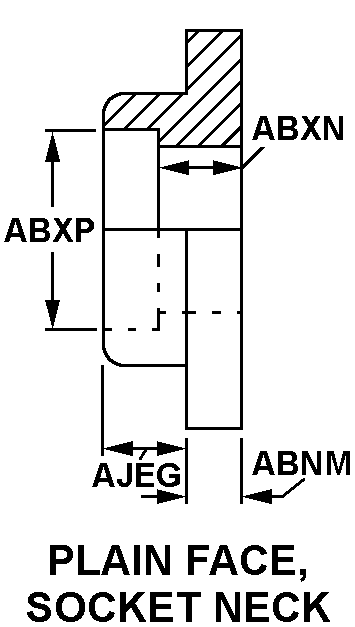

| FLANGE SECTION STYLE | 14 PLAIN FACE, SOCKET NECK |
| THICKNESS | 1.125 INCHES NOMINAL |
| SOCKET DEPTH | 1.250 INCHES NOMINAL |
| SOCKET DIAMETER | 8.719 INCHES NOMINAL |
| NECK HEIGHT | 0.625 INCHES NOMINAL |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 8.000 INCHES |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 225.0 POUNDS PER SQUARE INCH GAS AND 225.0 POUNDS PER SQUARE INCH OIL AND 225.0 POUNDS PER SQUARE INCH WATER |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 150.0 DEG FAHRENHEIT GAS AND 150.0 DEG FAHRENHEIT OIL AND 150.0 DEG FAHRENHEIT WATER |
| FACE SEATING SURFACE CONDITION | MACHINED |
| III END ITEM IDENTIFICATION | YELLOWSTONE CLASS AD-41 |
Restrictions/Controls & Freight Information | NSN 4730-00-967-4216
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-967-4216
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
