NSN 4730-00-967-4218 2518170, 5070820, 5070-820
Product Details | PIPE FLANGE
4730-00-967-4218 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: 2518170, 5070820, 5070-820, 4730-00-967-4218, 00-967-4218, 4730009674218, 009674218
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-967-4218 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-00-967-4218
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-967-4218
Technical Data | NSN 4730-00-967-4218
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| STYLE DESIGNATOR | 1 ROUND, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 17.000 INCHES NOMINAL |
| FLANGE DIAMETER | 19.000 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 1.000 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 12 |

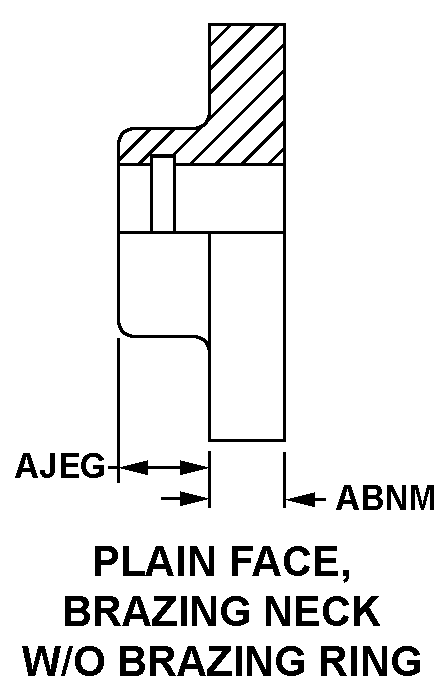

| FLANGE SECTION STYLE | 6A PLAIN FACE, BRAZING NECK W/O BRAZING RING |
| THICKNESS | 1.062 INCHES NOMINAL |
| NECK HEIGHT | 1.062 INCHES NOMINAL |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 12.000 INCHES |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 150.0 POUNDS PER SQUARE INCH STEAM AND 225.0 POUNDS PER SQUARE INCH GAS AND 225.0 POUNDS PER SQUARE INCH OIL AND 225.0 POUNDS PER SQUARE INCH WATER |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 450.0 DEG FAHRENHEIT STEAM AND 150.0 DEG FAHRENHEIT GAS AND 150.0 DEG FAHRENHEIT OIL AND 150.0 DEG FAHRENHEIT WATER |
| FACE SEATING SURFACE CONDITION | MACHINED |
