NSN 4730-00-957-2145 FLUSHBUSHINGS, 00-957-2145, 009572145
Product Details | PIPE BUSHING
4730-00-957-2145 A fitting with pipe threads having a female connection inside of a male connection, used in conjunction with another fitting, to connect in the same line, two pipes of different sizes.
Part Alternates: FLUSHBUSHINGS, 4730-00-957-2145, 00-957-2145, 4730009572145, 009572145
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1960 | 00-957-2145 | 03779 ( BUSHING, PIPE ) |
Drawings & Photos | NSN 4730-00-957-2145
Cross Reference | NSN 4730-00-957-2145
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FLUSHBUSHINGS | 55885 | THOS. SOMERVILLE CO. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-957-2145
Technical Data | NSN 4730-00-957-2145
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |

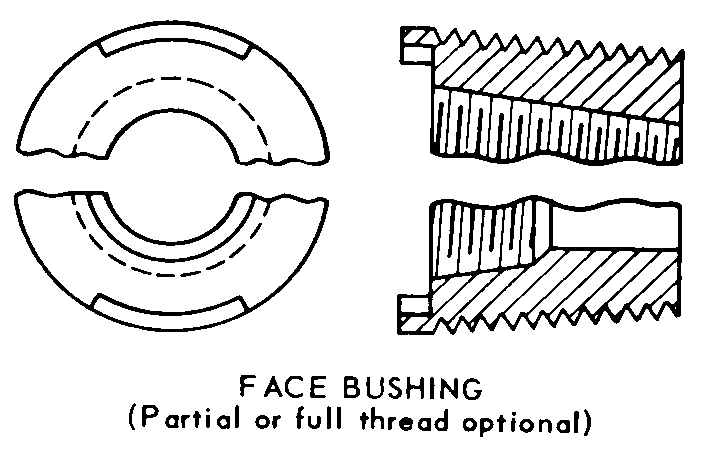

| STYLE DESIGNATOR | N4 FACE BUSHING |
| EXTERNAL THREAD SIZE | 1/2 IN.-14 |
| EXTERNAL SCREW THREAD SERIES DESIGNATOR | NPT |
| EXTERNAL THREAD DIRECTION | RIGHT-HAND |
| INTERNAL THREAD SIZE | 3/8 IN.-18 |
| INTERNAL SCREW THREAD SERIES DESIGNATOR | NPT |
| INTERNAL THREAD DIRECTION | RIGHT-HAND |
| WORKING PRESSURE AND SERVICE TYPE | NOT RATED |
| WORKING TEMP AND SERVICE TYPE | NOT RATED |
Restrictions/Controls & Freight Information | NSN 4730-00-957-2145
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
