NSN 4730-00-955-8951 MS919805, MS9198-05, 00-955-8951
Product Details | TUBE COUPLING NUT
4730-00-955-8951 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: MS919805, MS9198-05, 4730-00-955-8951, 00-955-8951, 4730009558951, 009558951
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 MAY 1966 | 00-955-8951 | 03859 ( NUT, TUBE COUPLING ) |

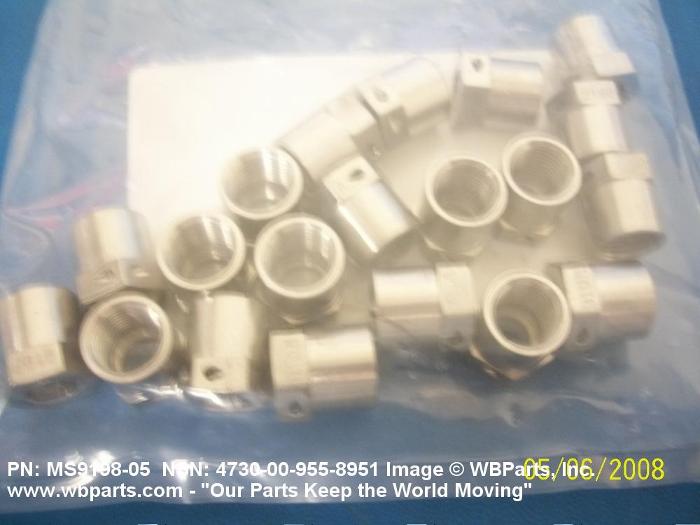

Drawings & Photos | NSN 4730-00-955-8951
Demand History | NSN 4730-00-955-8951
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS919805 | 2014-03-12 | 10 | United States |
| MS919805 | 2014-03-12 | 20 | United States |
| MS919805 | 2014-03-12 | 30 | United States |
| MS919805 | 2014-03-12 | 40 | United States |
| MS919805 | 2014-03-12 | 50 | United States |
| MS919805 | 2014-03-12 | 60 | United States |
| MS919805 | 2013-06-26 | 10 | United States |
| MS919805 | 2013-06-26 | 100 | United States |
| MS919805 | 2013-04-08 | 70 | United States |
| MS919805 | 2013-01-30 | 20 | United States |
| MS919805 | 2013-01-30 | 100 | United States |
| MS919805 | 2012-07-19 | 25 | United States |
| MS919805 | 2012-07-19 | 50 | United States |
| MS919805 | 2012-07-19 | 100 | United States |
| MS919805 | 2011-07-19 | 190 | United States |
| MS919805 | 2011-07-06 | 20 | United States |
| MS919805 | 2010-08-06 | 112 | United States |
| MS919805 | 2008-01-17 | 200 | US |
Cross Reference | NSN 4730-00-955-8951
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS9198-05 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-955-8951
Related Products | NSN 4730-00-955-8951
Technical Data | NSN 4730-00-955-8951
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UN |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD PITCH DIAMETERS | 0.4510 TO 0.4570 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 347 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5646 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| NUT STYLE | A351 TUBE COUPLING |
| NUT HEIGHT | 0.690 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.616 INCHES MINIMUM AND 0.627 INCHES MAXIMUM |
| LENGTH TO SHOULDER | 0.610 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 0.374 INCHES NOMINAL |
| FABRICATION METHOD | ANY ACCEPTABLE |
| NOMINAL TUBE OUTSIDE DIAMETER | 0.312 INCHES |
| SPECIFICATION/STANDARD DATA | 96906-MS9198 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9198-05 |
Restrictions/Controls & Freight Information | NSN 4730-00-955-8951
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-955-8951
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
