NSN 4730-00-928-8760 MS208196C, MS20819-6C, MS208196K
Product Details | TUBE FITTING FLARED SLEEVE
4730-00-928-8760 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: MS208196C, MS20819-6C, MS208196K, MS20819-6K, AS4841, AS5176, AS5176K06, 4730-00-928-8760, 00-928-8760, 4730009288760, 009288760
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 31 AUG 1966 | 00-928-8760 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |

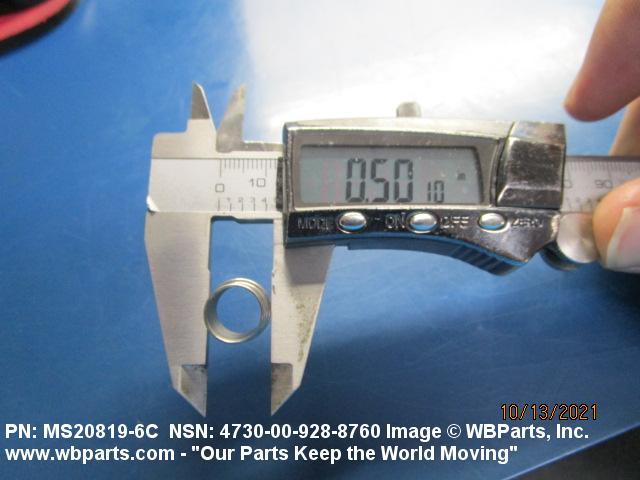

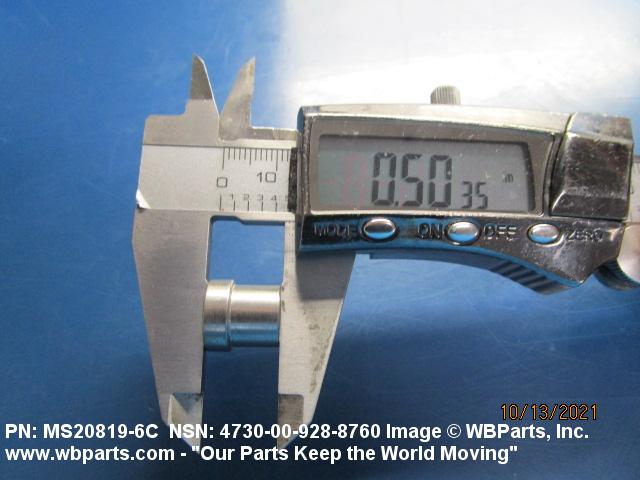

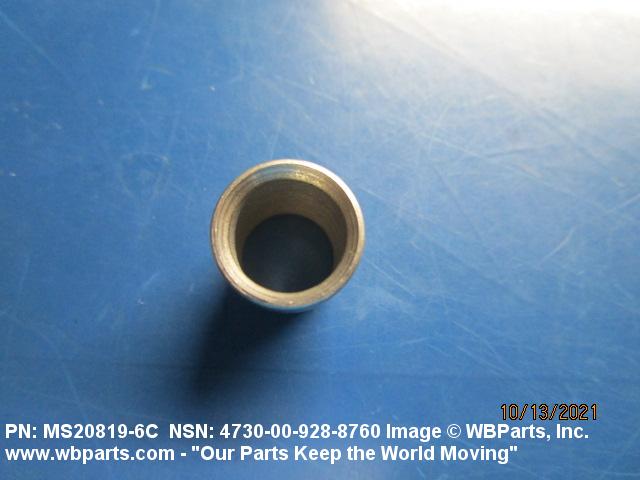

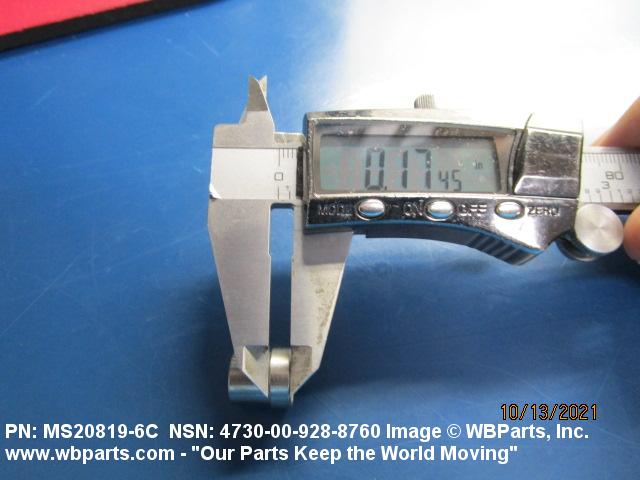

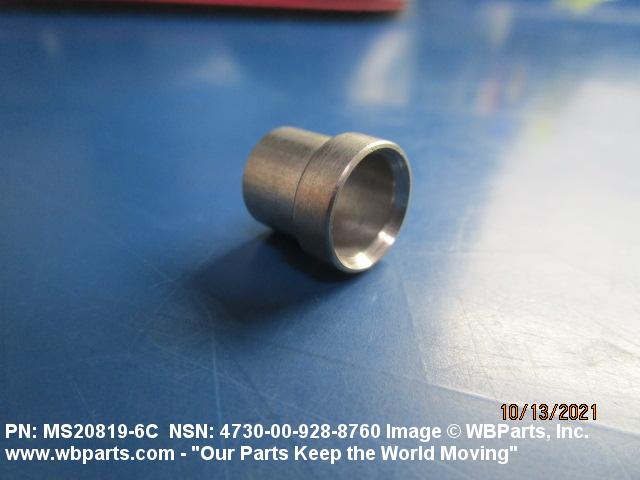

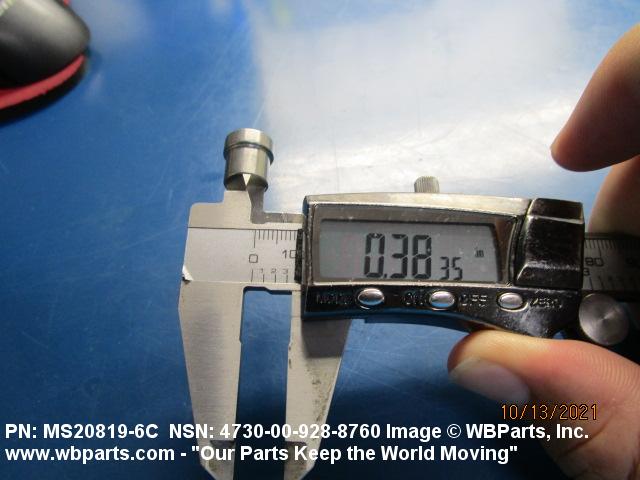

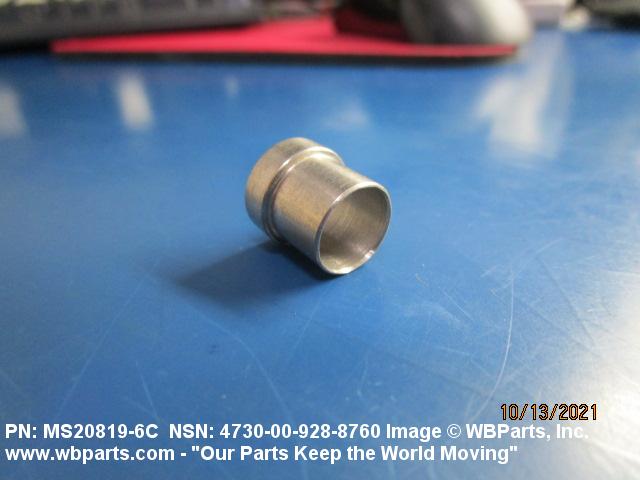

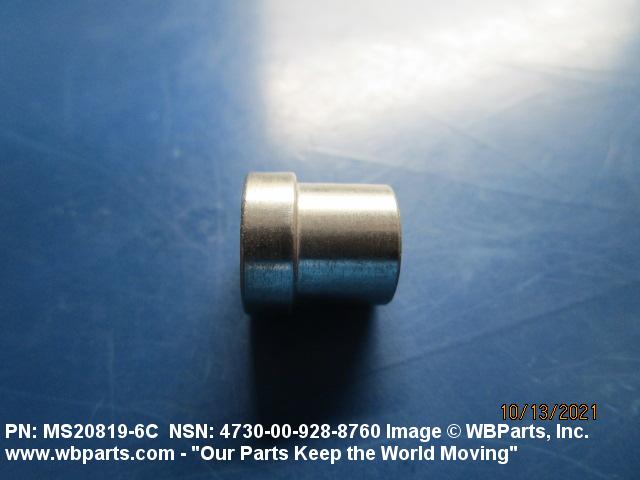

Drawings & Photos | NSN 4730-00-928-8760
Demand History | NSN 4730-00-928-8760
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-928-8760 | 2025-04-113 | 56 | United States |
| AS5176K06 | 2025-04-113 | 56 | United States |
| AS4841 | 2025-04-106 | 1 | France |
| AS5176K06 | 2022-01-27 | 10 | US |
| MS208196C | 2021-09-270 | 5 | United States |
| AS5176K06 | 2020-07-198 | 20 | United States |
| AS5176K06 | 2019-10-288 | 256 | United States |
| AS5176K06 | 2019-05-142 | 25 | United States |
| MS208196K | 2019-03-77 | 104 | United States |
| 4730-00-928-8760 | 2018-01-29 | 4223 | DIBBS |
| 4730-00-928-8760 | 2018-01-16 | 4223 | DIBBS |
| AS5176K06 | 2016-08-243 | 4 | US |
| 4730-00-928-8760 | 2016-08-214 | 1087 | DIBBS |
| 4730-00-928-8760 | 2016-06-167 | 1747 | DIBBS |
| 4730-00-928-8760 | 2016-01-03 | 1263 | DIBBS |
| AS5176K06 | 2013-07-200 | 10 | US |
| 4730-00-928-8760 | 2012-02-55 | 1890 | DIBBS |
| AS5176K06 | 2011-07-192 | 448 | US |
| AS4841 | 2011-03-69 | 8 | |
| MS208196C | 2008-11-324 | 2 | France |
Cross Reference | NSN 4730-00-928-8760
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5176 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5176K06 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS20819-6C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20819-6K | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-928-8760
Related Products | NSN 4730-00-928-8760
Technical Data | NSN 4730-00-928-8760
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-763, CLASS 316 |
| SURFACE TREATMENT | PASSIVATED |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.375 INCHES NOMINAL |
| STYLE DESIGNATOR | M1 SLEEVE |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| FLANGE WIDTH | 0.172 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.502 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 33.0 |
| SLEEVE OUTSIDE DIAMETER | 0.432 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4730-00-928-8760
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | 86 | NASA Kennedy Space Center Kennedy Space Center, FL 32899 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-928-8760
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
