NSN 4730-00-919-4651 MS219214J, MS21921-4J, AS18280

Product Details | TUBE COUPLING NUT

4730-00-919-4651 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.

Part Alternates: MS219214J, MS21921-4J, AS18280, AS21921, CVC4257J4, DV600CJ, MILF18280, MIL-F-18280, VSF12124CC, VSF1212-4CC, 20221600C4, 202-21600C4, 2652291C4, 47810130004, 4781013-0004, 4730-00-919-4651, 00-919-4651, 4730009194651, 009194651

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	10 AUG 1966	00-919-4651	03859 ( NUT, TUBE COUPLING )

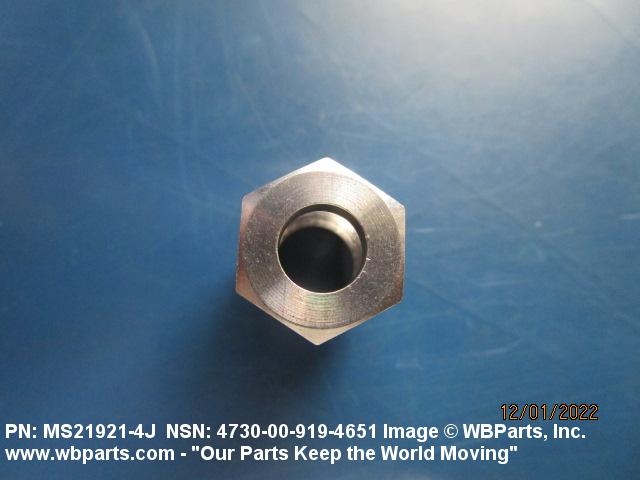

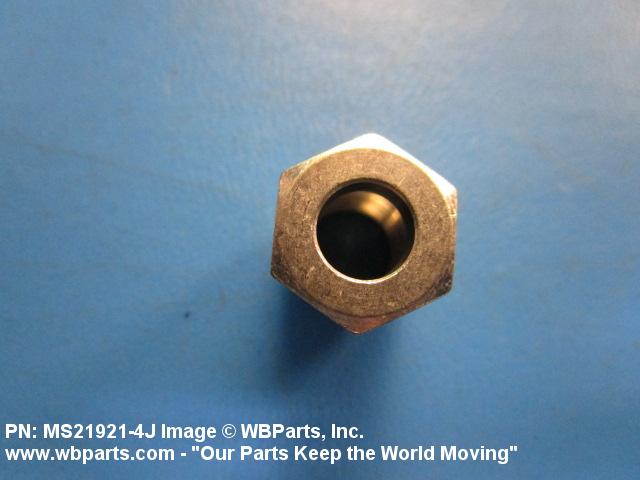

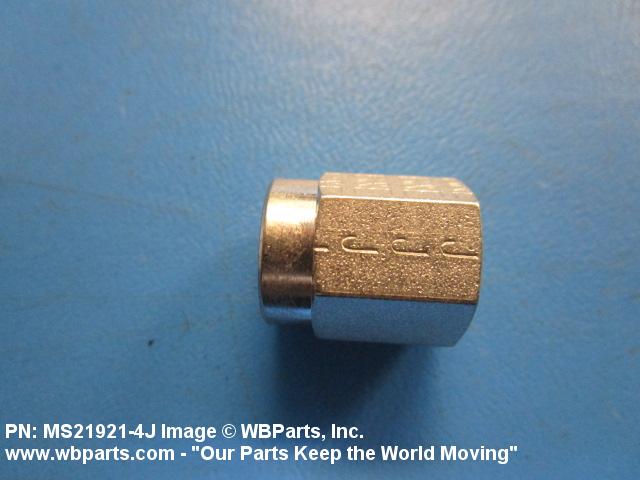

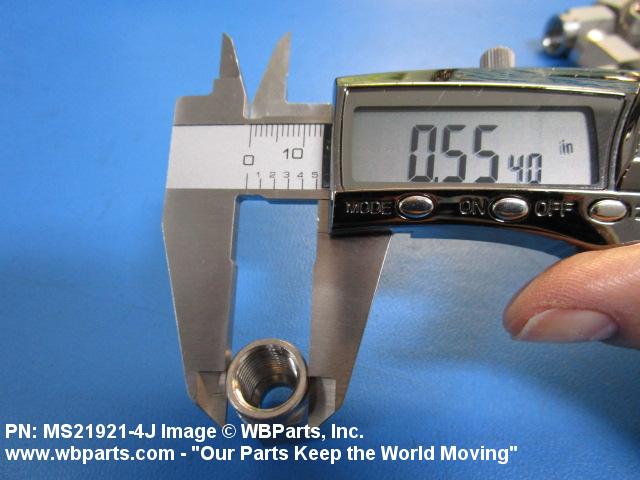

Drawings & Photos | NSN 4730-00-919-4651

Part Number	Request Date	QTY	Origin
MS219214J	2024-09-254	200	United States
MS219214J	2024-08-242	7	Japan
4730-00-919-4651	2024-07-207	559	DIBBS
4730-00-919-4651	2024-07-196	559	DIBBS
4730-00-919-4651	2024-06-177	30	United States
MS219214J	2024-03-66	20	United States
MS219214J	2023-07-206	200	Germany
MS219214J	2023-05-150	490	United States
MS219214J	2022-08-213	480	United States
MS219214J	2022-08-213	2400	United States
MS219214J	2022-07-194	600	US
MS219214J	2022-05-138	500	United States
MS219214J	2022-05-138	1000	United States
MS219214J	2022-04-96	20	United States
MS219214J	2022-03-69	32	Germany
MS219214J	2021-12-344	32	Germany
MS219214J	2021-08-237	400	United States
MS219214J	2021-08-237	325	United States
MS219214J	2021-08-216	20	United States
MS219214J	2020-10-303	410	United States
MS219214J	2020-04-115	100	Italy
MS219214J	2020-01-13	530	United States
MS219214J	2019-12-340	15	United States
MS219214J	2019-11-315	120	United States
MS219214J	2019-07-206	20	US
MS219214J	2019-04-114	6	United States
4730-00-919-4651	2019-04-97	2193	DIBBS
4730-00-919-4651	2018-10-275	1474	DIBBS
MS219214J	2018-08-232	100	IN
MS219214J	2018-02-53	3000	US
MS219214J	2017-09-271	275	United States
4730-00-919-4651	2017-06-179	10	US
MS219214J	2016-07-195	375	United States
4730-00-919-4651	2016-04-101	2144	DIBBS
MS219214J	2015-03-79	500	IT
MS219214J	2014-11-324	12	US
AS18280	2014-10-280	1	US
4730-00-919-4651	2014-06-152	1771	DIBBS
MS219214J	2014-05-147	45	Spain
MS219214J	2013-06-179	60	US
MS219214J	2013-06-179	120	US
MS219214J	2013-06-179	240	US
AS21921	2013-03-73	20	US
AS21921	2013-03-73	50	US
AS21921	2013-03-73	100	US
AS21921	2013-03-73	20	US
AS21921	2013-03-73	50	US
AS21921	2013-03-73	100	US
MS219214J	2013-03-60	1260	IN
MS219214J	2012-03-79	1000	US
47810130004	2010-05-131	10	US
AS21921	2010-04-95	4	Seychelles
MS219214J	2009-11-329	5	United States
MS219214J	2009-11-329	5	United States
MS219214J	2009-02-47	10	US
MS219214J	2006-08-216	200	Thailand

Cross Reference | NSN 4730-00-919-4651

Part Number	Cage Code	Manufacturer
202-21600C4	80378	TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT
2652291C4	92003	PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS
4730009194651	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
4781013-0004	99657	MAROTTA CONTROLS, INC.
AS18280	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS21921	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
CVC4257J4	80378	TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT
DV600CJ	17419	DEUTSCH CO THE
MIL-F-18280	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS21921-4J	01673	SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS
MS21921-4J	1V757	WESCO AIRCRAFT HARDWARE CORP.
MS21921-4J	66774	PRECISION AIRCRAFT MACHINING COMPANY, INC.
MS21921-4J	80378	TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT
MS21921-4J	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS21921-4J	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
VSF1212-4CC	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
VSF1212-4CC	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-919-4651

Compare

Related Products | NSN 4730-00-919-4651

4730-00-919-4868, 4730-00-919-4911, 4730-00-919-5510, 4730-00-919-5547, 4730-00-919-5618

Technical Data | NSN 4730-00-919-4651

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.438 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 304 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-763,CLASS 304 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
NUT STYLE	A350 TUBE COUPLING

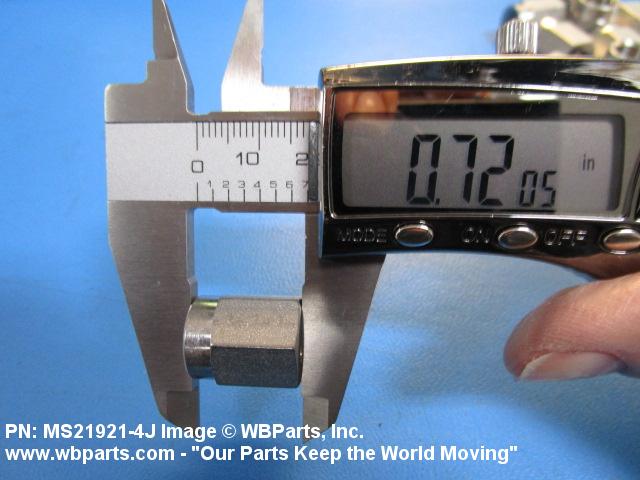

NUT HEIGHT	0.720 INCHES NOMINAL

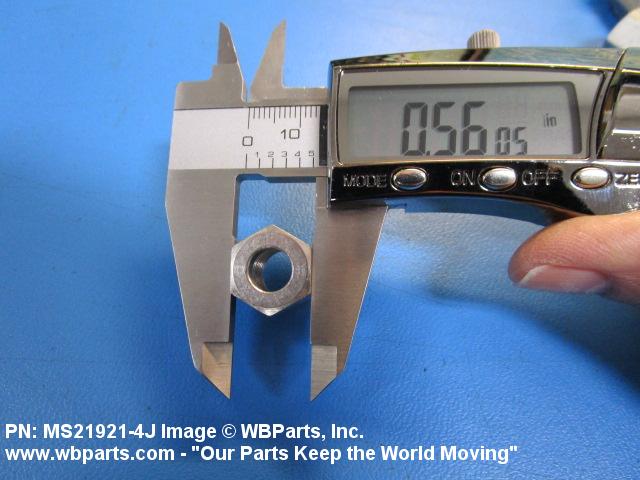

WIDTH ACROSS FLATS	0.562 INCHES NOMINAL

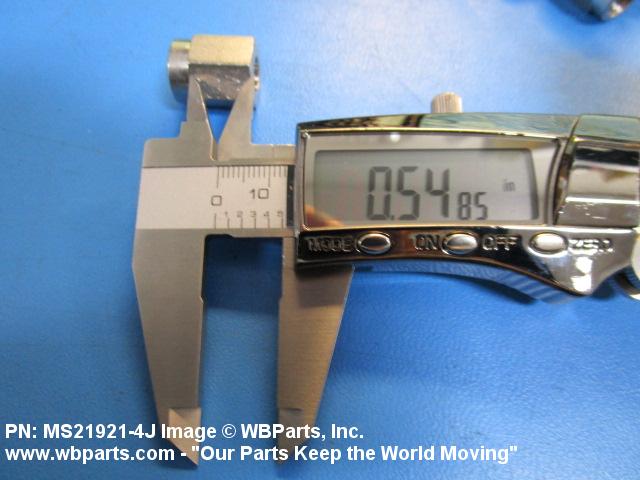

LENGTH TO SHOULDER	0.547 INCHES NOMINAL

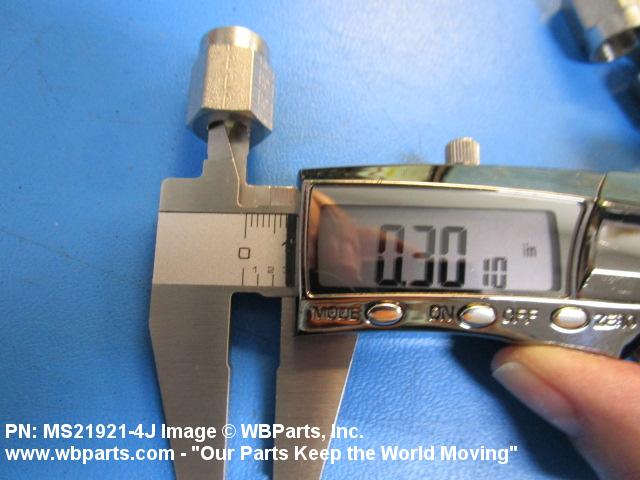

SMALLEST INSIDE DIAMETER	0.300 INCHES NOMINAL
SEAT ANGLE	45.00 DEGREES NOMINAL
FABRICATION METHOD	MACHINED
NOMINAL TUBE OUTSIDE DIAMETER	0.250 INCHES
SPECIFICATION/STANDARD DATA	96906-MS21921 GOVERNMENT STANDARD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-F-18280
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21921-4J

Restrictions/Controls & Freight Information | NSN 4730-00-919-4651

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	CT	U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-919-4651

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Operational Test Code	0	Items of supply which when properly packaged and placed in storage, do not require the performance of special procedures while in storage, nor prior to issue, and for which it has been determined that existing Care in Stores quality control procedures are adequate.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
