NSN 4730-00-908-6975 NAS1564126, NAS1564-12-6, 00-908-6975
Product Details | TUBE REDUCER BODY
4730-00-908-6975 An incomplete fitting which upon installation is designed to join together in a straight line two tubing lines and/or fittings of different sizes. The item consists of the body which has a complete end connection on one end; the other end is designed to mate with a tube or tube fitting but requires an additional nut and/or sleeve to make a complete end connection.
Part Alternates: NAS1564126, NAS1564-12-6, 4730-00-908-6975, 00-908-6975, 4730009086975, 009086975
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 20 JUN 1966 | 00-908-6975 | 61840 ( REDUCER BODY, TUBE ) |

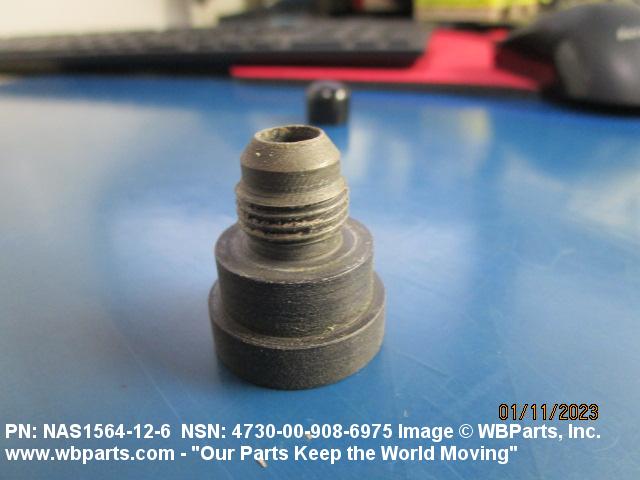

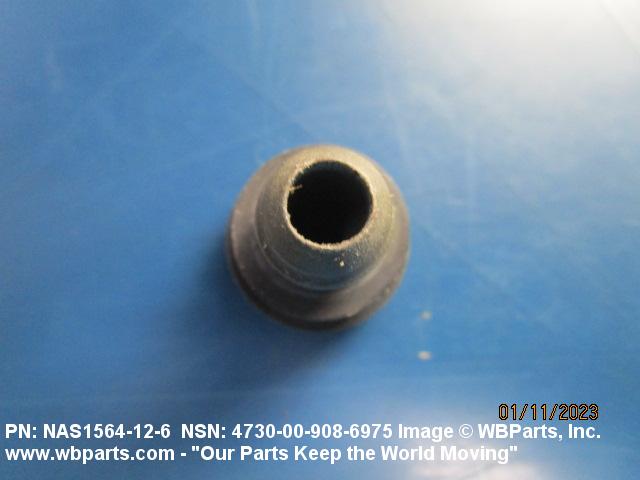

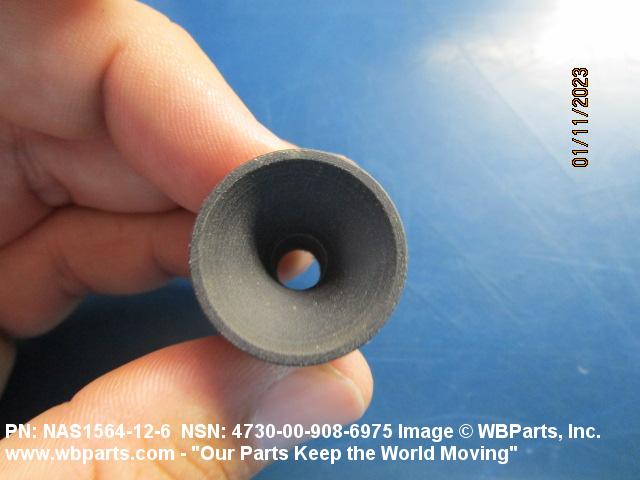

Drawings & Photos | NSN 4730-00-908-6975
Demand History | NSN 4730-00-908-6975
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-908-6975 | 2023-01-25 | 62 | DIBBS |
| NAS1564126 | 2022-12-349 | 2 | United States |
| 4730-00-908-6975 | 2022-05-146 | 62 | DIBBS |
| 4730-00-908-6975 | 2019-10-276 | 222 | DIBBS |
| 4730-00-908-6975 | 2019-10-275 | 95 | DIBBS |
| 4730-00-908-6975 | 2013-06-170 | 458 | DIBBS |
| 4730-00-908-6975 | 2013-06-155 | 458 | DIBBS |
| 4730-00-908-6975 | 2009-04-98 | 741 | DIBBS |
Cross Reference | NSN 4730-00-908-6975
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1564-12-6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-908-6975
Related Products | NSN 4730-00-908-6975
Technical Data | NSN 4730-00-908-6975
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-637, COMP 1137 OR STEEL, QQ-S-637, COMP 1141 |
| SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 1, CLASS 2 |
| STYLE DESIGNATOR | U10 REDUCER BODY |

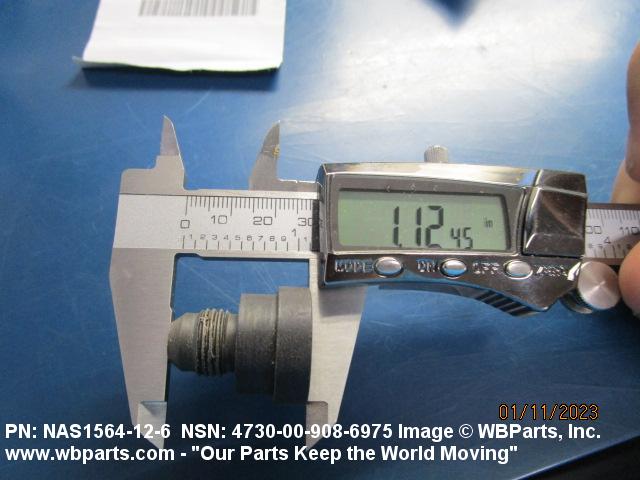

| OVERALL LENGTH | 1.125 INCHES NOMINAL |
| FLANGE WIDTH | 0.266 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.972 INCHES NOMINAL |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| SECOND END SEAT ANGLE IN DEG | 37.0 |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.750 INCHES NOMINAL 0.375 INCHES NOMINAL |
| THREAD SIZE | 0.562-18 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| WORKING PRESSURE AND SERVICE TYPE | 3000.0 POUNDS PER SQUARE INCH NOMINAL ANY ACCEPTABLE |
| WORKING TEMP AND SERVICE TYPE | NOT RATED |
| SPECIFICATION/STANDARD DATA | 80205-NAS1564 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 4730-00-908-6975
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-908-6975
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
