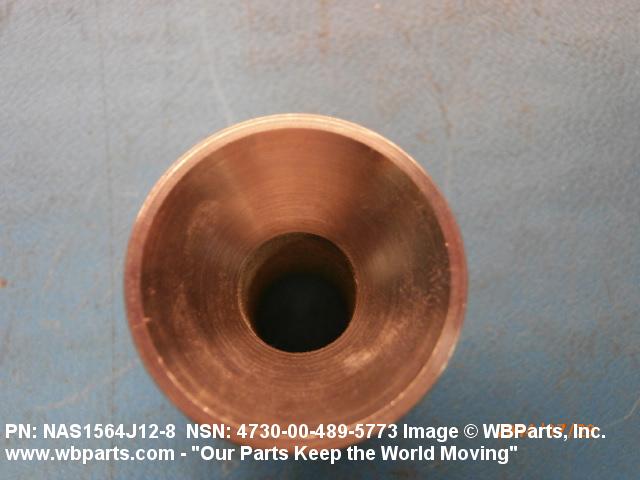

Product Details | TUBE REDUCER BODY

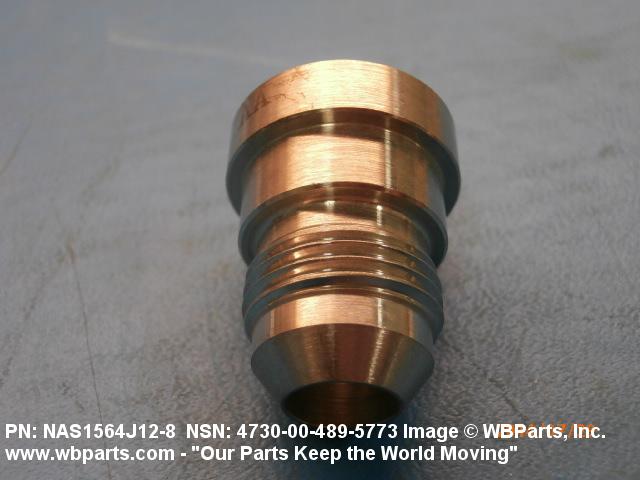

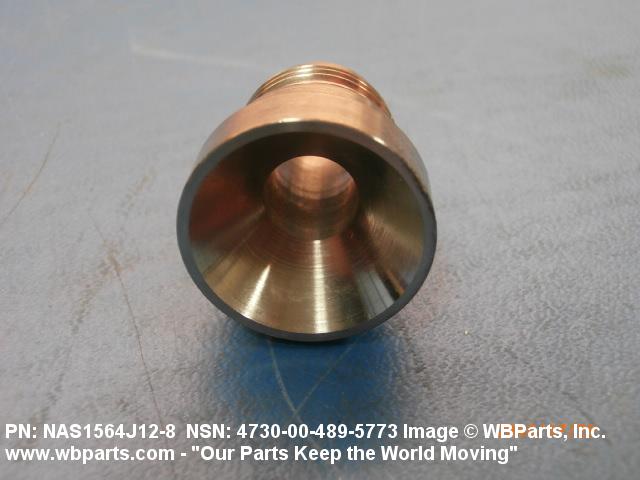

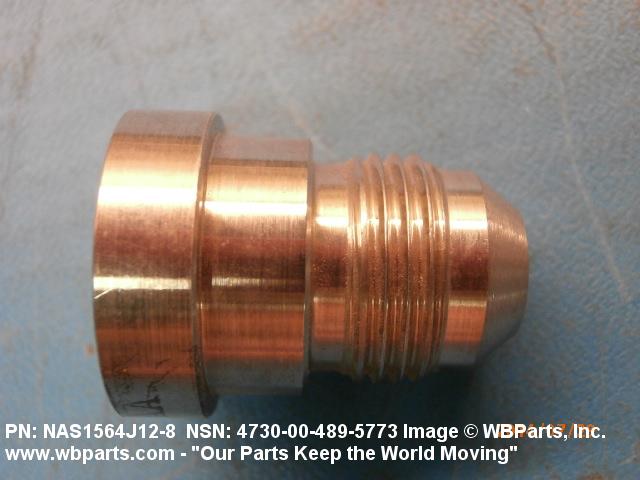

4730-00-489-5773 An incomplete fitting which upon installation is designed to join together in a straight line two tubing lines and/or fittings of different sizes. The item consists of the body which has a complete end connection on one end; the other end is designed to mate with a tube or tube fitting but requires an additional nut and/or sleeve to make a complete end connection.
Part Alternates: NAS1564J128, NAS1564J12-8, 4730-00-489-5773, 00-489-5773, 4730004895773, 004895773
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 MAY 1970 | 00-489-5773 | 61840 ( REDUCER BODY, TUBE ) |

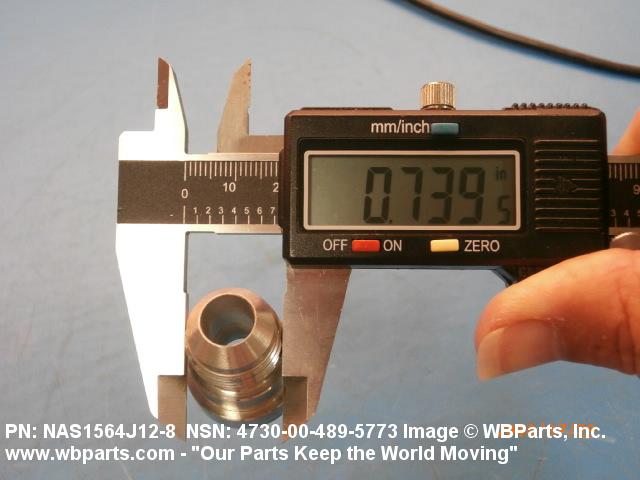

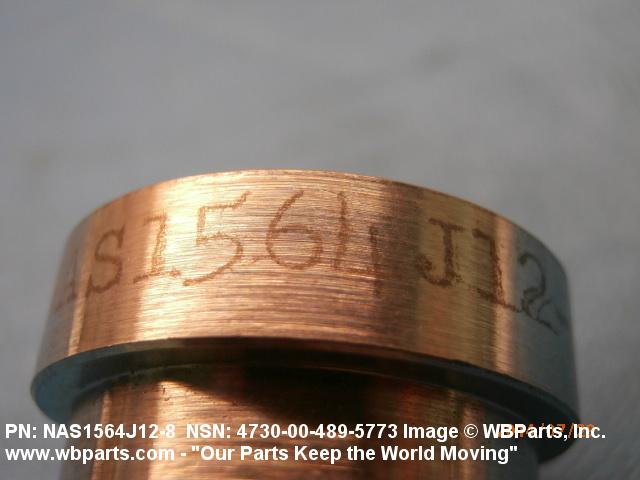

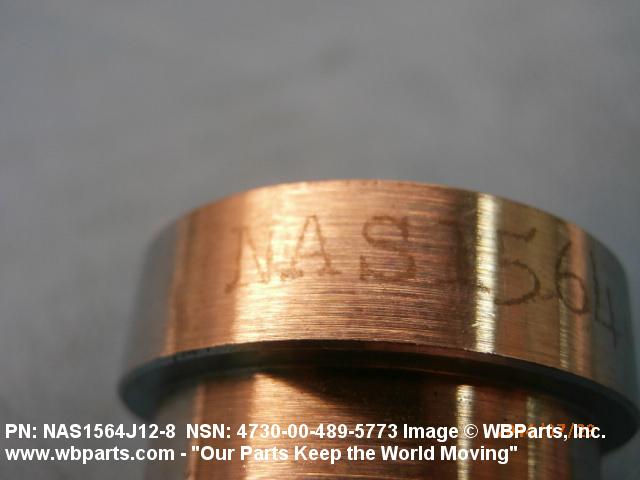

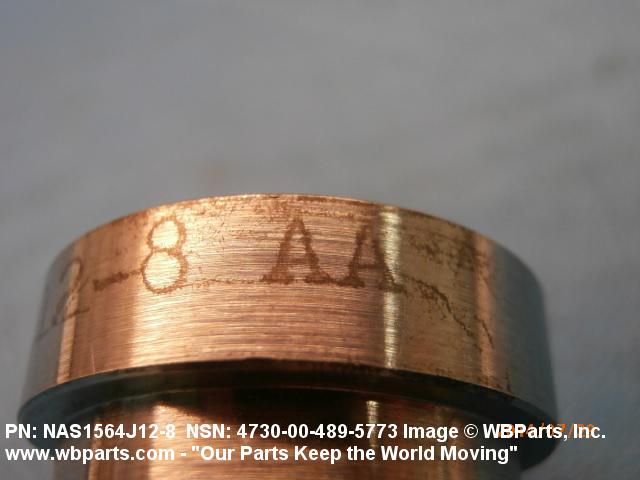

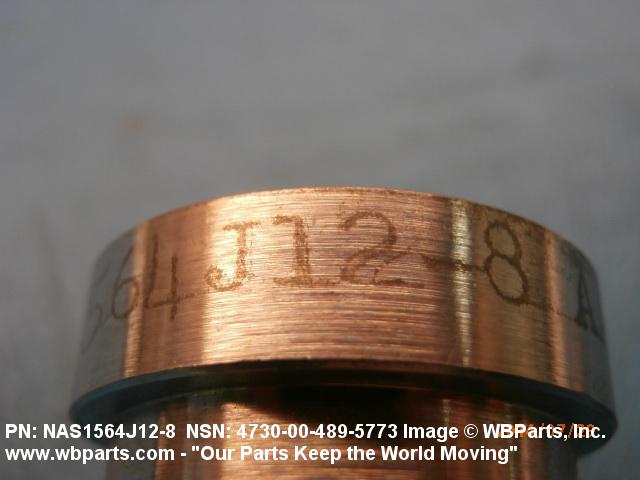

Drawings & Photos | NSN 4730-00-489-5773
Demand History | NSN 4730-00-489-5773
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-489-5773 | 2018-06-180 | 84 | DIBBS |
| 4730-00-489-5773 | 2018-06-169 | 84 | DIBBS |
| 4730-00-489-5773 | 2014-07-205 | 2 | United States |
| NAS1564J128 | 2010-03-84 | 1 | United States |
Cross Reference | NSN 4730-00-489-5773
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1564J12-8 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-489-5773
Related Products | NSN 4730-00-489-5773
Technical Data | NSN 4730-00-489-5773
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-763, CLASS 304 |
| SURFACE TREATMENT | PASSIVATED, QQ-P-35 |

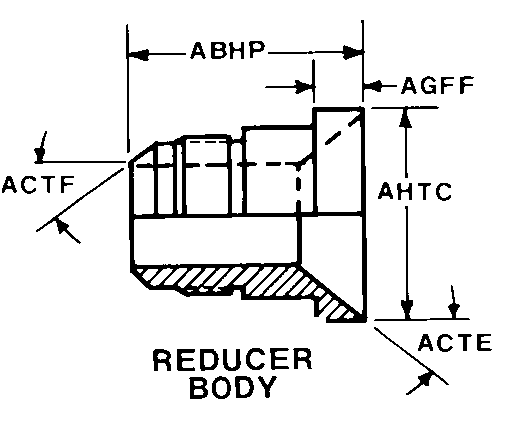

| STYLE DESIGNATOR | U10 REDUCER BODY |

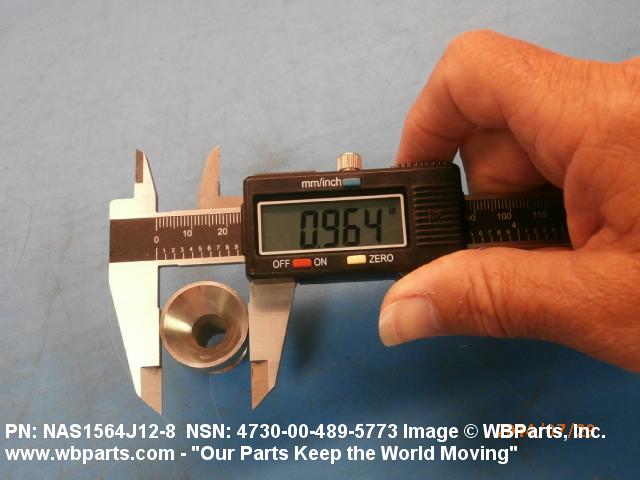

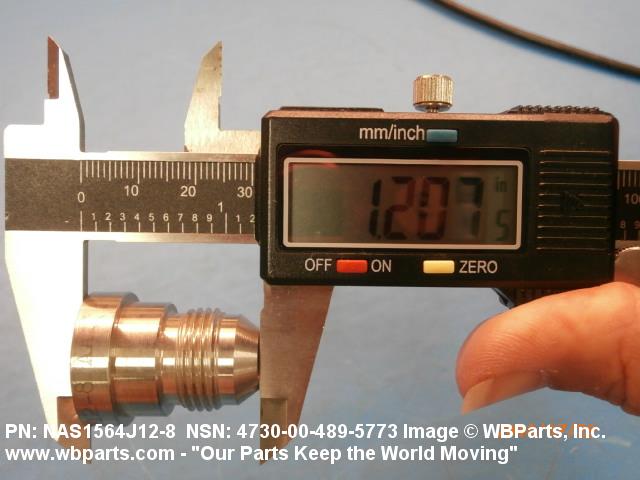

| OVERALL LENGTH | 1.203 INCHES MINIMUM AND 1.233 INCHES MAXIMUM |

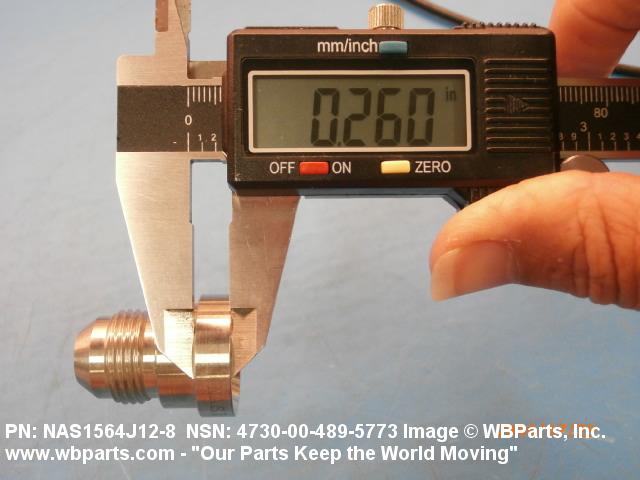

| FLANGE WIDTH | 0.251 INCHES MINIMUM AND 0.281 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 0.969 INCHES MINIMUM AND 0.972 INCHES MAXIMUM |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| SECOND END SEAT ANGLE IN DEG | 37.0 |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.750 INCHES NOMINAL 0.500 INCHES NOMINAL |
| THREAD SIZE | 3/4-16 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| WORKING PRESSURE AND SERVICE TYPE | 3000.0 POUNDS PER SQUARE INCH NOMINAL ANY ACCEPTABLE |
| WORKING TEMP AND SERVICE TYPE | NOT RATED |
| SPECIFICATION/STANDARD DATA | 80205-NAS1564 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
