NSN 4730-00-875-8769 MS518258SSB, MS51825-8SSB, MILF18866

Product Details | TUBE FITTING CLINCH SLEEVE

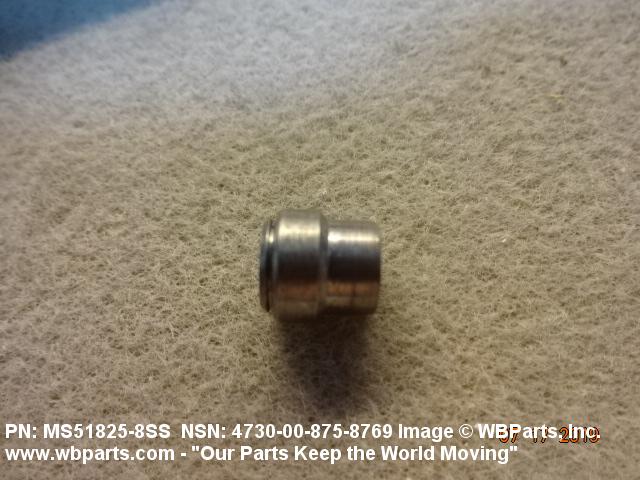

4730-00-875-8769 A flanged cylindrical item having a sharp cutting surface on the inside diameter at the end opposite the flange. The cutting edge, in use, is designed to imbed in the tubing due to pressure exerted when the outside diameter of the sleeve is forced into and against an angular seat. This firmly attaches the sleeve to the tubing and the flanged end then serves as a bearing surface for the coupling nut to bring the tubing into the mating fitting.

Part Alternates: MS518258SSB, MS51825-8SSB, MILF18866, MIL-F-18866, 019-20873 PC NO 106, 01920873PCNO106, 10717612, 107-17612, 12 080115BS, 12080115BS, 12TUSS, 12TU-SS3/4IN, 12TUSS34IN, 2100983088ALTBITEM213, 2100-983088ALTBITEM213, 2100983088ALTBPC4SLEEVE, 2100-983088ALTBPC4SLEEVE, 21993D2SH2F65S, 2199-3D2SH2F65S, 4730-00-875-8769, 00-875-8769, 4730008758769, 008758769

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1962	00-875-8769	18025 ( SLEEVE, CLINCH, TUBE FITTING )

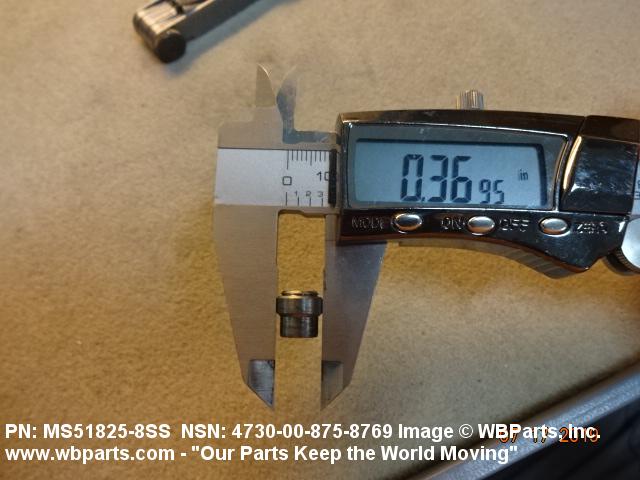

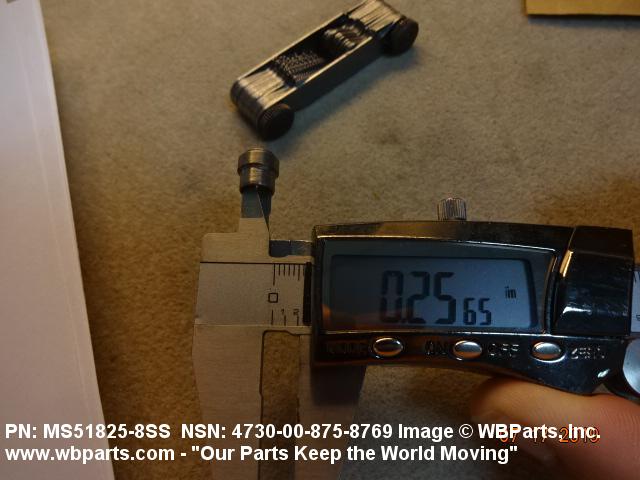

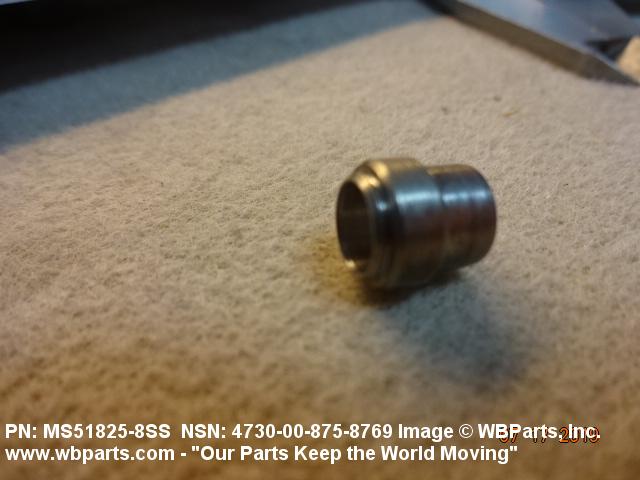

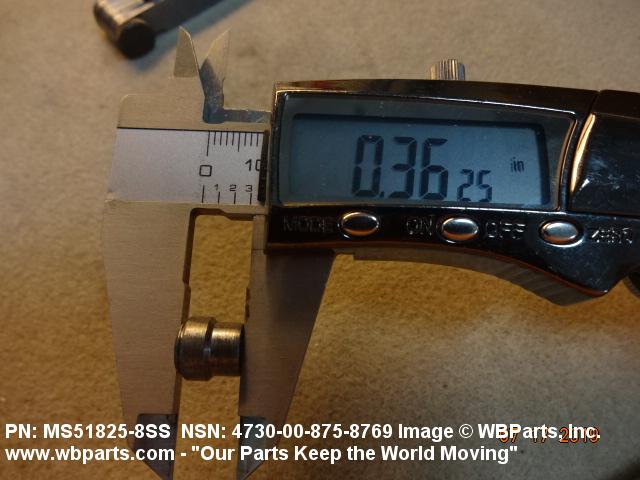

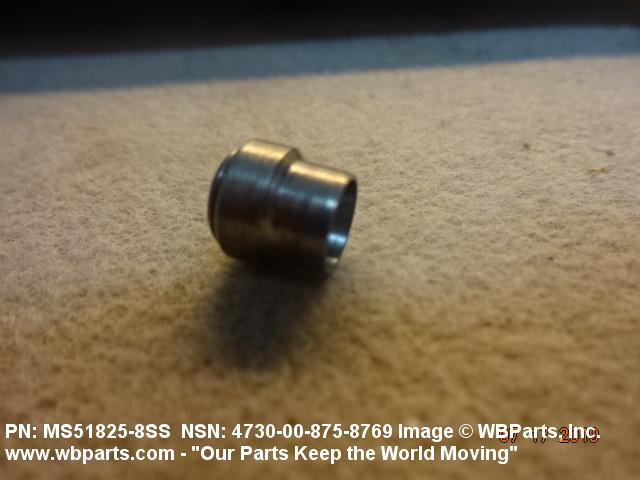

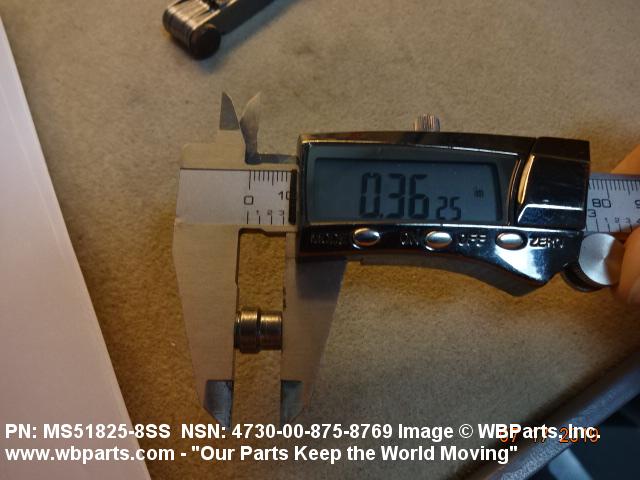

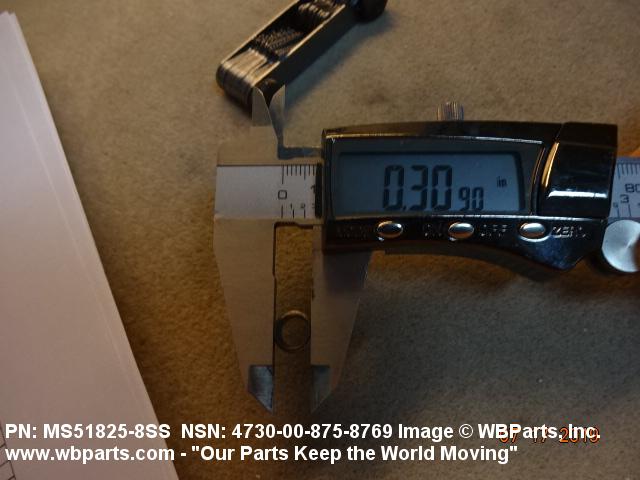

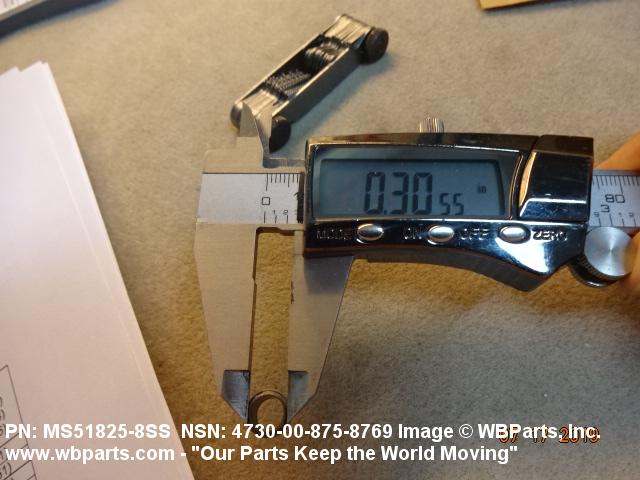

Drawings & Photos | NSN 4730-00-875-8769

Part Number	Request Date	QTY	Origin
4730-00-875-8769	2014-07-211	271	DIBBS
4730-00-875-8769	2014-05-147	304	DIBBS
4730-00-875-8769	2014-05-133	304	DIBBS
4730-00-875-8769	2014-01-06	284	DIBBS
4730-00-875-8769	2013-12-356	284	DIBBS

Cross Reference | NSN 4730-00-875-8769

Part Number	Cage Code	Manufacturer
019-20873 PC NO 106	9F512	PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION
107-17612	01276	EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
107-17612	79470	DANA CORP WEATHERHEAD DIV
12 080115BS	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
12TU-SS3/4IN	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
12TU-SS3/4IN	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
12TU-SS3/4IN	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
12TUSS	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
12TUSS	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
12TUSS	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
2100-983088ALTBITEM213	53711	NAVAL SEA SYSTEMS COMMAND
2100-983088ALTBITEM213	80064	NAVAL SHIP SYSTEMS COMMAND
2100-983088ALTBPC4SLEEVE	53711	NAVAL SEA SYSTEMS COMMAND
2100-983088ALTBPC4SLEEVE	80064	NAVAL SHIP SYSTEMS COMMAND
2199-3D2SH2F65S	51005	VITOK ENGINEERS INC
MIL-F-18866	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS51825-8SSB	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
