NSN 4730-00-875-8264 AN8154C, AN815-4C, AN8154J
Product Details | BOSS NIPPLE

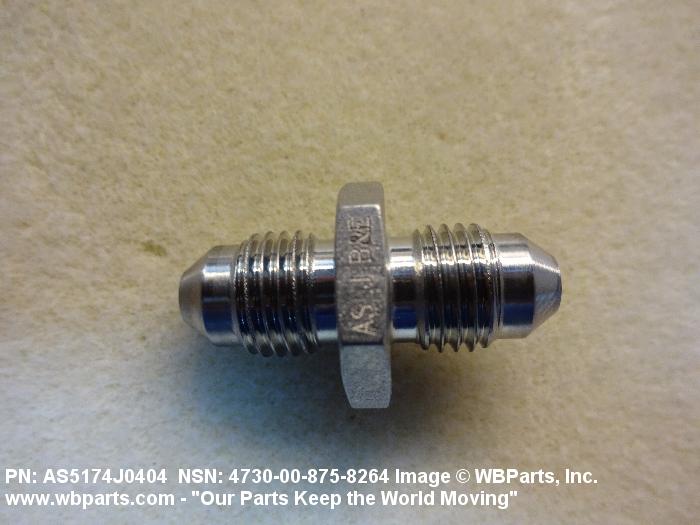

4730-00-875-8264 A straight, one-piece fitting used to join two bosses or boss fittings. Both ends are the same size and have external machine threads (straignt threads other than pipe or hose series). It is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. The center section may be suitably shaped to accommodate a wrench.
Part Alternates: AN8154C, AN815-4C, AN8154J, AN815-4J, AS4841, AS5174, AS5174J0404, 36256717 , 36256722, 90AN8154C, 90AN815-4C, 4730-00-875-8264, 00-875-8264, 4730008758264, 008758264
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 NOV 1967 | 00-875-8264 | 26952 ( NIPPLE, BOSS ) |

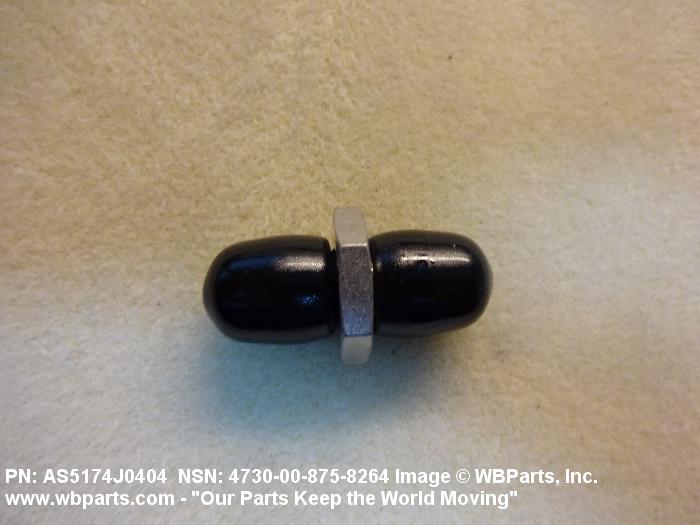

Drawings & Photos | NSN 4730-00-875-8264
Demand History | NSN 4730-00-875-8264
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS5174J0404 | 2024-11-310 | 20 | Japan |
| AS5174J0404 | 2024-10-275 | 1437 | DIBBS |
| AN8154J | 2024-09-267 | 1 | United States |
| AS5174J0404 | 2024-08-235 | 12 | Japan |
| AS5174J0404 | 2024-08-226 | 1073 | DIBBS |
| AN8154J | 2024-08-219 | 3 | Japan |
| AN8154J | 2024-08-219 | 3 | Japan |
| AN8154J | 2024-06-180 | 50 | United States |
| AN8154J | 2024-06-158 | 50 | United States |
| 4730-00-875-8264 | 2024-05-134 | 20 | Saudi Arabia |
| 4730-00-875-8264 | 2023-11-323 | 1744 | DIBBS |
| 4730-00-875-8264 | 2023-06-158 | 10 | MANUAL |
| AN8154J | 2023-02-59 | 1 | US |
| 4730-00-875-8264 | 2022-04-107 | 817 | DIBBS |
| 4730-00-875-8264 | 2021-09-264 | 3 | US |
| 4730-00-875-8264 | 2021-05-133 | 20 | Malaysia |
| AN8154J | 2021-05-123 | 20 | Malaysia |
| AS5174J0404 | 2021-01-13 | 6 | United States |
| AS5174J0404 | 2019-04-92 | 200 | US |
| 4730-00-875-8264 | 2018-01-08 | 1684 | DIBBS |
| 4730-00-875-8264 | 2017-10-276 | 2164 | DIBBS |
| 4730-00-875-8264 | 2017-01-17 | 2325 | DIBBS |
| AN8154J | 2017-01-04 | 1 | US |
| AS5174J0404 | 2017-01-04 | 1 | US |
| AN8154C | 2016-07-204 | 3 | Canada |
| AN8154J | 2016-07-195 | 50 | US |
| AS5174J0404 | 2016-06-182 | 24 | US |
| AN8154J | 2016-06-173 | 4 | Pakistan |
| AS5174J0404 | 2015-03-85 | 51 | US |
| AS5174J0404 | 2015-03-69 | 500 | US |
| AS5174J0404 | 2014-05-141 | 2 | United States |
| AS5174J0404 | 2014-04-113 | 2 | United States |
| 4730-00-875-8264 | 2014-04-104 | 2115 | DIBBS |
| AN8154J | 2014-03-70 | 5 | LK |
| AS5174J0404 | 2014-03-64 | 4114 | US |
| 4730-00-875-8264 | 2014-03-63 | 4114 | DIBBS |
| AN8154J | 2013-11-315 | 16 | United States |
| AS5174 | 2013-11-310 | 6 | US |
| 4730-00-875-8264 | 2013-03-63 | 8 | United States |
| AN8154J | 2013-01-31 | 1 | Italy |
| AN815-4J | 2012-04-116 | 4 | TR |
| 4730-00-875-8264 | 2012-01-23 | 1408 | DIBBS |
| 4730-00-875-8264 | 2011-12-348 | 1119 | DIBBS |
| AN815-4C | 2011-11-313 | 12 | US |
| AN8154C | 2011-10-291 | 30 | United States |
| 4730-00-875-8264 | 2011-08-214 | 2029 | DIBBS |
| 4730-00-875-8264 | 2011-06-153 | 915 | DIBBS |
| AN8154J | 2011-05-138 | 86 | US |
| AN8154J | 2011-05-138 | 86 | US |
| AS5174J0404 | 2011-05-138 | 86 | US |
| AS4841 | 2011-03-69 | 8 | |
| 4730-00-875-8264 | 2011-03-60 | 889 | DIBBS |
| AN8154J | 2010-12-347 | 11 | IN |
| AS5174J0404 | 2010-12-347 | 11 | IN |
| 4730-00-875-8264 | 2010-06-181 | 1198 | DIBBS |
| 4730-00-875-8264 | 2010-05-132 | 655 | DIBBS |
| AS5174J0404 | 2010-04-110 | 4 | US |
| AN8154J | 2010-03-68 | 12 | United States |
| AS5174J0404 | 2009-04-118 | 2 | US |
Cross Reference | NSN 4730-00-875-8264
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2308001PC93 | 11243 | COSMODYNE, LLC |
| 761-511-90003 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 90AN815-4C | 0KDP7 | KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS |
| AN815-4C | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN815-4J | 14397 | FABER ENTERPRISES, INC. |
| AN815-4J | 21995 | FEDERAL-MOGUL CORP FELKER OPNS |
| AN815-4J | 26616 | PACIFIC HI-TEMP HARDWARE CO., INC. |
| AN815-4J | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN815-4J | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| AN815-4JCP | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| AN815-4JCP | 11243 | COSMODYNE, LLC |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5174 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5174J | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS5174J0404 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5174J0404 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS5174J0404CP | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-875-8264
Related Products | NSN 4730-00-875-8264
Technical Data | NSN 4730-00-875-8264
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE INSIDE PASSIVATE OUTSIDE |
| STYLE DESIGNATOR | A56 FLARED W/CENTER WRENCHING FACILITY |
| CONNECTION TYPE | THREADED EXTERNAL BOSS ALL ENDS |
| CONNECTION STYLE | B81 FLARED W/GASKET SEAL ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |

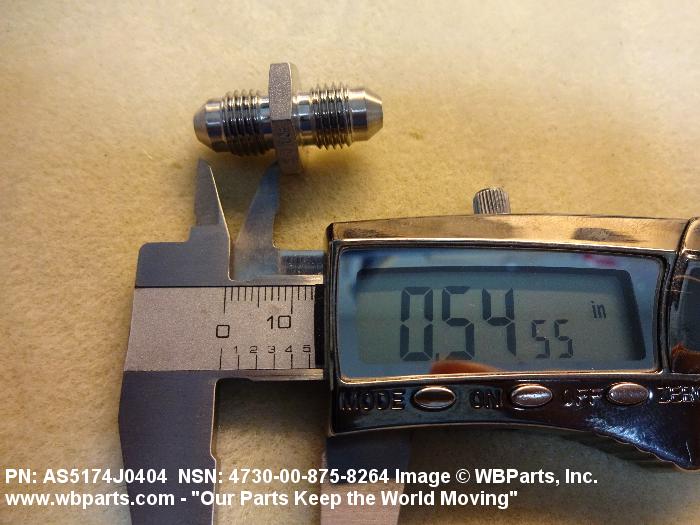

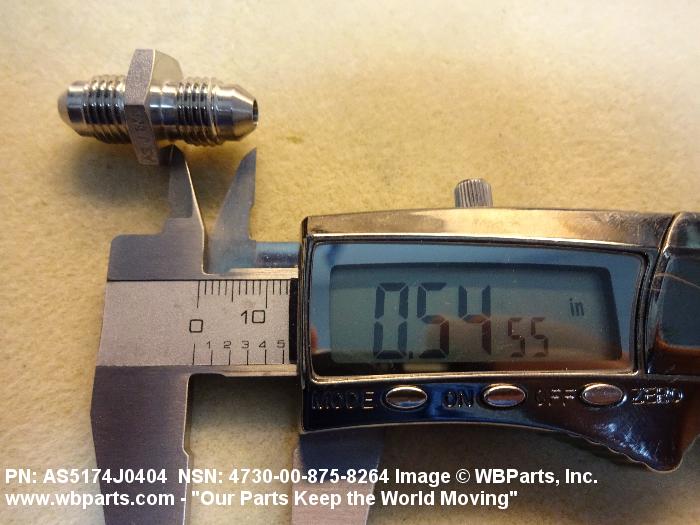

| LEG LENGTH | 0.550 INCHES NOMINAL ALL ENDS |

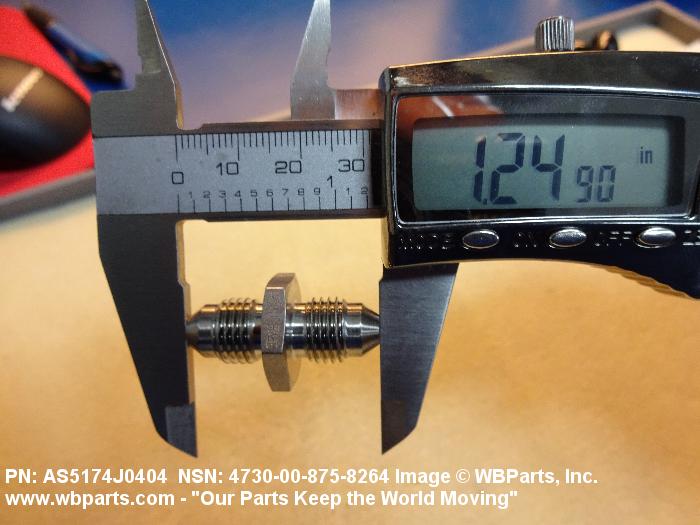

| NOMINAL OVERALL LENGTH | 1.250 INCHES |
| SPECIFICATION/STANDARD DATA | 81343-AS5174 PROFESSIONAL/INDUSTRIAL ASSOCIATION SPECIFICATION |
| MANUFACTURERS CODE | 88044 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AS5174J0404 |
Restrictions/Controls & Freight Information | NSN 4730-00-875-8264
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-875-8264
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
