NSN 4730-00-859-3517 MS219218J, MS21921-8J, AS18280
Product Details | TUBE COUPLING NUT
4730-00-859-3517 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: MS219218J, MS21921-8J, AS18280 , AS21921, CVC42578J, CVC4257-8J, CVC4257J8, 4730-00-859-3517, 00-859-3517, 4730008593517, 008593517
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 11 OCT 1967 | 00-859-3517 | 03859 ( NUT, TUBE COUPLING ) |

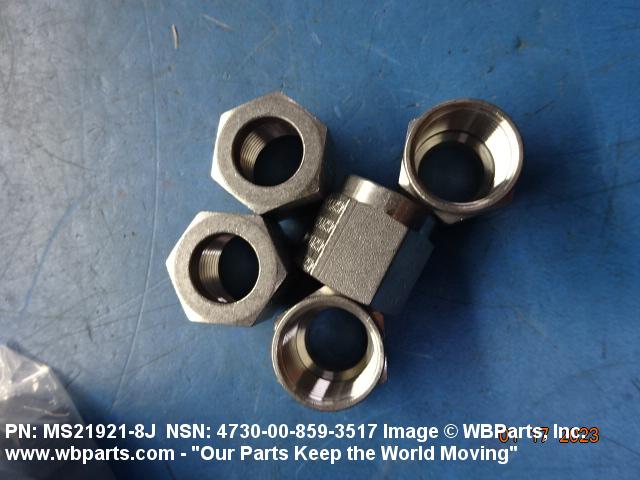

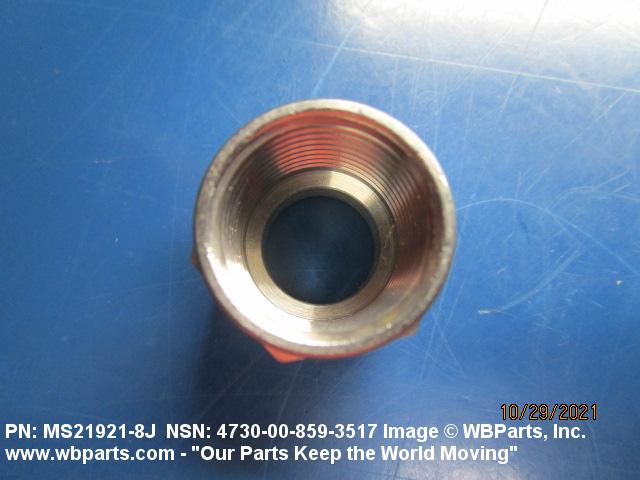

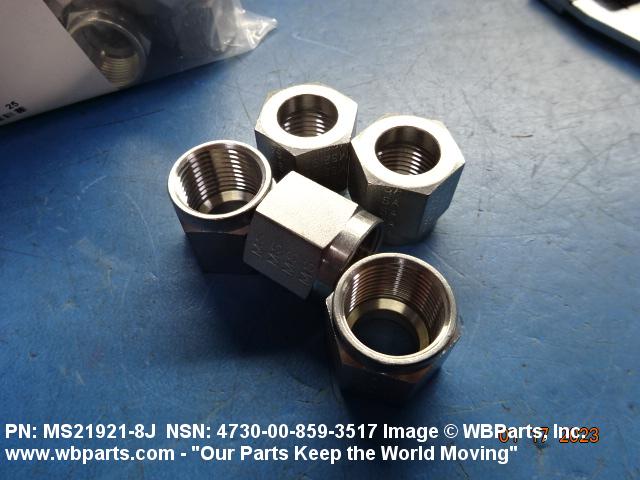

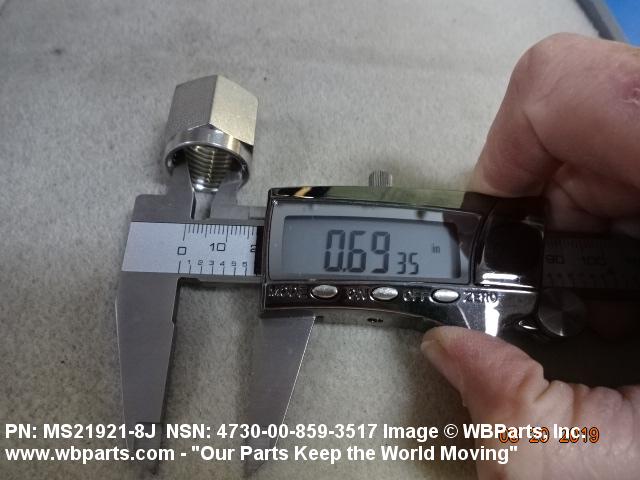

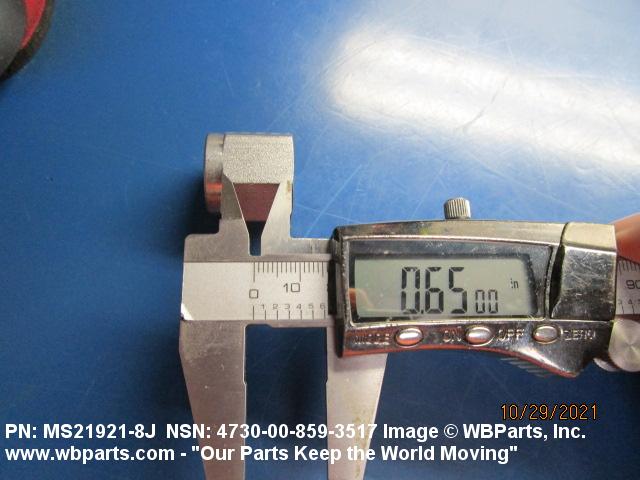

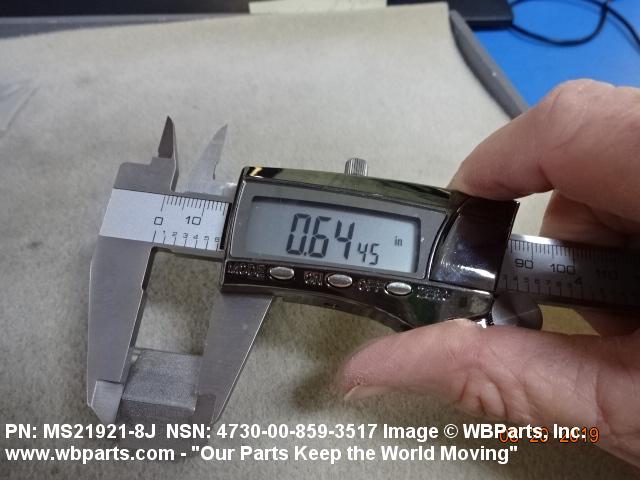

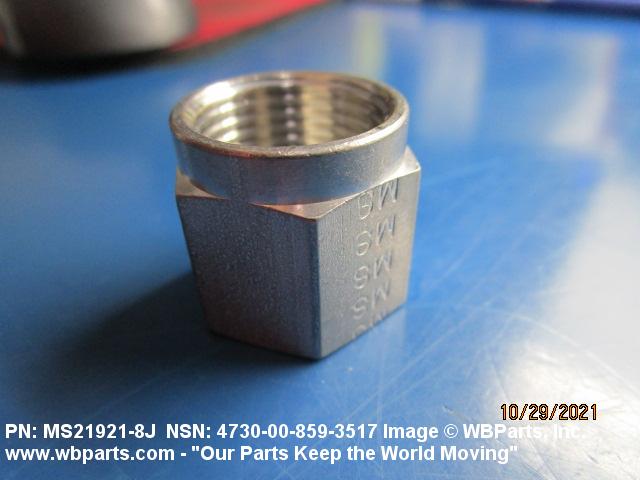

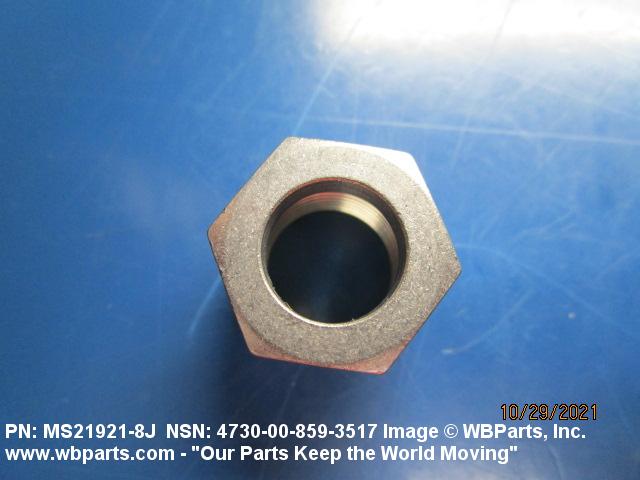

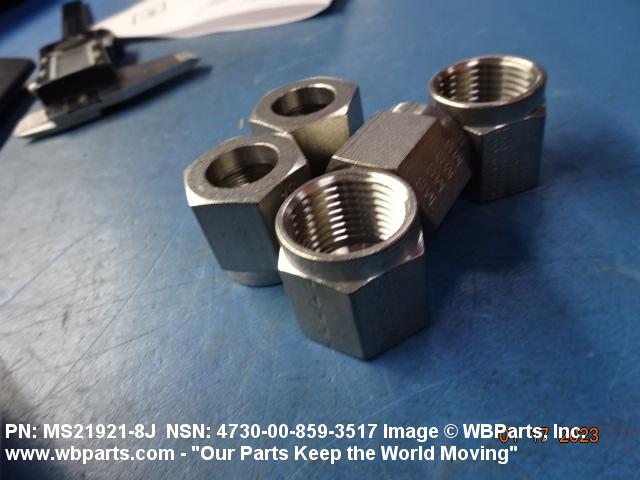

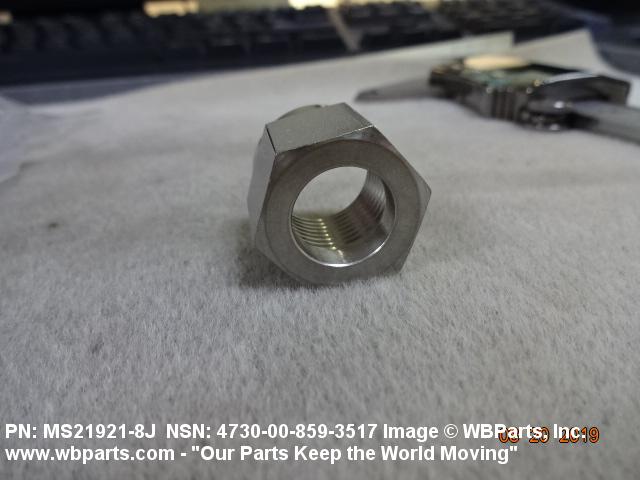

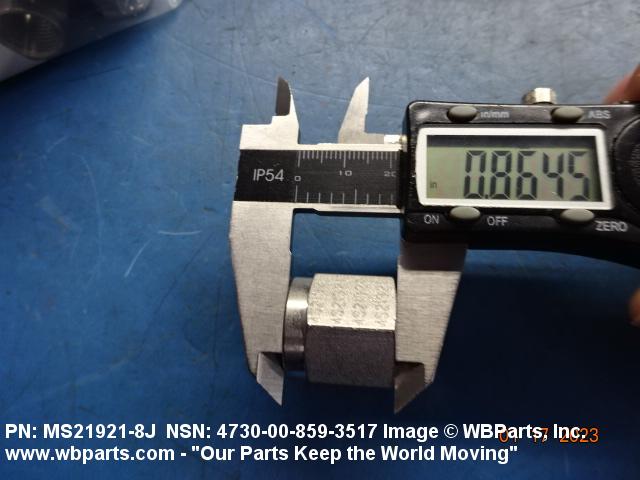

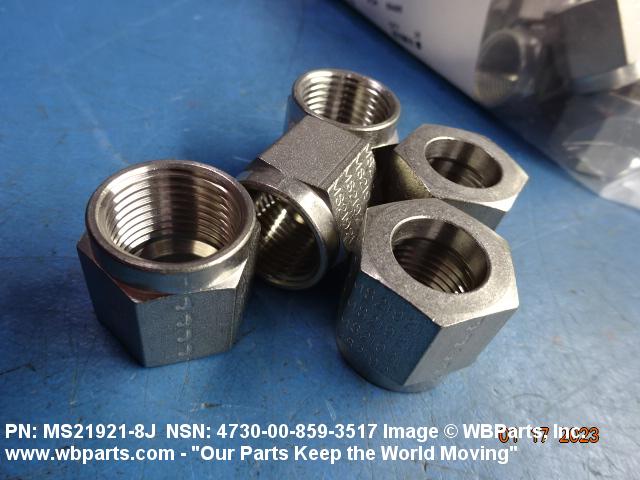

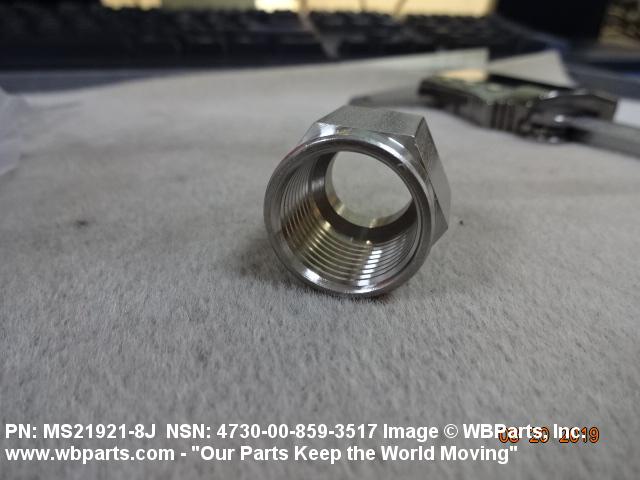

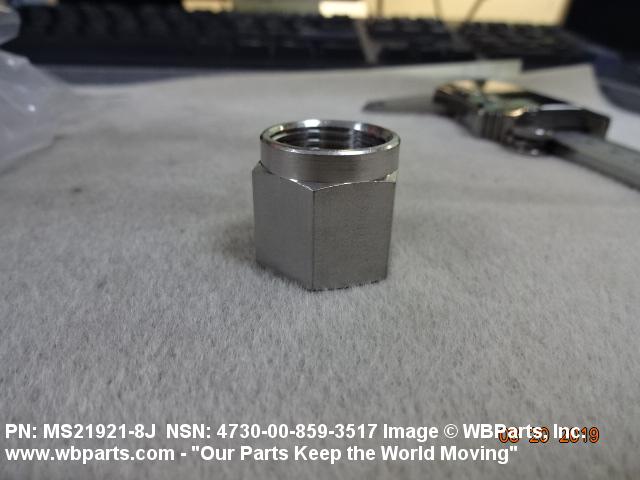

Drawings & Photos | NSN 4730-00-859-3517
Demand History | NSN 4730-00-859-3517
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-859-3517 | 2024-07-198 | 6 | US |
| 4730-00-859-3517 | 2024-07-197 | 6 | US |
| MS219218J | 2024-07-197 | 6 | India |
| MS219218J | 2024-03-66 | 20 | United States |
| MS219218J | 2023-04-107 | 1800 | DE |
| MS219218J | 2019-07-206 | 20 | US |
| MS219218J | 2018-02-53 | 2000 | US |
| MS219218J | 2017-04-108 | 3 | United States |
| MS219218J | 2016-05-138 | 32 | United States |
| MS219218J | 2016-05-138 | 192 | United States |
| MS219218J | 2014-11-324 | 14 | US |
| AS18280 | 2014-10-280 | 1 | US |
| 4730-00-859-3517 | 2014-06-155 | 340 | IT |
| MS219218J | 2013-08-217 | 3 | US |
| MS219218J | 2013-07-207 | 7 | US |
| MS219218J | 2013-07-207 | 14 | US |
| MS219218J | 2013-07-207 | 35 | US |
| MS219218J | 2013-07-191 | 15 | US |
| MS219218J | 2013-07-191 | 100 | US |
| AS21921 | 2013-03-73 | 20 | US |
| AS21921 | 2013-03-73 | 50 | US |
| AS21921 | 2013-03-73 | 100 | US |
| AS21921 | 2013-03-73 | 20 | US |
| AS21921 | 2013-03-73 | 50 | US |
| AS21921 | 2013-03-73 | 100 | US |
| MS219218J | 2012-07-184 | 80 | US |
| MS219218J | 2012-07-184 | 10 | US |
| MS219218J | 2012-03-79 | 20 | United States |
| AS21921 | 2010-04-95 | 4 | Seychelles |
| 4730-00-859-3517 | 2009-08-238 | 24 | United States |
| 4730-00-859-3517 | 2009-06-168 | 1715 | DIBBS |
| 4730-00-859-3517 | 2008-11-316 | 1928 | DIBBS |
Cross Reference | NSN 4730-00-859-3517
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21921 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| CVC4257-8J | 80378 | TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT |
| CVC4257J8 | 80378 | TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT |
| MS21921-8J | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| MS21921-8J | 01673 | SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS |
| MS21921-8J | 03647 | GLOBE AEROSPACE INC |
| MS21921-8J | 14397 | FABER ENTERPRISES, INC. |
| MS21921-8J | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| MS21921-8J | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21921-8J | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-859-3517
Related Products | NSN 4730-00-859-3517
Technical Data | NSN 4730-00-859-3517
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJ |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| NUT STYLE | A350 TUBE COUPLING |

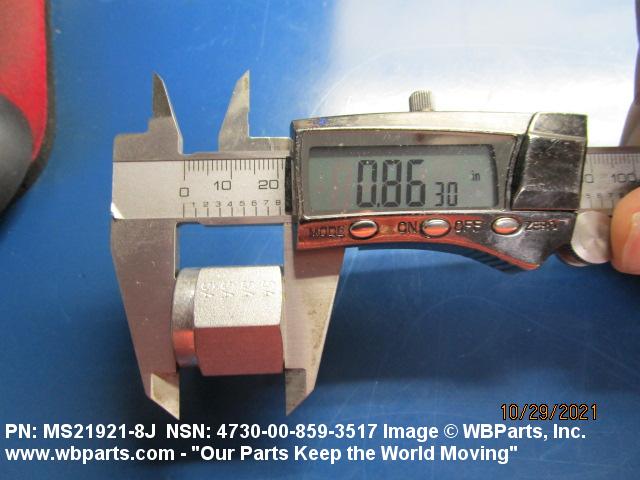

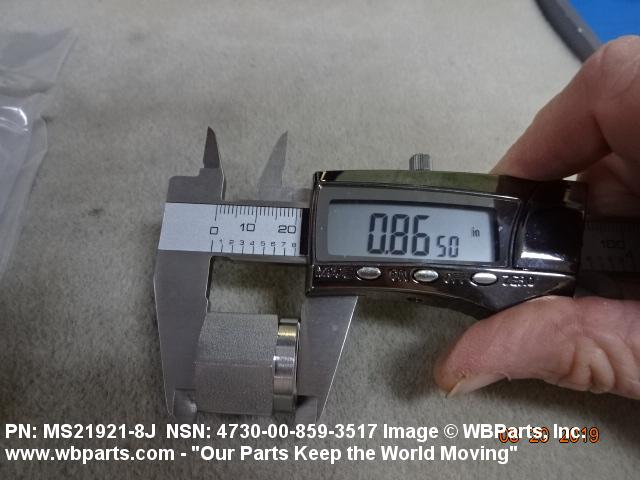

| NUT HEIGHT | 0.860 INCHES NOMINAL |

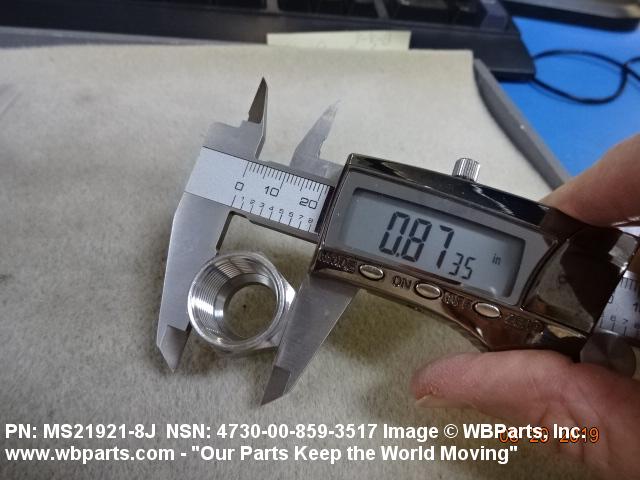

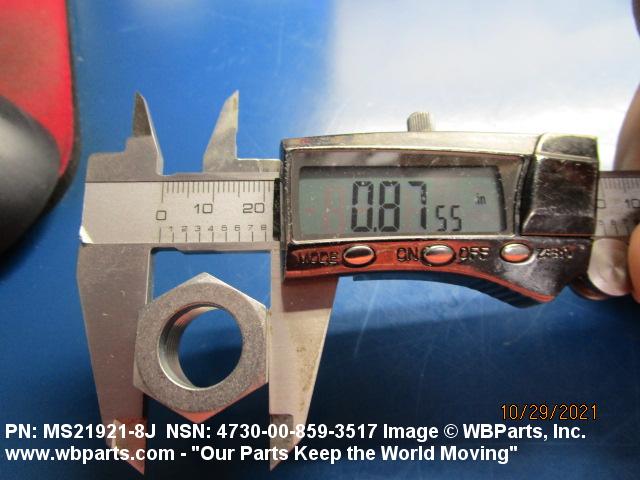

| WIDTH ACROSS FLATS | 0.875 INCHES NOMINAL |
| LENGTH TO SHOULDER | 0.609 INCHES NOMINAL |

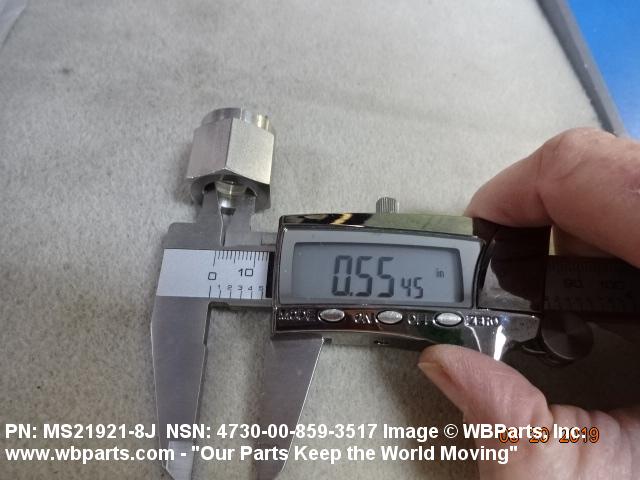

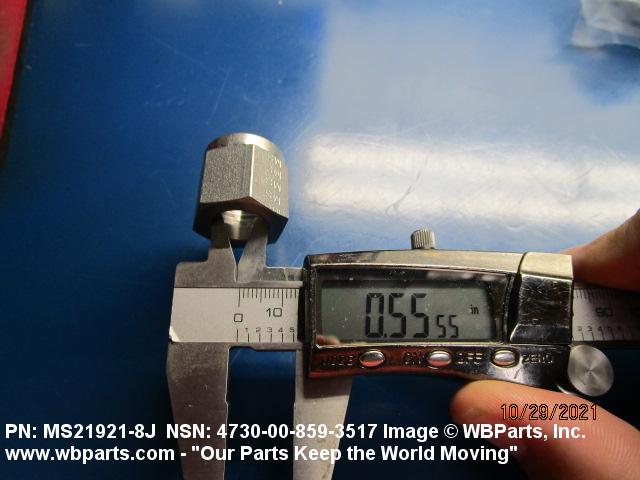

| SMALLEST INSIDE DIAMETER | 0.552 INCHES NOMINAL |
| SEAT ANGLE | 45.00 DEGREES NOMINAL |
| FABRICATION METHOD | ANY ACCEPTABLE |
| NOMINAL TUBE OUTSIDE DIAMETER | 0.500 INCHES |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| SPECIFICATION/STANDARD DATA | 96906-MS21921 GOVERNMENT STANDARD |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | TF33-P-3/5/9 (C/EC-135, B-52H) AIRCRAFT ENGINE. TF33-PW-102 (C-135E, EC-135H/K/P), SH-60F ASW CARRIER BASED HELICOPTER. MH-53E HELICOPTER. TF-33-P-7 (C-141 A/B) AIRCRAFT ENGINE. LAMPS MK III LANDING SYSTEM HELICOPTER. |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21921-8J |
Restrictions/Controls & Freight Information | NSN 4730-00-859-3517
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
