NSN 4730-00-836-7807 MS51500A6S, MS51500A6S8, MS51500A6S-8

Product Details | PIPE TO TUBE STRAIGHT ADAPTER

4730-00-836-7807 An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It is designed to join a pipe or pipe fitting to a tube or tube fitting in a straight line.

Part Alternates: MS51500A6S, MS51500A6S8, MS51500A6S-8, MS51500B6S, TG202642 PC16, TG202642PC16, MILF18866, MIL-F-18866, 1408M76P65, 201496, 2014-96, 2410076, 31A10S7, 5185940836, 518-5940836, 518-5940836 ITE, 518-5940836 ITEM 119, 5185940836ITE, 5185940836ITEM119, 6-4 070102SA, 64070102SA, 6FBTXSS, 6FBTX-SS, 85-32050 PC22, 8532050PC22, J514, 4730-00-836-7807, 00-836-7807, 4730008367807, 008367807

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1962	00-836-7807	03776 ( ADAPTER, STRAIGHT, PIPE TO TUBE )

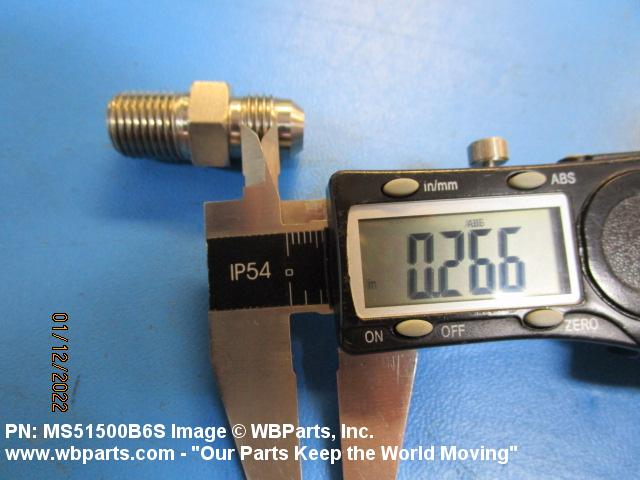

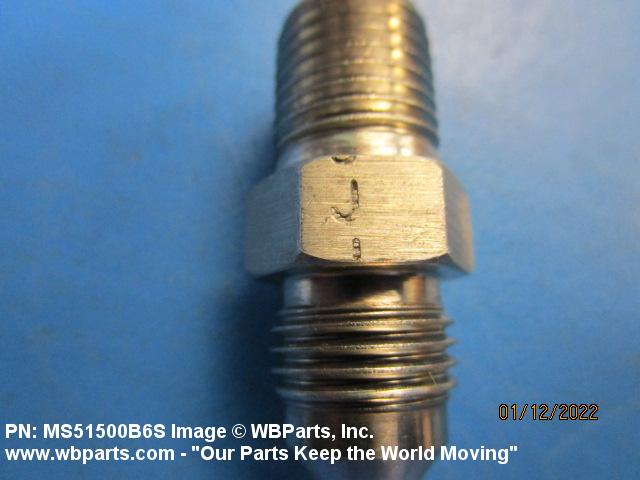

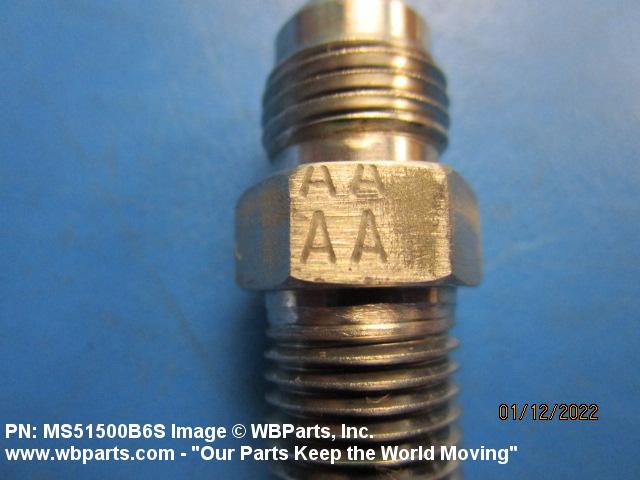

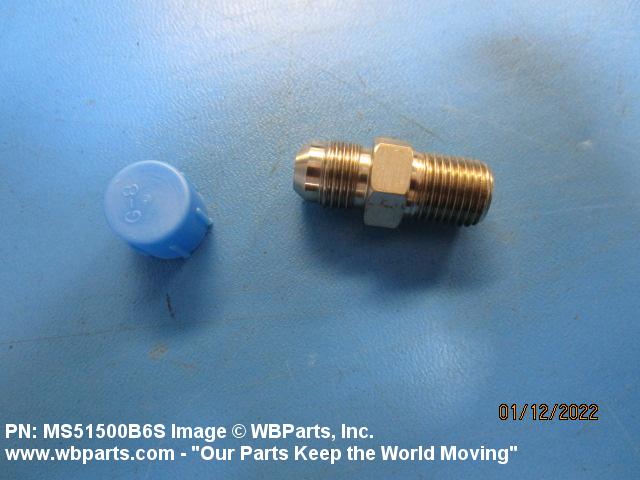

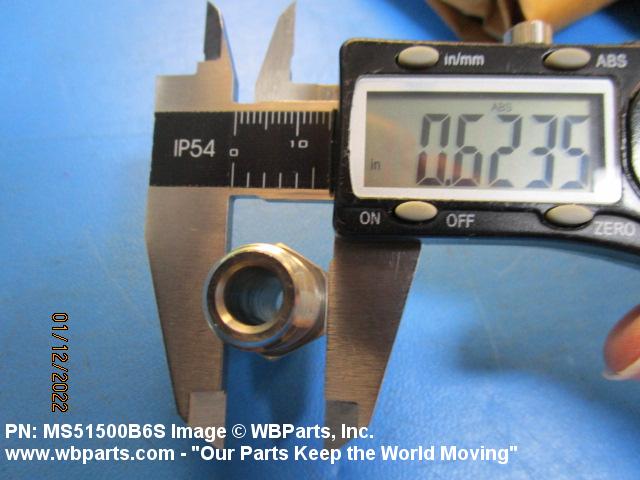

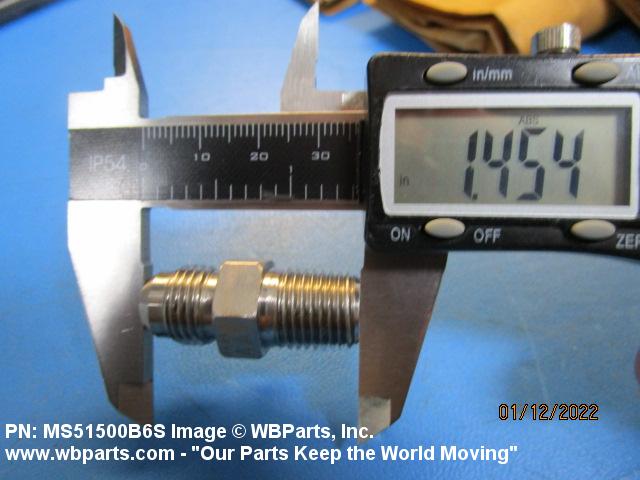

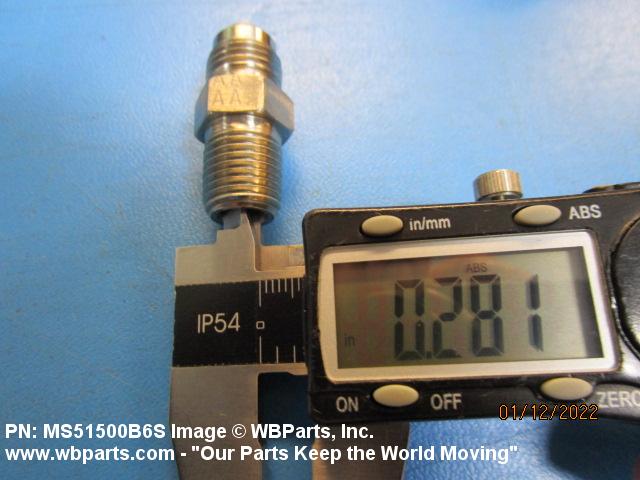

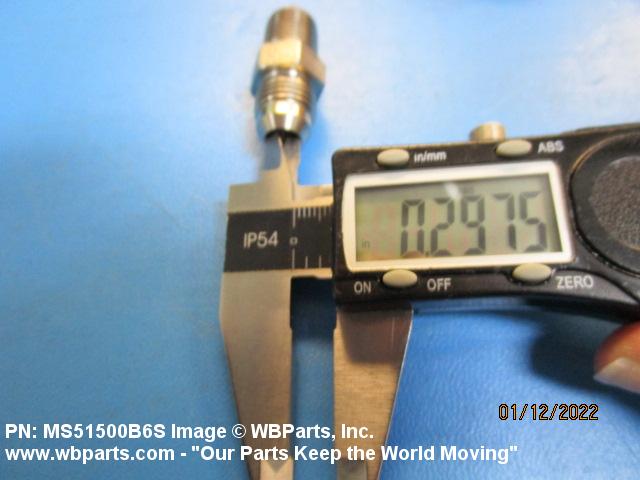

Drawings & Photos | NSN 4730-00-836-7807

Part Number	Request Date	QTY	Origin
4730-00-836-7807	2023-12-351	554	DIBBS
4730-00-836-7807	2022-02-55	638	DIBBS
MS51500B6S	2022-01-03	50	United States
MS51500B6S	2022-01-03	50	United States
4730-00-836-7807	2021-01-05	1	United States
4730-00-836-7807	2020-08-232	687	DIBBS
4730-00-836-7807	2020-08-217	687	DIBBS
4730-00-836-7807	2017-10-274	521	DIBBS
4730-00-836-7807	2017-06-157	700	DIBBS
4730-00-836-7807	2015-10-291	1089	DIBBS
J514	2015-02-48	1	us
4730-00-836-7807	2015-01-06	776	DIBBS
4730-00-836-7807	2014-11-318	2	United States
4730-00-836-7807	2013-07-196	666	DIBBS
4730-00-836-7807	2012-11-325	191	DIBBS
4730-00-836-7807	2012-10-291	148	DIBBS
4730-00-836-7807	2012-08-244	375	DIBBS
4730-00-836-7807	2012-08-222	474	DIBBS
J514	2010-02-47	20	us
4730-00-836-7807	2008-12-353	5	US
4730-00-836-7807	2008-11-315	106	Taiwan

Cross Reference | NSN 4730-00-836-7807

Part Number	Cage Code	Manufacturer
1408M76P65	07482	GENERAL ELECTRIC COMPANY DBA GE
2014-96	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
2410076	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
31A10S7	88663	DRESSER-RAND CO INGERSOLL-RAND OPNS
518-5940836	53711	NAVAL SEA SYSTEMS COMMAND
518-5940836 ITE	53711	NAVAL SEA SYSTEMS COMMAND
518-5940836 ITEM 119	53711	NAVAL SEA SYSTEMS COMMAND
6-4 070102SA	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
6FBTX-SS	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
6FBTX-SS	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
6FBTXSS	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
85-32050 PC22	07878	AERONAUTICAL AND SUPPORT EQUIPMENT TYPE DESIGNATION SYSTEM /ASETDS/
J514	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MIL-F-18866	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS51500A6S	00624	EATON CORPORATION DBA AEROSPACE DIV
MS51500A6S	30327	IMPERIAL
MS51500A6S	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
MS51500A6S	93188	L AND L MFG CO
MS51500A6S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51500A6S	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
MS51500A6S	98660	LUBE DEVICES INC FLODAR FLUID POWER FITTINGS DIV
MS51500A6S-8	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51500B6S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
TG202642 PC16	28839	TELEDYNE INDUSTRIES INC TELEDYNE POWER SYSTEMS DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-836-7807

Compare

Related Products | NSN 4730-00-836-7807

4730-00-836-7808, 4730-00-836-7860, 4730-00-836-8175, 4730-00-836-8176, 4730-00-836-8201

Technical Data | NSN 4730-00-836-7807

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
SURFACE TREATMENT	PASSIVATE INSIDE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35,TY 2 FED SPEC SINGLE TREATMENT RESPONSE INSIDE
MEDIA FOR WHICH DESIGNED	HYDRAULIC FLUID SINGLE RESPONSE
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP	121.0 DEG FAHRENHEIT SINGLE RESPONSE
CONNECTION TYPE	THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END
CONNECTION STYLE	B64 FLARED 1ST END B67B PLAIN 2ND END
SEAT ANGLE	37.0 DEGREES 1ST END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.375 INCHES 1ST END
THREAD SERIES DESIGNATOR	UNF 1ST END NPTF 2ND END
NOMINAL THREAD SIZE	0.562 INCHES 1ST END 0.250 INCHES 2ND END
THREAD CLASS	2A 1ST END
NOMINAL OVERALL LENGTH	1.430 INCHES
FURNISHED ITEMS AND QUANTITY	1 FLARED SLEEVE AND 1 SHORT COUPLING NUT
SPECIFICATION/STANDARD DATA	96906-MS51500 GOVERNMENT STANDARD AND MIL-F-18866 GOVERNMENT SPECIFICATION AND 81343-J514 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
NONDEFINITIVE SPEC/STD DATA	2A FIGURE
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-F-18866
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51500A6S

Restrictions/Controls & Freight Information | NSN 4730-00-836-7807

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-836-7807

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
