NSN 4730-00-762-2120 MS51527A6S, MS51527B6S, A34006SS

Product Details | TUBE TO BOSS ELBOW

4730-00-762-2120 A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like.

Part Alternates: MS51527A6S, MS51527B6S, A34006SS, A3400-6SS, J5226SS, J522-6SS, MILF18866, MIL-F-18866, J514, 22675485, 2267548-5, 250366C, 2503-6-6C, 2P7214, 31250449, 312504-49, 4222253, 422225-3, 4222263, 422226-3, 44300517, 44300-517, 6-6 070220S, 6-6 070220SA, 66070220S, 66070220SA, 6C50XSS, 6C50X-SS, 6C5BXSS, 6C5XSS, 6C5X-SS, 6MB6MJ90, 6MB-6MJ90, 71910259002, 9MILF18866, 9MIL-F-18866, 4730-00-762-2120, 00-762-2120, 4730007622120, 007622120

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1960	00-762-2120	22679 ( ELBOW, TUBE TO BOSS )

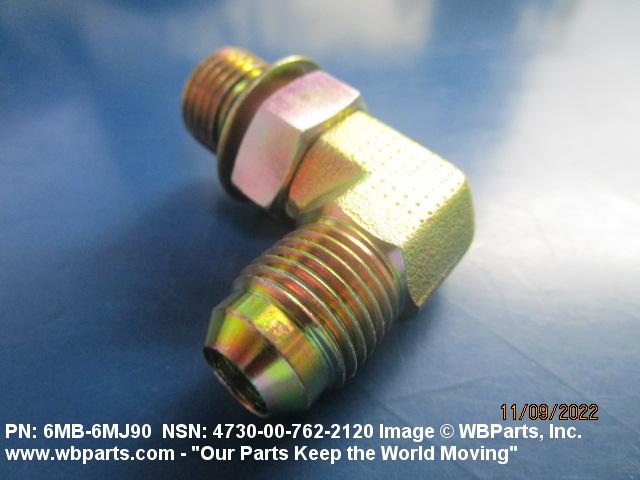

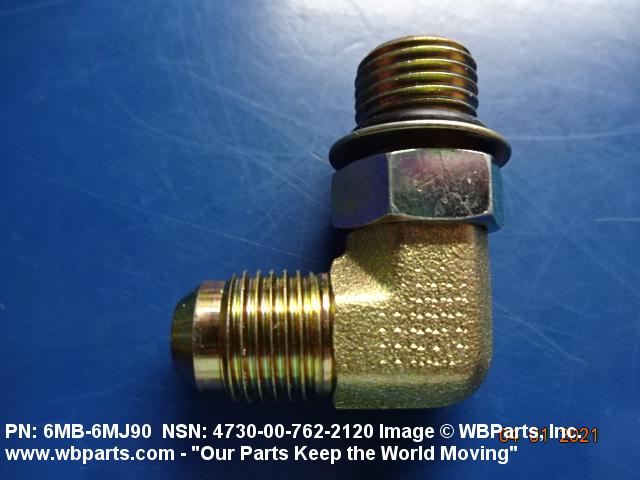

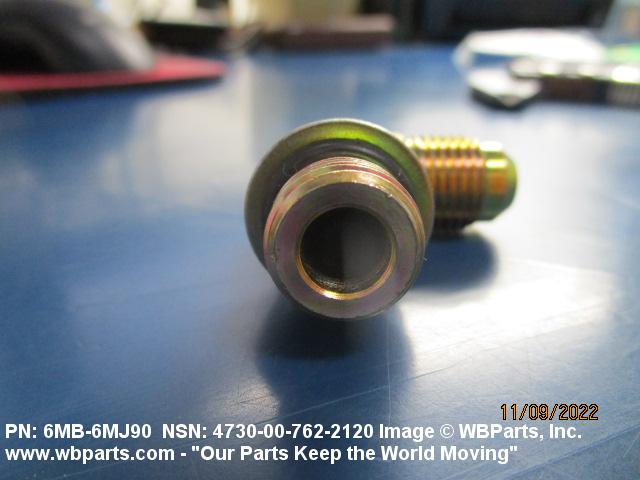

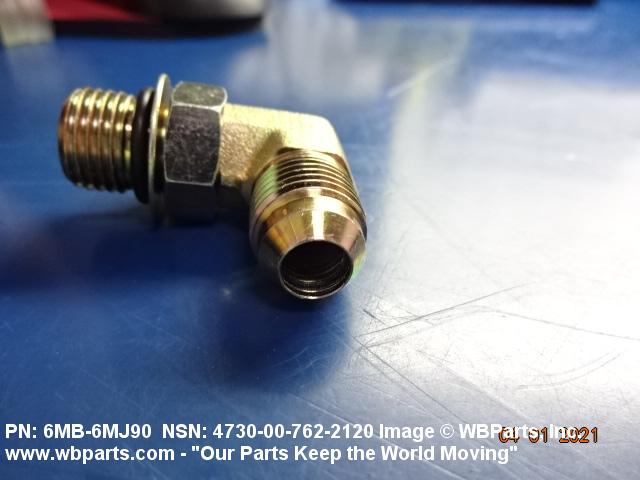

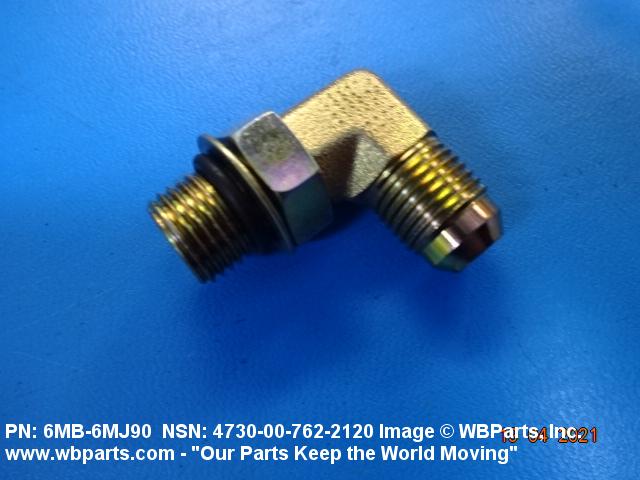

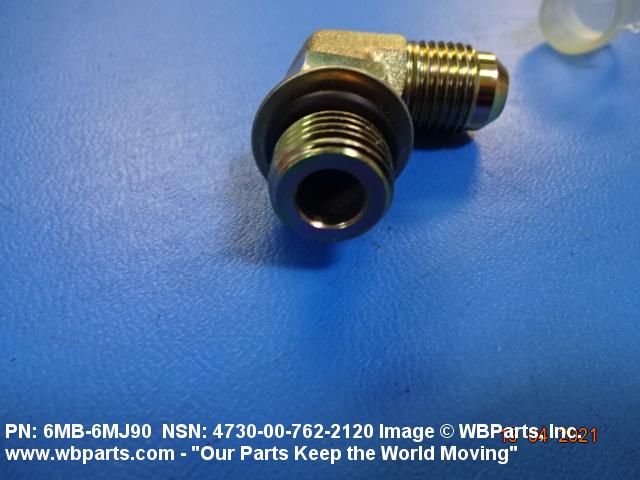

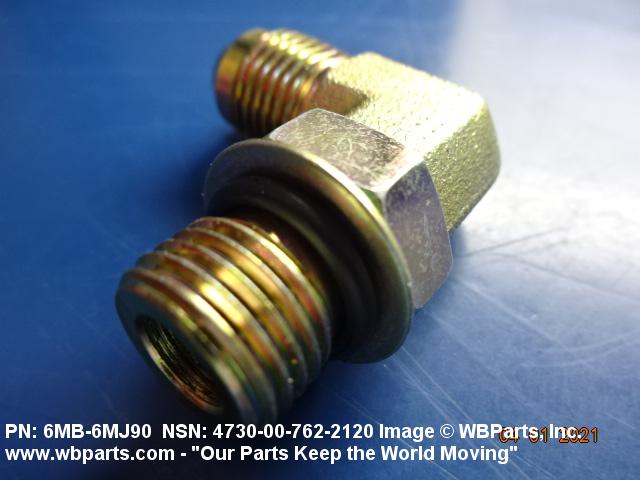

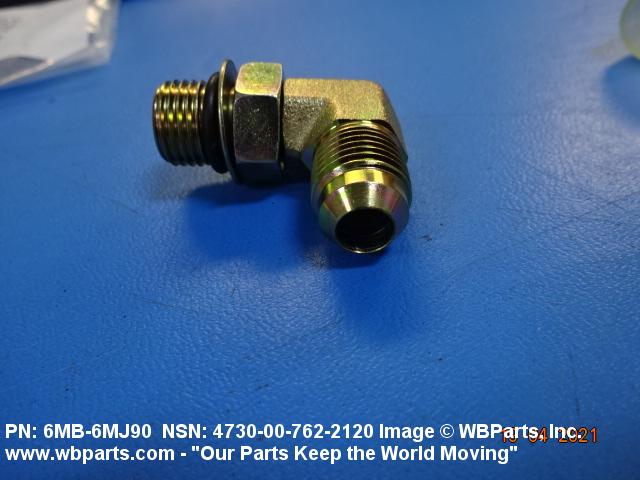

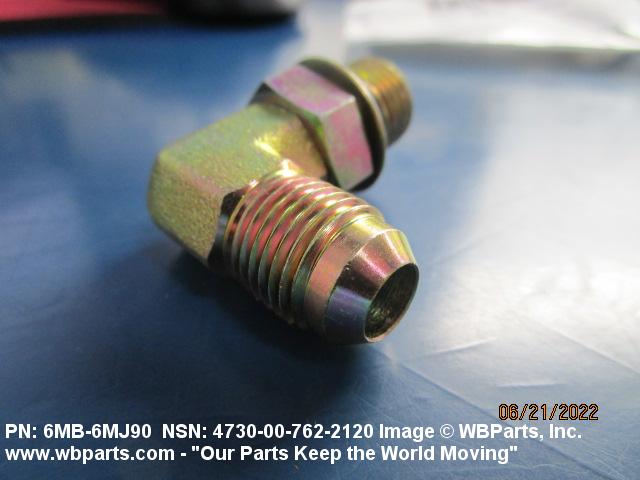

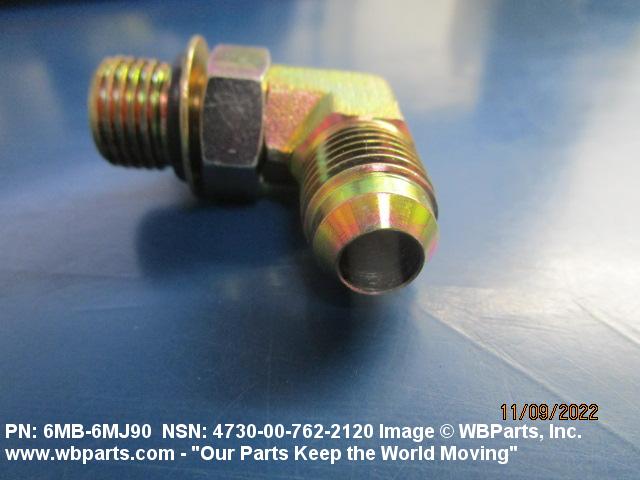

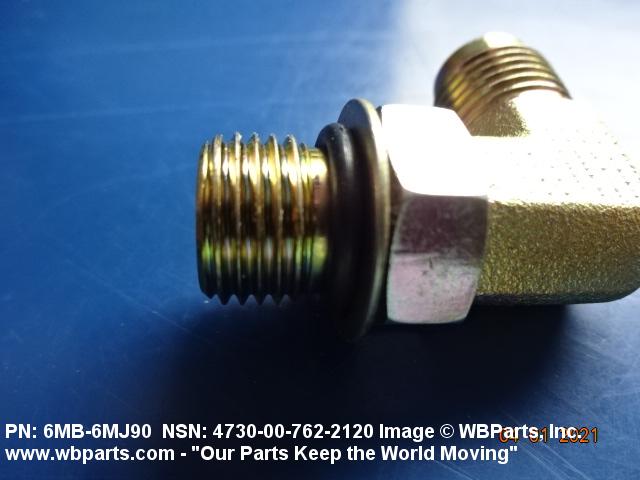

Drawings & Photos | NSN 4730-00-762-2120

Part Number	Request Date	QTY	Origin
4730-00-762-2120	2024-09-249	35	Sweden
4730-00-762-2120	2024-04-108	2998	DIBBS
MS51527B6S	2023-12-339	56	US
MS51527B6S	2023-12-339	56	US
4730-00-762-2120	2023-10-292	1080	TW
4730-00-762-2120	2023-10-292	434	US
4730-00-762-2120	2023-10-292	1523	DIBBS
4730-00-762-2120	2023-10-290	1523	DIBBS
4730-00-762-2120	2023-09-251	1080	TW
4730-00-762-2120	2023-07-191	4316	DIBBS
4730-00-762-2120	2023-05-122	2444	DIBBS
6C50XSS	2023-02-40	400	US
4730-00-762-2120	2023-01-13	1400	DIBBS
4730-00-762-2120	2022-11-318	20	United States
4730-00-762-2120	2022-10-299	2093	DIBBS
4730-00-762-2120	2022-09-264	400	United States
MS51527B6S	2022-09-264	400	United States
4730-00-762-2120	2022-06-157	50	Taiwan
MS51527A6S	2022-02-48	572	Taiwan
4730-00-762-2120	2021-04-96	8	United States
4730-00-762-2120	2021-03-77	190	United States
4730-00-762-2120	2019-06-166	1260	TW
MS51527A6S	2018-11-325	680	TW
MS51527A6S	2018-11-323	680	US
4730-00-762-2120	2018-04-94	29	US
4730-00-762-2120	2018-04-93	120	United States
4730-00-762-2120	2018-02-35	3500	DIBBS
4730-00-762-2120	2017-08-228	3067	DIBBS
4730-00-762-2120	2017-02-34	3014	DIBBS
4730-00-762-2120	2017-01-23	3014	DIBBS
4730-00-762-2120	2016-02-54	1650	DIBBS
4730-00-762-2120	2016-02-36	1700	DIBBS
4730-00-762-2120	2015-12-349	3444	DIBBS
4730-00-762-2120	2015-10-303	2470	DIBBS
4730-00-762-2120	2015-10-281	50	US
4730-00-762-2120	2015-09-272	2470	DIBBS
4730-00-762-2120	2015-09-246	1693	DIBBS
MS51527A6S	2015-03-65	10	United States
J514	2015-02-48	1	us
4730-00-762-2120	2014-12-345	1936	DIBBS
4730-00-762-2120	2014-10-289	1222	DIBBS
MS51527B6S	2011-03-70	6	United States
MS51527A6S	2010-06-163	895	Taiwan
MS51527B6S	2010-05-127	22	US
J514	2010-02-47	20	us
MS51527B6S	2010-01-05	5	United States
MS51527A6S	2008-12-354	2280	Taiwan
MS51527B6S	2008-12-353	5	US
MS51527A6S	2008-11-315	2185	Taiwan
MS51527B6S	2008-09-247	40	United States
MS51527B6S	2008-08-227	12	Spain

Cross Reference | NSN 4730-00-762-2120

Part Number	Cage Code	Manufacturer
2267548-5	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
2503-6-6C	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
2503-6-6C	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
2P7214	11083	CATERPILLAR INC. DBA CATERPILLAR
312504-49	34712	OLDENBURG GROUP INCORPORATED DBA OLDENBURG - LAKE SHORE
422225-3	80020	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2
422226-3	80020	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2
44300-517	00462	GOODRICH CORPORATION DBA TRW LUCAS AEROSPACE
44300-517	82402	TRIUMPH GEAR SYSTEMS, INC. DBA TRIUMPH GEAR SYSTEMS- PARK CITY
6C50X-SS	50948	PARKER HANNIFIN CORP STRATOFLEX DIV AIRCRAFT FITTINGS OPN
6C50XSS	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
6C50XSS	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
6C50XSS	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
6C5BXSS	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
6C5BXSS	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
6C5BXSS	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
6C5X-SS	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
6C5X-SS	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
6MB-6MJ90	24161	GATES CORP THE DBA GATES RUBBER CO THE
71910259002	89944	KOLLSMAN, INC.
9MIL-F-18866	68134	PERIN CO INC
A3400-6SS	97576	LENZ INC DBA THE LENZ COMPANY
J522-6SS	54214	BOWES MFG INC
MIL-F-18866	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS51527A6S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51527B6S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-762-2120

Compare

Related Products | NSN 4730-00-762-2120

4730-00-762-2298, 4730-00-762-2716, 4730-00-762-4131, 4730-00-762-4158, 4730-00-762-4161

Technical Data | NSN 4730-00-762-2120

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66,300 SERIES FED STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35,TYPE 1 OR 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
MEDIA FOR WHICH DESIGNED	AIR SINGLE RESPONSE
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP	250.0 DEG FAHRENHEIT SINGLE RESPONSE
CONNECTION TYPE	THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END
CONNECTION STYLE	B64 FLARED 1ST END B71A EXTERNAL SEAT FOR GASKET SEAL 2ND END
SEAT ANGLE	37.0 DEGREES 1ST END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.375 INCHES 1ST END
THREAD SERIES DESIGNATOR	UNF ALL ENDS
NOMINAL THREAD SIZE	0.562 INCHES ALL ENDS
THREAD CLASS	2A ALL ENDS

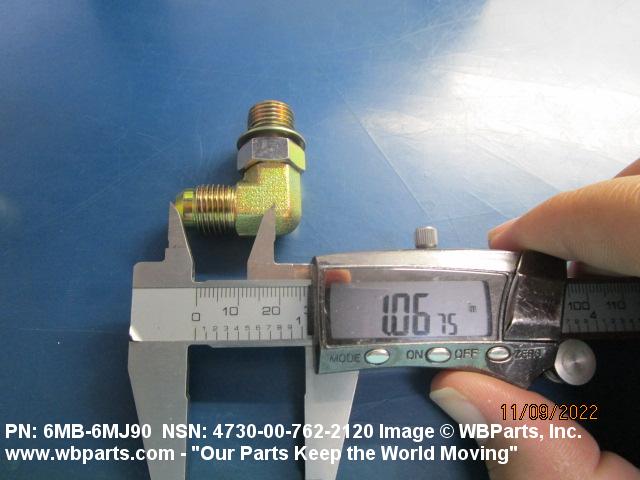

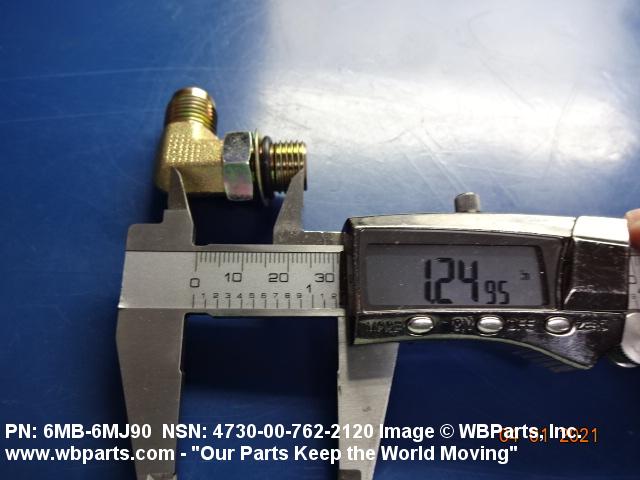

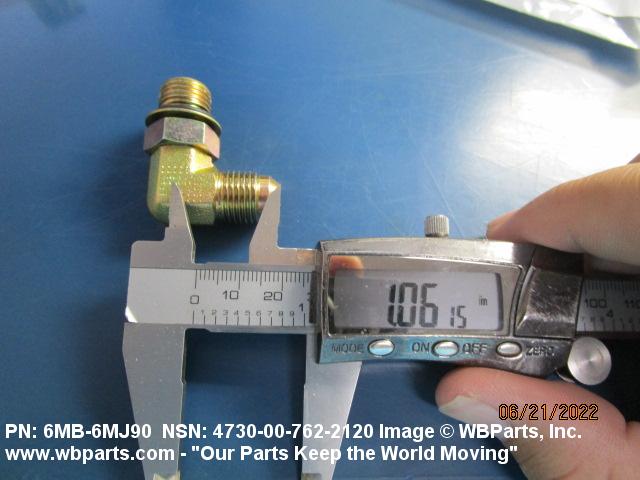

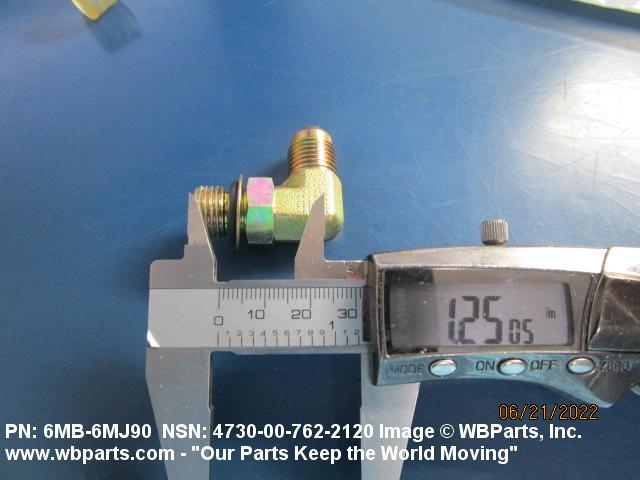

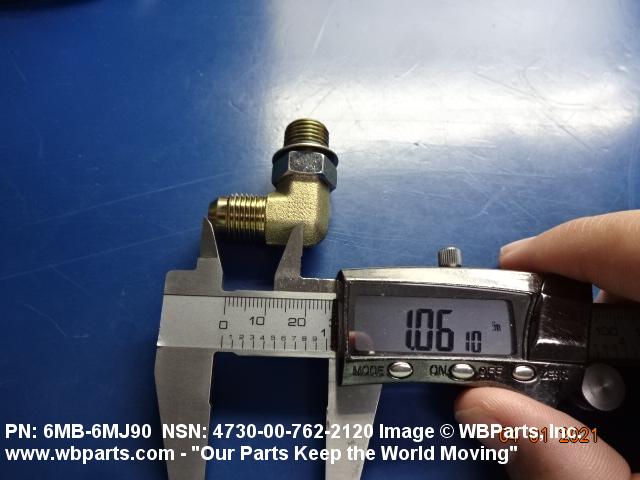

LEG LENGTH	1.062 INCHES NOMINAL 1ST END 1.250 INCHES NOMINAL 2ND END
FLOW ANGLE	90.0 DEGREES
FURNISHED ITEMS AND QUANTITY	1 TUBE COUPLING NUT W/SLEEVE AND 1 PREFORMED PACKING
SPECIAL FEATURES	SUPPORTS GRUMMAN A10A AIRCRAFT
SPECIFICATION/STANDARD DATA	81349-MIL-F-18866 GOVERNMENT SPECIFICATION AND 96906-MS51527 GOVERNMENT STANDARD
III END ITEM IDENTIFICATION	23N SHIP, OHIO CLASS SSN (TRIDENT)
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-F-18866
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51527A6S

Restrictions/Controls & Freight Information | NSN 4730-00-762-2120

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-762-2120

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
