NSN 4730-00-737-3777 1268231, 7373777, 00-737-3777
Product Details | FLUID PASSAGE BOLT
4730-00-737-3777 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 1268231, 7373777, 4730-00-737-3777, 00-737-3777, 4730007373777, 007373777
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-737-3777 | 18683 ( BOLT, FLUID PASSAGE ) |
Drawings & Photos | NSN 4730-00-737-3777
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-737-3777
Related Products | NSN 4730-00-737-3777
Technical Data | NSN 4730-00-737-3777
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-634,TYPE 1015 TO 1018 FED SPEC SINGLE MATERIAL RESPONSE |
| BODY STYLE | 15 PLAIN |
| CONCENTRIC HOLE DEPTH | 2.237 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.218 INCHES NOMINAL |
| OVERALL LENGTH | 4.250 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.745 INCHES MINIMUM AND 0.747 INCHES MAXIMUM |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 3.000 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.218 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 3.375 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 4.000 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.250 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C6 PLAIN |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 16 |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 1.000 INCHES NOMINAL |
| SECOND END STYLE DESIGNATOR | C10 PLAIN |

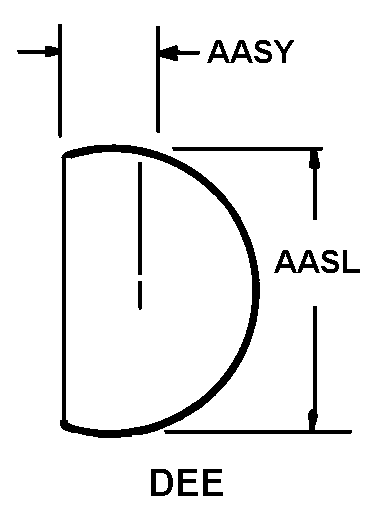

| WRENCHING FEATURE STYLE | 5 DEE |
| HEAD DIAMETER | 1.125 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE TO FLAT | 0.442 INCHES NOMINAL |
| HARDNESS RATING | 30.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM |
Restrictions/Controls & Freight Information | NSN 4730-00-737-3777
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
