NSN 4730-00-737-3778 1268322, 7373778, 00-737-3778
Product Details | FLUID PASSAGE BOLT
4730-00-737-3778 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 1268322, 7373778, 4730-00-737-3778, 00-737-3778, 4730007373778, 007373778
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-737-3778 | 18683 ( BOLT, FLUID PASSAGE ) |
Drawings & Photos | NSN 4730-00-737-3778
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-737-3778
Related Products | NSN 4730-00-737-3778
Technical Data | NSN 4730-00-737-3778
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1020 |

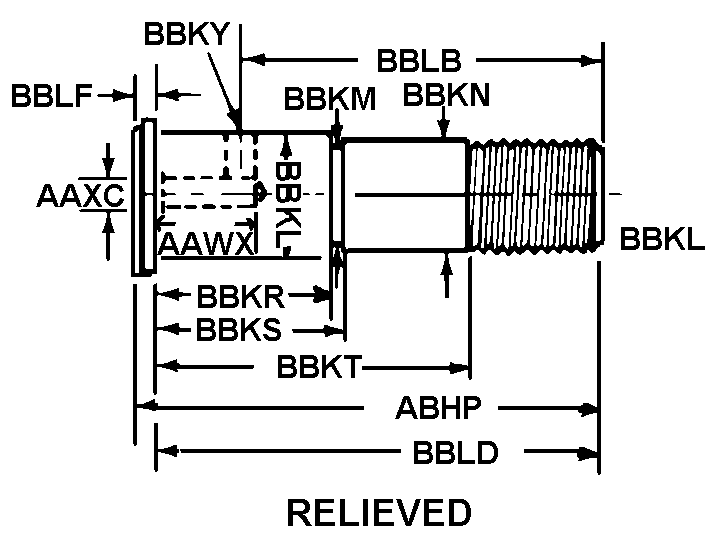

| BODY STYLE | 26 RELIEVED |
| CONCENTRIC HOLE DEPTH | 1.625 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.218 INCHES NOMINAL |
| OVERALL LENGTH | 4.750 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.734 INCHES NOMINAL |
| SECOND DIAMETER FROM WRENCHING FEATURE | 0.747 INCHES NOMINAL |
| THIRD DIAMETER FROM WRENCHING FEATURE | 0.735 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 0.094 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF SECOND DIAMETER | 1.250 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF THIRD DIAMETER | 3.500 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.218 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 3.250 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 4.500 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.250 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C6 PLAIN |
| FIRST END SEAT ANGLE | 12.0 DEGREES NOMINAL |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 16 |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 1.000 INCHES NOMINAL |
| SECOND END CONNECTION TYPE | THREADED INTERNAL TUBE |

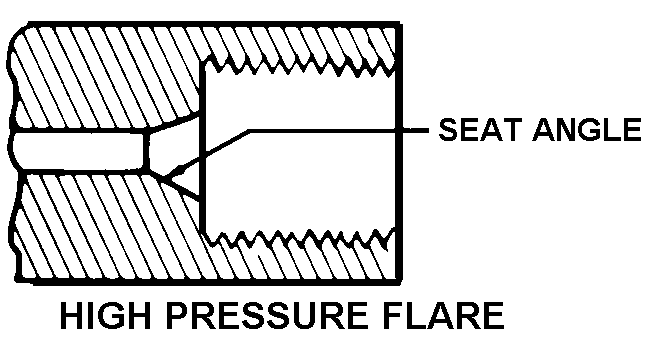

| SECOND END STYLE DESIGNATOR | C15 HIGH PRESSURE FLARE |
| SECOND END SEAT ANGLE | 12.0 DEGREES NOMINAL |
| SECOND END THREAD SERIES DESIGNATOR | UNF |
| SECOND END NOMINAL THREAD SIZE | 0.250 INCHES |
| SECOND END THREAD QUANTITY PER INCH | 28 |
| SECOND END THREAD CLASS | 2B |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END THREAD LENGTH | 0.250 INCHES NOMINAL |
| WRENCHING FEATURE STYLE | 5 DEE |
| HEAD DIAMETER | 1.125 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE TO FLAT | 0.442 INCHES NOMINAL |
| COTTER PIN HOLE DIAMETER | 0.136 INCHES NOMINAL |
| DISTANCE FROM BOLT END TO HOLE CENTER | 0.187 INCHES NOMINAL |
| HARDNESS RATING | 58.0 ROCKWELL C MAXIMUM |
