NSN 4730-00-724-9316 R197P08L, 00-724-9316, 007249316
Product Details | TUBE COUPLING NUT
4730-00-724-9316 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: R197P08L, 4730-00-724-9316, 00-724-9316, 4730007249316, 007249316
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-724-9316 | 03859 ( NUT, TUBE COUPLING ) |

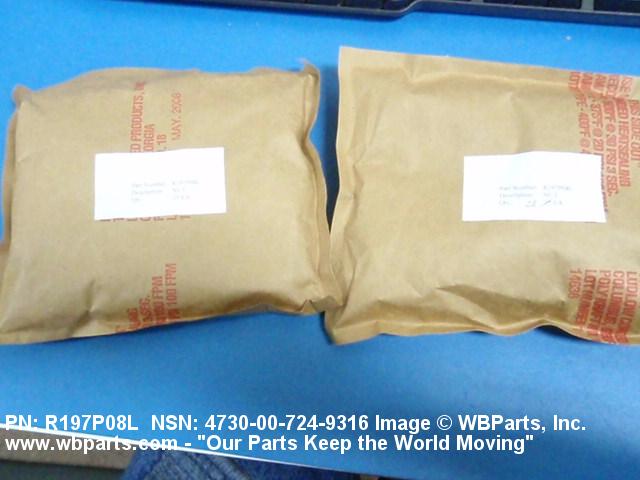

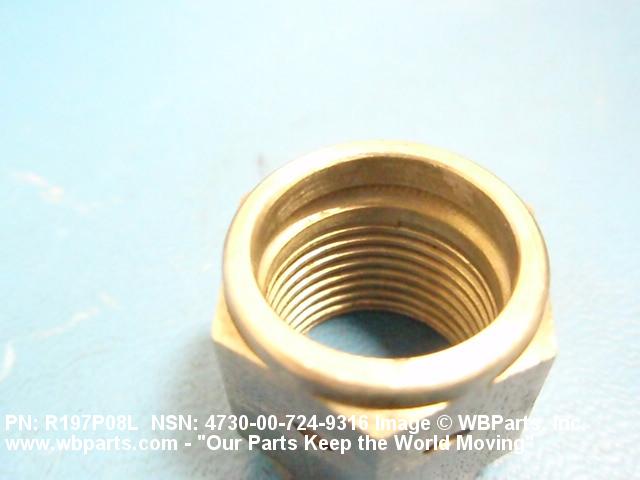

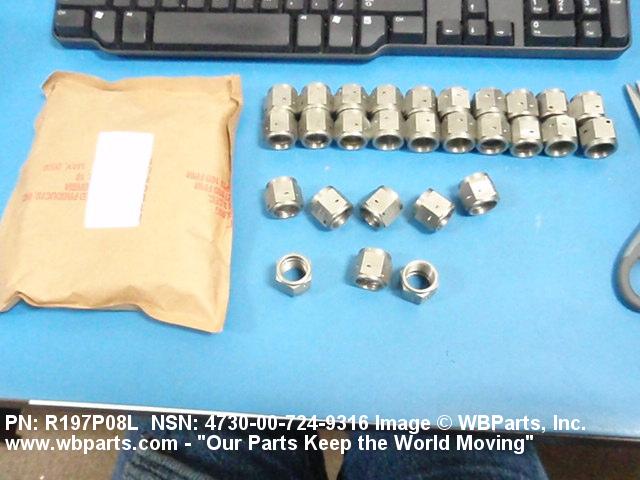

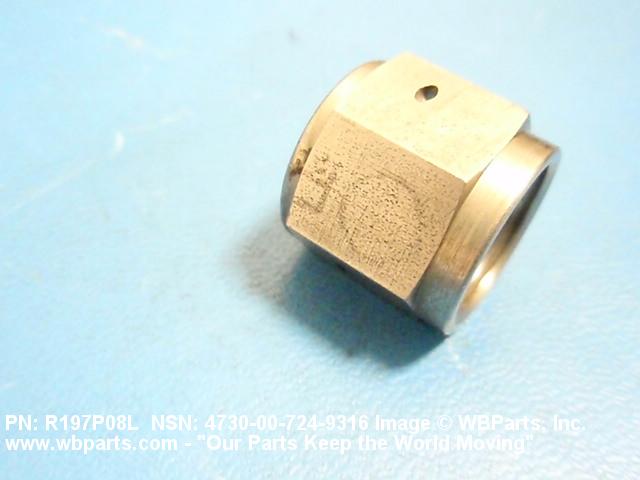

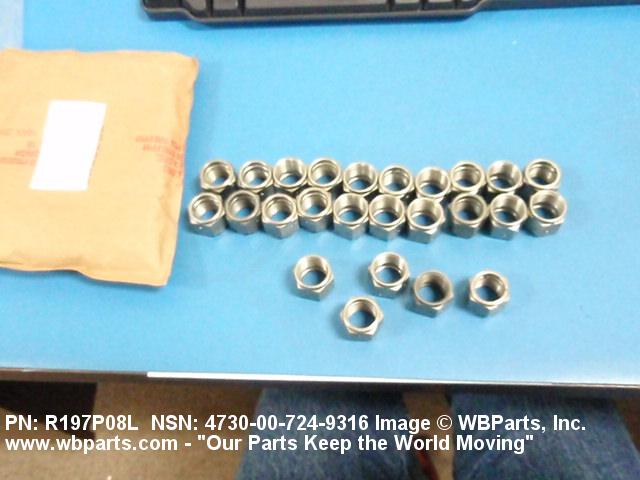

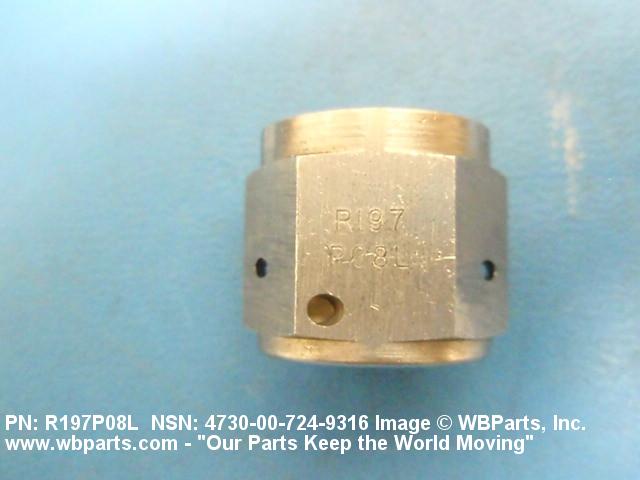

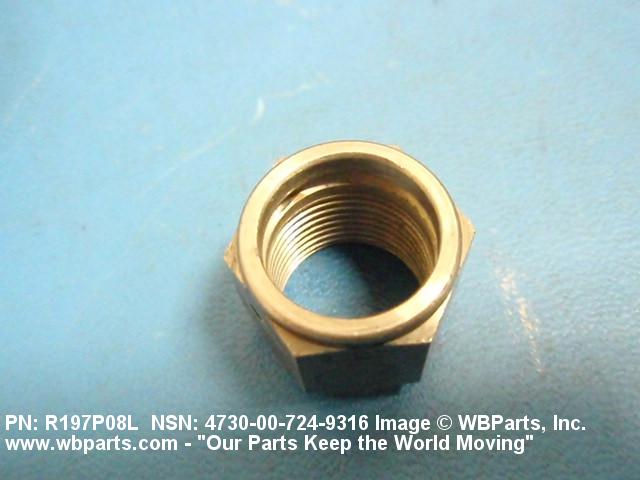

Drawings & Photos | NSN 4730-00-724-9316
Demand History | NSN 4730-00-724-9316
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-724-9316 | 2013-02-32 | 70 | DIBBS |
| 4730-00-724-9316 | 2012-02-40 | 31 | DIBBS |
| 4730-00-724-9316 | 2011-01-12 | 45 | DIBBS |
| 4730-00-724-9316 | 2010-04-95 | 125 | United States |
| 4730-00-724-9316 | 2010-03-76 | 125 | DIBBS |
Cross Reference | NSN 4730-00-724-9316
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| R197P08L | 03350 | GENERAL ELECTRIC COMPANY DBA GE STRUCTURED SERVICES DIV |
| R197P08L | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| R197P08L | 17328 | UNITED PRECISION PRODUCTS CO., INC. |
| R197P08L | 24446 | GENERAL ELECTRIC CO |
| R197P08L | 33823 | ADAMS INDUSTRIES INC A SUB OF BANNER INDUSTRIES INC |
| R197P08L | 34724 | ACRA AEROSPACE INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-724-9316
Related Products | NSN 4730-00-724-9316
Technical Data | NSN 4730-00-724-9316
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| NUT STYLE | A351 TUBE COUPLING |
| NUT HEIGHT | 0.844 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.865 INCHES MINIMUM AND 0.877 INCHES MAXIMUM |
| LENGTH TO SHOULDER | 0.660 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 0.688 INCHES MINIMUM AND 0.694 INCHES MAXIMUM |
| FABRICATION METHOD | ANY ACCEPTABLE |
| NOMINAL TUBE OUTSIDE DIAMETER | 0.500 INCHES |
| SPECIAL FEATURES | W/TWO 0.070 IN. DIA WIRE LOCKING HOLES ACROSS FLATS |
Restrictions/Controls & Freight Information | NSN 4730-00-724-9316
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-724-9316
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
