NSN 4730-00-720-0987 MS243934, MS24393-4, A51A88
Product Details | TUBE NIPPLE
4730-00-720-0987 A straight, one-piece fitting used to join a tube or tube fitting to another tube or tube fitting. It may have any type externally threaded tube connections of the same size on both ends and is usually shaped externally at the center to accommodate a wrench. It may include nuts, sleeves, and/or grommets.
Part Alternates: MS243934, MS24393-4, A51A88, AN8284, AN828-4, AN8324, AN832-4, AS5406, AS540604, AS5406-04, C5325X4, S8204, S820-4, 5097D1, 5325X4, 58324, 5832-4, 5832X4, 7205738P1, 81348MILF5509, 81348MIL-F-5509, 86118471, 8611847-1, 9403252, 946.20.65.303, 9462065303, 4730-00-720-0987, 00-720-0987, 4730007200987, 007200987
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-720-0987 | 03783 ( NIPPLE, TUBE ) |

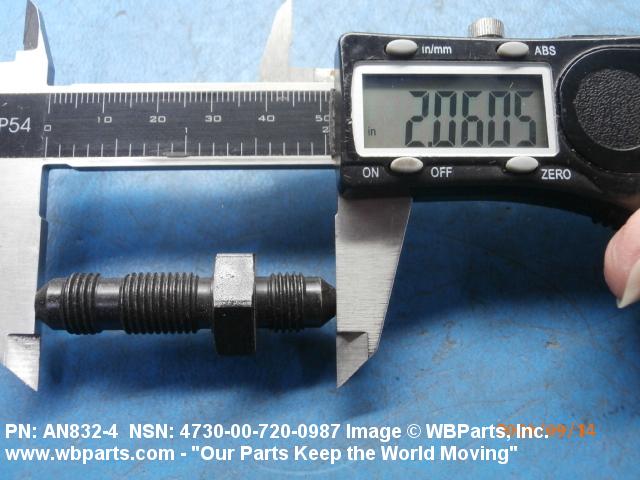

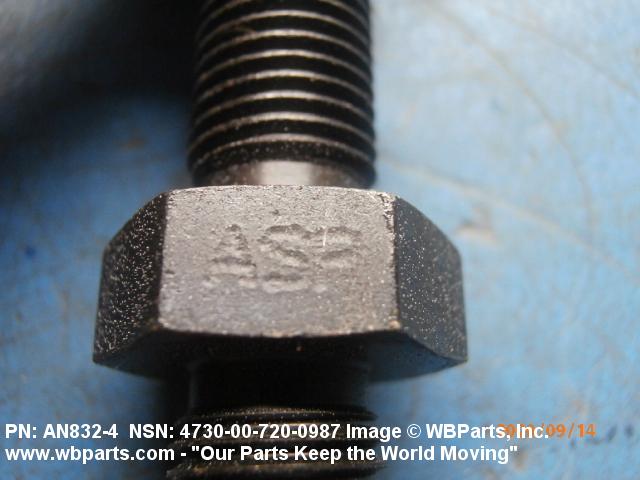

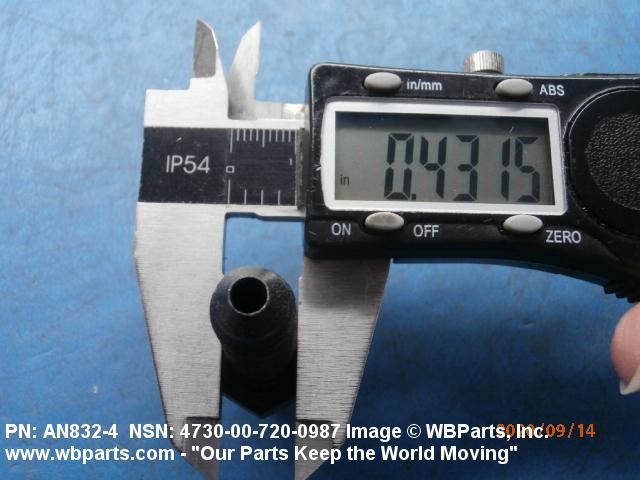

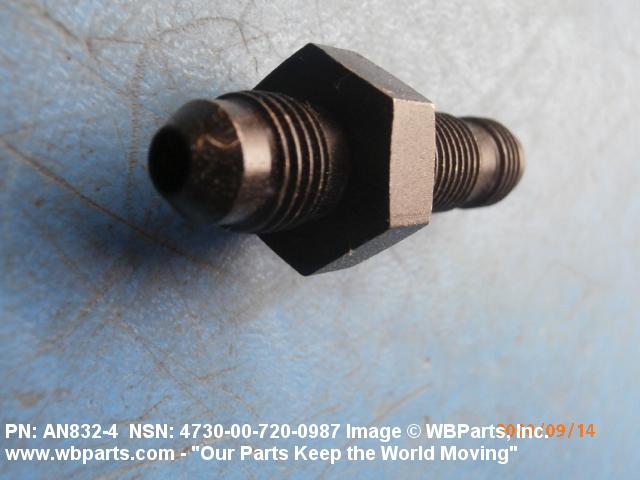

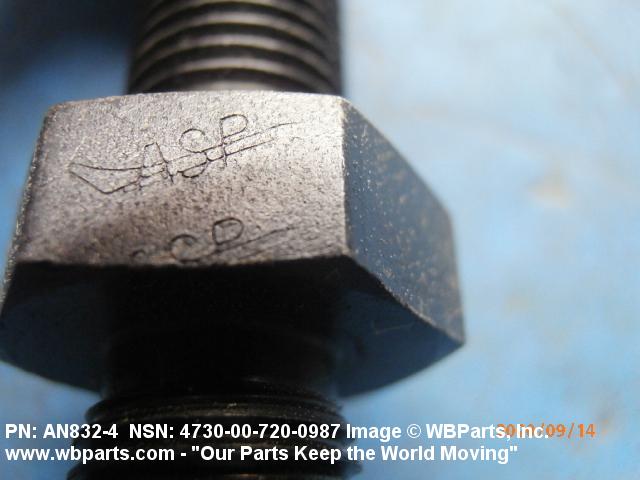

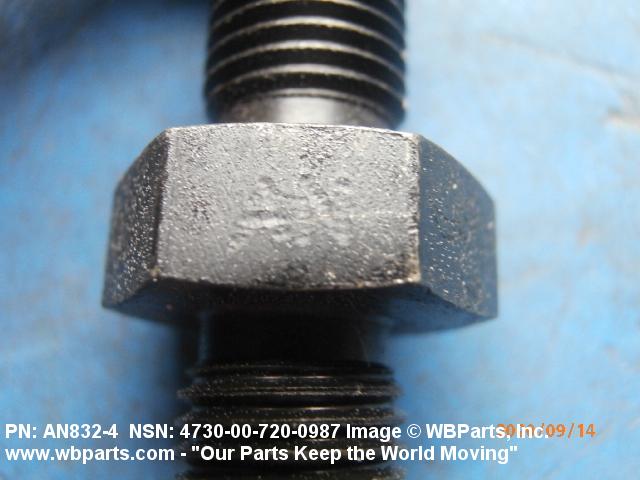

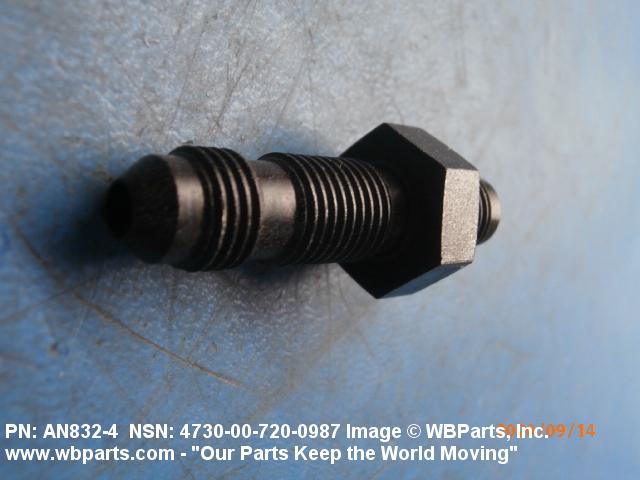

Drawings & Photos | NSN 4730-00-720-0987
Demand History | NSN 4730-00-720-0987
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN8324 | 2020-09-248 | 1 | United States |
| AN8324 | 2019-08-239 | 4 | United States |
| AN8324 | 2019-08-239 | 8 | United States |
| AN8324 | 2019-08-227 | 4 | United States |
| AN8324 | 2019-08-227 | 8 | United States |
| AN8324 | 2019-07-203 | 167 | United States |
| AN8324 | 2016-04-95 | 3 | United States |
| AN8324 | 2016-04-95 | 7 | United States |
| AN8324 | 2016-04-95 | 17 | United States |
| AN8324 | 2016-04-95 | 32 | United States |
| AN8324 | 2016-04-95 | 62 | United States |
| AN8324 | 2016-04-95 | 80 | United States |
| 4730-00-720-0987 | 2013-04-108 | 40 | MANUAL |
| AN8324 | 2012-07-185 | 15 | United States |
| AN832-4 | 2012-07-184 | 1 | United States |
| 4730-00-720-0987 | 2010-07-201 | 4 | US |
| AN8324 | 2010-05-141 | 1 | US |
| 4730-00-720-0987 | 2010-04-111 | 6 | India |
| 4730-00-720-0987 | 2009-08-231 | 73 | DIBBS |
| 4730-00-720-0987 | 2009-07-212 | 33 | DIBBS |
| 4730-00-720-0987 | 2009-06-154 | 252 | DIBBS |
| 4730-00-720-0987 | 2009-05-126 | 4465 | DIBBS |
| 4730-00-720-0987 | 2009-04-97 | 1642 | DIBBS |
Cross Reference | NSN 4730-00-720-0987
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4730007200987 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5097D1 | 0AHP5 | CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS |
| 5325X4 | 79470 | DANA CORP WEATHERHEAD DIV |
| 5832-4 | 79470 | DANA CORP WEATHERHEAD DIV |
| 5832X4 | 79470 | DANA CORP WEATHERHEAD DIV |
| 7205738P1 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 7205738P1 | 24446 | GENERAL ELECTRIC CO |
| 81348MIL-F-5509 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| 8611847-1 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
| 9403252 | 61928 | GENERAL MOTORS CORP AC-DELCO DIV |
| 9403252 | 91209 | GENERAL MOTORS CORP ACCESSORY AND PARTS DIV |
| 946.20.65.303 | S4080 | PILATUS AIRCRAFT LTD |
| A51A88 | 58588 | SURFACE COMBUSTION, INC. |
| AN828-4 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN832-4 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN832-4 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS5406 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5406-04 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| C5325X4 | 79470 | DANA CORP WEATHERHEAD DIV |
| MS24393-4 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| MS24393-4 | 22995 | CROWN FITTING CO INC |
| MS24393-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| S820-4 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-720-0987
Related Products | NSN 4730-00-720-0987
Technical Data | NSN 4730-00-720-0987
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| MAXIMUM OPERATING PRESSURE | 3000.000 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| STYLE DESIGNATOR | A64 FLARED W/BULKHEAD THREAD |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B64 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS 0.250 INCHES 1ST END BULKHEAD |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS UNJF CENTER BULKHEAD |
| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS 0.438 INCHES CENTER BULKHEAD |
| THREAD CLASS | 3A ALL ENDS 3A CENTER BULKHEAD |
| NOMINAL OVERALL LENGTH | 2.047 INCHES |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| SPECIFICATION/STANDARD DATA | 96906-MS24393 GOVERNMENT STANDARD |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | A-10, F-16, F/A-18 AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 4730-00-720-0987
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
