NSN 4730-00-720-0461 MS219224C, MS21922-4C, MS219224D

Product Details | TUBE FITTING CLINCH SLEEVE

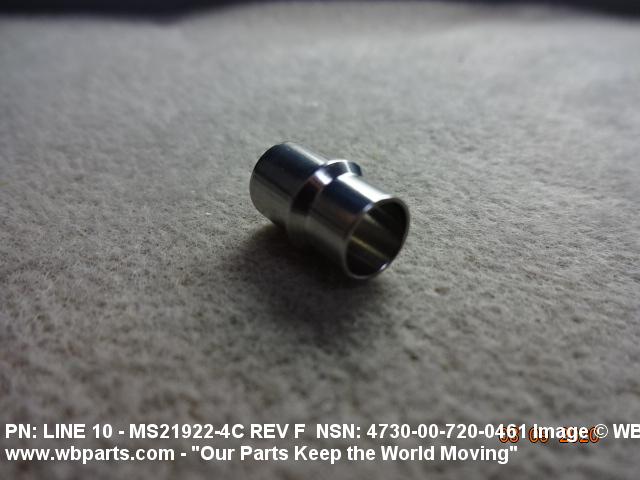

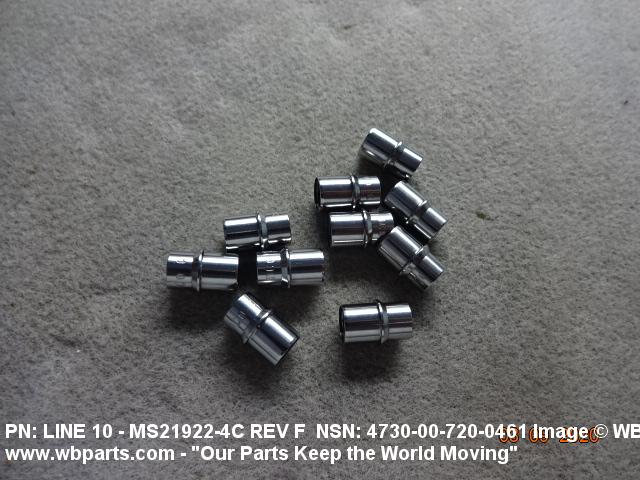

4730-00-720-0461 A flanged cylindrical item having a sharp cutting surface on the inside diameter at the end opposite the flange. The cutting edge, in use, is designed to imbed in the tubing due to pressure exerted when the outside diameter of the sleeve is forced into and against an angular seat. This firmly attaches the sleeve to the tubing and the flanged end then serves as a bearing surface for the coupling nut to bring the tubing into the mating fitting.

Part Alternates: MS219224C, MS21922-4C, MS219224D, MS21922-4D, MS219224J, MS21922-4J, AS18280, AS21922A, 281472-0001 ITE, 2814720001ITE, 4730-00-720-0461, 00-720-0461, 4730007200461, 007200461

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-720-0461	18025 ( SLEEVE, CLINCH, TUBE FITTING )

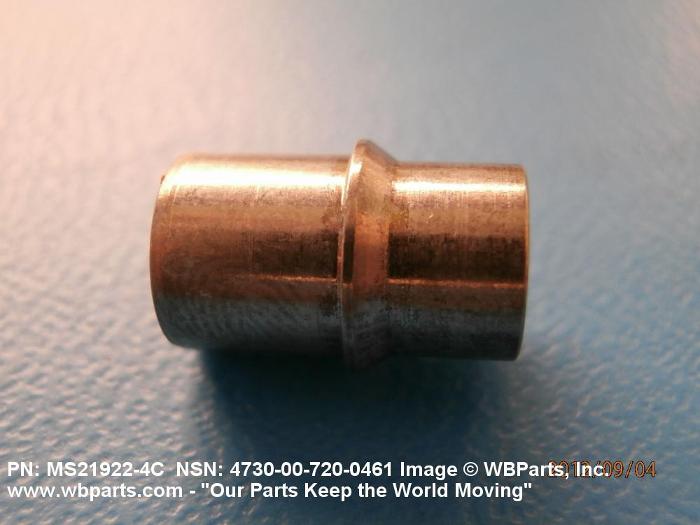

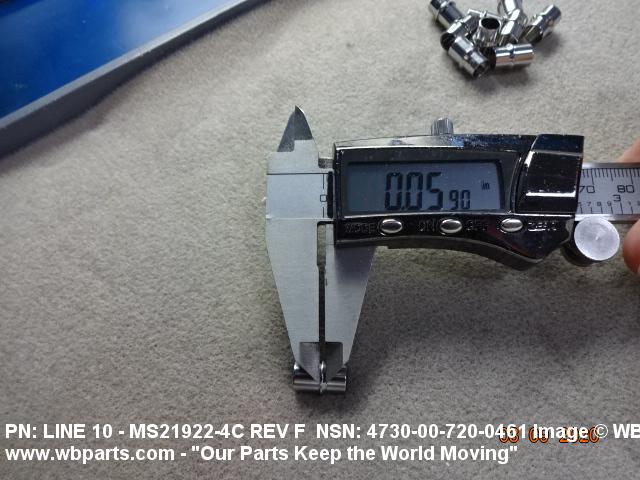

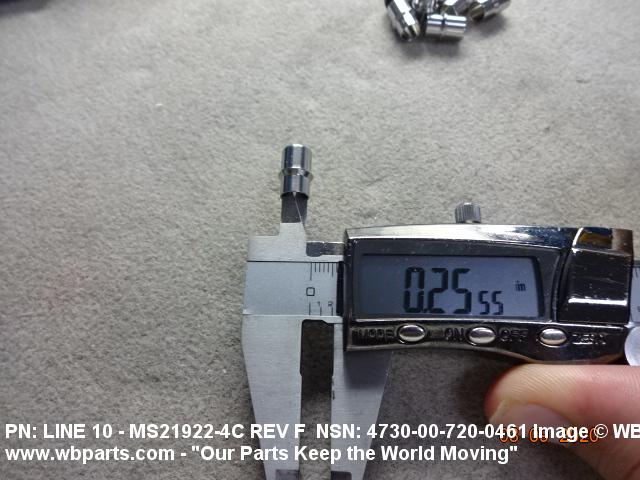

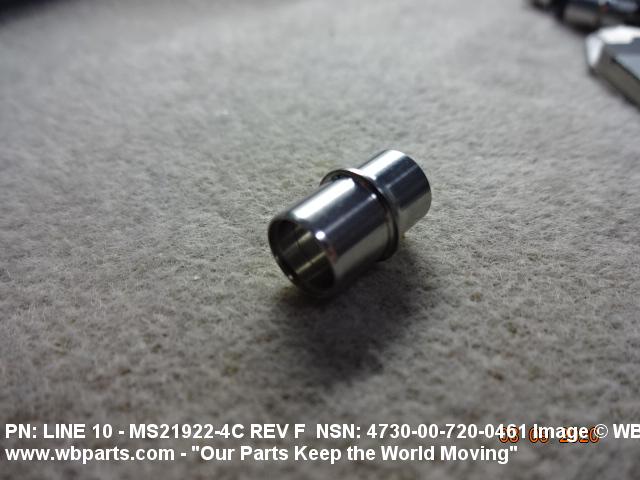

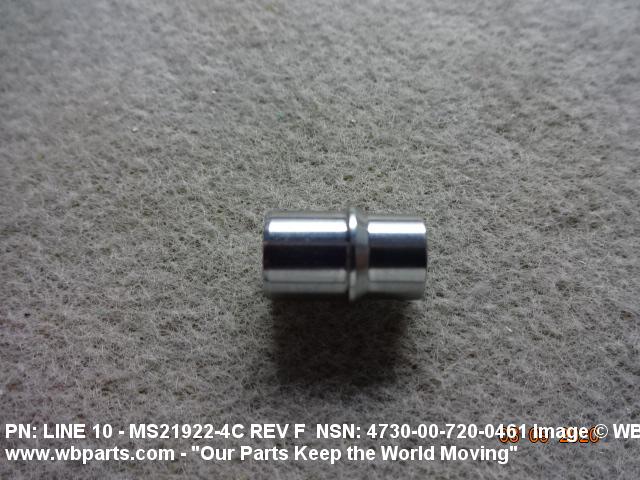

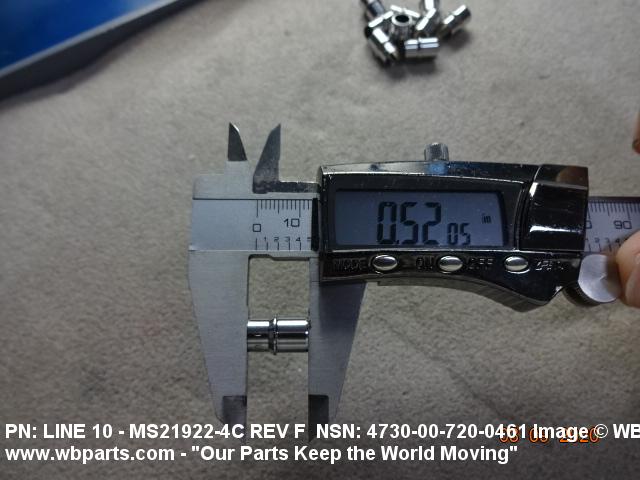

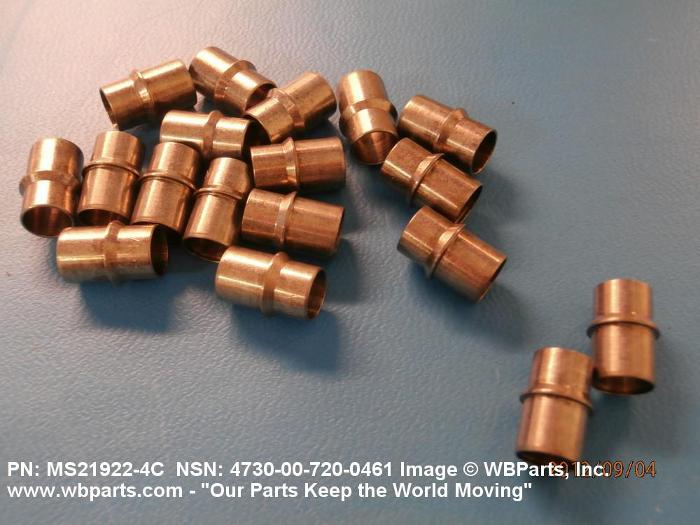

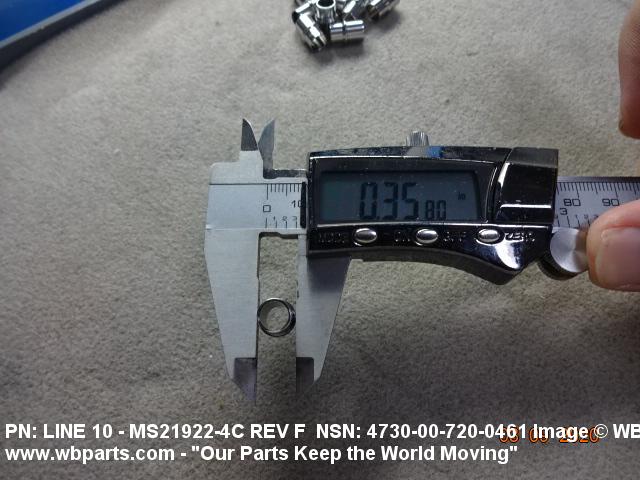

Drawings & Photos | NSN 4730-00-720-0461

Part Number	Request Date	QTY	Origin
MS219224C	2024-09-10	200	United States
4730-00-720-0461	2024-06-25	35	United States
MS219224C	2024-03-04	8	UK
4730-00-720-0461	2023-07-11	787	DIBBS
MS219224C	2022-07-13	600	US
4730-00-720-0461	2022-06-15	345	DIBBS
MS219224C	2022-04-07	9	Czech Republic
4730-00-720-0461	2022-03-02	202	US
MS219224C	2021-12-01	100	US
MS219224C	2020-03-30	14	US
4730-00-720-0461	2020-01-24	10	United States
MS219224J	2020-01-13	5	United States
MS219224C	2019-12-06	15	United States
MS219224C	2019-06-10	150	India
MS219224C	2019-05-22	160	Italy
4730-00-720-0461	2019-04-22	25	United States
MS219224C	2019-03-26	100	India
MS219224C	2018-08-20	100	IN
MS219224J	2018-08-01	440	IN
4730-00-720-0461	2017-06-28	10	US
4730-00-720-0461	2017-01-03	20	US
MS219224C	2016-07-21	10	US
MS219224C	2016-07-08	46	US
MS219224C	2016-03-01	40	Thailand
MS219224C	2015-10-08	40	US
MS219224C	2015-10-08	100	US
AS18280	2014-10-07	1	US
MS219224C	2013-11-22	270	US
MS219224C	2013-11-22	540	US
MS219224C	2013-11-22	1350	US
MS219224C	2013-06-28	60	US
MS219224C	2013-06-28	120	US
MS219224C	2013-06-28	240	US
MS219224C	2012-07-12	6	US
MS219224C	2012-07-12	18	US
MS219224C	2012-07-12	60	US
MS219224C	2012-03-19	1500	US
MS219224C	2010-12-21	20	United States
4730-00-720-0461	2009-05-03	1	Singapore
MS219224D	2009-02-10	200	United States
4730-00-720-0461	2008-11-12	1207	DIBBS
4730-00-720-0461	2007-11-28	100	United States
MS219224C	2007-07-11	160	India
4730-00-720-0461	2007-02-28	15	US
MS219224C	2006-08-04	200	Thailand

Cross Reference | NSN 4730-00-720-0461

Part Number	Cage Code	Manufacturer
281472-0001 ITE	99657	MAROTTA CONTROLS, INC.
AS18280	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS21922A	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS21922-4C	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS21922-4C	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21922-4D	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21922-4J	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-720-0461

Compare

Related Products | NSN 4730-00-720-0461

4730-00-720-0462, 4730-00-720-0481, 4730-00-720-0522, 4730-00-720-0523, 4730-00-720-0524

Technical Data | NSN 4730-00-720-0461

Characteristic	Specifications
MATERIAL	STEEL, AMS 5643
SURFACE TREATMENT	PASSIVATED, MIL-S-5002
METALLIC HARDNESS RATING	NOT RATED
CASEHARDENING INDICATOR	NOT CASEHARDENED

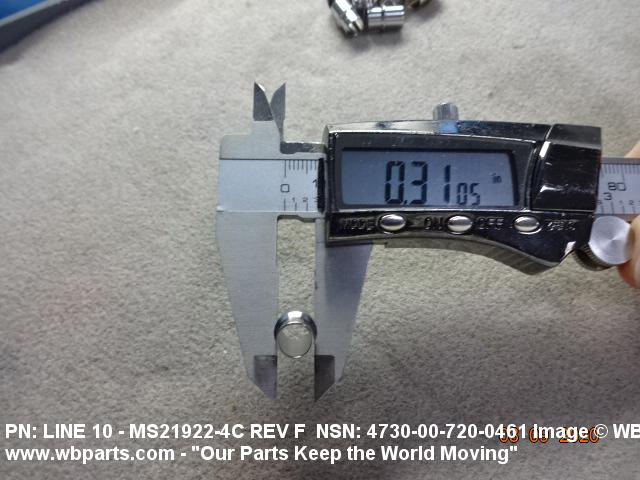

HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED	0.250 INCHES NOMINAL
