NSN 4730-00-684-4041 MS2192216C, MS21922-16C, AS18280

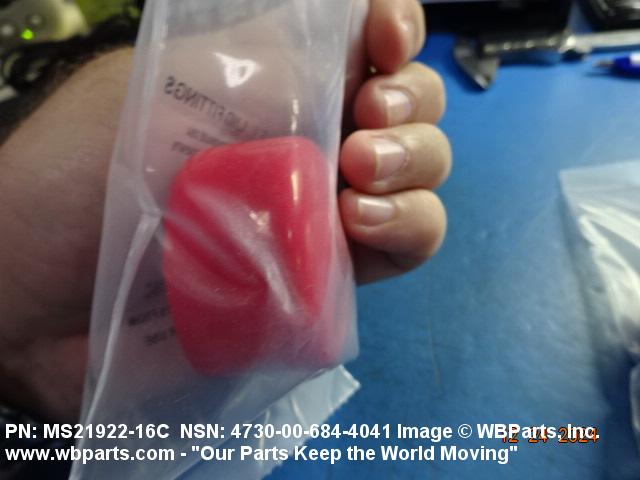

Product Details | TUBE FITTING CLINCH SLEEVE
4730-00-684-4041 A flanged cylindrical item having a sharp cutting surface on the inside diameter at the end opposite the flange. The cutting edge, in use, is designed to imbed in the tubing due to pressure exerted when the outside diameter of the sleeve is forced into and against an angular seat. This firmly attaches the sleeve to the tubing and the flanged end then serves as a bearing surface for the coupling nut to bring the tubing into the mating fitting.
Part Alternates: MS2192216C, MS21922-16C, AS18280, AS21922, MILF18280A, MIL-F-18280A, 4730-00-684-4041, 00-684-4041, 4730006844041, 006844041
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-684-4041 | 18025 ( SLEEVE, CLINCH, TUBE FITTING ) |
Drawings & Photos | NSN 4730-00-684-4041
Demand History | NSN 4730-00-684-4041
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-684-4041 | 2024-12-353 | 2 | United States |
| MS2192216C | 2024-10-276 | 50 | US |
| MS2192216C | 2024-10-276 | 100 | US |
| MS2192216C | 2024-10-276 | 200 | US |
| 4730-00-684-4041 | 2024-01-11 | 288 | DIBBS |
| 4730-00-684-4041 | 2023-08-220 | 288 | DIBBS |
| 4730-00-684-4041 | 2023-03-79 | 288 | DIBBS |
| 4730-00-684-4041 | 2023-03-66 | 288 | DIBBS |
| 4730-00-684-4041 | 2022-10-304 | 58 | DIBBS |
| 4730-00-684-4041 | 2022-10-293 | 58 | DIBBS |
| 4730-00-684-4041 | 2017-03-72 | 255 | DIBBS |
| 4730-00-684-4041 | 2015-08-238 | 50 | US |
| AS18280 | 2014-10-280 | 1 | US |
| MS2192216C | 2014-06-155 | 10 | IT |
| 4730-00-684-4041 | 2013-11-316 | 248 | DIBBS |
| MS2192216C | 2012-02-60 | 2 | US |
| MS2192216C | 2010-07-182 | 16 | US |
| 4730-00-684-4041 | 2009-10-288 | 20 | US |
| 4730-00-684-4041 | 2009-02-43 | 276 | DIBBS |
| 4730-00-684-4041 | 2008-11-316 | 408 | DIBBS |
| AS21922 | 2008-08-219 | 5 | United States |
Cross Reference | NSN 4730-00-684-4041
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21922 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-F-18280A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS21922-16C | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21922-16C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-684-4041
Related Products | NSN 4730-00-684-4041
Technical Data | NSN 4730-00-684-4041
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AMS 5643 |
| SURFACE TREATMENT | PASSIVATED |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.000 INCHES NOMINAL |
| STYLE DESIGNATOR | L5 FLARELESS |
| OVERALL LENGTH | 0.800 INCHES NOMINAL |
| FLANGE WIDTH | 0.120 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 1.156 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 12.0 |
| SLEEVE OUTSIDE DIAMETER | 1.086 INCHES NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-18280A |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21922-16C |
