NSN 4730-00-684-3569 MS219212, MS21921-2, AS18280
Product Details | TUBE COUPLING NUT
4730-00-684-3569 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: MS219212, MS21921-2, AS18280, AS21921, AS219212, AS21921-2, 4730-00-684-3569, 00-684-3569, 4730006843569, 006843569
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-684-3569 | 03859 ( NUT, TUBE COUPLING ) |

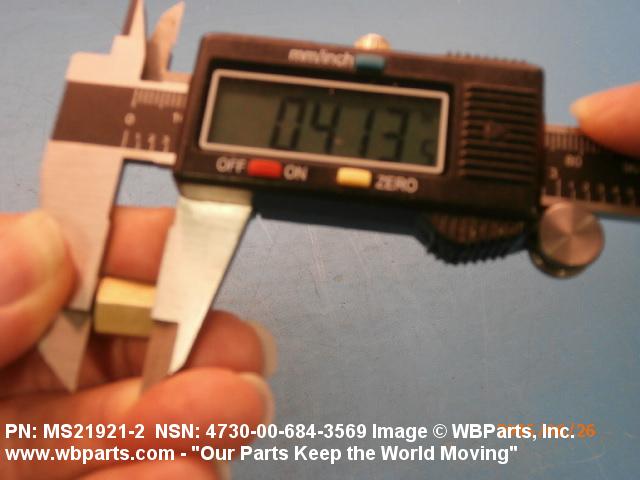

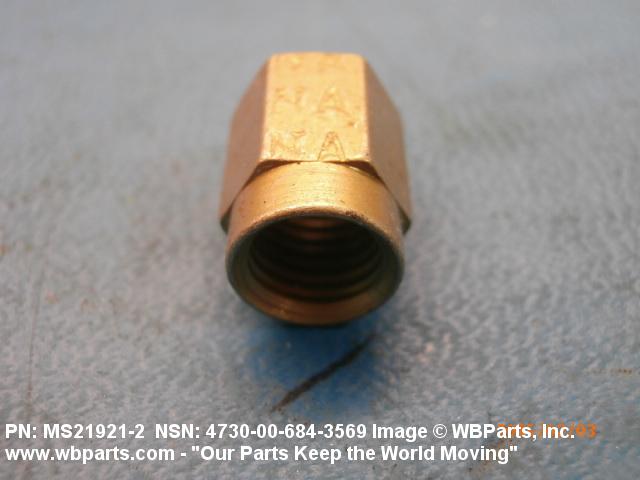

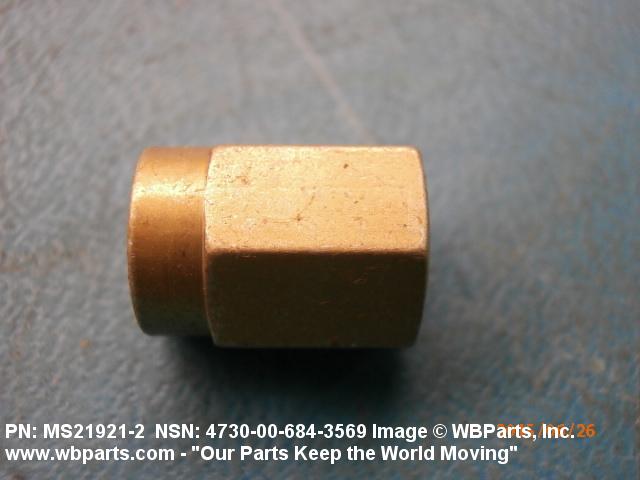

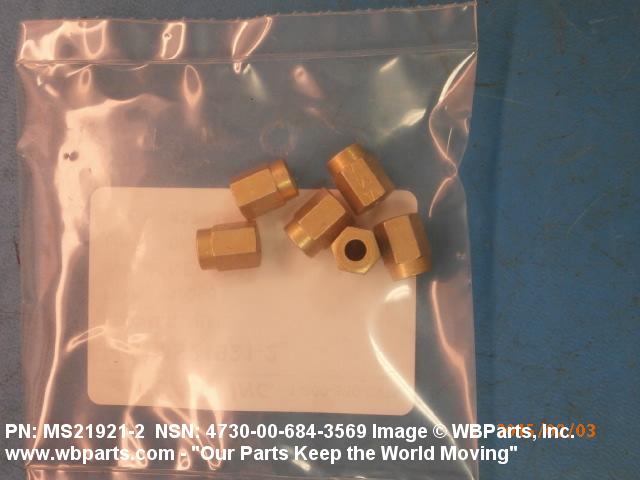

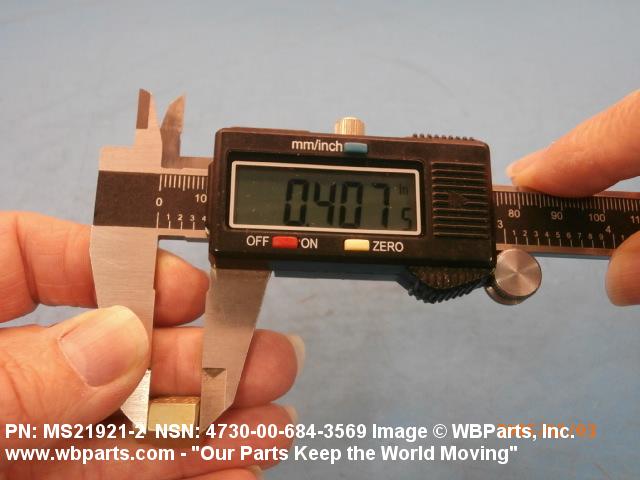

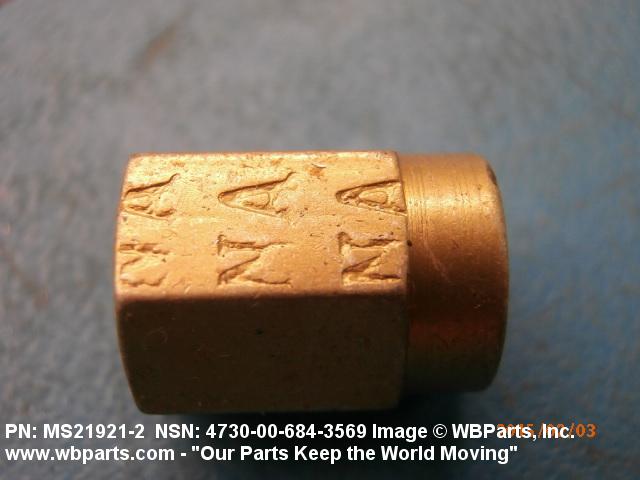

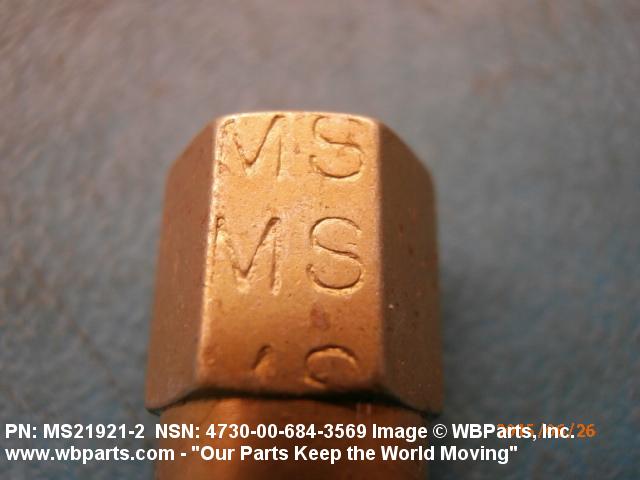

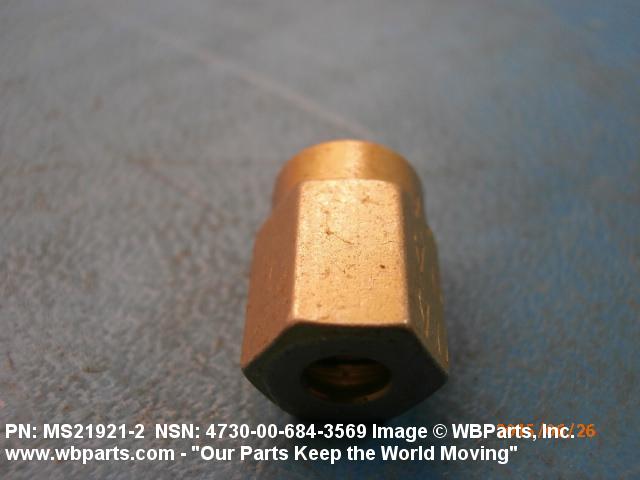

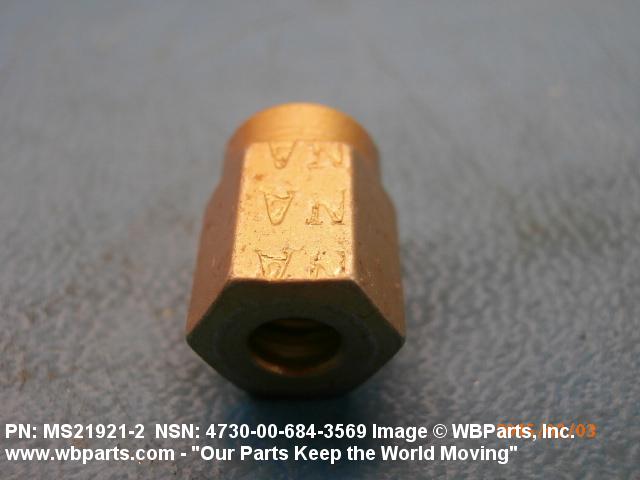

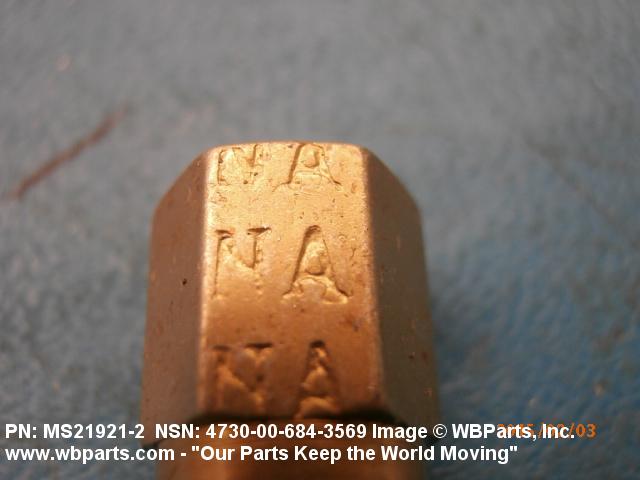

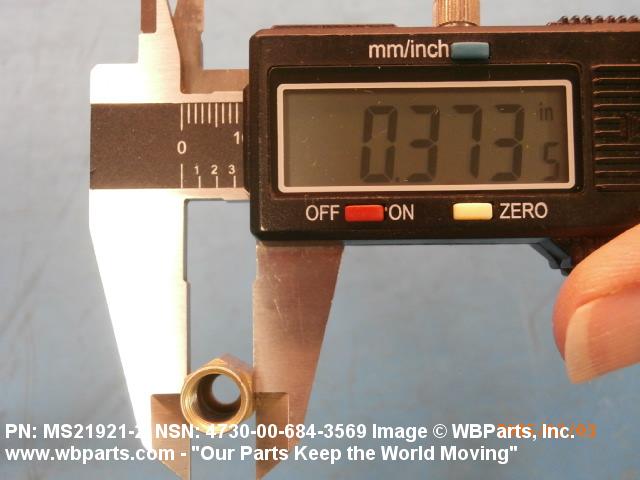

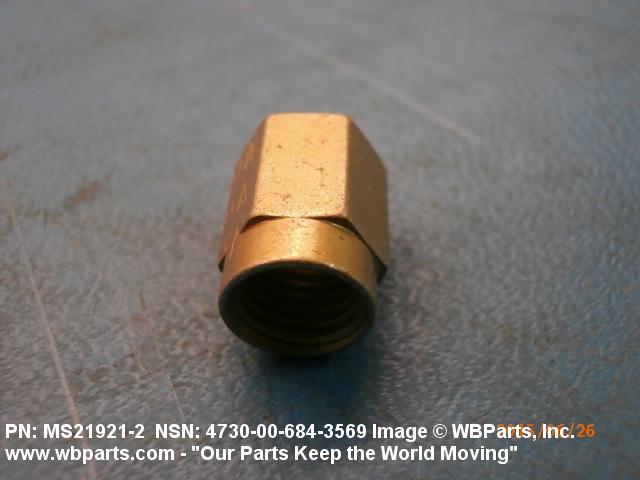

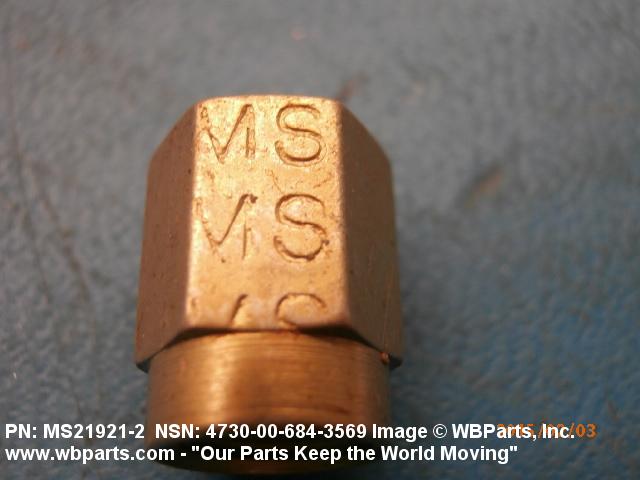

Drawings & Photos | NSN 4730-00-684-3569
Demand History | NSN 4730-00-684-3569
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-684-3569 | 2019-05-128 | 6 | Germany |
| 4730-00-684-3569 | 2017-07-206 | 6 | Germany |
| MS219212 | 2015-08-231 | 1600 | KR |
| 4730-00-684-3569 | 2015-06-170 | 10 | Germany |
| 4730-00-684-3569 | 2015-01-26 | 5 | Germany |
| AS18280 | 2014-10-280 | 1 | US |
| MS21921-2 | 2014-06-157 | 50 | United States |
| AS21921 | 2013-03-73 | 20 | US |
| AS21921 | 2013-03-73 | 50 | US |
| AS21921 | 2013-03-73 | 100 | US |
| AS21921 | 2013-03-73 | 20 | US |
| AS21921 | 2013-03-73 | 50 | US |
| AS21921 | 2013-03-73 | 100 | US |
| AS21921 | 2010-04-95 | 4 | Seychelles |
Cross Reference | NSN 4730-00-684-3569
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4730006843569 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21921 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21921-2 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21921-2 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| MS21921-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21921-2 | R1120 | SATAIR A/S |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-684-3569
Related Products | NSN 4730-00-684-3569
Technical Data | NSN 4730-00-684-3569
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |

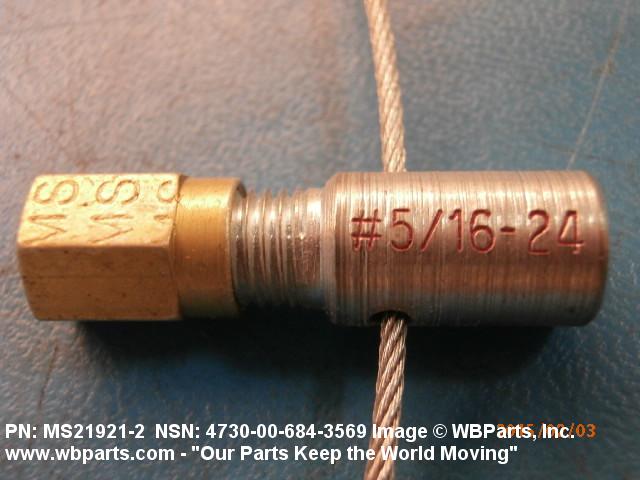

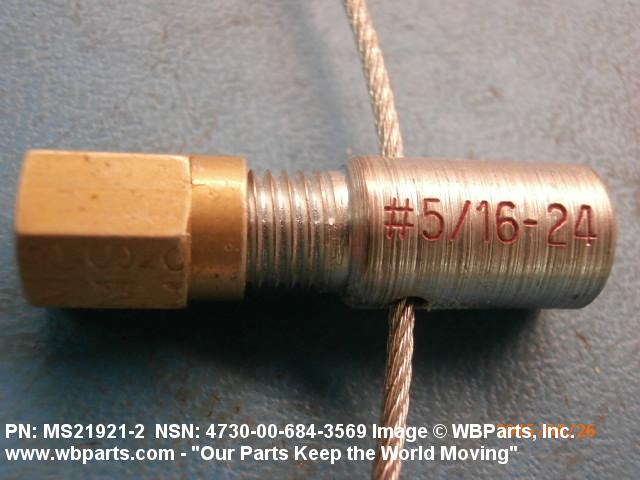

| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| NUT STYLE | A350 TUBE COUPLING |

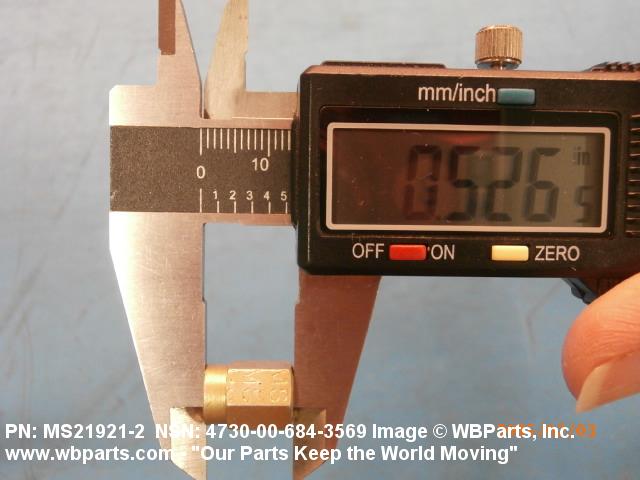

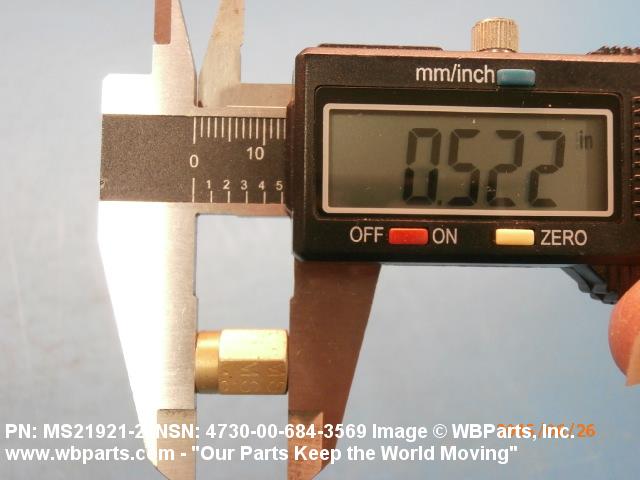

| NUT HEIGHT | 0.530 INCHES NOMINAL |

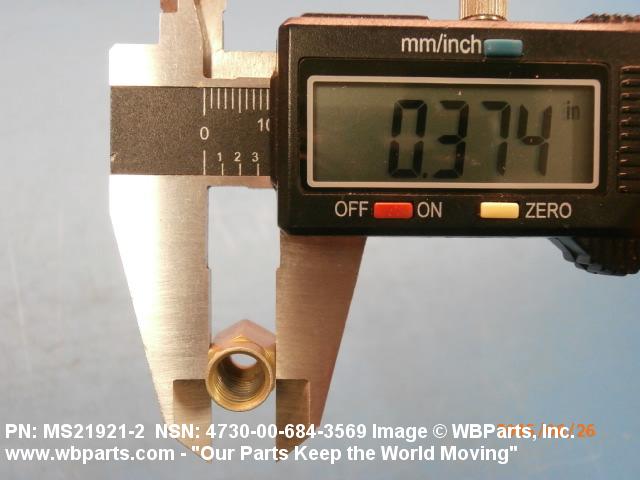

| WIDTH ACROSS FLATS | 0.375 INCHES NOMINAL |
| LENGTH TO SHOULDER | 0.425 INCHES NOMINAL |

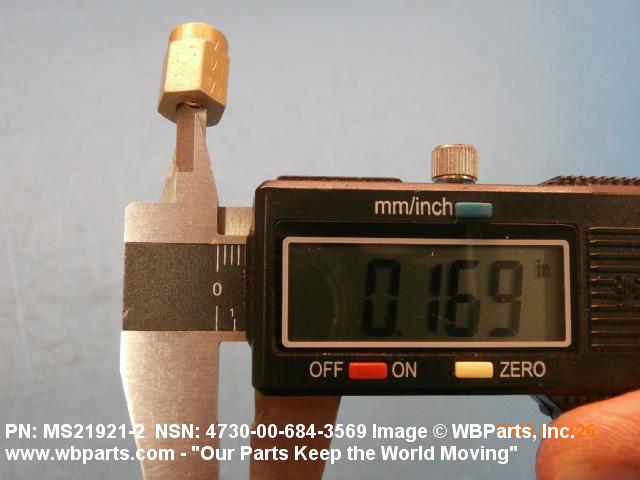

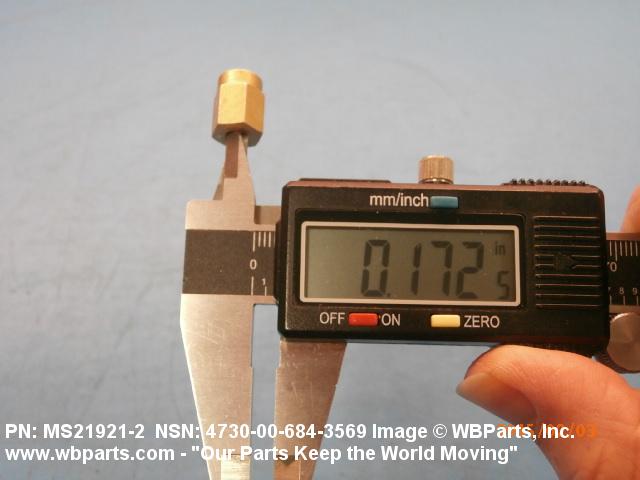

| SMALLEST INSIDE DIAMETER | 0.171 INCHES NOMINAL |
| SEAT ANGLE | 45.00 DEGREES NOMINAL |
| FABRICATION METHOD | MACHINED |
| NOMINAL TUBE OUTSIDE DIAMETER | 0.125 INCHES |
| SPECIFICATION/STANDARD DATA | 96906-MS21921 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | 2350-01-031-0586 |
