NSN 4730-00-577-3586 9000858C, 900085-8C, 900858C
Product Details | TUBE-HOSE FITTING COMPRESSION SLEEVE
4730-00-577-3586 A ring-shaped item whose outer surface is so shaped as to form a seat for the coupling nut and the fitting between which it is assembled. It is designed to be slipped over tubing or hose so that tightening of the coupling nut to the fitting compresses the sleeve against the circumference of the tubing or hose thereby effecting a tight seal between the tubing, or hose fitting and coupling nut.
Part Alternates: 9000858C, 900085-8C, 900858C, 90085-8C, 4730-00-577-3586, 00-577-3586, 4730005773586, 005773586
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 11 DEC 1974 | 00-577-3586 | 18026 ( SLEEVE, COMPRESSION, TUBE-HOSE FITTING ) |
Drawings & Photos | NSN 4730-00-577-3586
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-577-3586
Technical Data | NSN 4730-00-577-3586
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATED |
| METALLIC HARDNESS RATING | 35.0 MINIMUM ROCKWELL C AND 39.0 MAXIMUM ROCKWELL C |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.750 INCHES NOMINAL |

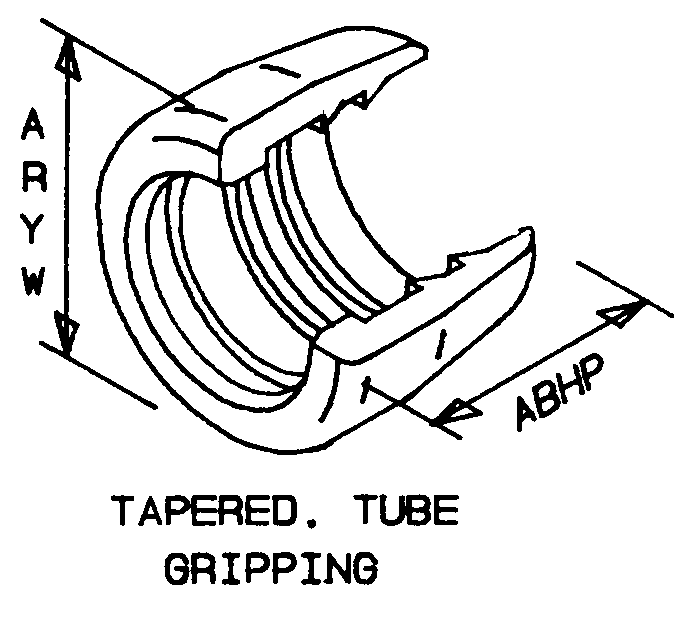

| STYLE DESIGNATOR | K7 TAPERED, TUBE GRIPPING |
| OVERALL LENGTH | 0.727 INCHES NOMINAL |
| SLEEVE OUTSIDE DIAMETER | 1.100 INCHES NOMINAL |
| MANUFACTURERS CODE | 00624 |
| DESIGN CONTROL REFERENCE | 900085-8C |
Restrictions/Controls & Freight Information | NSN 4730-00-577-3586
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
