NSN 4730-00-555-8203 MS219214D, MS21921-4D, MS21921D4
Product Details | TUBE COUPLING NUT

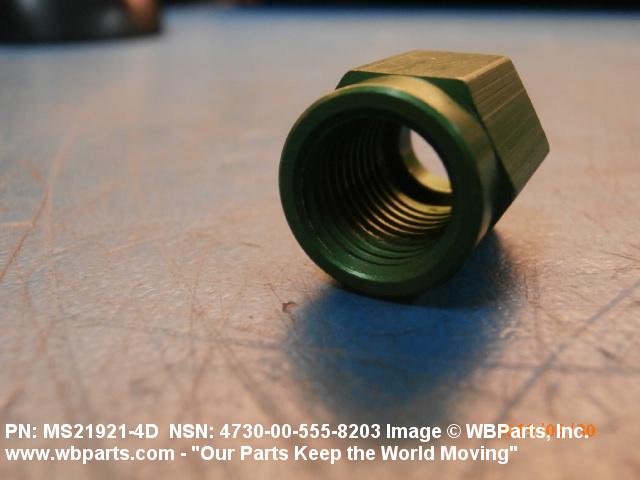

4730-00-555-8203 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: MS219214D, MS21921-4D, MS21921D4, AS18280, AS21921, AS219214D, AS21921-4D, CVC4257W4, DV600W4, ER8174D, ER817-4D, VSF12124WW, VSF1212-4WW, 118216002304, 118-21600-230-4, 156/15, 15615, 20221600W4, 202-21600W4, 2652291W4, 4730-00-555-8203, 00-555-8203, 4730005558203, 005558203
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-555-8203 | 03859 ( NUT, TUBE COUPLING ) |

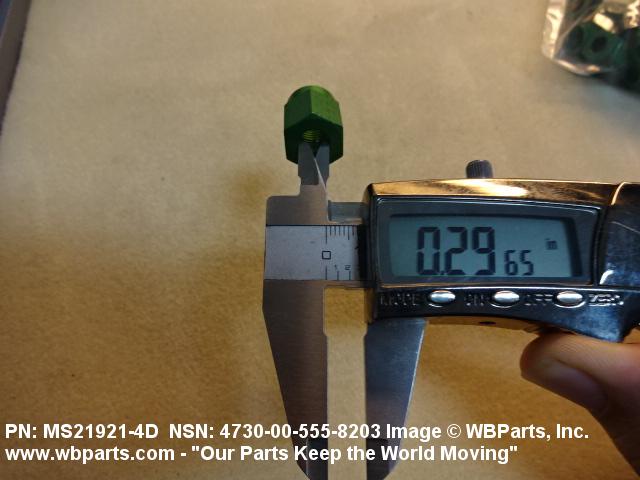

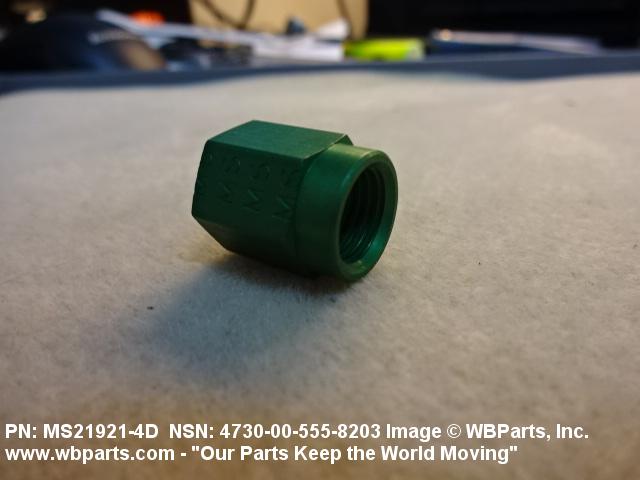

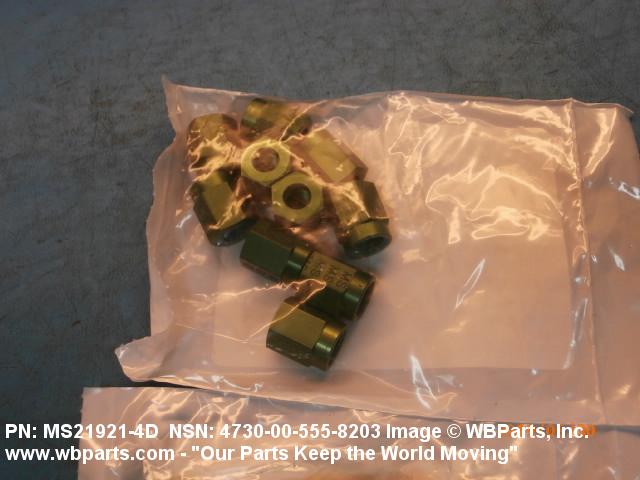

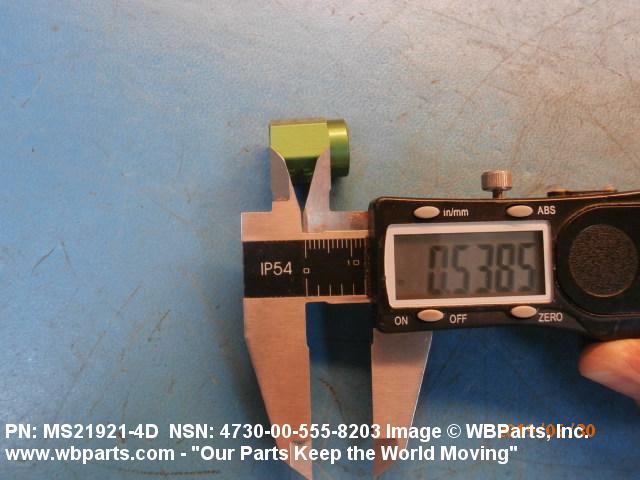

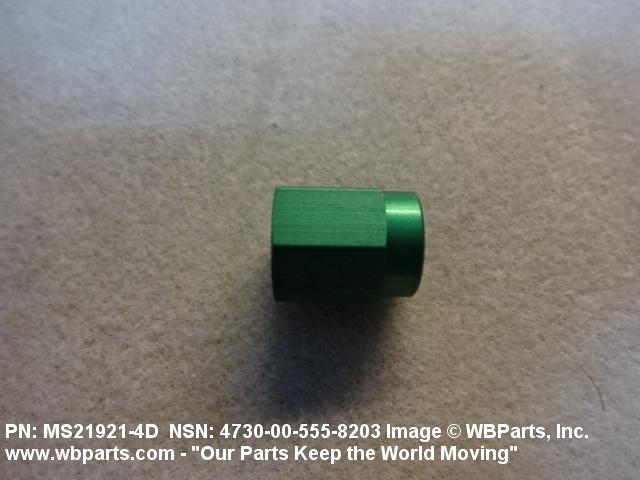

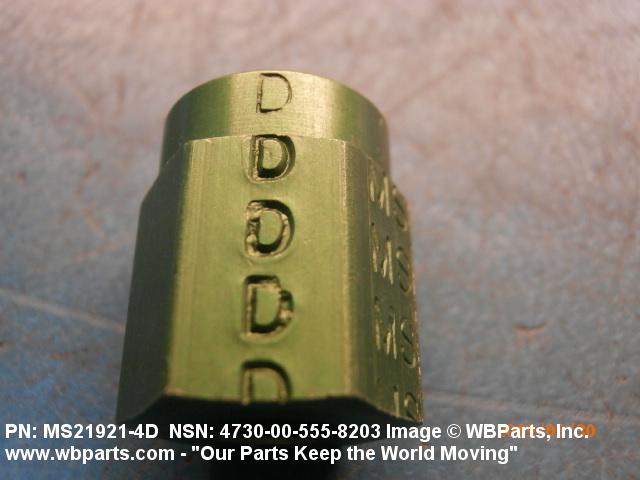

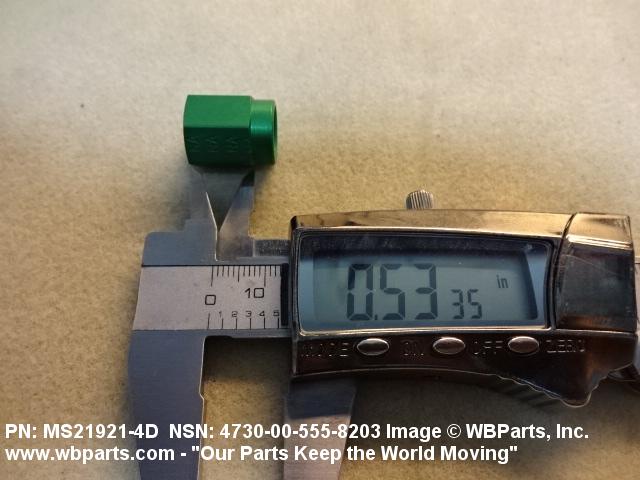

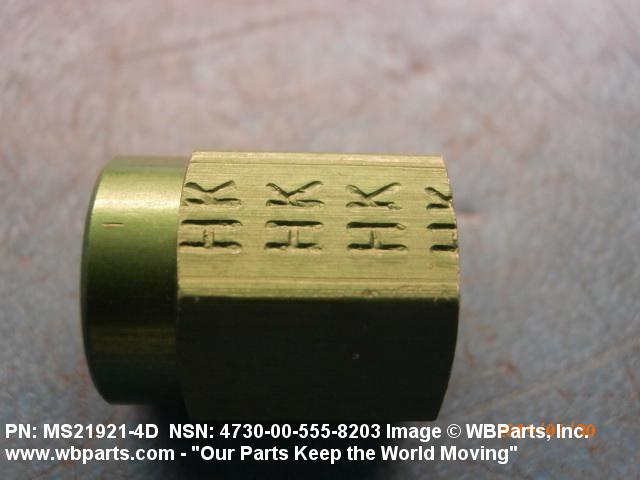

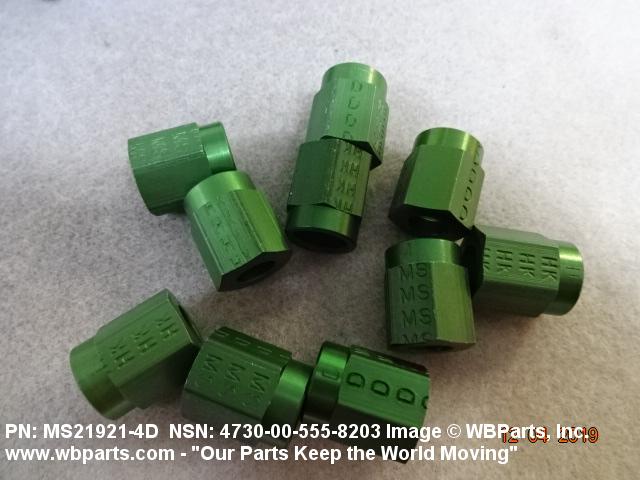

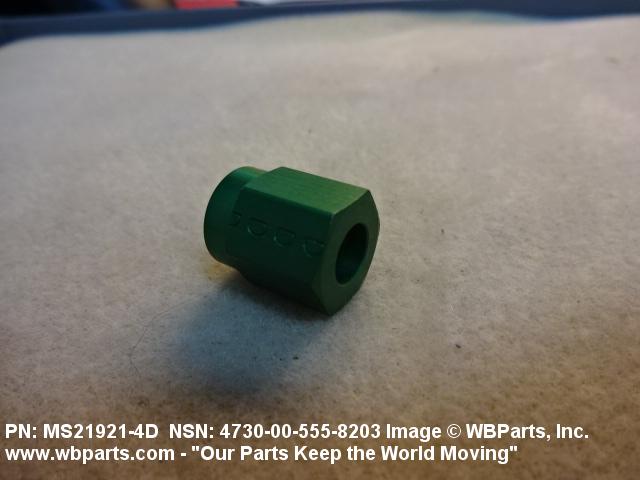

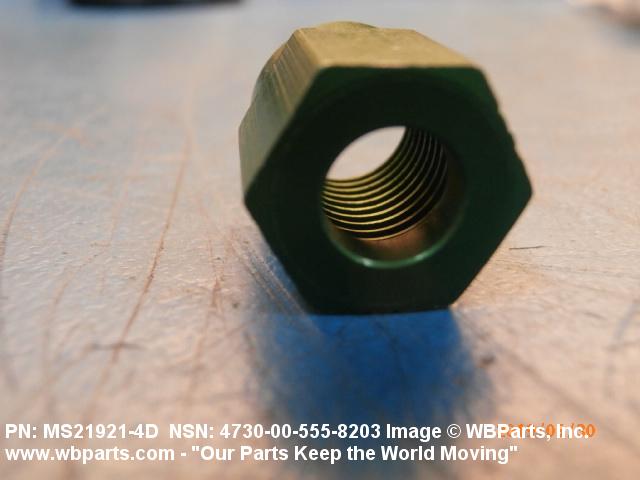

Drawings & Photos | NSN 4730-00-555-8203
Demand History | NSN 4730-00-555-8203
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS219214D | 2017-08-228 | 30 | US |
| MS219214D | 2015-03-79 | 500 | IT |
| AS18280 | 2014-10-280 | 1 | US |
| AS21921 | 2013-03-73 | 20 | US |
| AS21921 | 2013-03-73 | 50 | US |
| AS21921 | 2013-03-73 | 100 | US |
| AS21921 | 2013-03-73 | 20 | US |
| AS21921 | 2013-03-73 | 50 | US |
| AS21921 | 2013-03-73 | 100 | US |
| MS219214D | 2010-06-176 | 70 | Italy |
| MS21921D4 | 2010-04-117 | 25 | United States |
| 4730-00-555-8203 | 2010-04-112 | 2 | United States |
| MS219214D | 2010-04-102 | 200 | United States |
| AS21921 | 2010-04-95 | 4 | Seychelles |
| MS219214D | 2009-03-79 | 25 | United States |
| 4730-00-555-8203 | 2009-03-75 | 25 | United States |
| MS21921D4 | 2009-02-41 | 200 | United States |
| 4730-00-555-8203 | 2008-05-141 | 100 | Italy |
| 4730-00-555-8203 | 2007-11-324 | 75 | Iraq |
Cross Reference | NSN 4730-00-555-8203
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 118-21600-230-4 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |

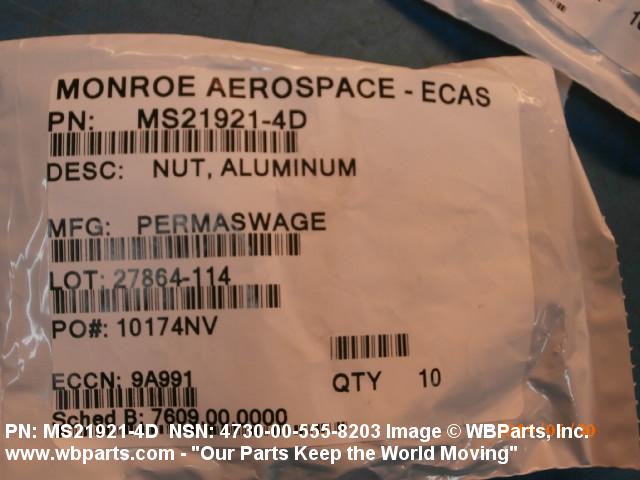

| 118-21600-230-4 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| 118-21600-230-4 | 79470 | DANA CORP WEATHERHEAD DIV |
| 156/15 | K7018 | WELLMAN GROUP |
| 202-21600W4 | 80378 | TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT |
| 2652291W4 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21921 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21921-4D | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| CVC4257W4 | 80378 | TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT |
| DV600W4 | 17491 | S-I ELECTRONICS INC |
| ER817-4D | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| MS21921-4D | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21921D4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| VSF1212-4WW | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| VSF1212-4WW | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-555-8203
Related Products | NSN 4730-00-555-8203
Technical Data | NSN 4730-00-555-8203
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |

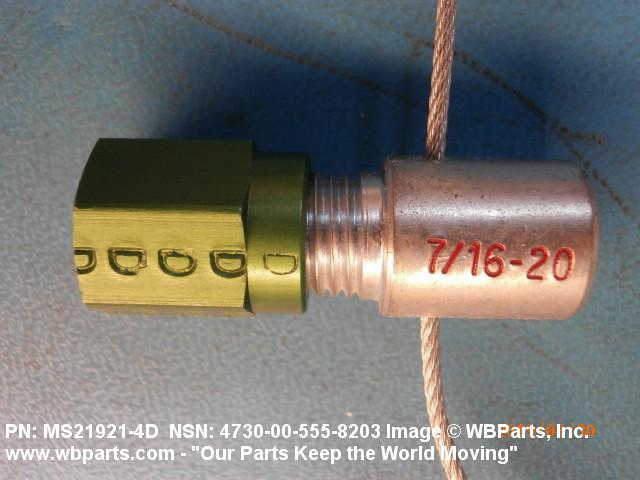

| NOMINAL THREAD SIZE | 0.438 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 2014 OR ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367,T6 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/6,T6,T62 OR T851 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| NUT STYLE | A350 TUBE COUPLING |

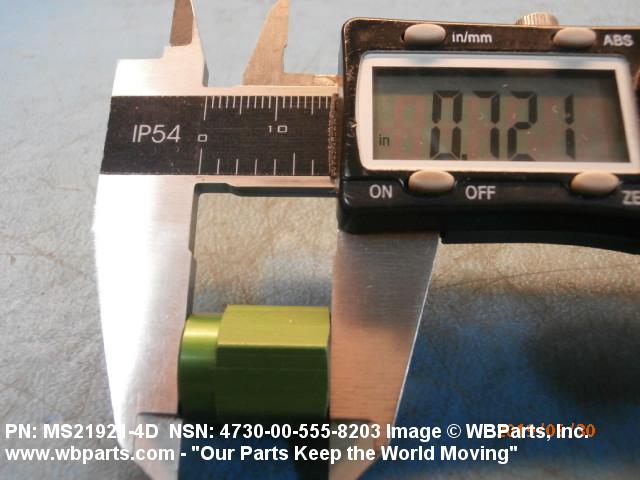

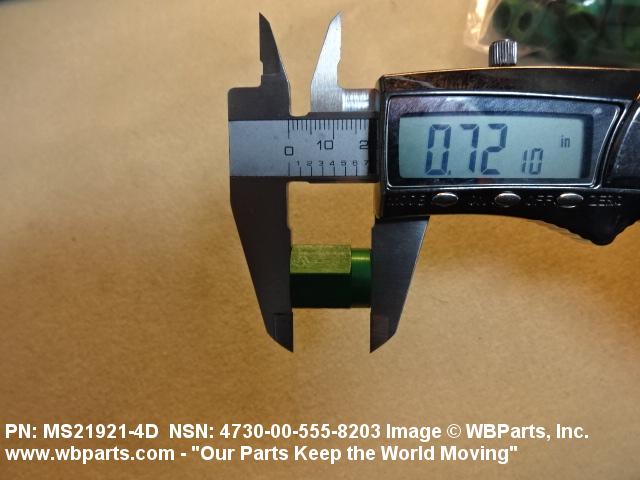

| NUT HEIGHT | 0.710 INCHES MINIMUM AND 0.730 INCHES MAXIMUM |

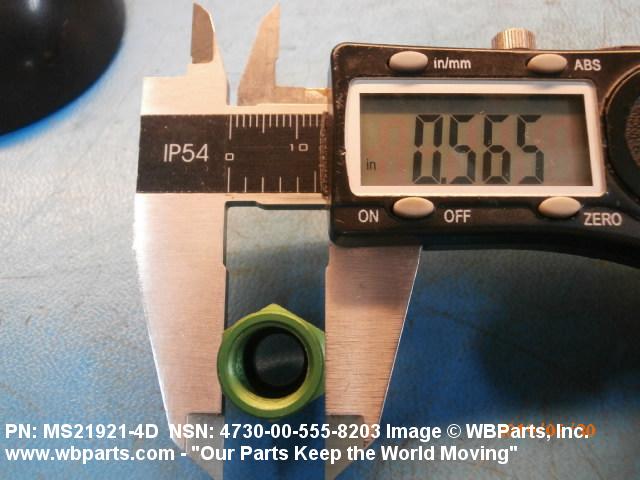

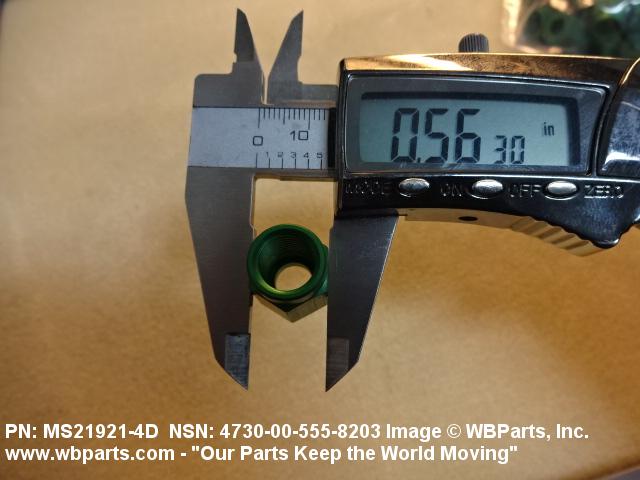

| WIDTH ACROSS FLATS | 0.562 INCHES NOMINAL |
| LENGTH TO SHOULDER | 0.537 INCHES MINIMUM AND 0.557 INCHES MAXIMUM |

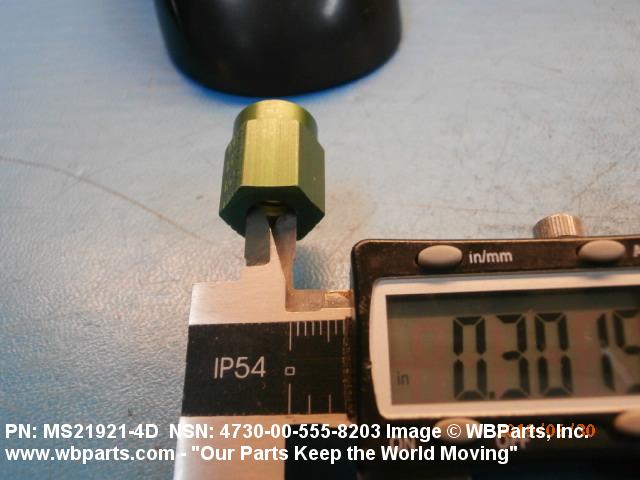

| SMALLEST INSIDE DIAMETER | 0.300 INCHES MINIMUM AND 0.305 INCHES MAXIMUM |
| SEAT ANGLE | 45.00 DEGREES NOMINAL |
| FABRICATION METHOD | ANY ACCEPTABLE |
| NOMINAL TUBE OUTSIDE DIAMETER | 0.250 INCHES |
| SPECIAL FEATURES | GRUMMAN AEROSPACE CORP A10 AIRCRAFT; WEAPON SYSTEM ESSENTIAL |
| SPECIFICATION/STANDARD DATA | 96906-MS21921 GOVERNMENT STANDARD |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | AIRCRAFT APPLICATION,IROQUIS UH-1,CHINOOK CH-47 HELICOPTER,DELTA DART F-106,F-111. TOMCAT F-14A,STARLIFTER C-141 AIRCRAFT,E-3A AIRCRAFT WARNING AND CONTROL SYSTEM (AWACS) |
Restrictions/Controls & Freight Information | NSN 4730-00-555-8203
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013540 | ALUM NUTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-555-8203
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BX | OH-58D Army Helicopter Improvement Program (AHIP) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
