NSN 4730-00-543-8911 F20017AD, 00-543-8911, 005438911
Product Details | TUBE COUPLING SWAGE FERRULE
4730-00-543-8911 A flanged cylindrical metallic item used with a plain end tube and swaged in place. It is designed to be used as a component part of a flexible or rigid tube coupling.
Part Alternates: F20017AD, 4730-00-543-8911, 00-543-8911, 4730005438911, 005438911
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 06 OCT 1974 | 00-543-8911 | 32679 ( FERRULE, SWAGE, TUBE COUPLING ) |

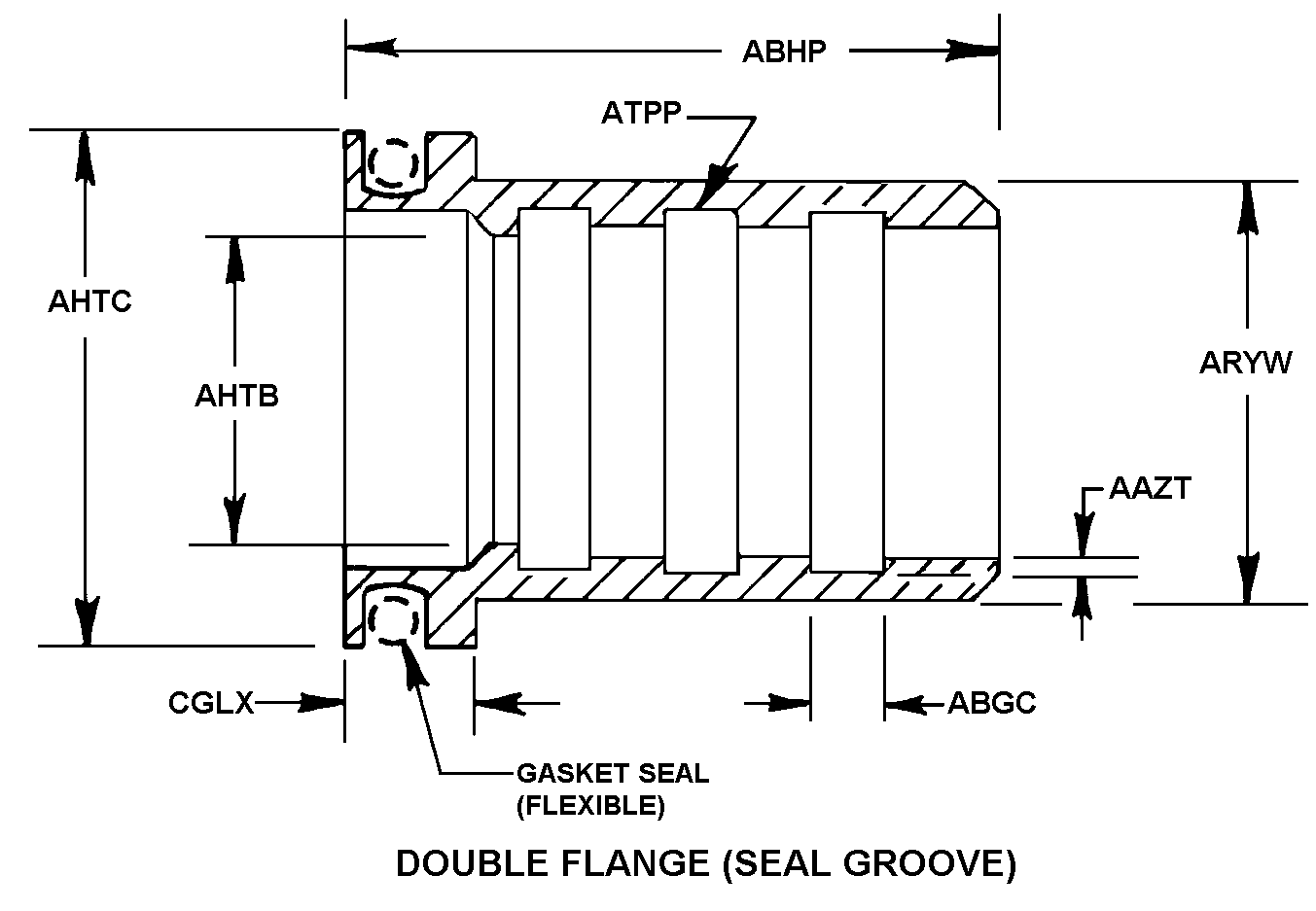

Drawings & Photos | NSN 4730-00-543-8911
Cross Reference | NSN 4730-00-543-8911
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F20017AD | 08118 | EATON AVIATION CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-543-8911
Technical Data | NSN 4730-00-543-8911
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.750 INCHES NOMINAL |
| STYLE DESIGNATOR | T2 DOUBLE FLANGE |
| SLOT DEPTH | 0.015 INCHES NOMINAL |
| SLOT WIDTH | ANY ACCEPTABLE |
| OVERALL LENGTH | 0.775 INCHES NOMINAL |
| FLANGE INSIDE DIAMETER | 1.716 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 2.030 INCHES NOMINAL |
| SLEEVE OUTSIDE DIAMETER | 1.905 INCHES NOMINAL |
| SLOT QUANTITY | 5 |
| DISTANCE FROM FLANGED END TO TUBING CLEARANCE HOLE | 0.354 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4730-00-543-8911
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
