NSN 4730-00-541-9088 MS2081910C, MS20819-10C, MS2081910J

Product Details | TUBE FITTING FLARED SLEEVE

4730-00-541-9088 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.

Part Alternates: MS2081910C, MS20819-10C, MS2081910J, MS20819-10J, AS4841, AS5176J10, 66451990107, 664-519-90107, 9026089, 4730-00-541-9088, 00-541-9088, 4730005419088, 005419088

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-541-9088	18027 ( SLEEVE, FLARED, TUBE FITTING )

Drawings & Photos | NSN 4730-00-541-9088

Part Number	Request Date	QTY	Origin
4730-00-541-9088	2024-07-212	198	DIBBS
4730-00-541-9088	2024-07-200	198	DIBBS
4730-00-541-9088	2024-05-123	5360	DIBBS
4730-00-541-9088	2024-03-81	8439	DIBBS
AS5176J10	2024-03-72	210	United States
4730-00-541-9088	2024-03-70	8439	DIBBS
4730-00-541-9088	2024-02-46	8091	DIBBS
4730-00-541-9088	2024-01-05	348	DIBBS
4730-00-541-9088	2023-12-359	348	DIBBS
4730-00-541-9088	2023-11-331	6902	DIBBS
4730-00-541-9088	2023-11-320	6902	DIBBS
4730-00-541-9088	2023-08-220	5829	DIBBS
4730-00-541-9088	2023-08-220	348	DIBBS
4730-00-541-9088	2023-07-208	5829	DIBBS
4730-00-541-9088	2023-07-205	5133	DIBBS
4730-00-541-9088	2023-07-194	5133	DIBBS
4730-00-541-9088	2023-05-138	4785	DIBBS
4730-00-541-9088	2023-04-96	1613	DIBBS
4730-00-541-9088	2023-03-85	1613	DIBBS
MS2081910J	2023-03-72	5	United States
AS5176J10	2022-04-104	50	Italy
MS2081910J	2020-06-163	32	United States
4730-00-541-9088	2019-10-276	1220	DIBBS
4730-00-541-9088	2018-05-151	1952	DIBBS
4730-00-541-9088	2018-03-63	1871	DIBBS
4730-00-541-9088	2018-01-09	1042	US
4730-00-541-9088	2017-08-225	439	DIBBS
4730-00-541-9088	2016-09-256	2627	DIBBS
AS5176J10	2016-07-190	108	US
MS2081910J	2014-05-128	1	US
MS2081910J	2013-04-107	62	US
4730-00-541-9088	2013-01-03	1617	DIBBS
MS2081910J	2012-06-160	55	IN
4730-00-541-9088	2012-03-68	1	US
AS5176J10	2012-03-67	1	United States
4730-00-541-9088	2011-08-216	1656	DIBBS
MS2081910J	2011-06-159	3	Germany
AS4841	2011-03-69	8
4730-00-541-9088	2011-02-49	200	US
MS2081910J	2011-02-49	200	United States
MS2081910J	2010-06-176	1	Italy
4730-00-541-9088	2010-02-47	100	US
AS5176J10	2009-10-293	2	United States
4730-00-541-9088	2009-02-40	900	US
MS2081910J	2009-02-40	900	US
MS2081910J	2008-01-23	300	US
AS5176J10	2007-08-234	4	US

Cross Reference | NSN 4730-00-541-9088

Part Number	Cage Code	Manufacturer
664-519-90107	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
9026089	18876	U S ARMY AVIATION AND MISSILE COMMAND
AS4841	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5176J10	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS20819-10C	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS20819-10J	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-541-9088

Compare

Related Products | NSN 4730-00-541-9088

4730-00-541-9089, 4730-00-541-9097, 4730-00-541-9105, 4730-00-541-9106, 4730-00-541-9107

Technical Data | NSN 4730-00-541-9088

Characteristic	Specifications
MATERIAL	STEEL, FED STD 66, COMP 304
SURFACE TREATMENT	PASSIVATED
METALLIC HARDNESS RATING	NOT RATED
CASEHARDENING INDICATOR	NOT CASEHARDENED
HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED	0.625 INCHES NOMINAL
STYLE DESIGNATOR	M4 SLEEVE
OVERALL LENGTH	0.656 INCHES NOMINAL
FLANGE WIDTH	0.234 INCHES NOMINAL

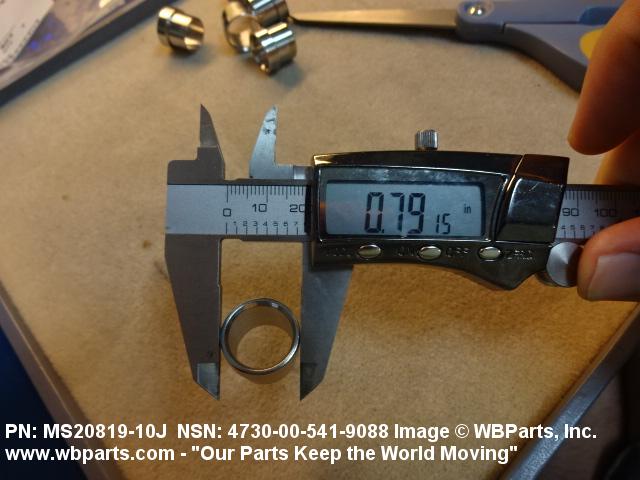

FLANGE OUTSIDE DIAMETER	0.797 INCHES NOMINAL
SEAT ANGLE IN DEG	33.0
SLEEVE OUTSIDE DIAMETER	0.690 INCHES NOMINAL
SPECIFICATION/STANDARD DATA	96906-MS20819 GOVERNMENT STANDARD
III END ITEM IDENTIFICATION	26F AIRCRAFT, F-16
