NSN 4730-00-540-6297 NAS59620, NAS596-20, NAS597
Product Details | TUBE COUPLING NUT
4730-00-540-6297 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: NAS59620, NAS596-20, NAS597, 4730-00-540-6297, 00-540-6297, 4730005406297, 005406297
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-540-6297 | 03859 ( NUT, TUBE COUPLING ) |

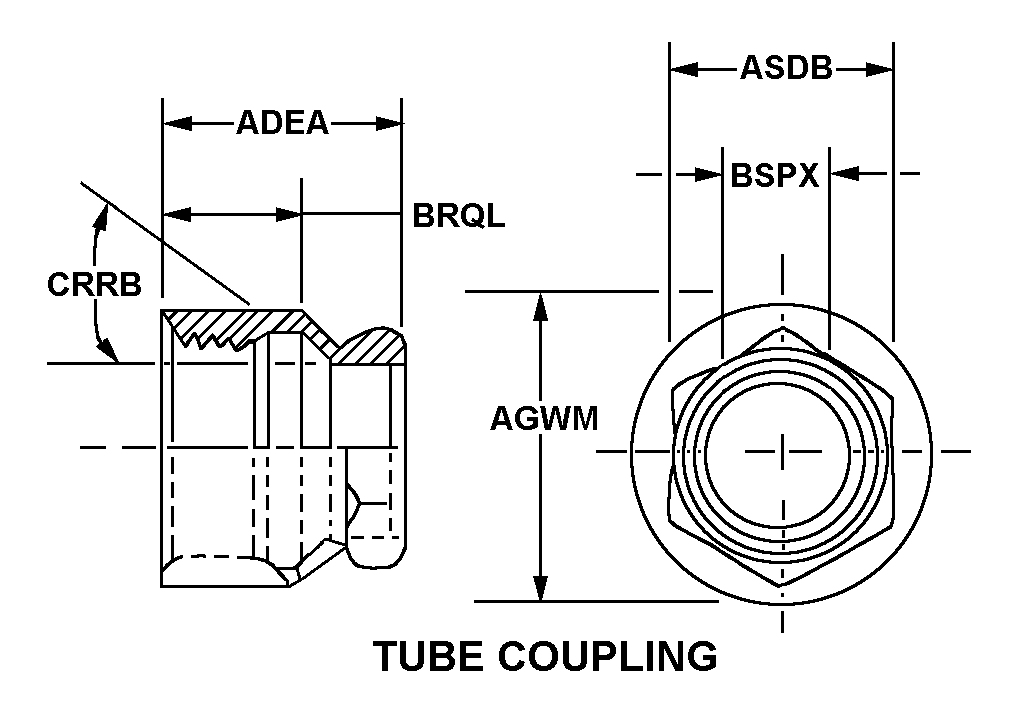

Drawings & Photos | NSN 4730-00-540-6297
Demand History | NSN 4730-00-540-6297
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-540-6297 | 2018-03-63 | 81 | DIBBS |
| 4730-00-540-6297 | 2017-12-348 | 7 | DIBBS |
| 4730-00-540-6297 | 2017-12-340 | 20 | DIBBS |
| 4730-00-540-6297 | 2017-09-247 | 6 | DIBBS |
| 4730-00-540-6297 | 2017-08-235 | 11 | DIBBS |
| 4730-00-540-6297 | 2017-02-39 | 11 | DIBBS |
| 4730-00-540-6297 | 2010-02-54 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-540-6297
Related Products | NSN 4730-00-540-6297
Technical Data | NSN 4730-00-540-6297
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UN |
| NOMINAL THREAD SIZE | 1.625 INCHES |
| THREAD QUANTITY PER INCH | 12 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 431 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-18732,TYPE 431 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| NUT STYLE | A355 TUBE COUPLING |
| NUT HEIGHT | 1.189 INCHES NOMINAL |
| LARGEST OUTSIDE DIAMETER | 1.734 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.375 INCHES NOMINAL |
| LENGTH TO SHOULDER | 0.651 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 1.270 INCHES NOMINAL |
| SEAT ANGLE | 33.0 DEGREES NOMINAL |
| FABRICATION METHOD | MACHINED |
| NOMINAL TUBE OUTSIDE DIAMETER | 1.250 INCHES |
| SPECIFICATION/STANDARD DATA | 80205-NAS597 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III END ITEM IDENTIFICATION | 52N AIRCRAFT, SKY HAWK A-4 |
