NSN 4730-00-540-6145 AN9122C, AN912-2C, AN9122J
Product Details | PIPE BUSHING
4730-00-540-6145 A fitting with pipe threads having a female connection inside of a male connection, used in conjunction with another fitting, to connect in the same line, two pipes of different sizes.
Part Alternates: AN9122C, AN912-2C, AN9122J, AN912-2J, AN9122S, AN912-2S, AS4842, AS4861, AS4861J02, 23A7S2, 8526430, 4730-00-540-6145, 00-540-6145, 4730005406145, 005406145
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-540-6145 | 03779 ( BUSHING, PIPE ) |

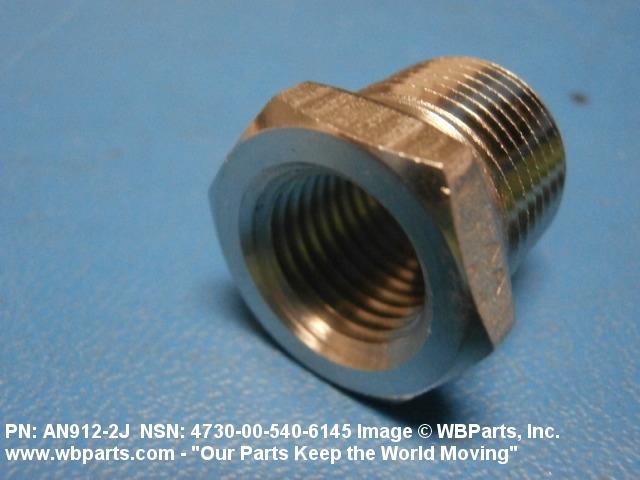

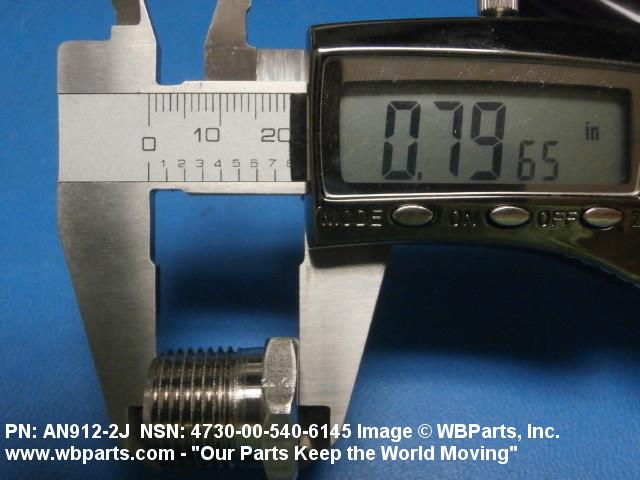

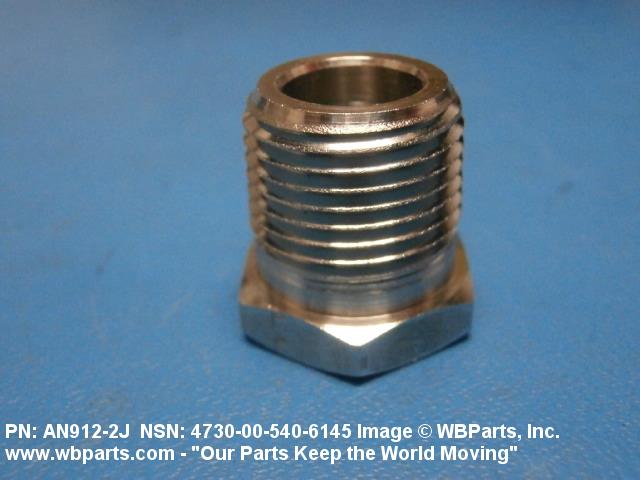

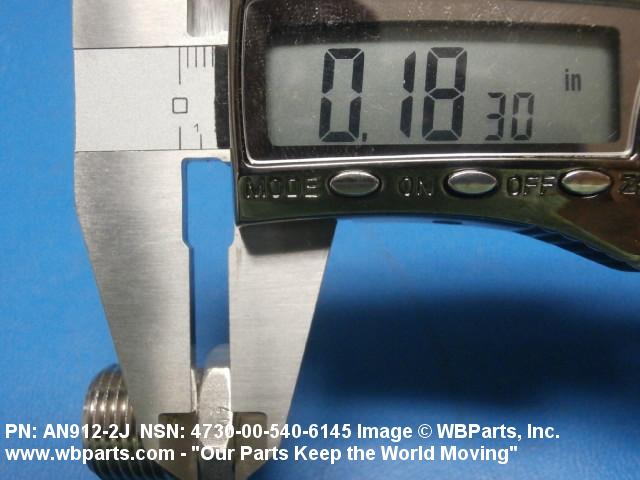

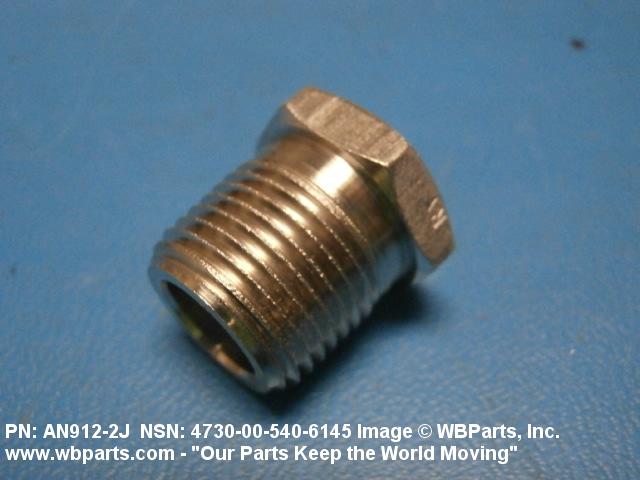

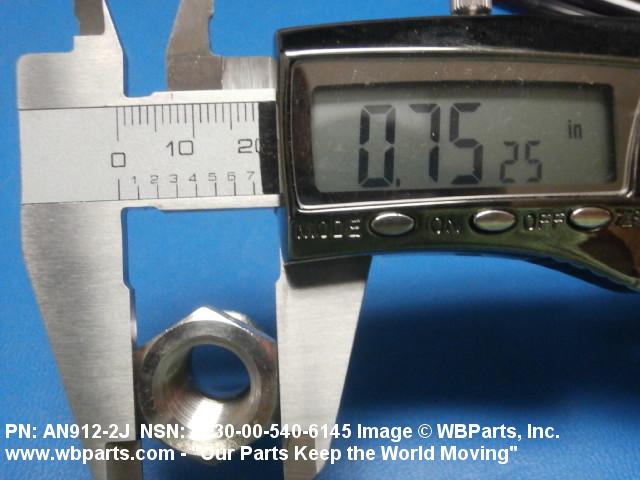

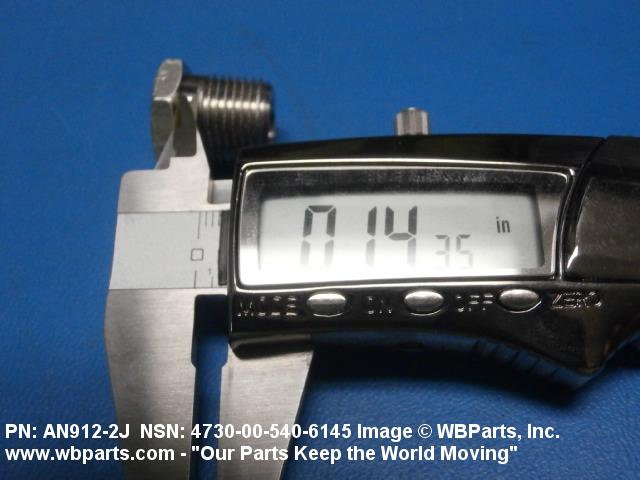

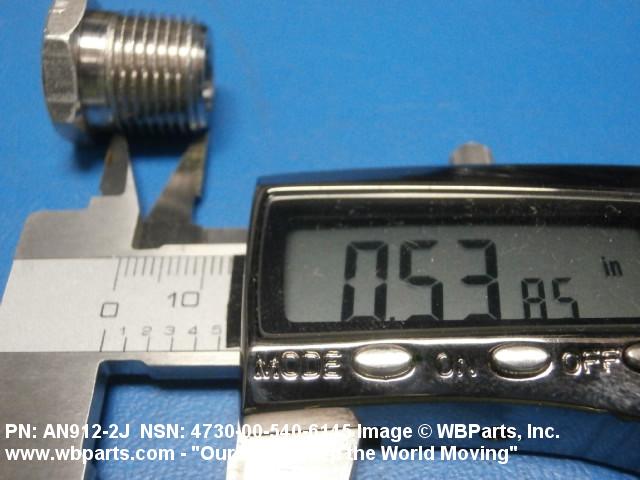

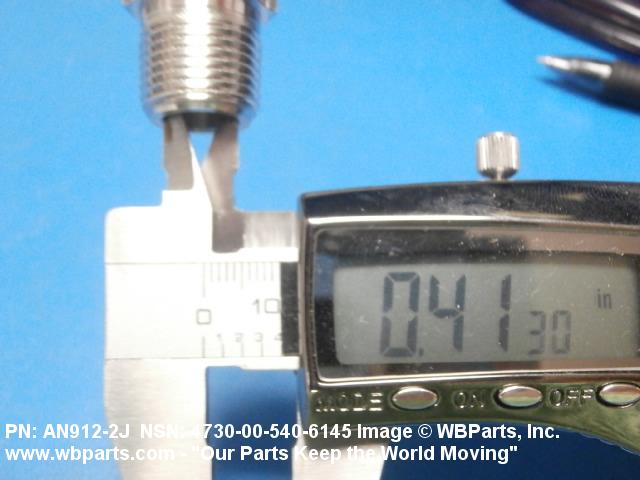

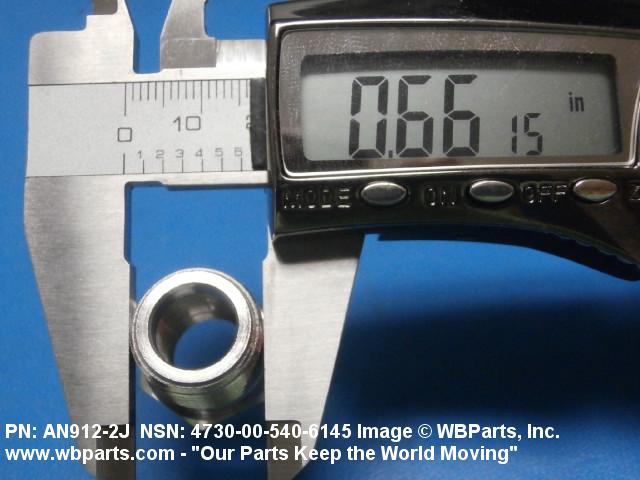

Drawings & Photos | NSN 4730-00-540-6145
Demand History | NSN 4730-00-540-6145
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-540-6145 | 2019-12-339 | 1099 | DIBBS |
| AN9122J | 2019-10-275 | 15 | Greece |
| 4730-00-540-6145 | 2019-04-100 | 6 | US |
| AN9122J | 2017-10-282 | 1 | United States |
| 4730-00-540-6145 | 2016-07-187 | 1080 | DIBBS |
| 4730-00-540-6145 | 2016-03-69 | 880 | DIBBS |
| 4730-00-540-6145 | 2015-12-335 | 889 | DIBBS |
| 4730-00-540-6145 | 2015-06-154 | 100 | United States |
| 4730-00-540-6145 | 2014-08-218 | 455 | DIBBS |
| AS4861J02 | 2013-10-277 | 2 | US |
| AN9122J | 2013-07-197 | 2 | US |
| 4730-00-540-6145 | 2013-01-15 | 141 | DIBBS |
| AN9122J | 2012-06-180 | 45 | Greece |
| 4730-00-540-6145 | 2009-05-121 | 855 | DIBBS |
Cross Reference | NSN 4730-00-540-6145
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23A7S2 | 33968 | CLARK EQUIPMENT COMPANY DBA DOOSAN INFRACORE PORTABLE POWER |
| 4730005406145 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 8526430 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| AN912-2C | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN912-2J | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN912-2J | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN912-2J | 14397 | FABER ENTERPRISES, INC. |
| AN912-2J | 14728 | PRECISION FORM RIVET INC |
| AN912-2J | 22995 | CROWN FITTING CO INC |
| AN912-2J | 30974 | AEROFIT, LLC |
| AN912-2J | 71563 | COLLINS ENGINEERING CORP |
| AN912-2J | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN912-2S | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4842 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS4861 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS4861J02 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-540-6145
Related Products | NSN 4730-00-540-6145
Technical Data | NSN 4730-00-540-6145
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, FED STD 66, COMP 304 |
| SURFACE TREATMENT | PASSIVATED, QQ-P-35 |
| STYLE DESIGNATOR | N1 OUTSIDE HEXAGON OR OCTAGON |
| EXTERNAL THREAD SIZE | 3/8-18 |
| EXTERNAL SCREW THREAD SERIES DESIGNATOR | ANPT |
| EXTERNAL THREAD DIRECTION | RIGHT-HAND |
| INTERNAL THREAD SIZE | 1/4-18 |
| INTERNAL SCREW THREAD SERIES DESIGNATOR | ANPT |
| INTERNAL THREAD DIRECTION | RIGHT-HAND |
| WORKING PRESSURE AND SERVICE TYPE | 3000.0 POUNDS PER SQUARE INCH NOMINAL LIQUID |
| WORKING TEMP AND SERVICE TYPE | 3000.0 DEG FAHRENHEIT NOMINAL LIQUID |
| SPECIFICATION/STANDARD DATA | 88044-AN912 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | 01F MISSILE, MINUTEMAN LGM-30 |
Restrictions/Controls & Freight Information | NSN 4730-00-540-6145
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 115620 | BUSHINGS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-540-6145
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
