NSN 4730-00-444-7573 8687141, 00-444-7573, 004447573
Product Details | TUBE FITTING CLINCH SLEEVE

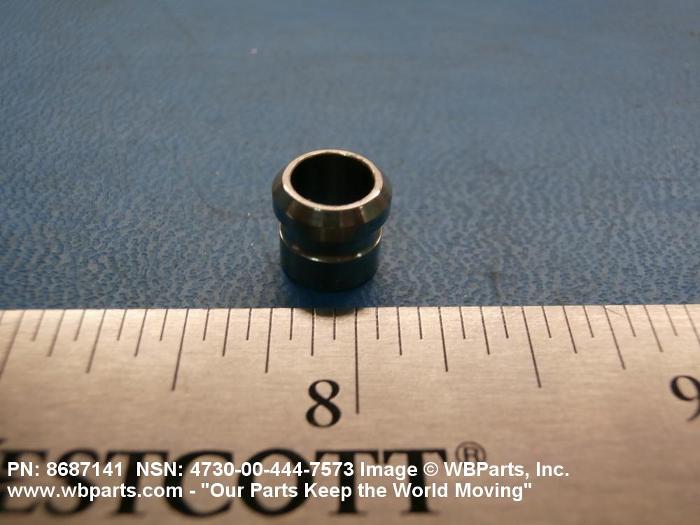

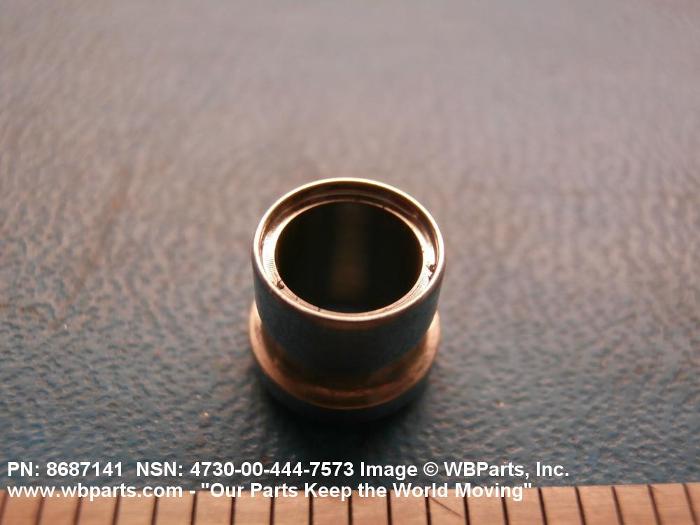

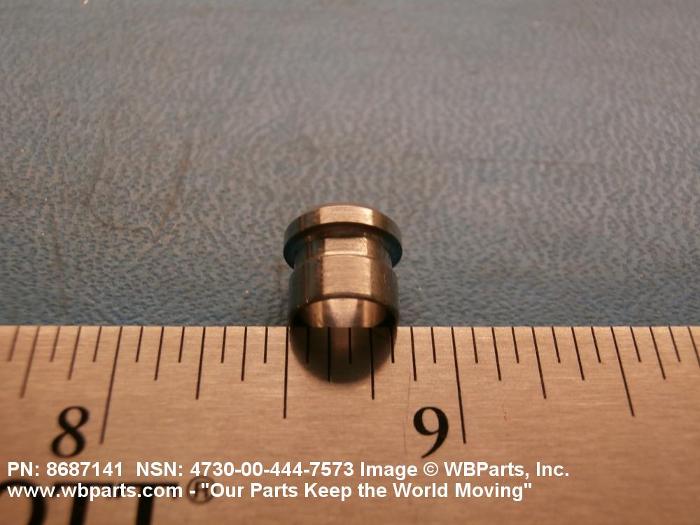

4730-00-444-7573 A flanged cylindrical item having a sharp cutting surface on the inside diameter at the end opposite the flange. The cutting edge, in use, is designed to imbed in the tubing due to pressure exerted when the outside diameter of the sleeve is forced into and against an angular seat. This firmly attaches the sleeve to the tubing and the flanged end then serves as a bearing surface for the coupling nut to bring the tubing into the mating fitting.
Part Alternates: 8687141, 4730-00-444-7573, 00-444-7573, 4730004447573, 004447573
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 04 JAN 1971 | 00-444-7573 | 18025 ( SLEEVE, CLINCH, TUBE FITTING ) |

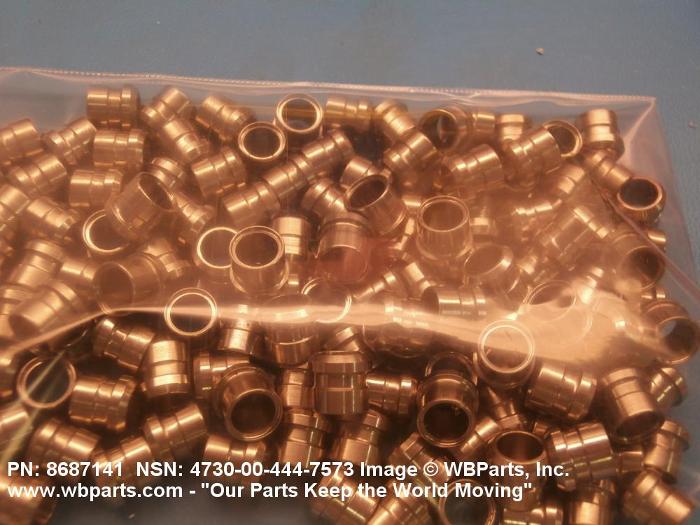

Drawings & Photos | NSN 4730-00-444-7573
Demand History | NSN 4730-00-444-7573
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-444-7573 | 2015-03-78 | 3408 | DIBBS |
| 4730-00-444-7573 | 2014-11-307 | 312 | DIBBS |
| 4730-00-444-7573 | 2012-12-341 | 0 | United States |
| 4730-00-444-7573 | 2012-11-316 | 128 | DIBBS |
| 4730-00-444-7573 | 2012-04-106 | 128 | DIBBS |
Cross Reference | NSN 4730-00-444-7573
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8687141 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
