NSN 4730-00-433-3191 AN81710D, AN817-10D, AS4841
Product Details | TUBE COUPLING NUT
4730-00-433-3191 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: AN81710D, AN817-10D, AS4841 , AS5206, AS5206W10, 10SAE, 4730-00-433-3191, 00-433-3191, 4730004333191, 004333191
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-433-3191 | 03859 ( NUT, TUBE COUPLING ) |

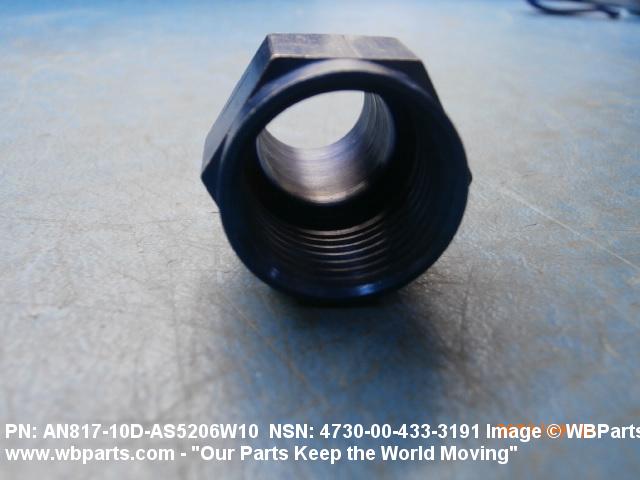

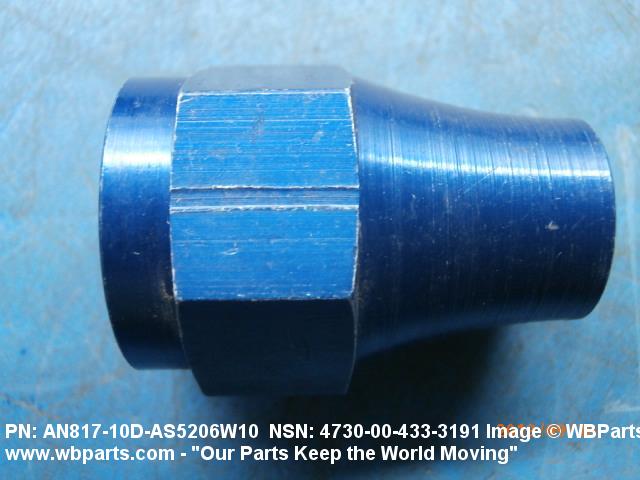

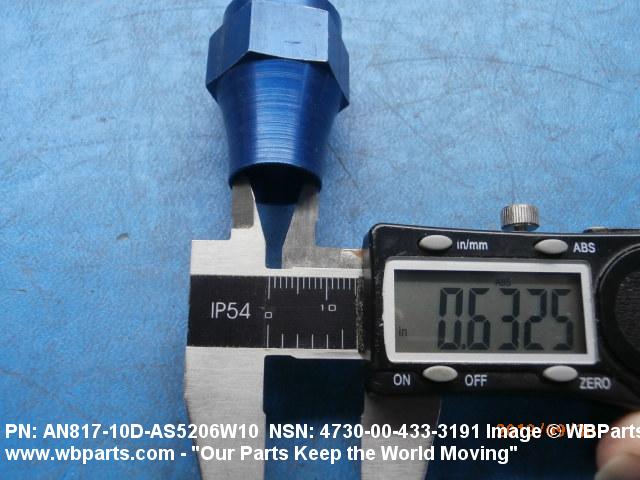

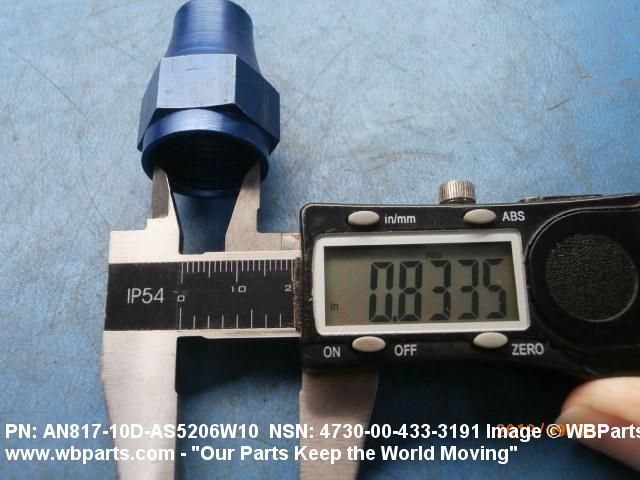

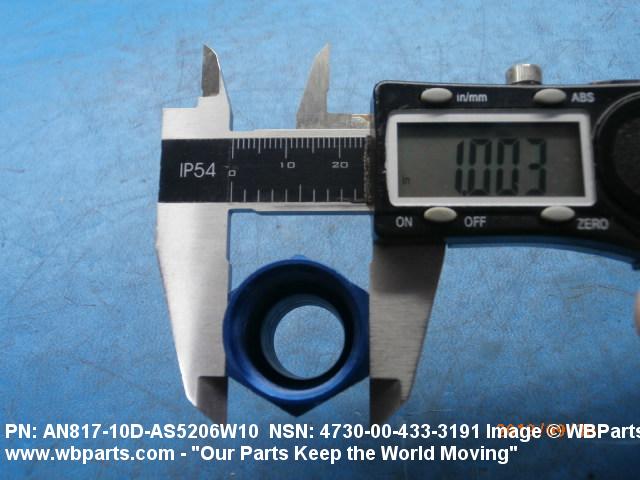

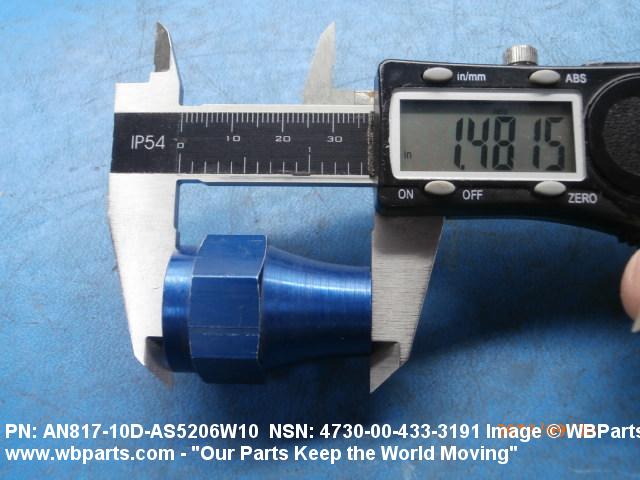

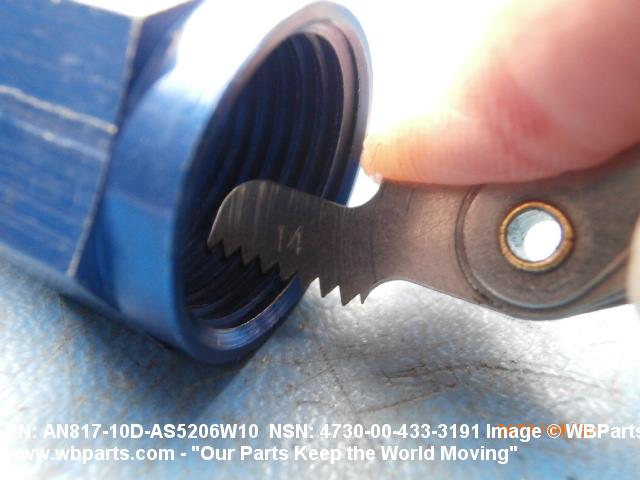

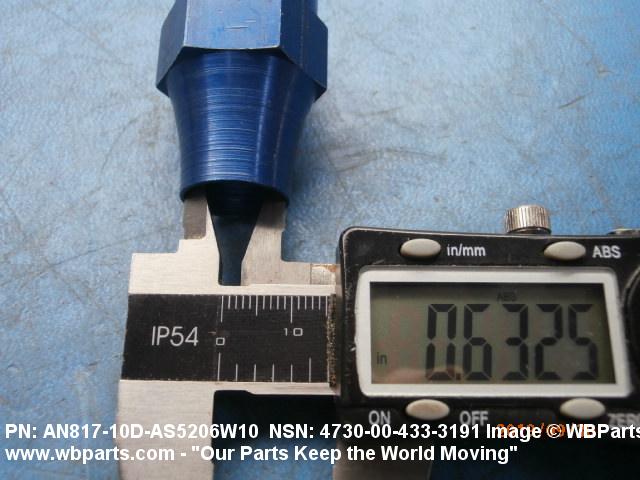

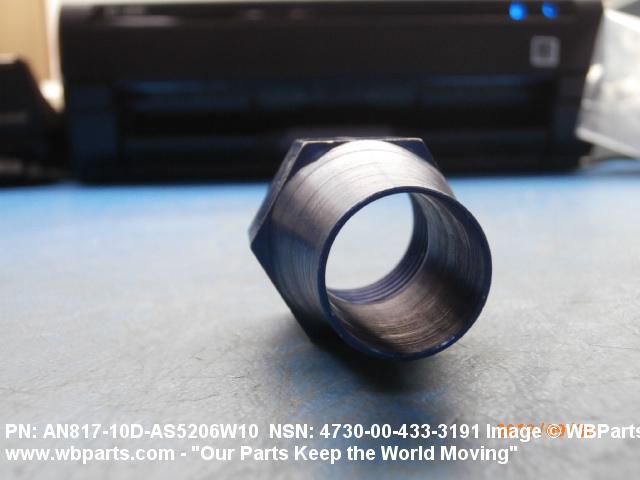

Drawings & Photos | NSN 4730-00-433-3191
Demand History | NSN 4730-00-433-3191
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS5206W10 | 2020-05-134 | 282 | United States |
| AS5206W10 | 2020-02-44 | 290 | US |
| AS5206W10 | 2019-09-262 | 60 | us |
| 4730-00-433-3191 | 2014-08-217 | 341 | DIBBS |
| 4730-00-433-3191 | 2014-06-169 | 4 | DIBBS |
| 4730-00-433-3191 | 2014-03-77 | 2 | DIBBS |
| 4730-00-433-3191 | 2014-03-73 | 5 | DIBBS |
| 4730-00-433-3191 | 2012-11-313 | 60 | United States |
| AS4841 | 2011-03-69 | 8 |
Cross Reference | NSN 4730-00-433-3191
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10SAE | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| AN817-10D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN817-10D | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN817-10D | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN817-10D | 14397 | FABER ENTERPRISES, INC. |
| AN817-10D | 14728 | PRECISION FORM RIVET INC |
| AN817-10D | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN817-10D | 22995 | CROWN FITTING CO INC |
| AN817-10D | 30974 | AEROFIT, LLC |
| AN817-10D | 71563 | COLLINS ENGINEERING CORP |
| AN817-10D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5206 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5206W10 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
