NSN 4730-00-331-4981 AN81512J, AN815-12J, 11177546-1
Product Details | TUBE NIPPLE
4730-00-331-4981 A straight, one-piece fitting used to join a tube or tube fitting to another tube or tube fitting. It may have any type externally threaded tube connections of the same size on both ends and is usually shaped externally at the center to accommodate a wrench. It may include nuts, sleeves, and/or grommets.
Part Alternates: AN81512J, AN815-12J, 11177546-1, 12LHTXSS, 9R2112, 4730-00-331-4981, 00-331-4981, 4730003314981, 111775461, 003314981
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-331-4981 | 03783 ( NIPPLE, TUBE ) |

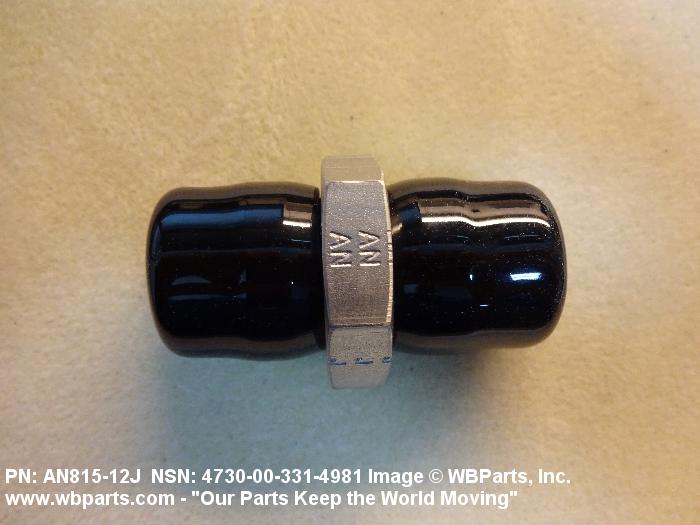

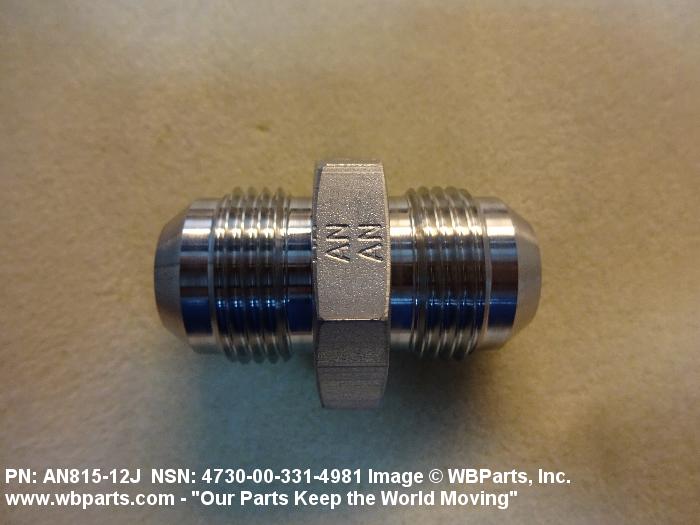

Drawings & Photos | NSN 4730-00-331-4981
Demand History | NSN 4730-00-331-4981
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN81512J | 2023-06-180 | 10 | United States |
| AN81512J | 2019-02-42 | 3 | United States |
| AN81512J | 2016-07-190 | 60 | US |
| AN81512J | 2015-11-322 | 3 | US |
Cross Reference | NSN 4730-00-331-4981
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11177546-1 | 17773 | BALLISTIC MISSILE DEFENSE SYSTEMS COMMAND |
| 12LHTXSS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 12LHTXSS | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 12LHTXSS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 9R2112 | 99240 | CRISSAIR, INC. |
| AN815-12J | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN815-12J | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN815-12J | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN815-12J | 14397 | FABER ENTERPRISES, INC. |
| AN815-12J | 14728 | PRECISION FORM RIVET INC |
| AN815-12J | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN815-12J | 22995 | CROWN FITTING CO INC |
| AN815-12J | 30974 | AEROFIT, LLC |
| AN815-12J | 71563 | COLLINS ENGINEERING CORP |
| AN815-12J | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN815-12J | R1120 | SATAIR A/S |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-331-4981
Related Products | NSN 4730-00-331-4981
Technical Data | NSN 4730-00-331-4981
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | A56 FLARED W/CENTER WRENCHING FACILITY |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END |
| CONNECTION STYLE | B64 FLARED 1ST END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.750 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UN 1ST END |
| NOMINAL THREAD SIZE | 1.062 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 12 1ST END |
| THREAD CLASS | 3A 1ST END |
| NOMINAL OVERALL LENGTH | 2.109 INCHES |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN815-12J |
Restrictions/Controls & Freight Information | NSN 4730-00-331-4981
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-331-4981
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
