NSN 4730-00-314-7679 AN818L4, AN818L4J, GN10FA

Product Details | TUBE COUPLING NUT

4730-00-314-7679 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.

Part Alternates: AN818L4, AN818L4J, GN10FA, GN10FF, GN10FF4C, 4730-00-314-7679, 00-314-7679, 4730003147679, 003147679

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	07 NOV 1973	00-314-7679	03859 ( NUT, TUBE COUPLING )

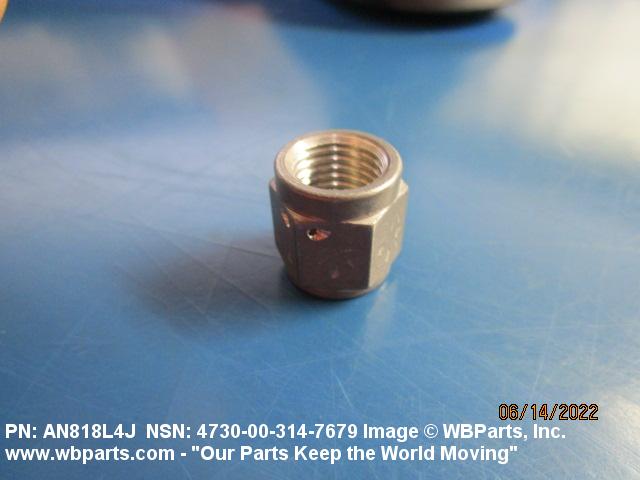

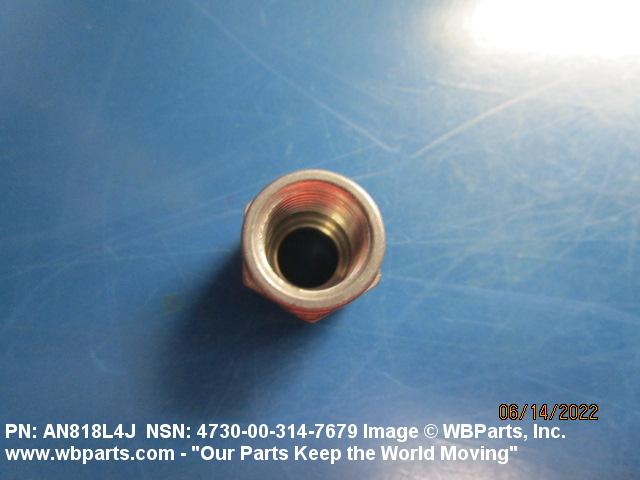

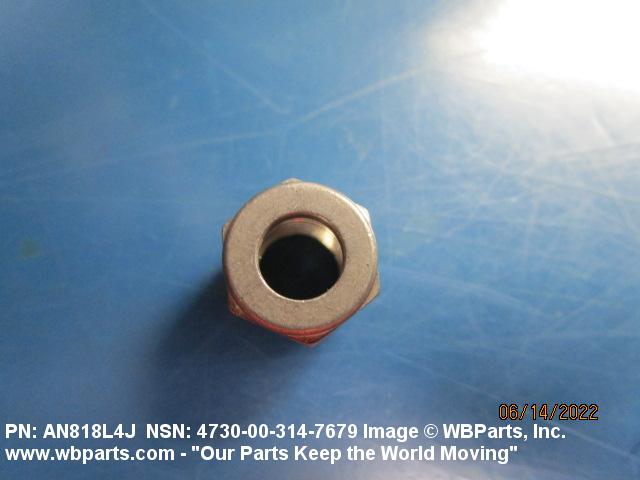

Drawings & Photos | NSN 4730-00-314-7679

Part Number	Request Date	QTY	Origin
4730-00-314-7679	2024-06-155	10	South Africa
AN818L4J	2024-04-102	10	South Africa
4730-00-314-7679	2023-11-325	20	TW
4730-00-314-7679	2023-11-325	100	Taiwan
AN818L4J	2023-02-46	10	South Africa
4730-00-314-7679	2022-05-147	1	United States
AN818L4J	2022-02-32	20	US
4730-00-314-7679	2020-04-104	300	TW
4730-00-314-7679	2018-11-312	4	DIBBS
4730-00-314-7679	2018-08-221	4	DIBBS
4730-00-314-7679	2018-07-200	500	DIBBS
4730-00-314-7679	2018-07-189	500	DIBBS
4730-00-314-7679	2018-05-149	13	DIBBS
4730-00-314-7679	2018-05-137	13	DIBBS
4730-00-314-7679	2018-04-95	200	DIBBS
4730-00-314-7679	2018-03-74	26	DIBBS
4730-00-314-7679	2018-02-58	25	DIBBS
4730-00-314-7679	2018-02-40	5	DIBBS
4730-00-314-7679	2018-01-29	5	DIBBS
AN818L4J	2017-08-229	74	United States
4730-00-314-7679	2017-02-48	2426	DIBBS
4730-00-314-7679	2017-02-37	2426	DIBBS
4730-00-314-7679	2016-10-285	1647	DIBBS
AN818L4J	2016-09-259	74	us
4730-00-314-7679	2013-05-141	1359	DIBBS
AN818L4J	2012-06-160	105	IN

Cross Reference | NSN 4730-00-314-7679

Part Number	Cage Code	Manufacturer
AN818L4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN818L4J	00624	EATON CORPORATION DBA AEROSPACE DIV
AN818L4J	06581	ALLAN AIRCRAFT SUPPLY CO, LLC
AN818L4J	14728	PRECISION FORM RIVET INC
AN818L4J	22995	CROWN FITTING CO INC
AN818L4J	34724	ACRA AEROSPACE INC
AN818L4J	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
GN10FA	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
GN10FF	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
GN10FF4C	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-314-7679

Compare

Related Products | NSN 4730-00-314-7679

4730-00-314-7686, 4730-00-314-7706, 4730-00-314-7754, 4730-00-314-7818, 4730-00-314-8067

Technical Data | NSN 4730-00-314-7679

Characteristic	Specifications

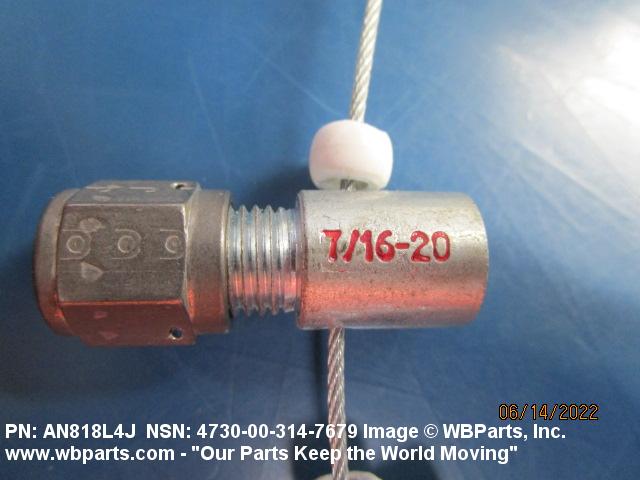

THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.438 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 304 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
NUT STYLE	A351 TUBE COUPLING

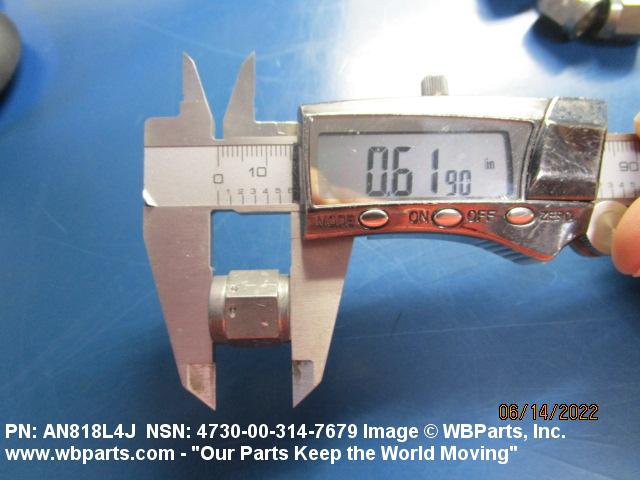

NUT HEIGHT	0.604 INCHES MINIMUM AND 0.636 INCHES MAXIMUM

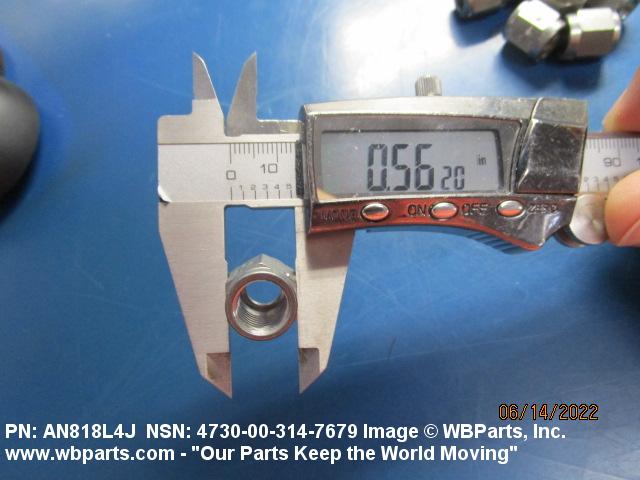

WIDTH ACROSS FLATS	0.563 INCHES NOMINAL
LENGTH TO SHOULDER	0.532 INCHES NOMINAL

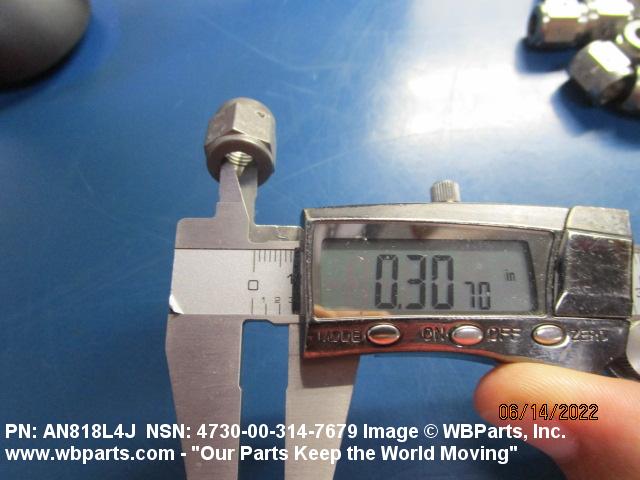

SMALLEST INSIDE DIAMETER	0.305 INCHES MINIMUM AND 0.308 INCHES MAXIMUM
FABRICATION METHOD	MACHINED
NOMINAL TUBE OUTSIDE DIAMETER	0.250 INCHES
SPECIAL FEATURES	2 LOCKWIRE HOLES
SPECIFICATION/STANDARD DATA	88044-AN818 GOVERNMENT STANDARD
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN818L4J

Restrictions/Controls & Freight Information | NSN 4730-00-314-7679

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-314-7679

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
