NSN 4730-00-289-6089 MS21902D6, MS21902W6, AS18280

Product Details | BOSS NIPPLE

4730-00-289-6089 A straight, one-piece fitting used to join two bosses or boss fittings. Both ends are the same size and have external machine threads (straignt threads other than pipe or hose series). It is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. The center section may be suitably shaped to accommodate a wrench.

Part Alternates: MS21902D6, MS21902W6, AS18280, AS21902, ER815D6, 3110020, 4730-00-289-6089, 00-289-6089, 4730002896089, 002896089

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-289-6089	26952 ( NIPPLE, BOSS )

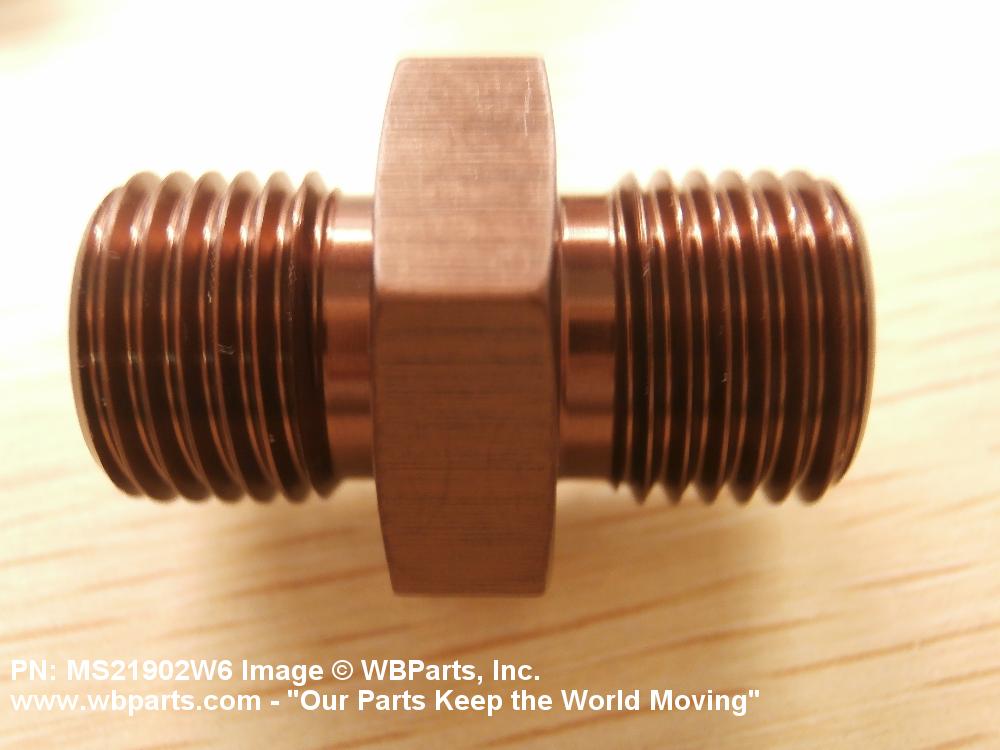

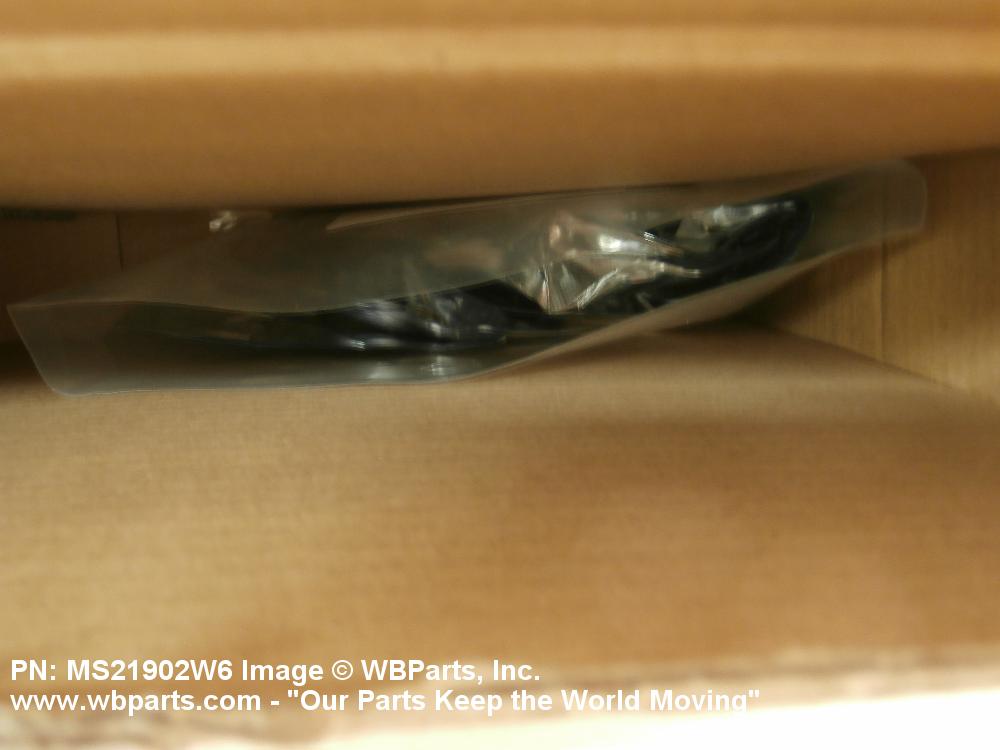

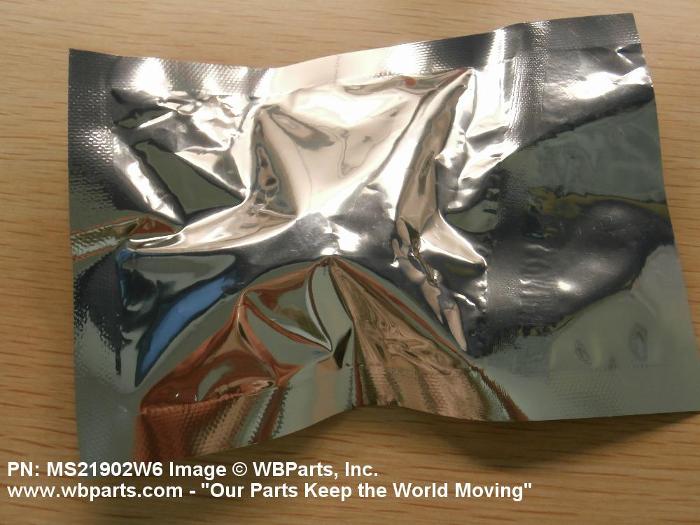

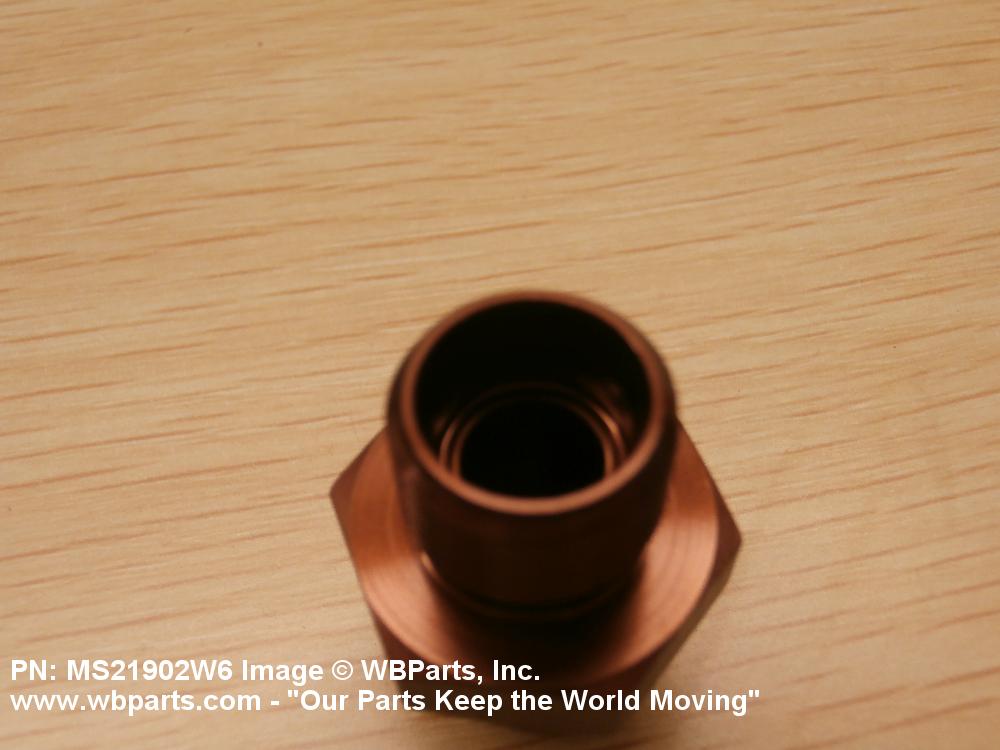

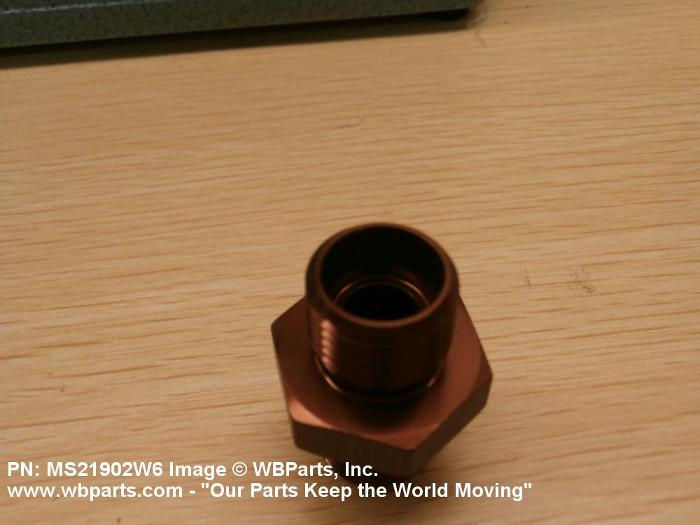

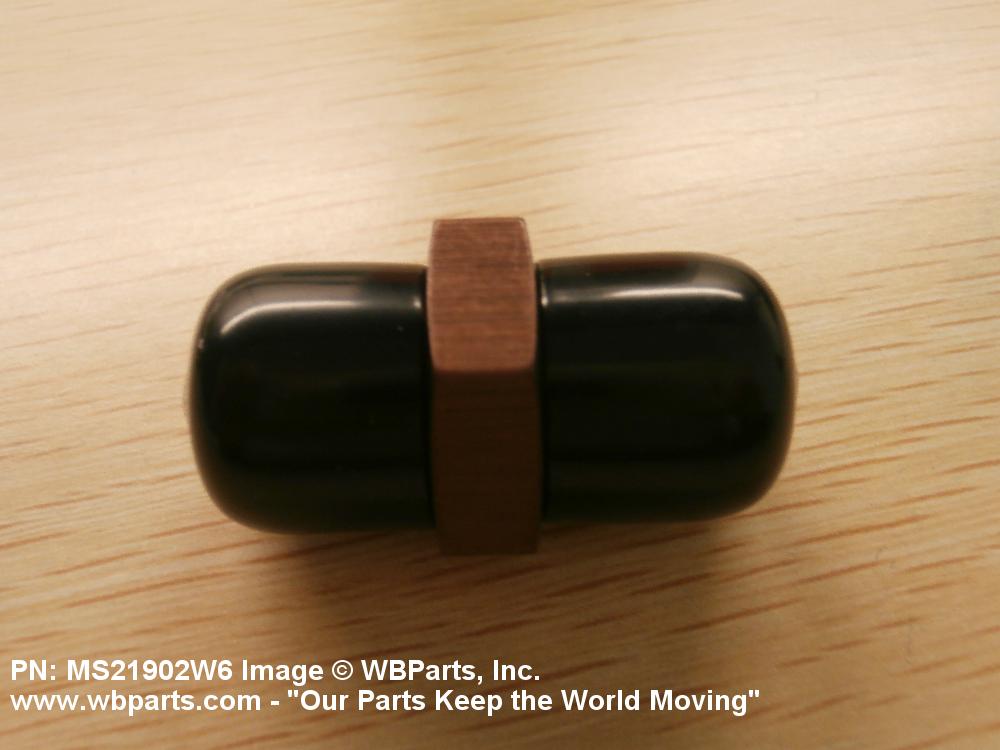

Drawings & Photos | NSN 4730-00-289-6089

Part Number	Request Date	QTY	Origin
4730-00-289-6089	2024-10-277	1151	DIBBS
4730-00-289-6089	2023-01-04	1558	DIBBS
4730-00-289-6089	2022-08-213	60	PL
MS21902D6	2022-03-74	10	US
4730-00-289-6089	2021-11-308	1032	DIBBS
4730-00-289-6089	2021-02-42	342	DIBBS
4730-00-289-6089	2018-11-332	1077	DIBBS
4730-00-289-6089	2017-12-356	2500	DIBBS
4730-00-289-6089	2017-12-355	2500	DIBBS
MS21902D6	2015-11-334	1	SG
4730-00-289-6089	2014-10-304	4072	DIBBS
AS18280	2014-10-280	1	US
4730-00-289-6089	2014-03-79	2922	DIBBS
MS21902D6	2012-11-310	18
AS21902	2012-10-285	1	US
MS21902D6	2012-07-207	6	United States
MS21902D6	2012-07-185	6	United States
MS21902W6	2012-06-170	20	Indonesia
4730-00-289-6089	2010-06-173	7	US
4730-00-289-6089	2008-12-340	7124	DIBBS
MS21902D6	2008-07-184	16	United States
4730-00-289-6089	2007-05-151	50	China

Cross Reference | NSN 4730-00-289-6089

Part Number	Cage Code	Manufacturer
3110020	001JK	EMBRAER S/A
3110020	FB459	EMBRAER AVIATION INTERNATIONAL
3110020	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
AS18280	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS21902	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
ER815D6	01276	EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
ER815D6	79470	DANA CORP WEATHERHEAD DIV
MS21902D6	00624	EATON CORPORATION DBA AEROSPACE DIV
MS21902D6	01276	EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
MS21902D6	22995	CROWN FITTING CO INC
MS21902D6	79470	DANA CORP WEATHERHEAD DIV
MS21902D6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21902D6	R1120	SATAIR A/S
MS21902W6	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-289-6089

Compare

Related Products | NSN 4730-00-289-6089

4730-00-289-6090, 4730-00-289-6091, 4730-00-289-6092, 4730-00-289-6093, 4730-00-289-6098

Technical Data | NSN 4730-00-289-6089

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2024 OR ALUMINUM ALLOY 2014 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/6,T6 OR T62 OR T851 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-225/4,T6 FED SPEC 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625,TY 2,CL 1,TAN MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
MEDIA FOR WHICH DESIGNED	HYDRAULIC FLUID 1ST RESPONSE OXYGEN, GASEOUS 2ND RESPONSE
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP	275.0 DEG FAHRENHEIT 1ST RESPONSE -65.0 DEG FAHRENHEIT 2ND RESPONSE
STYLE DESIGNATOR	A66 FLARELESS W/CENTER WRENCHING FACILITY
CONNECTION TYPE	THREADED EXTERNAL BOSS ALL ENDS
CONNECTION STYLE	B71A EXTERNAL SEAT FOR GASKET SEAL ALL ENDS
THREAD SERIES DESIGNATOR	UNJF ALL ENDS
NOMINAL THREAD SIZE	0.562 INCHES ALL ENDS
THREAD CLASS	3A ALL ENDS
NOMINAL OVERALL LENGTH	1.188 INCHES
SPECIAL FEATURES	RUMMAN AEROSPACE INC SUPPORTS A10 AIRCRAFT
SPECIFICATION/STANDARD DATA	96906-MS21902 GOVERNMENT STANDARD

Restrictions/Controls & Freight Information | NSN 4730-00-289-6089

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	051400	PIPE FITTINGS ALUMINUM
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-289-6089

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
