NSN 4730-00-289-6092 MS21902D12, AS18280, AS21902
Product Details | BOSS NIPPLE
4730-00-289-6092 A straight, one-piece fitting used to join two bosses or boss fittings. Both ends are the same size and have external machine threads (straignt threads other than pipe or hose series). It is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. The center section may be suitably shaped to accommodate a wrench.
Part Alternates: MS21902D12, AS18280, AS21902, ER815D12, 4730-00-289-6092, 00-289-6092, 4730002896092, 002896092
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-289-6092 | 26952 ( NIPPLE, BOSS ) |

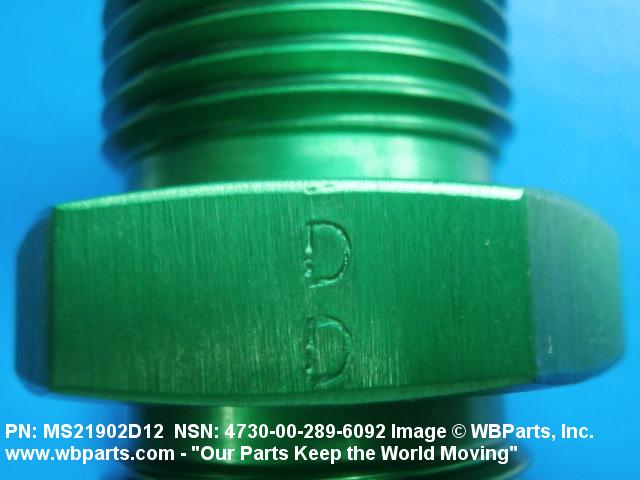

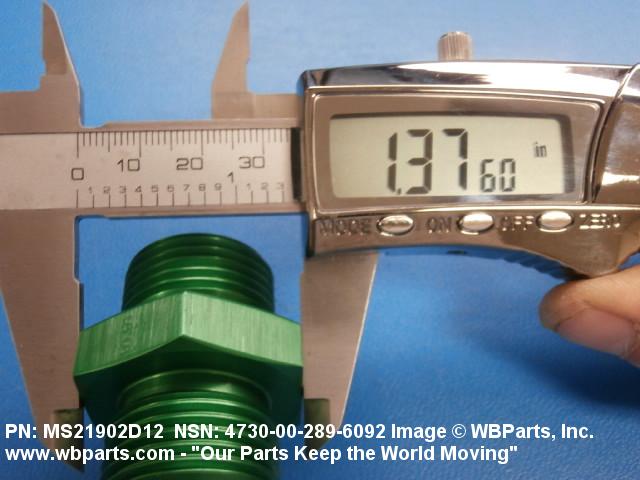

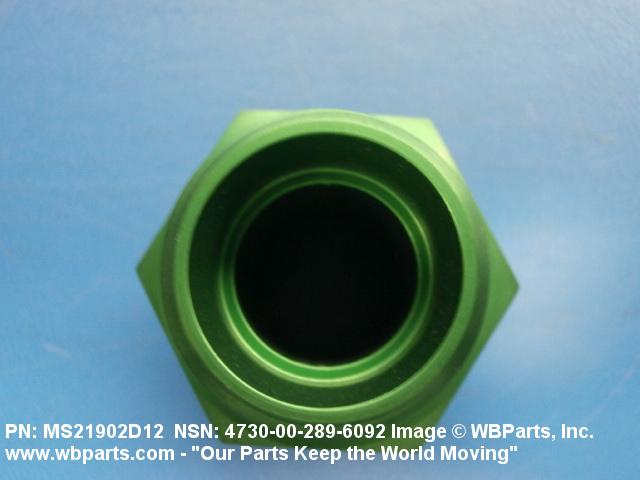

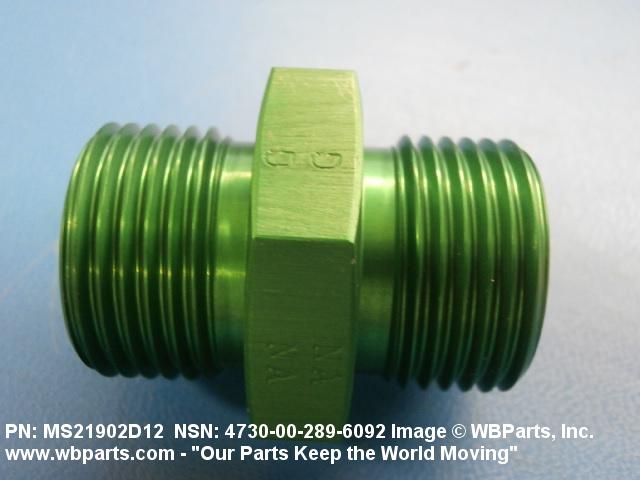

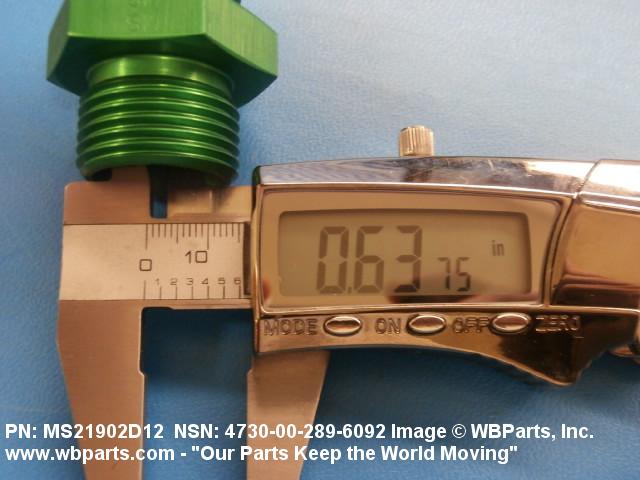

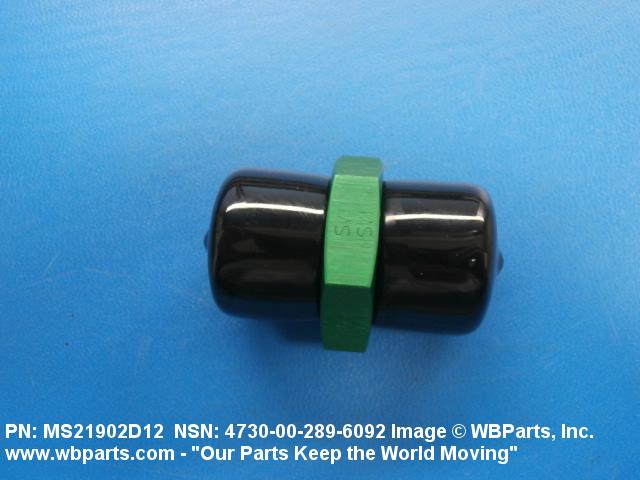

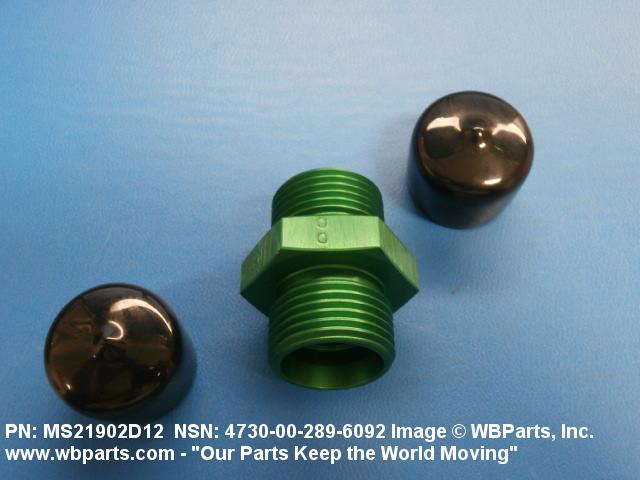

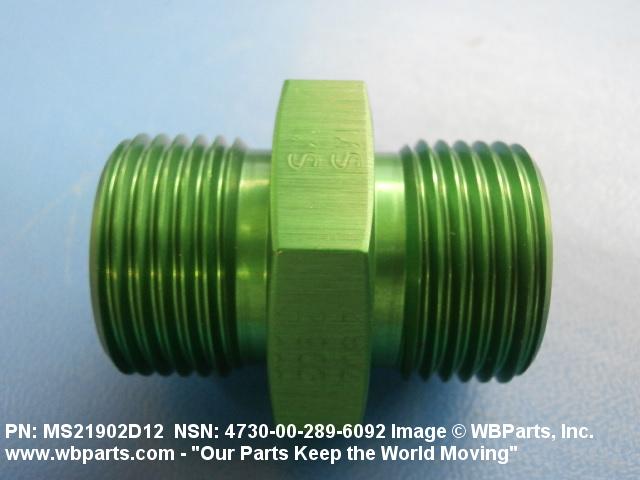

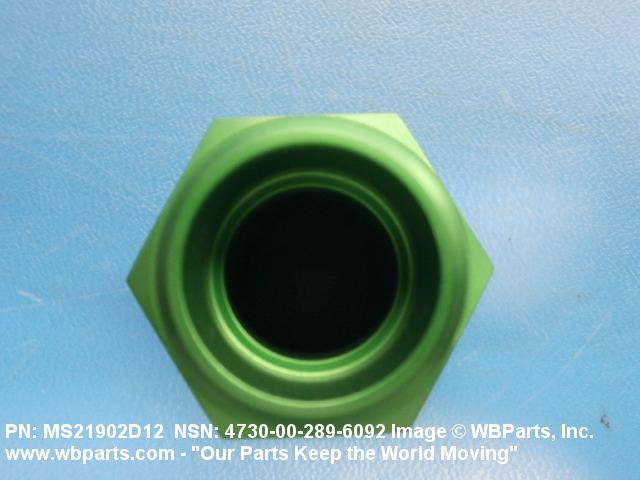

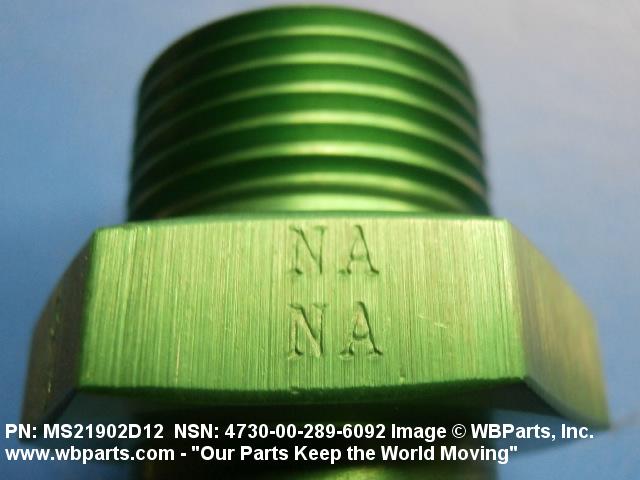

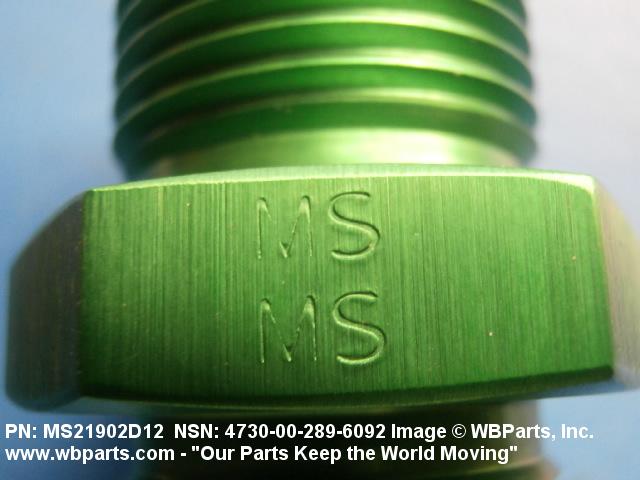

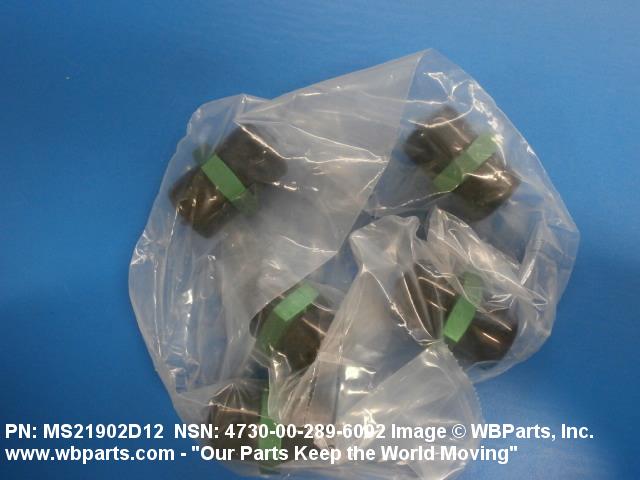

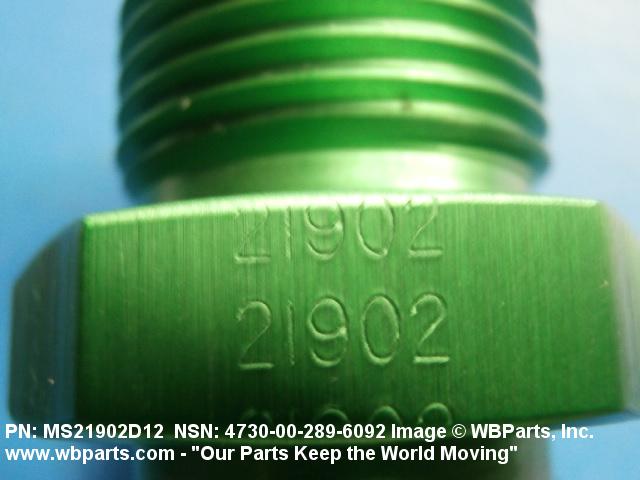

Drawings & Photos | NSN 4730-00-289-6092
Demand History | NSN 4730-00-289-6092
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-289-6092 | 2023-05-138 | 6 | Spain |
| MS21902D12 | 2015-02-54 | 5 | United States |
| MS21902D12 | 2014-11-328 | 37 | TW |
| AS18280 | 2014-10-280 | 1 | US |
| 4730-00-289-6092 | 2014-01-08 | 2 | US |
| 4730-00-289-6092 | 2014-01-07 | 2 | US |
| AS21902 | 2012-10-285 | 1 | US |
| MS21902D12 | 2011-11-332 | 40 | |
| 4730-00-289-6092 | 2007-02-59 | 5 | US |
Cross Reference | NSN 4730-00-289-6092
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 137618101 | A0199 | OTO MELARA SPA |
| AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21902 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| ER815D12 | 79470 | DANA CORP WEATHERHEAD DIV |
| MS21902D12 | 17419 | DEUTSCH CO THE |
| MS21902D12 | 79470 | DANA CORP WEATHERHEAD DIV |
| MS21902D12 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21902D12 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-289-6092
Technical Data | NSN 4730-00-289-6092
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6,T6,T62 OR T851 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 300.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 275.0 DEG FAHRENHEIT SINGLE RESPONSE |
| STYLE DESIGNATOR | A66 FLARELESS W/CENTER WRENCHING FACILITY |
| CONNECTION TYPE | THREADED EXTERNAL BOSS ALL ENDS |
| CONNECTION STYLE | B71A EXTERNAL SEAT FOR GASKET SEAL ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJ ALL ENDS |

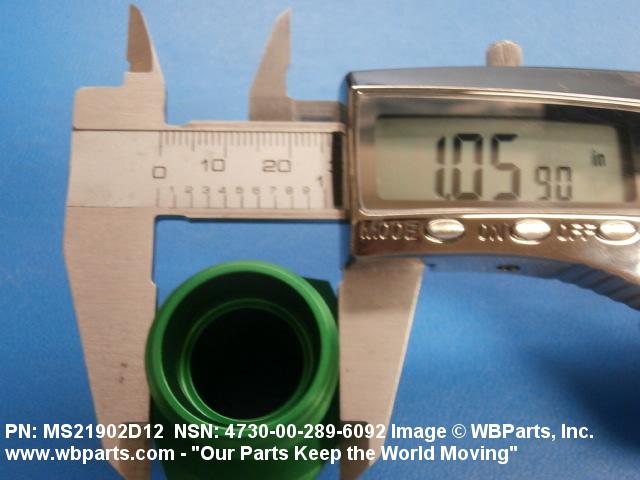

| NOMINAL THREAD SIZE | 1.062 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 12 ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |

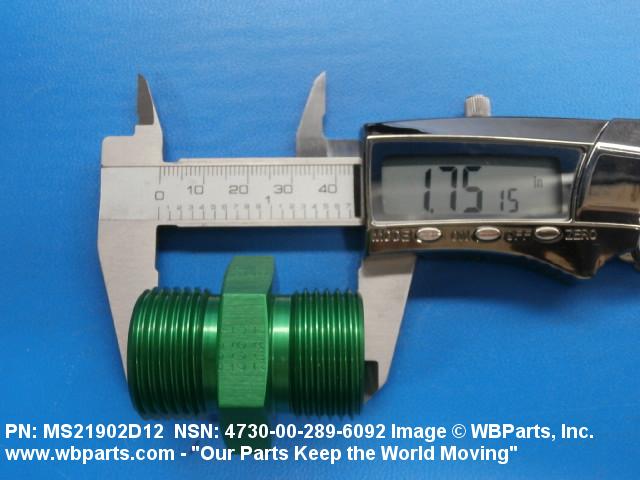

| NOMINAL OVERALL LENGTH | 1.750 INCHES |
| SPECIAL FEATURES | GRUMMAN AEROSPACE INC SUPPORTS A10 AIRCRAFT |
| SPECIFICATION/STANDARD DATA | 81343-AS21902 GOVERNMENT STANDARD |
Restrictions/Controls & Freight Information | NSN 4730-00-289-6092
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
