NSN 4730-00-287-0272 A8528007, AN818240, AN818-240
Product Details | TUBE COUPLING NUT
4730-00-287-0272 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: A8528007, AN818240, AN818-240, AN81824D, AN818-24D, MILF5509A, 731857-124, 811BT24D, 8528007, 9100X24D, 24BTD, 29024D, 290-24D, 72033524, 720335-24, 4730-00-287-0272, 00-287-0272, 4730002870272, 002870272, 731857124
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-287-0272 | 03859 ( NUT, TUBE COUPLING ) |

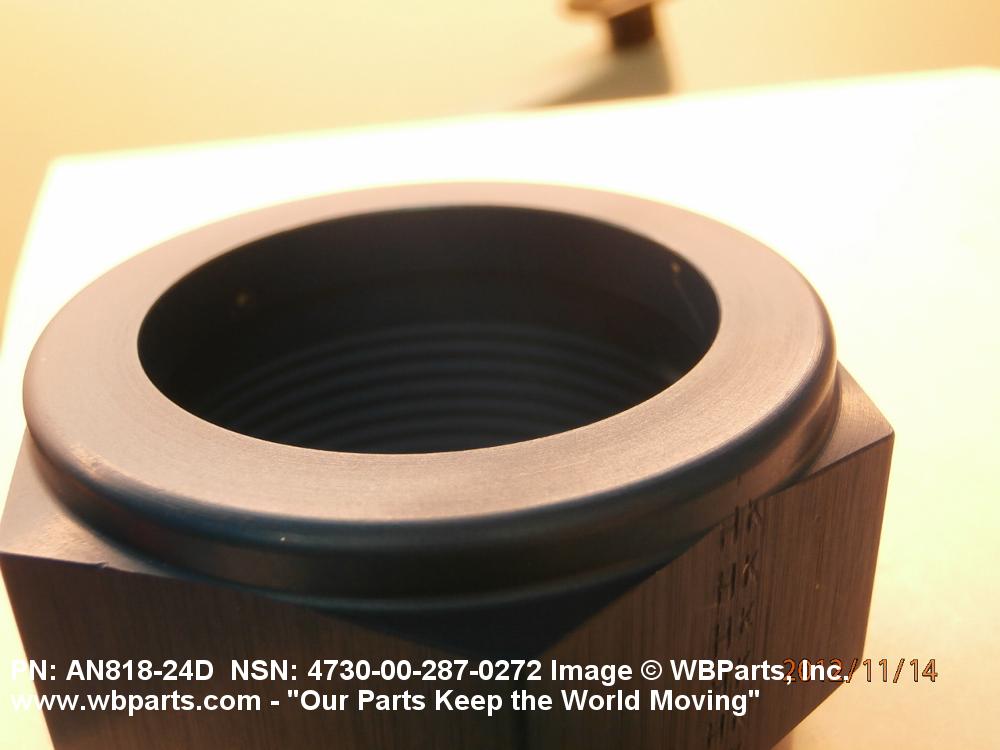

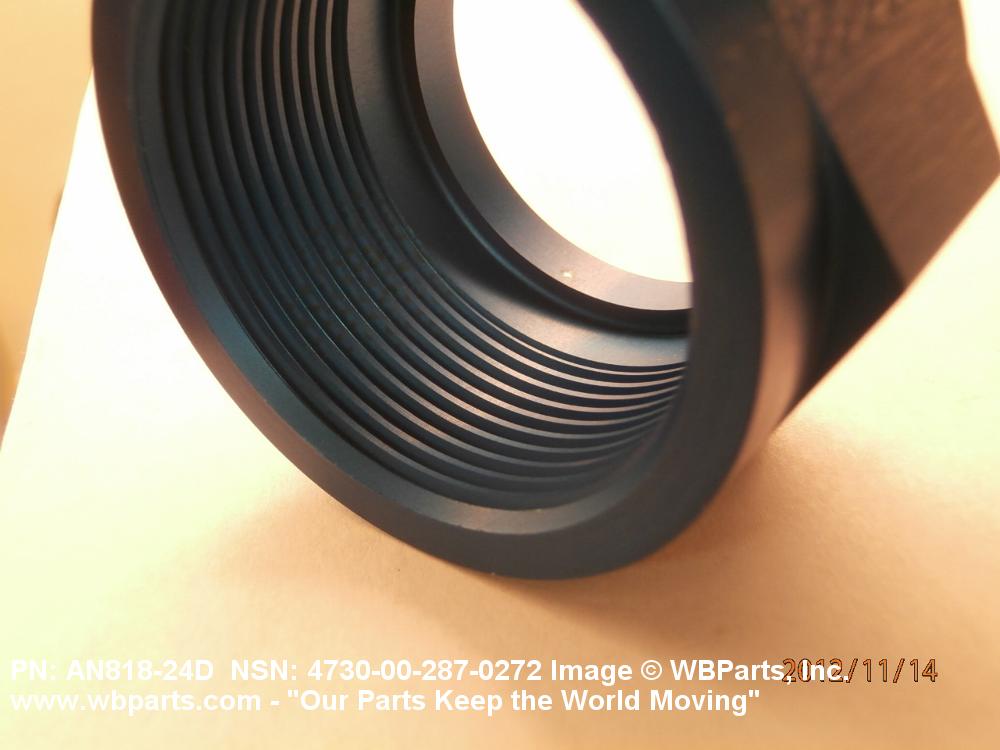

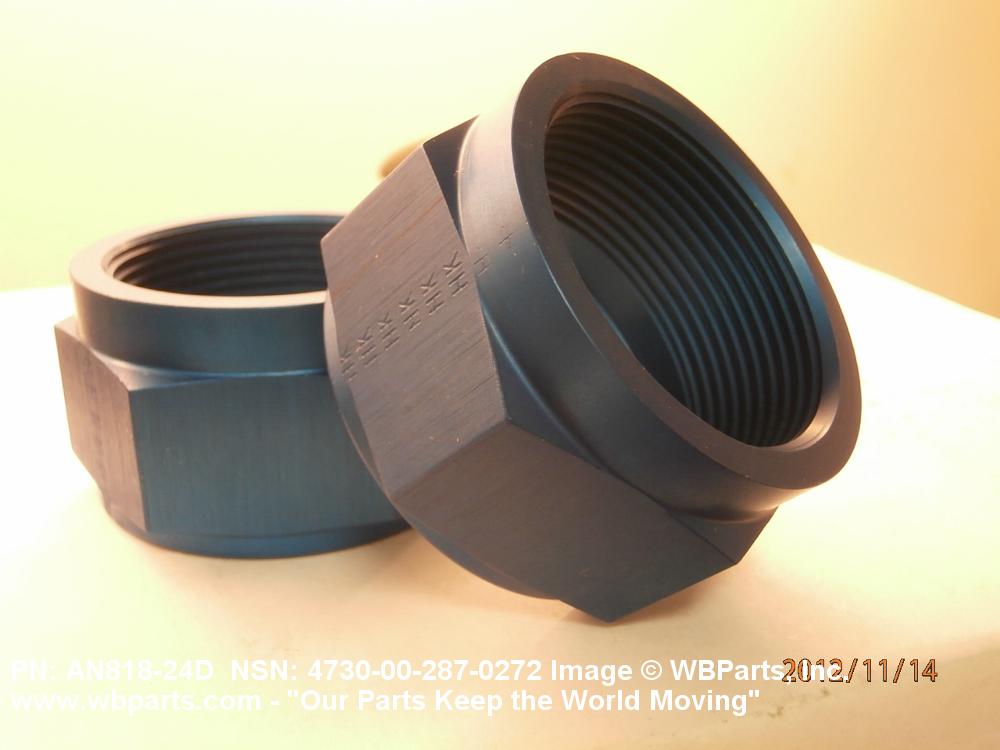

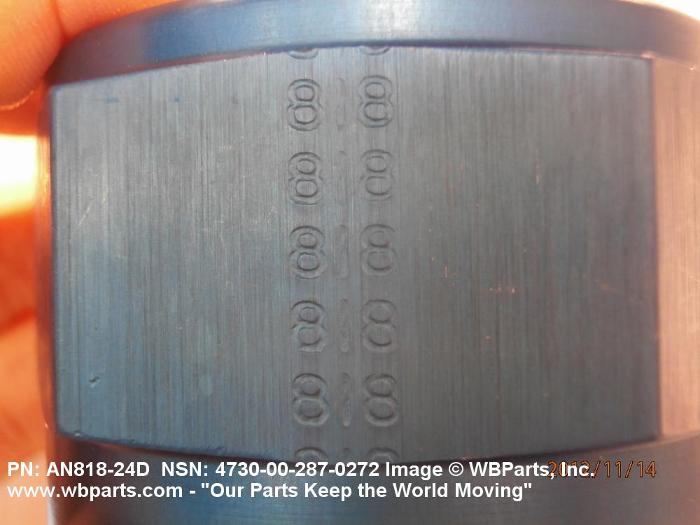

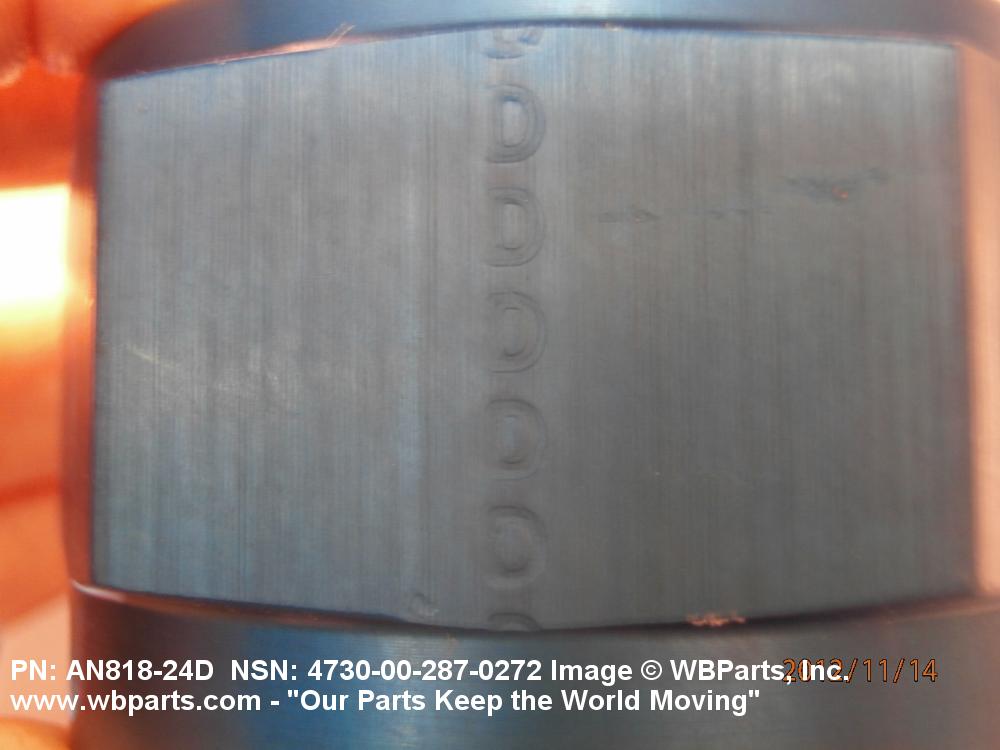

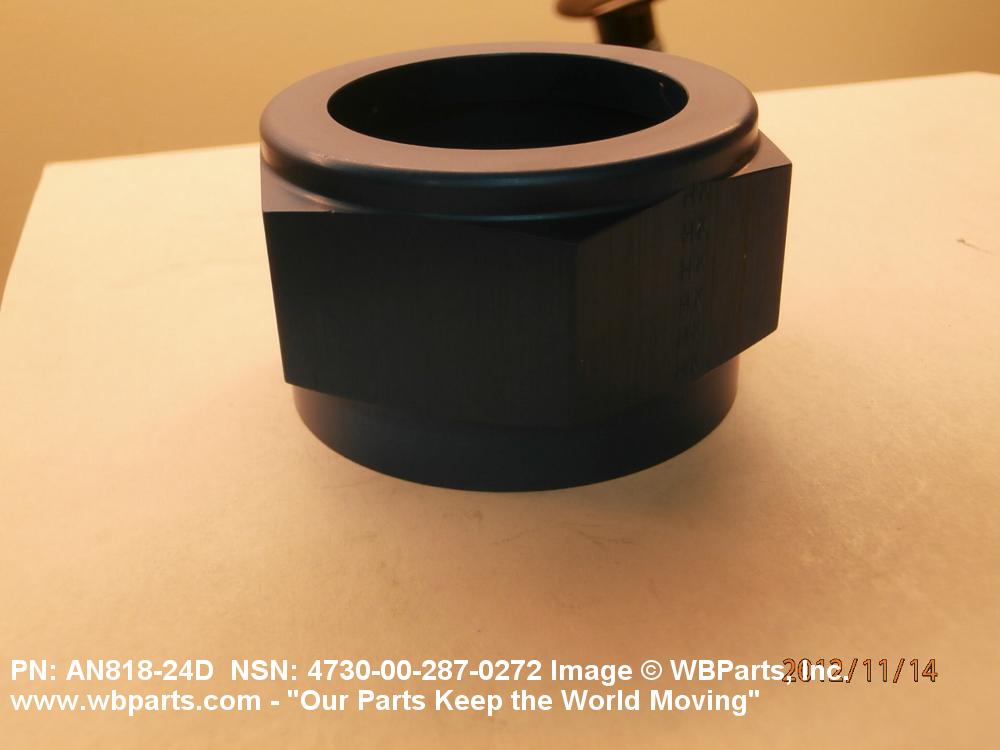

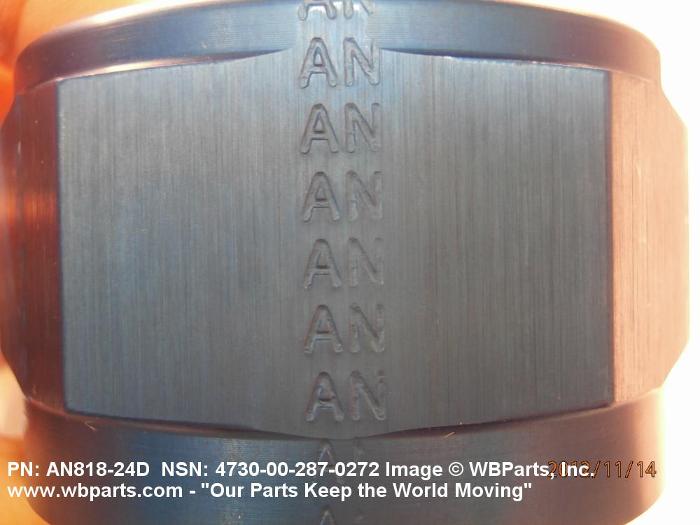

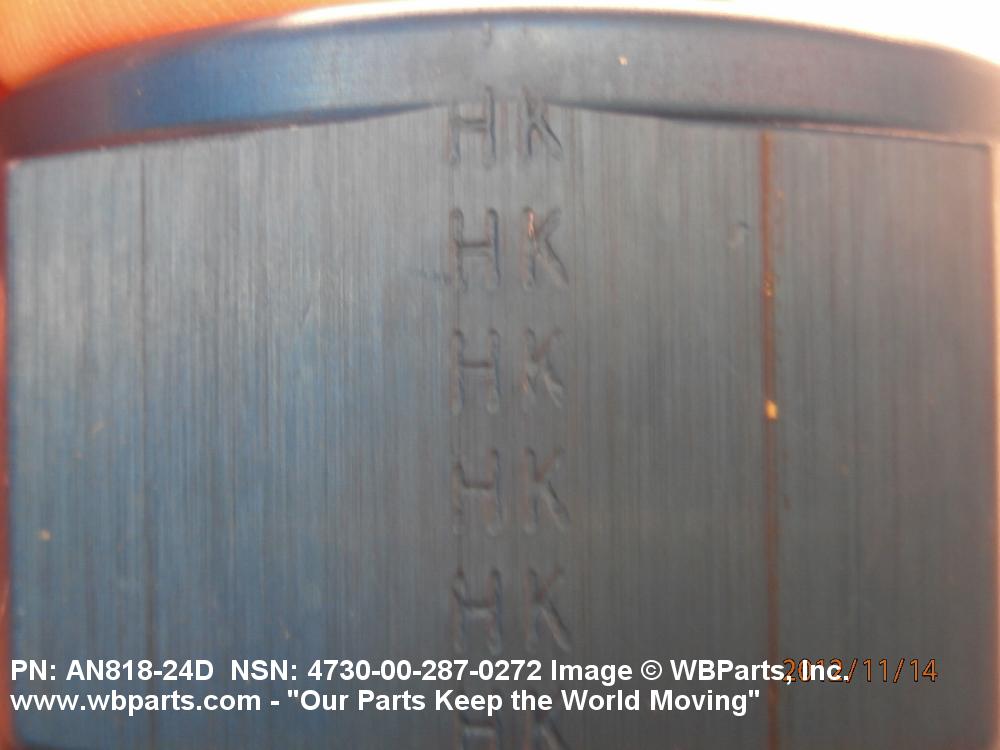

Drawings & Photos | NSN 4730-00-287-0272
Demand History | NSN 4730-00-287-0272
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN81824D | 2021-04-05 | 3 | United States |
| 4730-00-287-0272 | 2019-07-26 | 300 | India |
| 4730-00-287-0272 | 2019-05-01 | 150 | DIBBS |
| 4730-00-287-0272 | 2019-03-07 | 215 | DIBBS |
| AN81824D | 2018-08-06 | 4 | United States |
| 4730-00-287-0272 | 2018-06-17 | 241 | DIBBS |
| AN81824D | 2017-01-24 | 720 | US |
| AN81824D | 2015-08-13 | 163 | US |
| AN81824D | 2012-11-07 | 10 | US |
| AN81824D | 2012-11-07 | 20 | US |
| AN81824D | 2012-02-02 | 20 | US |
| AN81824D | 2010-09-07 | 10 | Italy |
| 4730-00-287-0272 | 2009-07-28 | 351 | DIBBS |
| AN81824D | 2009-04-15 | 120 | United States |
| 4730-00-287-0272 | 2009-02-27 | 174 | DIBBS |
Cross Reference | NSN 4730-00-287-0272
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 24BTD | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 290-24D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 290-24D | R1120 | SATAIR A/S |
| 720335-24 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 731857-124 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 811BT24D | 88049 | SAFETY FOR VISUAL EDUCATION |
| 8528007 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 9100X24D | 79470 | DANA CORP WEATHERHEAD DIV |
| A8528007 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| AN818-240 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN818-24D | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN818-24D | 32142 | HYDRASEARCH CO., INC. |
| AN818-24D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MILF5509A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-287-0272
Related Products | NSN 4730-00-287-0272
Technical Data | NSN 4730-00-287-0272
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UN |
| NOMINAL THREAD SIZE | 1.875 INCHES |
| THREAD QUANTITY PER INCH | 12 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| NUT STYLE | A351 TUBE COUPLING |
| NUT HEIGHT | 1.406 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 2.230 INCHES MINIMUM AND 2.270 INCHES MAXIMUM |
| LENGTH TO SHOULDER | 1.170 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 1.617 INCHES MINIMUM AND 1.620 INCHES MAXIMUM |
| FABRICATION METHOD | ANY ACCEPTABLE |
| NOMINAL TUBE OUTSIDE DIAMETER | 1.500 INCHES |
| SPECIAL FEATURES | GRUMMAN A-10 AIRCRAFT |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN818-24D |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILF5509A |
Restrictions/Controls & Freight Information | NSN 4730-00-287-0272
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-287-0272
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
