NSN 4730-00-278-0678 MS208194, MS20819-4, AMD-1403 ITEM 57

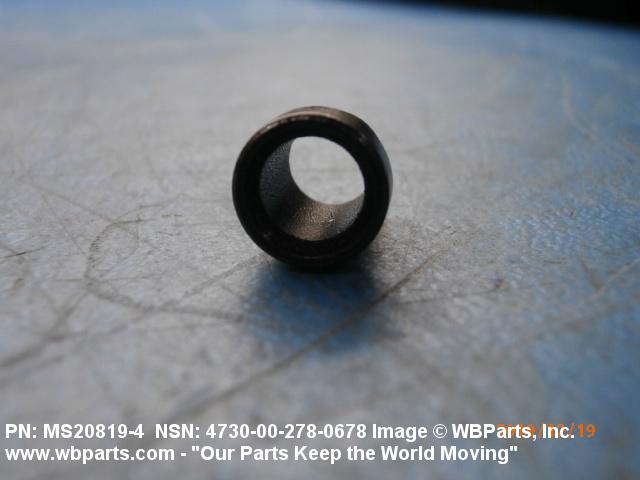

Product Details | TUBE FITTING FLARED SLEEVE

4730-00-278-0678 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.

Part Alternates: MS208194, MS20819-4, AMD-1403 ITEM 57, AMD1403ITEM57, AN8194, AN819-4, AN8194Z, AN819-4Z, AS4841, AS5176, AS517604, AS5176-04, B39A38, BACS13Z4, BACSI3Z4, SB24178, SB-2417-8, R1N714, 06058800, 105768-003, 132199, 1628A89717, 171SB748, 226D4, 26260, 364155, 486 906, 486906, 4TXS, 7376066, 79F3, 84002056001, 84002056-001, 8L3162, 9403447, 4730-00-278-0678, 00-278-0678, 4730002780678, 002780678, 105768003

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-278-0678	18027 ( SLEEVE, FLARED, TUBE FITTING )

Drawings & Photos | NSN 4730-00-278-0678

Part Number	Request Date	QTY	Origin
MS208194	2024-06-170	100	United States
MS208194	2024-06-155	50	United States
MS208194	2024-04-102	2000	United States
4730-00-278-0678	2023-04-96	1792	DIBBS
4730-00-278-0678	2022-03-90	3209	DIBBS
4730-00-278-0678	2022-03-70	100	US
MS208194	2022-02-48	50	United States
4730-00-278-0678	2022-02-39	100	US
4730-00-278-0678	2021-12-336	1296	DIBBS
4730-00-278-0678	2020-10-287	1985	DIBBS
MS208194	2019-12-347	300	United States
4730-00-278-0678	2019-07-200	10	United States
4730-00-278-0678	2019-07-200	10	United States
4730-00-278-0678	2019-05-127	1	United States
4730-00-278-0678	2019-05-127	25	United States
4730-00-278-0678	2018-01-04	5418	DIBBS
AS517604	2017-10-298	20	Thailand
MS208194	2017-03-81	30	Brazil
MS208194	2015-09-253	1	United States
4730-00-278-0678	2015-06-175	6614	DIBBS
4730-00-278-0678	2014-03-63	6400	US
AS517604	2012-05-142	2	US
AS4841	2011-03-69	8
AN8194	2010-12-350	90	United States
MS208194	2010-06-176	1	Italy
MS208194	2010-01-21	40	United States
4730-00-278-0678	2008-12-365	50	US
AS517604	2007-12-347	100	China
BACS13Z4	2007-09-256	80	US
4730-00-278-0678	2007-07-212	50	US
MS208194	2007-07-192	160	India
4730-00-278-0678	2006-10-278	10	IT
MS208194	2006-09-265	10	IT
AS517604	2006-08-216	20	US

Cross Reference | NSN 4730-00-278-0678

Part Number	Cage Code	Manufacturer
06058800	54217	TEREX AERIALS INC
105768-003	54933	AERO SYSTEMS ENGINEERING, INC. DBA ASE
132199	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
1628A89717	38597	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
171SB748	12603	CLARK EQUIPMENT CO
171SB748	77237	DANA OFF HIGHWAY PRODUCTS, LLC
226D4	0AHP5	CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS
26260	99167	HAMILTON SUNDSTRAND CORPORATION
364155	06848	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
364155	96840	QUICK REPAIR WASHER CO INC DIV OF WALTZ AND SONS MACHINE CO INC
486 906	77294	PIPER AIRCRAFT INC.
4TXS	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
4TXS	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
4TXS	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
7376066	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
79F3	12603	CLARK EQUIPMENT CO
79F3	77237	DANA OFF HIGHWAY PRODUCTS, LLC
84002056-001	81873	WOODWARD HRT, INC.
8L3162	11083	CATERPILLAR INC. DBA CATERPILLAR
9403447	29930	INTERNATIONAL HARVESTER CO AGRICULTURAL EQUIPMENT DIV
9403447	31007	NAVISTAR INTL CORP
AMD-1403 ITEM 57	70433	APPLETON MARINE, INC.
AN819-4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN819-4Z	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS4841	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5176	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5176-04	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
B39A38	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
BACS13Z4	81205	THE BOEING COMPANY DBA BOEING
BACSI3Z4	81205	THE BOEING COMPANY DBA BOEING
MS20819-4	0AHP5	CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS
MS20819-4	13899	HYDRO FITTING MANUFACTURING CORPORATION
MS20819-4	17341	TECH AERO INC
MS20819-4	22995	CROWN FITTING CO INC
MS20819-4	38597	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
MS20819-4	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
MS20819-4	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
MS20819-4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS20819-4	99167	HAMILTON SUNDSTRAND CORPORATION
R1N714	11083	CATERPILLAR INC. DBA CATERPILLAR
SB-2417-8	51227	CONTROL SYSTEMS CO
