NSN 4730-00-278-0427 AN737TW56, AN74856, AN748-56
Product Details | HOSE CLAMP
4730-00-278-0427 A clamp in which the body (band or wire) completely encircles an item and distributes a relatively even amount of pressure throughout the entire 360 degrees (6.282 radians) of the periphery of the item to be compressed. Its compression quality is dependent upon an integral screw mechanism, (screw, bolt spring compression and the like mechanical fasteners), or it may be applied by a device not integral with the clamp itself. It is specifically designed to prevent leakage between a hose and its attaching connection(s) when the body of the clamp is round or circular. For square, rectangular, or irregularly shaped items, see CLAMP, HOSE, SPECIAL-SHAPED. Excludes CLAMP, ELECTRICAL; CLAMP, LOOP; CLAMP, FIRE HOSE, SHUTOFF; FERRULE (as modified); and HAND SCREW.
Part Alternates: AN737TW56, AN74856, AN748-56, WWD56, 2813697, 4730-00-278-0427, 00-278-0427, 4730002780427, 002780427
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-278-0427 | 13566 ( CLAMP, HOSE ) |

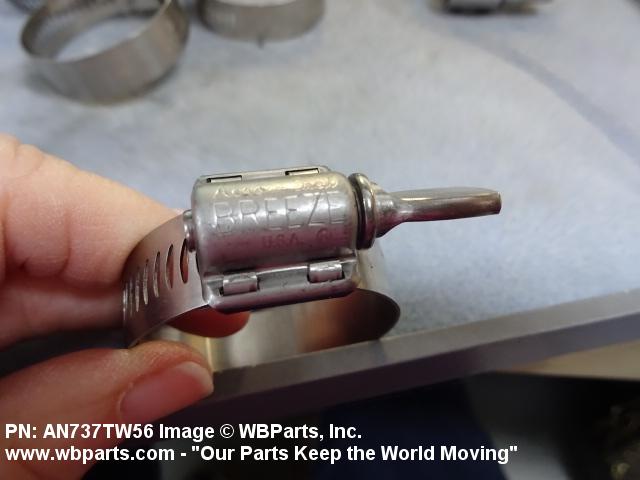

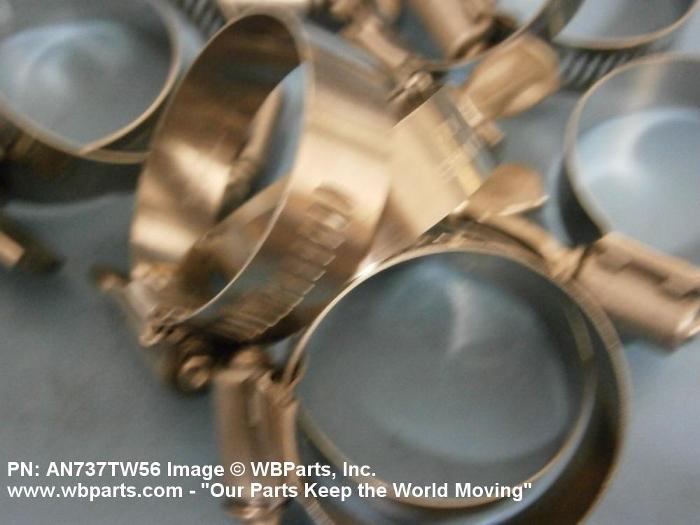

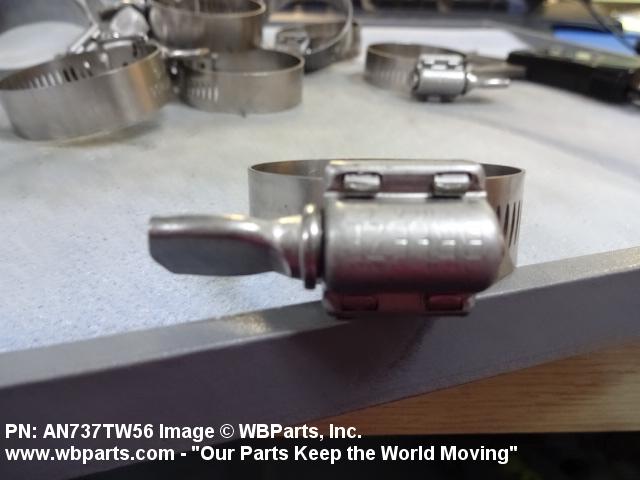

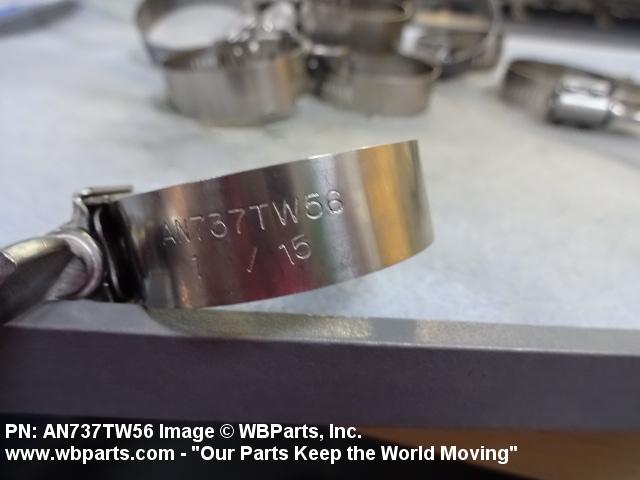

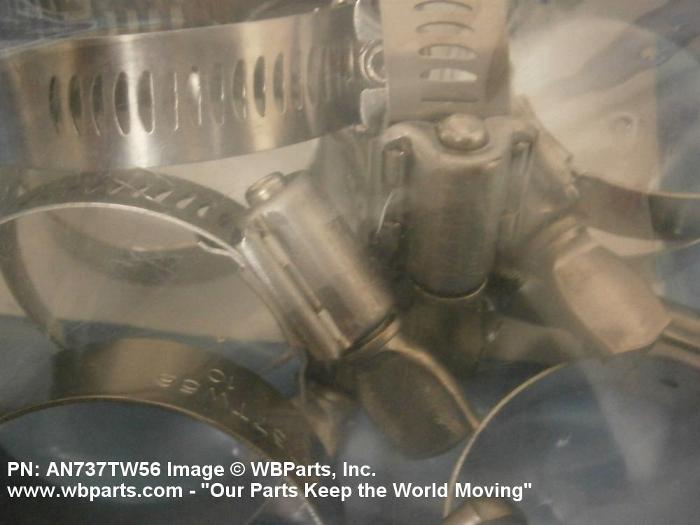

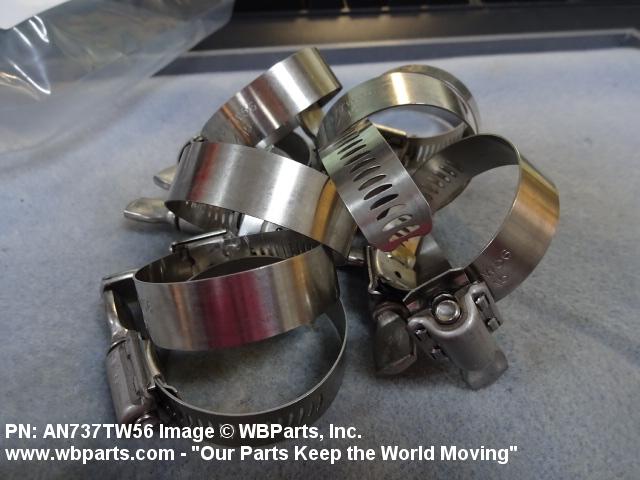

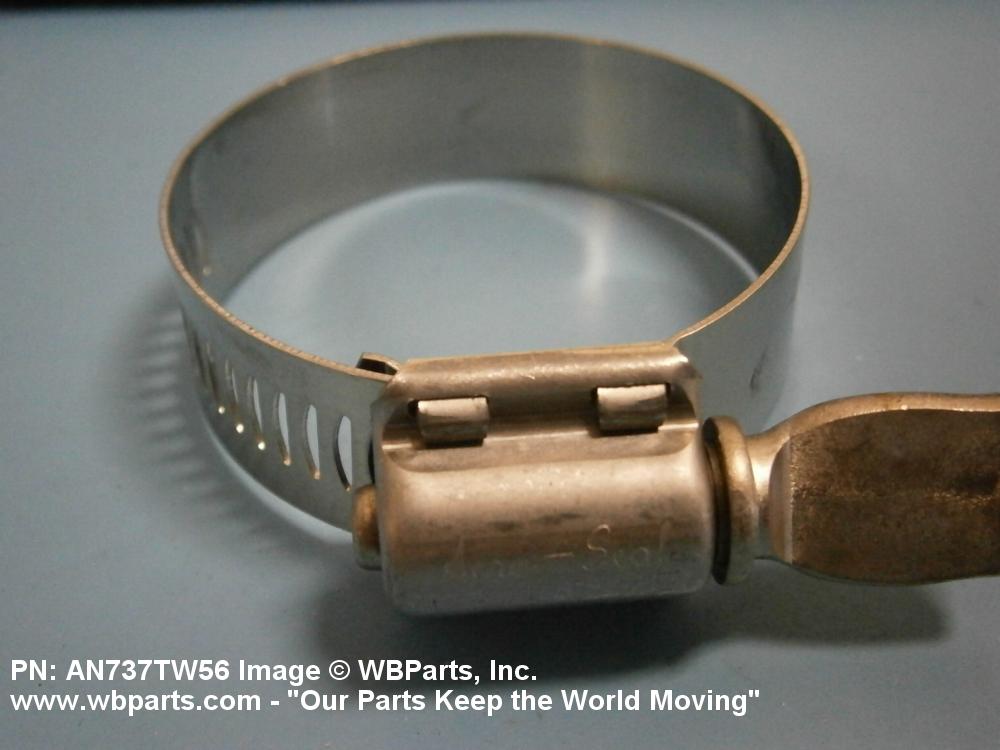

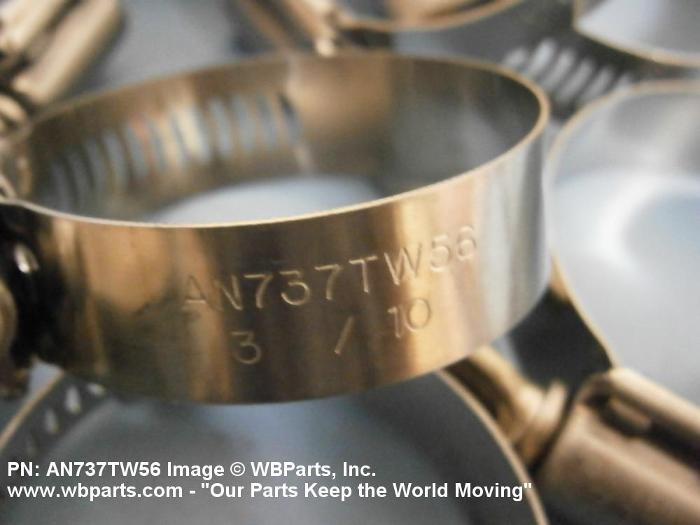

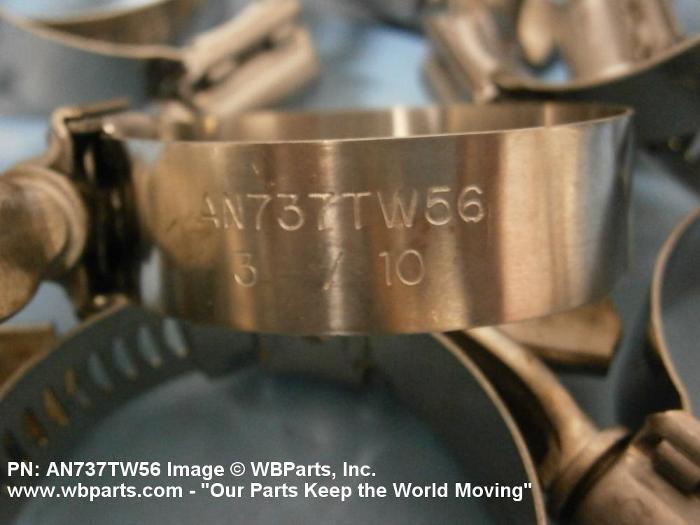

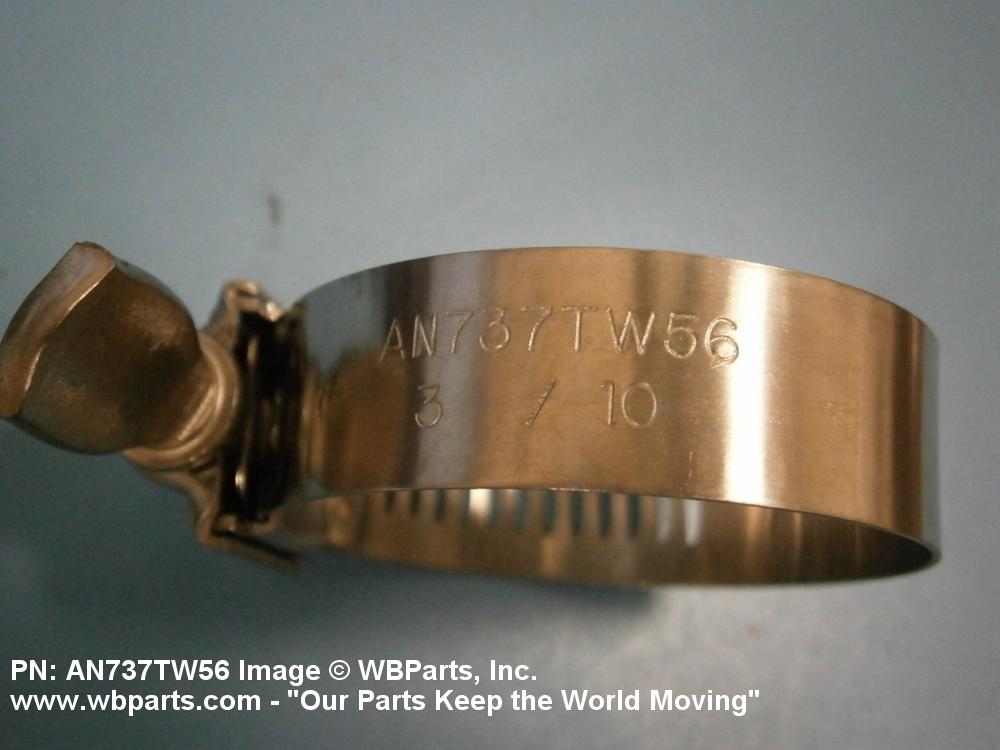

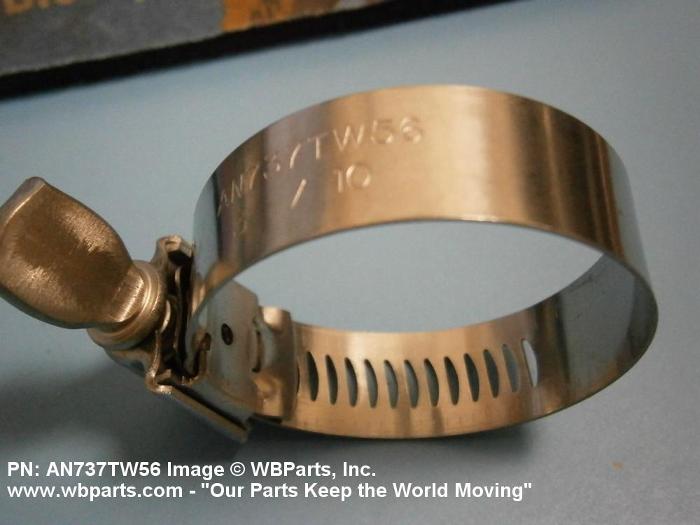

Drawings & Photos | NSN 4730-00-278-0427
Demand History | NSN 4730-00-278-0427
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN737TW56 | 2015-03-71 | 1 | United States |
| AN737TW56 | 2012-11-310 | 50 | |
| WWD56 | 2012-11-310 | 50 | |
| AN737TW56 | 2012-07-206 | 2 | CN |
| AN737TW56 | 2012-01-30 | 100 | United States |
| AN737TW56 | 2011-10-286 | 1 | United States |
| AN737TW56 | 2011-08-214 | 1 | United States |
| AN737TW56 | 2011-06-180 | 8 | US |
Cross Reference | NSN 4730-00-278-0427
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2813697 | 001JK | EMBRAER S/A |
| 2813697 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| AN737TW56 | 08484 | BREEZE-EASTERN CORPORATION |
| AN737TW56 | 66295 | WITTEK COMPANIES INTL INC |
| AN737TW56 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN748-56 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| WWD56 | 66295 | WITTEK COMPANIES INTL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-278-0427
Technical Data | NSN 4730-00-278-0427
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 BAND STEEL CORROSION RESISTING OR STEEL THUMBSCREW |
| SURFACE TREATMENT | PASSIVATE BAND |
| STYLE DESIGNATOR | C7 BAND |

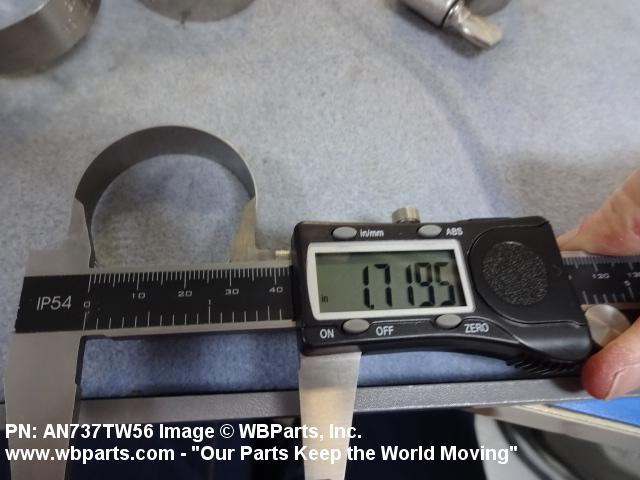

| INSIDE DIAMETER | 1.328 INCHES MINIMUM AND 1.750 INCHES MAXIMUM |

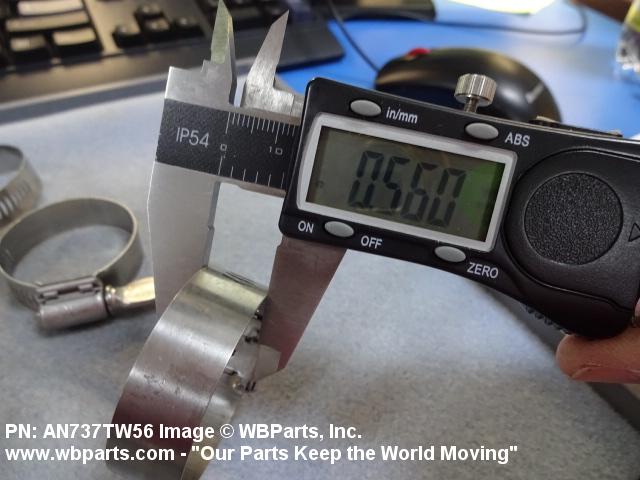

| OVERALL WIDTH | 0.562 INCHES NOMINAL |

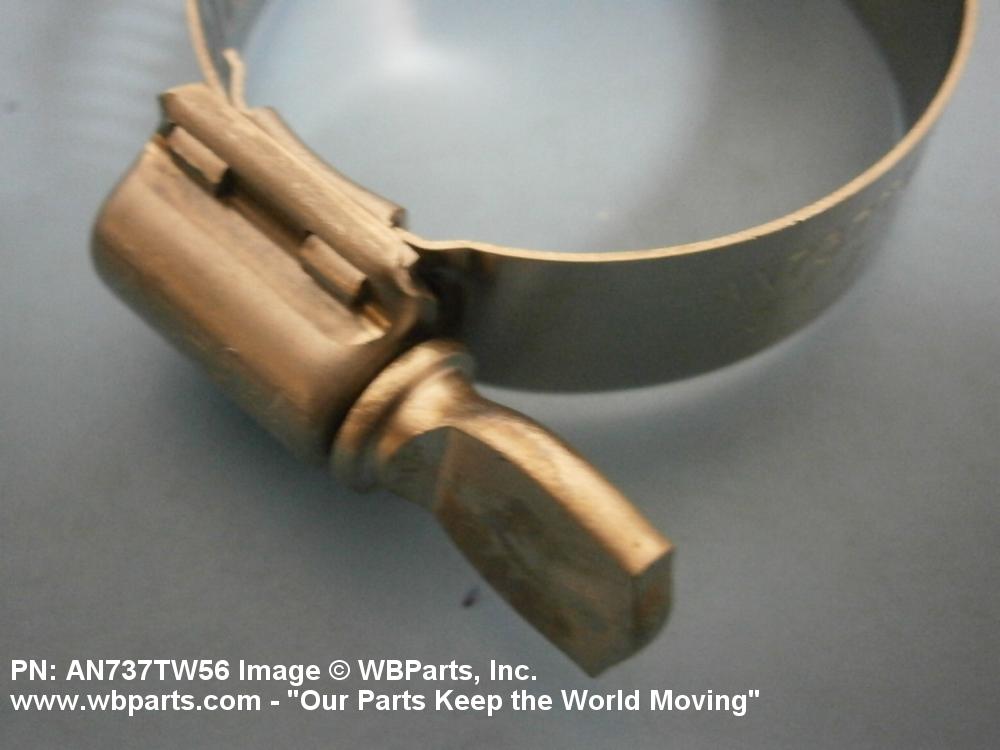

| FASTENING DEVICE TYPE | THUMB HEAD SCREW |
| SPECIAL FEATURES | W/INNER SHOE |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN737TW56 |
Restrictions/Controls & Freight Information | NSN 4730-00-278-0427
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-00-278-0427
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
