NSN 4730-00-277-9305 MS208254, MS20825-4, AN8254

Product Details | PIPE TO TUBE TEE

4730-00-277-9305 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The pipe connection(s) has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The tube connection(s) has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of pipe or pipe fitting and a tube or tube fitting.

Part Alternates: MS208254, MS20825-4, AN8254, AN825-4, AS4842/1, AS48421, AS5197, AS5197040402, AS5197-040402, MILF5509, MIL-F-5509, 137108, 4STS, 4ST-S, 811ST4NS, 8169123, 4730-00-277-9305, 00-277-9305, 4730002779305, 002779305

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-277-9305	03807 ( TEE, PIPE TO TUBE )

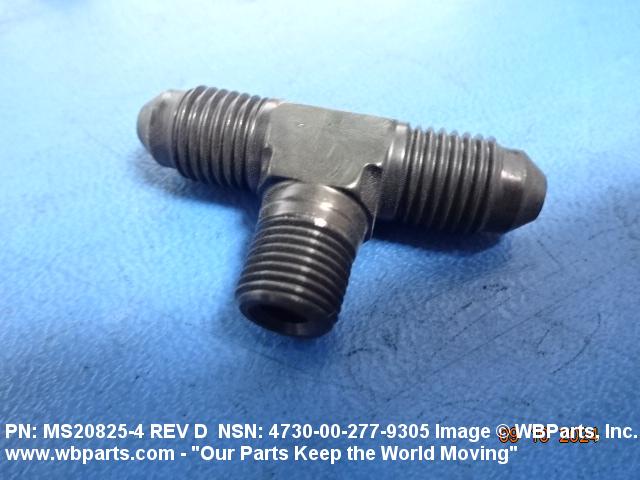

Drawings & Photos | NSN 4730-00-277-9305

Part Number	Request Date	QTY	Origin
MS208254	2024-08-242	50	United States
MS208254	2024-08-242	100	United States
MS208254	2024-08-242	50	United States
MS208254	2024-08-242	100	United States
4730-00-277-9305	2022-11-329	92	DIBBS
AS5197040402	2022-11-318	50	United States
4730-00-277-9305	2022-11-317	92	DIBBS
4730-00-277-9305	2019-05-129	1278	DIBBS
MILF5509	2018-07-201	6	United States
MS208254	2018-03-65	25	United States
MS208254	2018-03-65	50	United States
4730-00-277-9305	2015-09-250	561	DIBBS
AS48421	2015-05-132	1	CA
4730-00-277-9305	2014-05-139	651	DIBBS
4730-00-277-9305	2014-05-138	651	DIBBS
4730-00-277-9305	2014-05-134	651	DIBBS
MS20825-4	2014-02-42	3	India
MILF5509	2009-10-301	1	PK
MILF5509	2009-02-55	100	US

Cross Reference | NSN 4730-00-277-9305

Part Number	Cage Code	Manufacturer
137108	06848	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
4730002779305	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
4ST-S	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
4ST-S	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
811ST4NS	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
8169123	18876	U S ARMY AVIATION AND MISSILE COMMAND
AN825-4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS4842/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5197	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5197-040402	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MIL-F-5509	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS20825-4	00624	EATON CORPORATION DBA AEROSPACE DIV
MS20825-4	06581	ALLAN AIRCRAFT SUPPLY CO, LLC
MS20825-4	13899	HYDRO FITTING MANUFACTURING CORPORATION
MS20825-4	14397	FABER ENTERPRISES, INC.
MS20825-4	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
MS20825-4	20974	J E PLASTICS MFG CORP
MS20825-4	22995	CROWN FITTING CO INC
MS20825-4	28270	M AND L AIRCRAFT INC
MS20825-4	71563	COLLINS ENGINEERING CORP
MS20825-4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS20825-4	R1120	SATAIR A/S

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-277-9305

Compare

Related Products | NSN 4730-00-277-9305

4730-00-277-9306, 4730-00-277-9307, 4730-00-277-9308, 4730-00-277-9311, 4730-00-277-9313

Technical Data | NSN 4730-00-277-9305

Characteristic	Specifications
MATERIAL	STEEL COMP 1137 OR STEEL COMP 1141 OR STEEL COMP 4130 OR STEEL COMP 4140 OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-146,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
CONNECTION TYPE	THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END THREADED EXTERNAL PIPE 3RD END
CONNECTION STYLE	B64 FLARED 1ST END B64 FLARED 2ND END B67B PLAIN 3RD END
SEAT ANGLE	37.0 DEGREES 1ST END 37.0 DEGREES 2ND END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.250 INCHES 1ST END 0.250 INCHES 2ND END
THREAD SERIES DESIGNATOR	UNJF 1ST END UNJF 2ND END ANPT 3RD END
NOMINAL THREAD SIZE	0.438 INCHES 1ST END 0.438 INCHES 2ND END 0.125 INCHES 3RD END
THREAD CLASS	3A 1ST END 3A 2ND END
LEG LENGTH	0.859 INCHES MINIMUM AND 0.906 INCHES MAXIMUM 1ST END 0.859 INCHES MINIMUM AND 0.906 INCHES MAXIMUM 2ND END 0.750 INCHES MINIMUM AND 0.797 INCHES MAXIMUM 3RD END
SPECIFICATION/STANDARD DATA	96906-MS20825 GOVERNMENT STANDARD

Restrictions/Controls & Freight Information | NSN 4730-00-277-9305

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	107120	TEES/ZEES NOI I/S
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-277-9305

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
