NSN 4730-00-277-7132 M8830032, M9930032, NAS192203501

Product Details | HOSE CLAMP

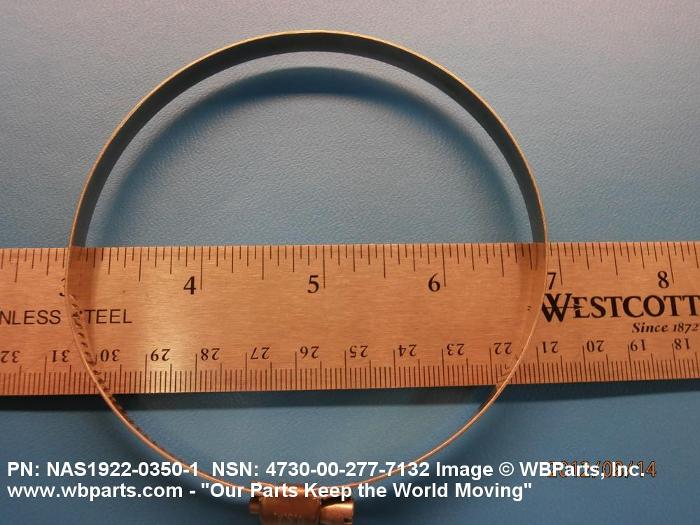

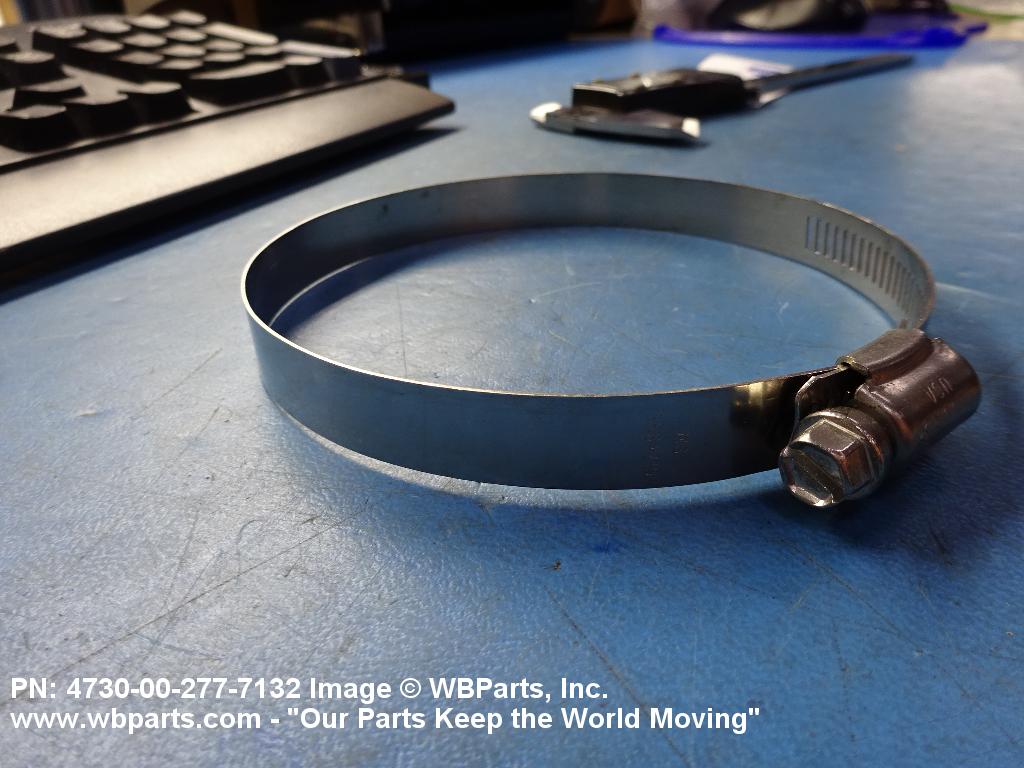

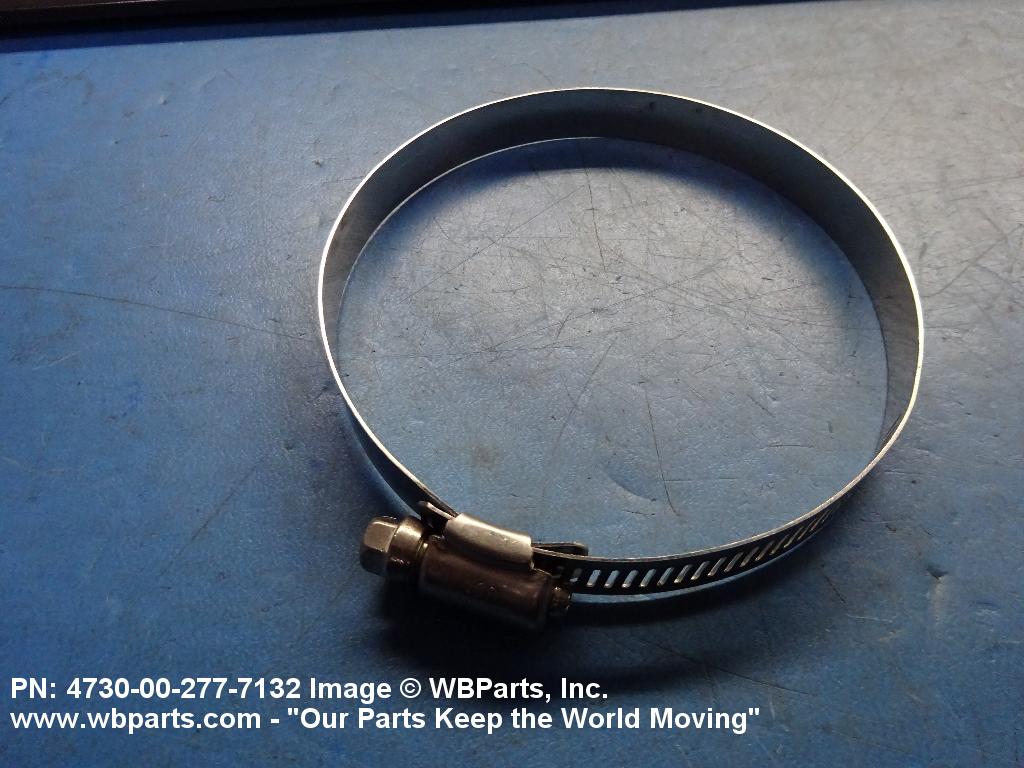

4730-00-277-7132 A clamp in which the body (band or wire) completely encircles an item and distributes a relatively even amount of pressure throughout the entire 360 degrees (6.282 radians) of the periphery of the item to be compressed. Its compression quality is dependent upon an integral screw mechanism, (screw, bolt spring compression and the like mechanical fasteners), or it may be applied by a device not integral with the clamp itself. It is specifically designed to prevent leakage between a hose and its attaching connection(s) when the body of the clamp is round or circular. For square, rectangular, or irregularly shaped items, see CLAMP, HOSE, SPECIAL-SHAPED. Excludes CLAMP, ELECTRICAL; CLAMP, LOOP; CLAMP, FIRE HOSE, SHUTOFF; FERRULE (as modified); and HAND SCREW.

Part Alternates: M8830032, M9930032, NAS192203501, NAS1922-0350-1, NH1023000350, NH102300-0350, AA52506, A-A-52506, AA52506F56, A-A-52506-F-56, A-A-52506SIZE 56, AA52506SIZE56, AT25242, B5433683, B54-33683, C7898350, C7898-350, ST9M623350, ST9M623-350, WWC440TYPE2STYLE1, QS200215, QS200-215, QS200M565, QS200M56S, QS200-M56S, LS111433501, LS11143-350-1, 5171199, 52T, 54 815504456, 54815504456, 6036473, 603647-3, ET56, 10108321 , 10A260350, 10A260-350, 10A2603501B, 10A260-350-1B, 10A26035038, 10A260-350-38, 111435A, 20056S, 35118AX, 4387064PC1031, 4387064PC103-1, 4730-00-277-7132, 00-277-7132, 4730002777132, 002777132

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1963	00-277-7132	13566 ( CLAMP, HOSE )

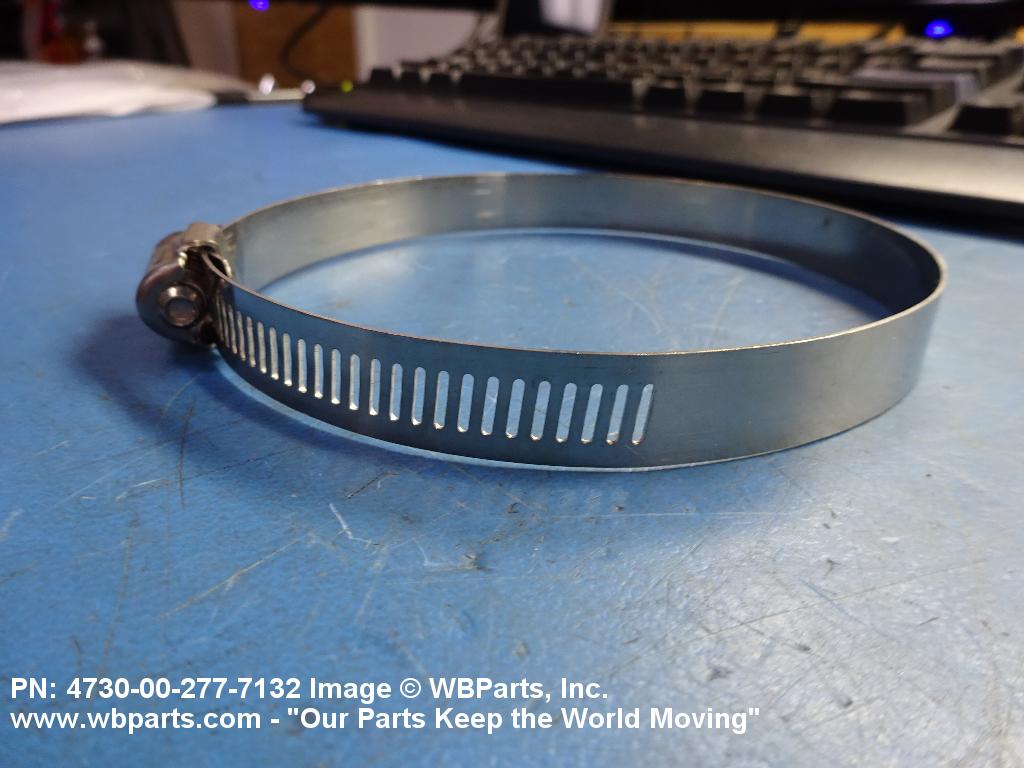

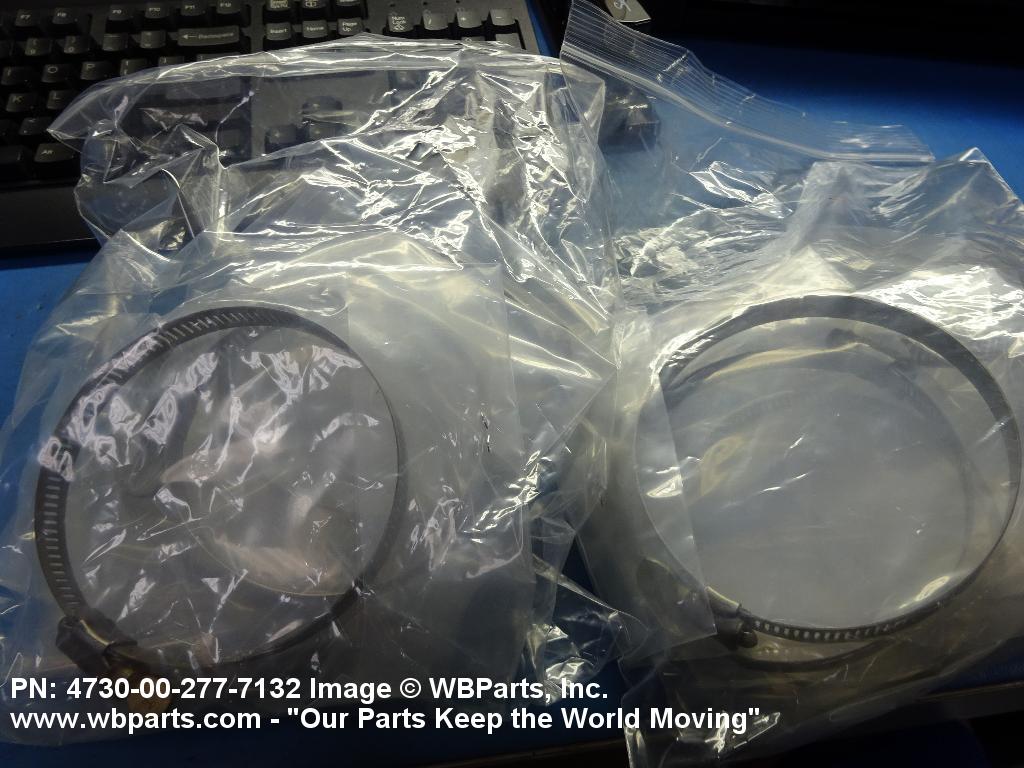

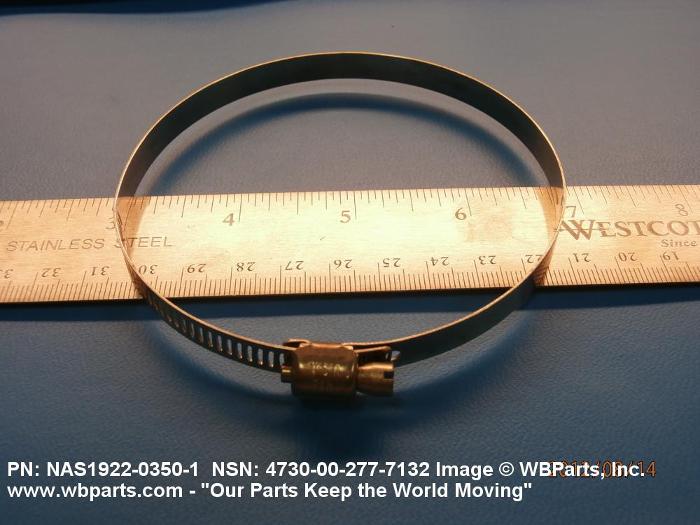

Drawings & Photos | NSN 4730-00-277-7132

Part Number	Request Date	QTY	Origin
AA52506	2024-11-312	4	United States
4730-00-277-7132	2024-09-271	4	US
4730-00-277-7132	2023-07-183	5876	DIBBS
4730-00-277-7132	2023-05-131	1112	DIBBS
4730-00-277-7132	2023-03-75	6152	DIBBS
4730-00-277-7132	2023-01-26	1112	DIBBS
4730-00-277-7132	2022-10-279	5254	DIBBS
4730-00-277-7132	2022-06-173	12	United States
4730-00-277-7132	2017-04-117	8081	DIBBS
4730-00-277-7132	2017-01-10	14	MANUAL
4730-00-277-7132	2016-04-102	5260	DIBBS
4730-00-277-7132	2016-02-38	4390	DIBBS
4730-00-277-7132	2015-12-355	5410	DIBBS
4730-00-277-7132	2015-01-05	2502	DIBBS
4730-00-277-7132	2012-08-216	6	United States
NAS192203501	2009-09-266	50	United States
AA52506	2009-08-237	2	United States
4730-00-277-7132	2009-01-07	8255	DIBBS

Cross Reference | NSN 4730-00-277-7132

Part Number	Cage Code	Manufacturer
10A260-350	14711	RSA ENGINEERED PRODUCTS, LLC
10A260-350-1B	14711	RSA ENGINEERED PRODUCTS, LLC
10A260-350-38	81646	EPICOR INDUSTRIES INC IDEAL DIV
111435A	45152	OSHKOSH CORPORATION
111435A	75Q65	OSHKOSH DEFENSE, LLC
20056S	08484	BREEZE-EASTERN CORPORATION
20056S	7Z588	NORMA PENNSYLVANIA INC. DIV BREEZE INDUSTRIAL PRODUCTS
35118AX	45152	OSHKOSH CORPORATION
35118AX	75Q65	OSHKOSH DEFENSE, LLC
4387064PC103-1	05CK7	WINTEC LLC
5171199	72582	MTU AMERICA INC.
52T	66295	WITTEK COMPANIES INTL INC
54 815504456	88907	BRUNSWICK CORPORATION DBA MERCURY MARINE
603647-3	64959	AMERICAN TELEPHONE AND TELEGRAPH CO
A-A-52506	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
A-A-52506-F-56	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
A-A-52506SIZE 56	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
AT25242	75160	DEERE & CO
B54-33683	88907	BRUNSWICK CORPORATION DBA MERCURY MARINE
C7898-350	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
ET56	35871	TRIDON LTD
LS11143-350-1	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
M8830032	25685	NAVAL SHIP ENGINEERING CENTER PHILADELPHIA DIVISION
M9930032	25685	NAVAL SHIP ENGINEERING CENTER PHILADELPHIA DIVISION
NAS1922-0350-1	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NH102300-0350	00624	EATON CORPORATION DBA AEROSPACE DIV
QS200-215	08484	BREEZE-EASTERN CORPORATION
QS200-215	7Z588	NORMA PENNSYLVANIA INC. DIV BREEZE INDUSTRIAL PRODUCTS
QS200-M56S	08484	BREEZE-EASTERN CORPORATION
QS200-M56S	91340	MET-PRO CORPORATION
QS200M565	08484	BREEZE-EASTERN CORPORATION
ST9M623-350	76301	BOEING COMPANY, THE DBA BOEING
WWC440TYPE2STYLE1	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-277-7132

Compare

Related Products | NSN 4730-00-277-7132

4730-00-277-7133, 4730-00-277-7134, 4730-00-277-7135, 4730-00-277-7136, 4730-00-277-7137

Technical Data | NSN 4730-00-277-7132

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL

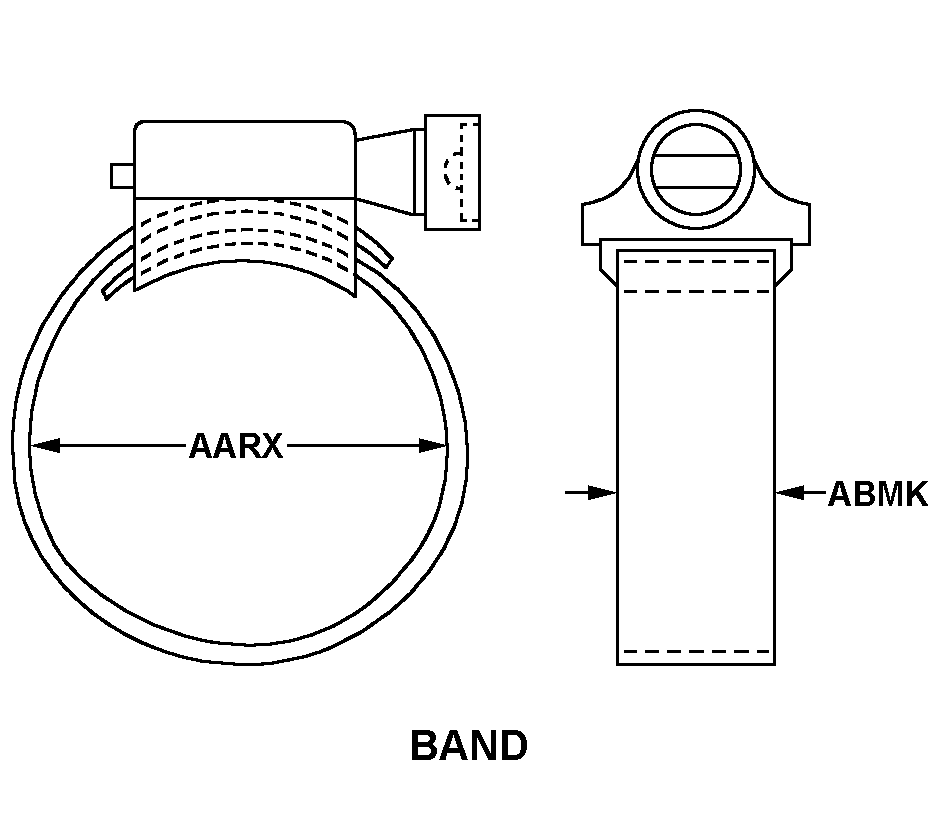

STYLE DESIGNATOR	C21 BAND

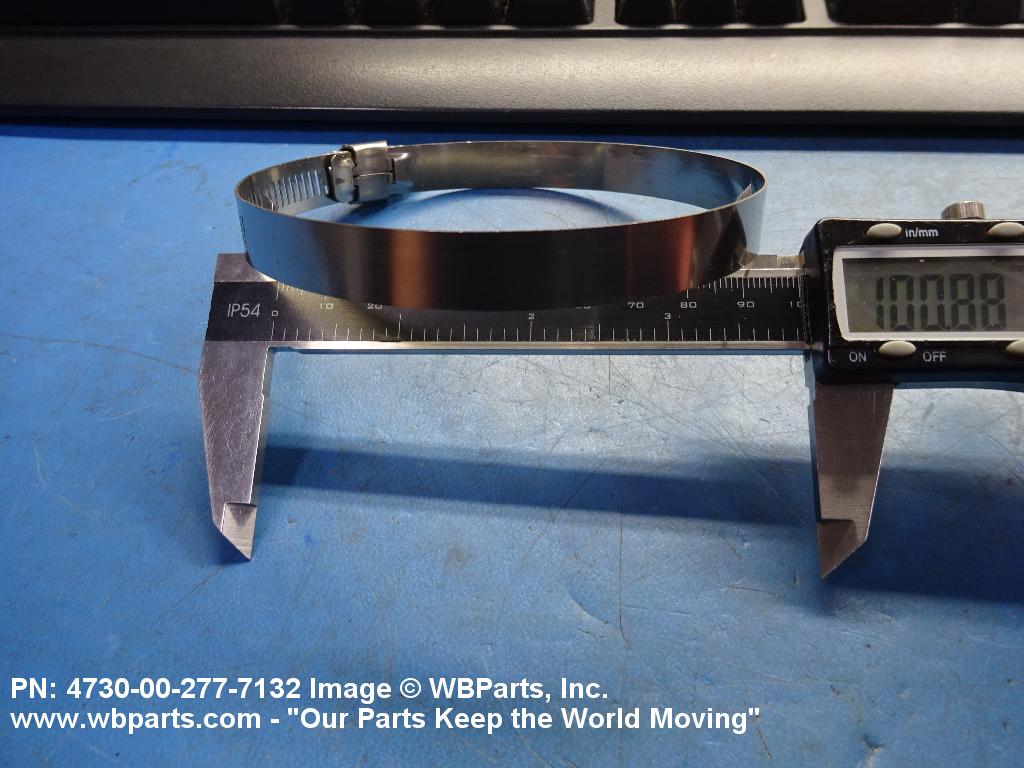

INSIDE DIAMETER	78.0 MILLIMETERS MINIMUM AND 102.0 MILLIMETERS MAXIMUM

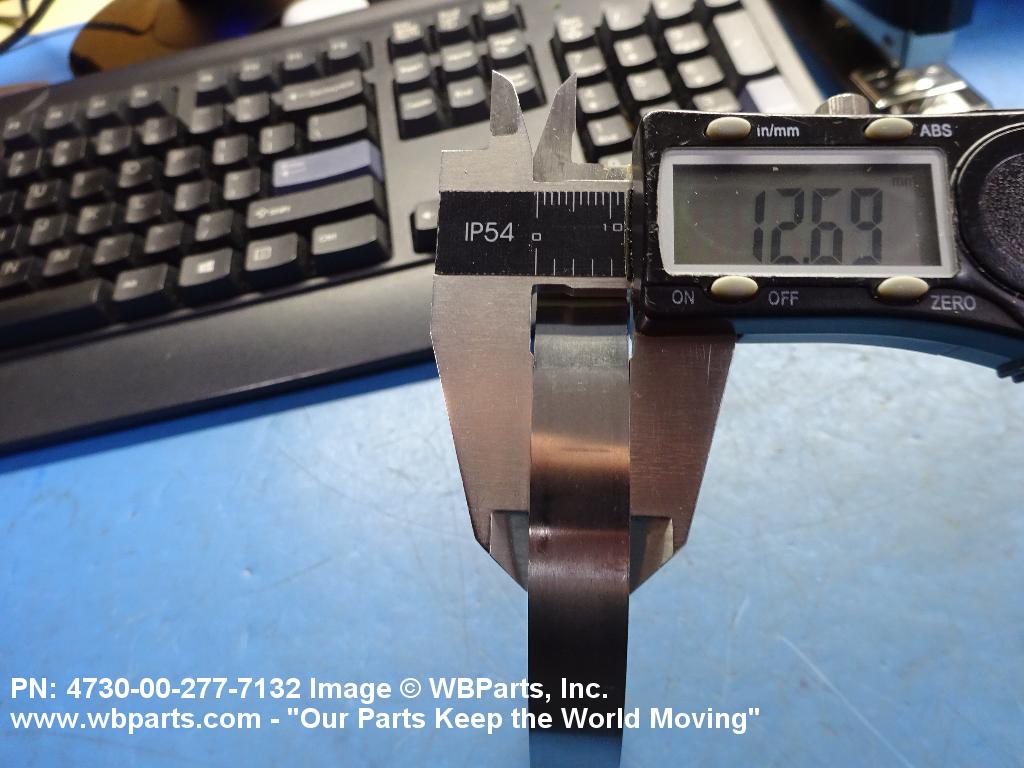

OVERALL WIDTH	14.0 MILLIMETERS NOMINAL
FASTENING DEVICE TYPE	COLLARED SLOTTED HEAD SCREW
III END ITEM IDENTIFICATION	HUGHES OH-6A OBSERVATION HELICOPTER
MANUFACTURERS CODE	58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A-A-52506
MANUFACTURERS CODE	58536
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A-A-52506-F-56

Restrictions/Controls & Freight Information | NSN 4730-00-277-7132

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	094110	CLAMPS CONDUIT/MUFFLER/PIPE U-BOLT
Less than car load rating
Less than truck load rating	T	55.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-277-7132

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
