NSN 4730-00-277-6420 MS24393D20, AN28220D, AN282-20D

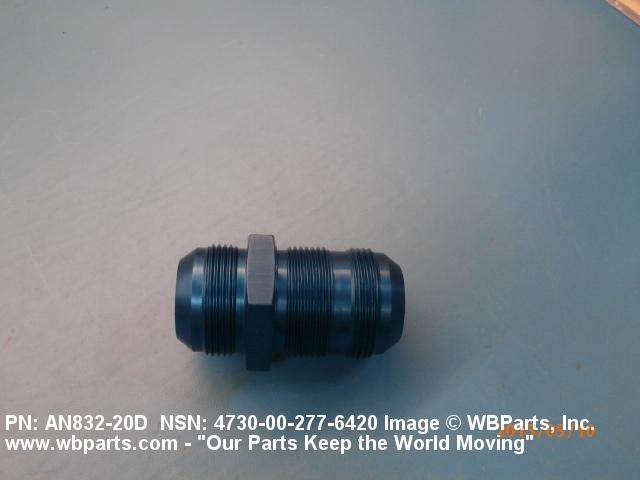

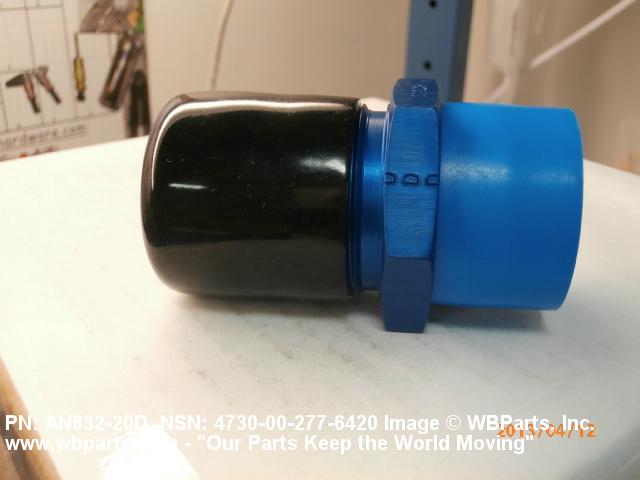

Product Details | TUBE NIPPLE

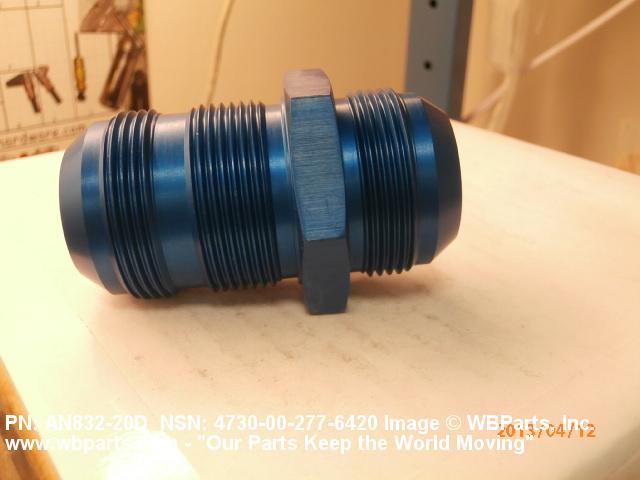

4730-00-277-6420 A straight, one-piece fitting used to join a tube or tube fitting to another tube or tube fitting. It may have any type externally threaded tube connections of the same size on both ends and is usually shaped externally at the center to accommodate a wrench. It may include nuts, sleeves, and/or grommets.
Part Alternates: MS24393D20, AN28220D, AN282-20D, AN83220D, AN832-20D, AS4841 , AS5406, AS5406D20, 69267232, 69-26723-2, 4730-00-277-6420, 00-277-6420, 4730002776420, 002776420
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-277-6420 | 03783 ( NIPPLE, TUBE ) |

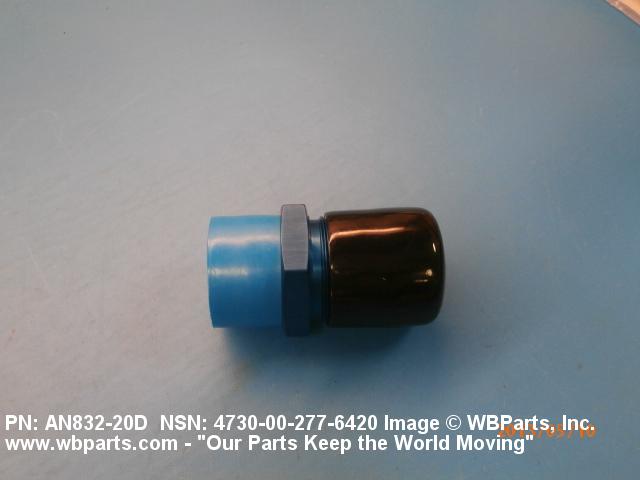

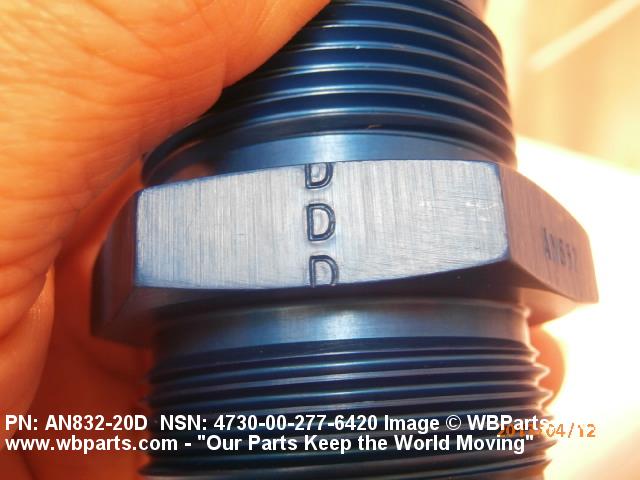

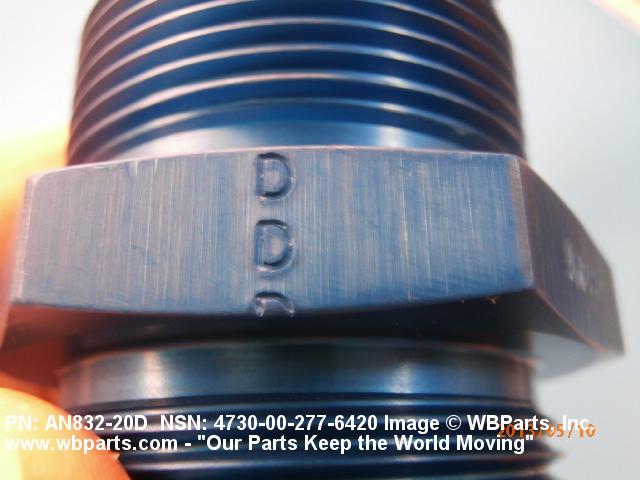

Drawings & Photos | NSN 4730-00-277-6420
Demand History | NSN 4730-00-277-6420
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-277-6420 | 2024-02-51 | 48 | DIBBS |
| 4730-00-277-6420 | 2023-08-215 | 48 | DIBBS |
| 4730-00-277-6420 | 2013-05-130 | 4 | United States |
| 4730-00-277-6420 | 2013-05-128 | 6 | United States |
| 4730-00-277-6420 | 2013-04-92 | 11 | United States |
| AS4841 | 2011-03-69 | 8 | |
| 4730-00-277-6420 | 2010-03-67 | 82 | DIBBS |
| 4730-00-277-6420 | 2009-12-344 | 52 | DIBBS |
| 4730-00-277-6420 | 2008-08-233 | 5 | United States |
Cross Reference | NSN 4730-00-277-6420
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 69-26723-2 | 81205 | THE BOEING COMPANY DBA BOEING |
| AN282-20D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN832-20D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN832-20D | 14397 | FABER ENTERPRISES, INC. |
| AN832-20D | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN832-20D | 71563 | COLLINS ENGINEERING CORP |
| AN832-20D | 7L611 | BLAKO INC. DBA BLAKESLEE |
| AN832-20D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN832-20D | R1120 | SATAIR A/S |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5406 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5406D20 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS24393D20 | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| MS24393D20 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| MS24393D20 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-277-6420
Related Products | NSN 4730-00-277-6420
Technical Data | NSN 4730-00-277-6420
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-8-8625 MIL SPEC ALL TREATMENT RESPONSES OVERALL |
| STYLE DESIGNATOR | A64 FLARED W/BULKHEAD THREAD |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B64 FLARED 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END 37.0 DEGREES 2ND END |

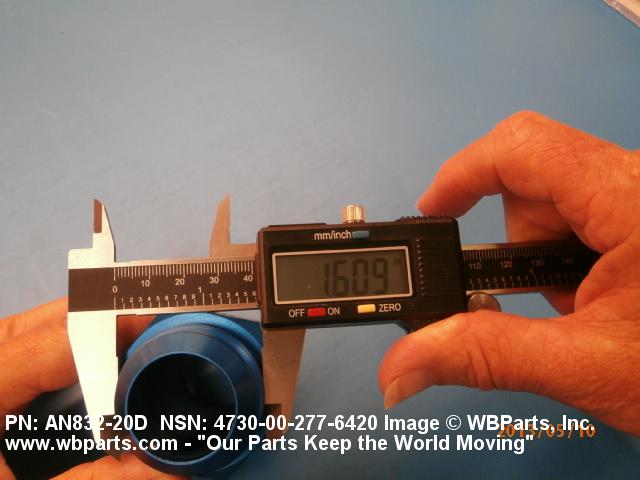

| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.250 INCHES 1ST END 1.250 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UN 1ST END UN 2ND END |
| NOMINAL THREAD SIZE | 1.625 INCHES 1ST END 1.312 INCHES 2ND END |
| THREAD QUANTITY PER INCH | 12 1ST END 16 2ND END |
| THREAD CLASS | 3A 1ST END 3A 2ND END |

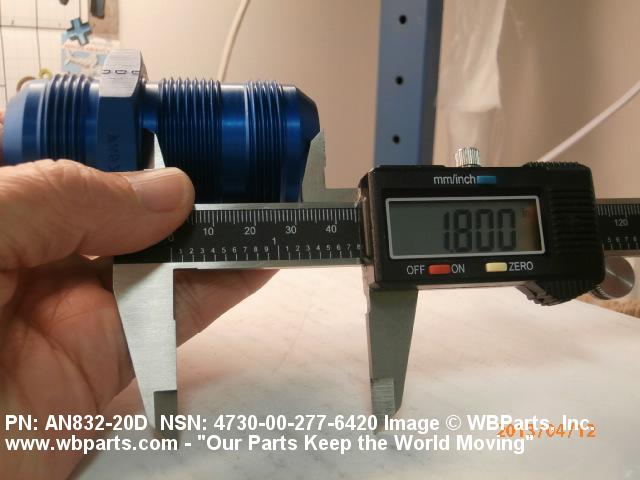

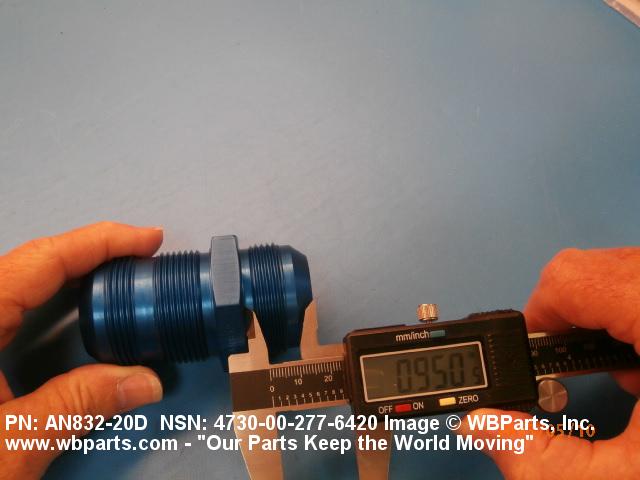

| LEG LENGTH | 1.797 INCHES NOMINAL 1ST END 0.958 INCHES NOMINAL 2ND END |

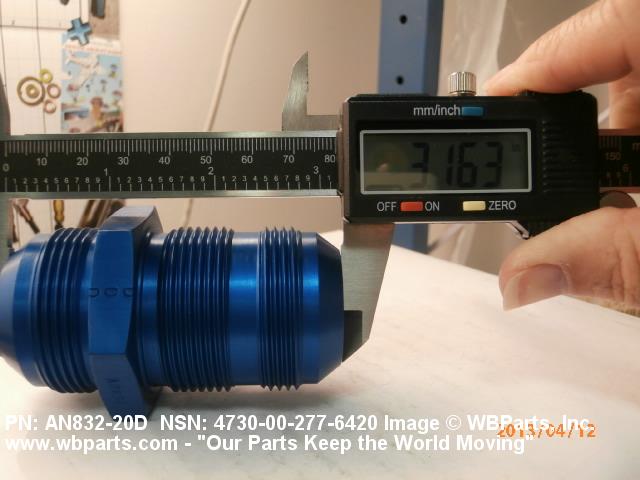

| NOMINAL OVERALL LENGTH | 3.156 INCHES |
