NSN 4730-00-277-5354 MS2081924, MS20819-24, AN81924

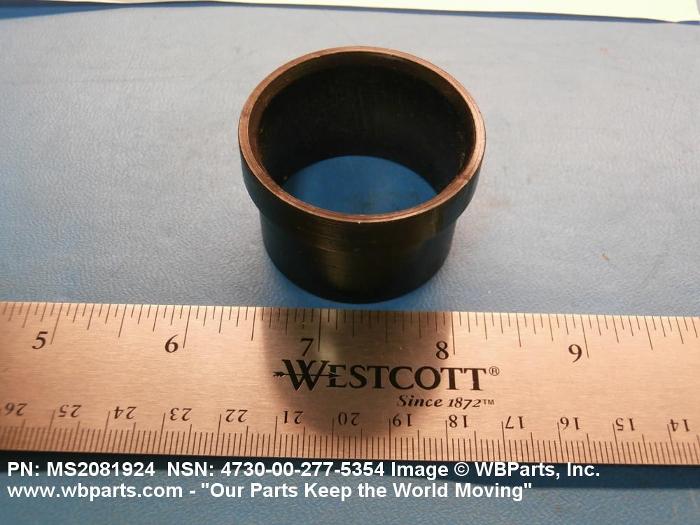

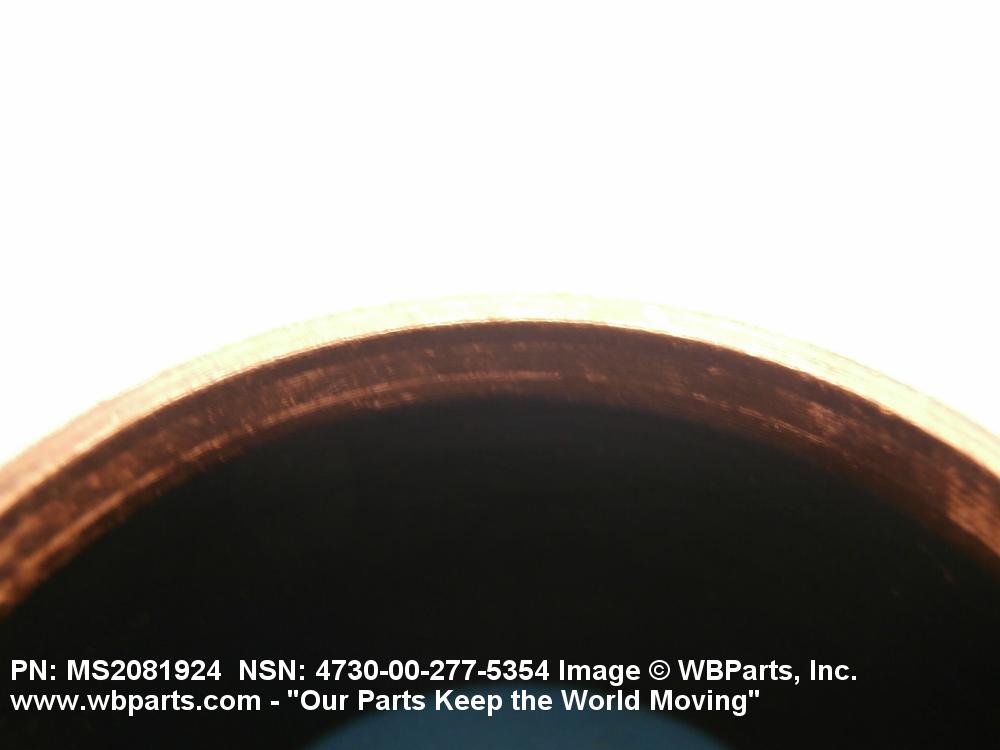

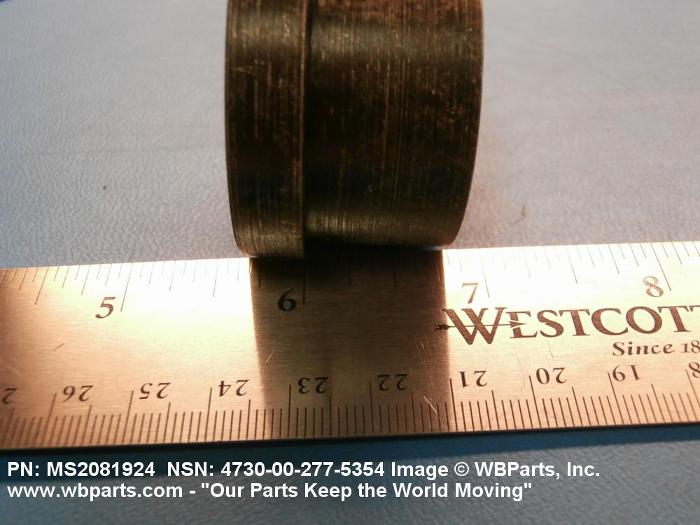

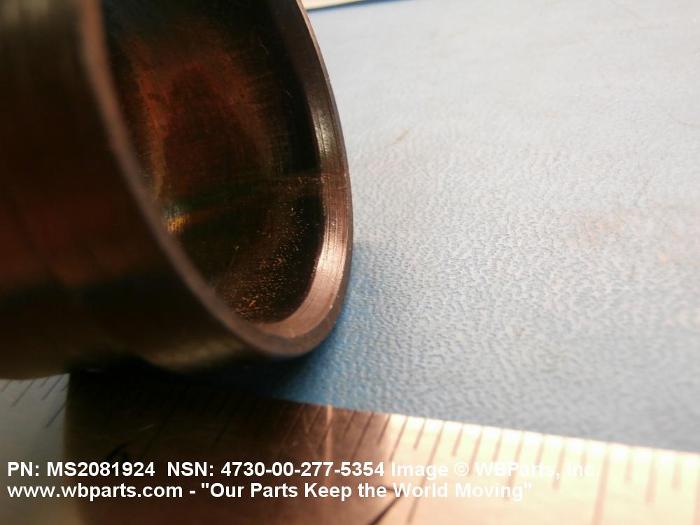

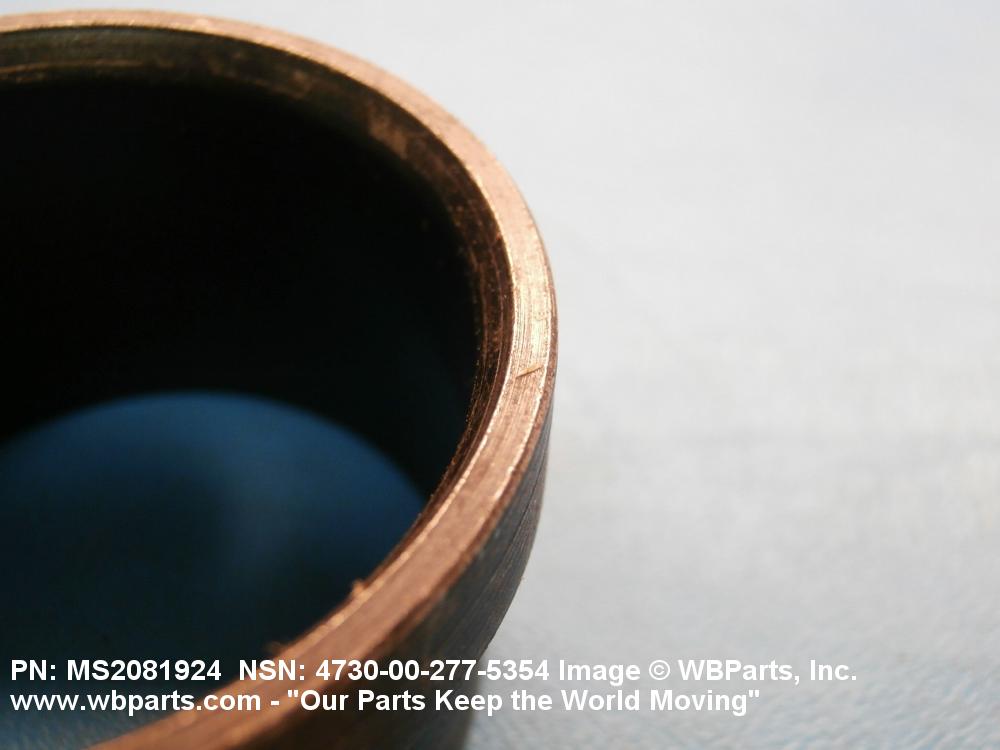

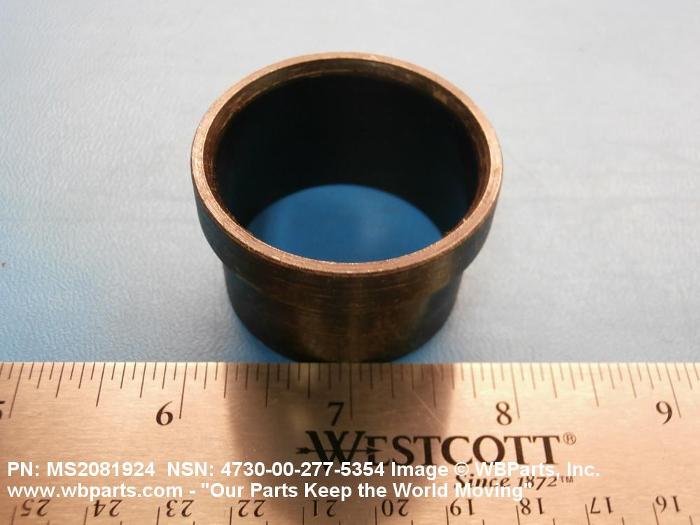

Product Details | TUBE FITTING FLARED SLEEVE

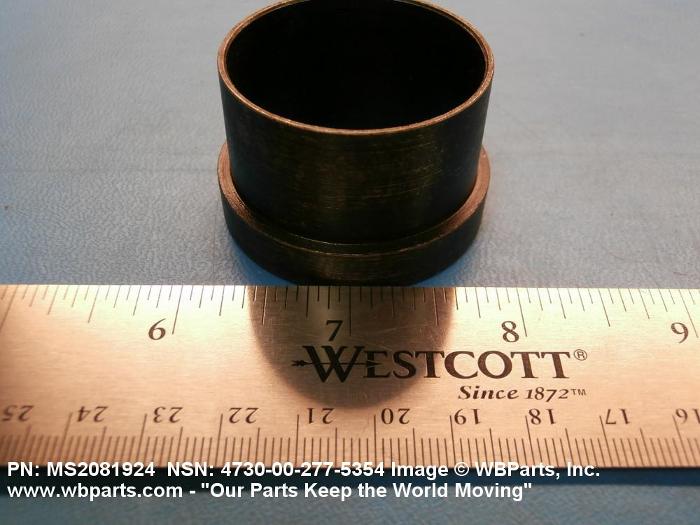

4730-00-277-5354 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: MS2081924, MS20819-24, AN81924, AN819-24, AS4841, AS5176, AS517624, AS5176-24, MILF5509, 171SM748, 79F12, 9403456, 4730-00-277-5354, 00-277-5354, 4730002775354, 002775354
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-277-5354 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |
Drawings & Photos | NSN 4730-00-277-5354
Demand History | NSN 4730-00-277-5354
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-277-5354 | 2024-08-06 | 177 | DIBBS |
| MS2081924 | 2021-11-16 | 800 | US |
| AS517624 | 2019-12-20 | 1 | US |
| MS2081924 | 2018-08-22 | 6 | United States |
| MILF5509 | 2018-07-20 | 6 | United States |
| MS2081924 | 2012-11-07 | 10 | US |
| MS2081924 | 2012-11-07 | 20 | US |
| AS4841 | 2011-03-10 | 8 | |
| MILF5509 | 2009-10-28 | 1 | PK |
| 4730-00-277-5354 | 2009-08-19 | 1 | US |
| 4730-00-277-5354 | 2009-04-16 | 156 | DIBBS |
| MILF5509 | 2009-02-24 | 100 | US |
| 4730-00-277-5354 | 2008-12-01 | 167 | DIBBS |
| AS517624 | 2006-07-31 | 10 | us |
Cross Reference | NSN 4730-00-277-5354
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 171SM748 | 12603 | CLARK EQUIPMENT CO |
| 79F12 | 12603 | CLARK EQUIPMENT CO |
| 9403456 | 0SAT8 | KOMATSU AMERICA CORP. |
| 9403456 | 29510 | KOMATSU AMERICAN INTL CO |
| 9403456 | 31007 | NAVISTAR INTL CORP |
| 9403456 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| AN819-24 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5176 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5176-24 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MILF5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS20819-24 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
