NSN 4730-00-277-5157 AN9264D, AN926D4, AN93304

Product Details | BOSS TEE

4730-00-277-5157 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have external or internal machine threads (straight threads other than pipe or hose series), and are designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side inlet(s). It is used as a junction at the intersection of a boss or boss fitting on items such as tanks, housings, valve fittings, and the like. Excludes TEE, TUBE.

Part Alternates: AN9264D, AN926D4, AN93304, AN9384D, AN938-4D, AN938D4, AS4875, AS5192, AS5192W04, 3111202, 488 510, 488510, 7949676, 4730-00-277-5157, 00-277-5157, 4730002775157, 002775157

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-277-5157	22680 ( TEE, BOSS )

Part Number	Request Date	QTY	Origin
4730-00-277-5157	2024-01-11	283	DIBBS
4730-00-277-5157	2023-12-344	38	DIBBS
4730-00-277-5157	2023-12-337	245	DIBBS
4730-00-277-5157	2023-09-271	207	DIBBS
4730-00-277-5157	2023-02-40	38	DIBBS
4730-00-277-5157	2021-07-210	38	DIBBS
4730-00-277-5157	2021-06-164	133	DIBBS
4730-00-277-5157	2021-06-161	133	DIBBS
4730-00-277-5157	2020-03-67	112	DIBBS
4730-00-277-5157	2020-01-08	1	US
AN938D4	2019-02-43	25	United States
AS5192W04	2017-11-332	2	US
4730-00-277-5157	2017-03-79	86	DIBBS
4730-00-277-5157	2016-11-327	79	DIBBS
4730-00-277-5157	2016-08-238	1	DIBBS-RFPs
AS5192W04	2014-03-80	3	UM
4730-00-277-5157	2013-11-311	174	DIBBS
AS5192W04	2012-05-142	1	US
4730-00-277-5157	2009-12-364	187	DIBBS

Cross Reference | NSN 4730-00-277-5157

Part Number	Cage Code	Manufacturer
3111202	001JK	EMBRAER S/A
3111202	FB459	EMBRAER AVIATION INTERNATIONAL
3111202	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
488 510	77294	PIPER AIRCRAFT INC.
7949676	24617	GENERAL MOTORS CORP
7949676	99974	DELCO ELECTRONICS CORP DELCO SYSTEMS OPNS
AN9264D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN926D4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN93304	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN938-4D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN938D4	00624	EATON CORPORATION DBA AEROSPACE DIV
AN938D4	06581	ALLAN AIRCRAFT SUPPLY CO, LLC
AN938D4	13899	HYDRO FITTING MANUFACTURING CORPORATION
AN938D4	14397	FABER ENTERPRISES, INC.
AN938D4	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
AN938D4	22995	CROWN FITTING CO INC
AN938D4	30974	AEROFIT, LLC
AN938D4	71563	COLLINS ENGINEERING CORP
AN938D4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS4875	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5192	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5192W04	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-277-5157

Compare

Related Products | NSN 4730-00-277-5157

4730-00-277-5160, 4730-00-277-5161, 4730-00-277-5162, 4730-00-277-5163, 4730-00-277-5164

Technical Data | NSN 4730-00-277-5157

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2014 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-367,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625,TYPE 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
MEDIA FOR WHICH DESIGNED	FLUID SINGLE RESPONSE
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
CONNECTION TYPE	THREADED INTERNAL BOSS ALL ENDS
CONNECTION STYLE	B9 GASKET SEAL ALL ENDS
THREAD SERIES DESIGNATOR	UNJF ALL ENDS

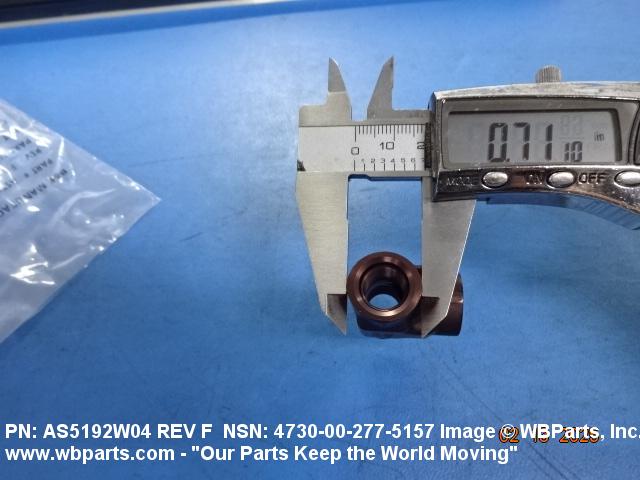

NOMINAL THREAD SIZE	0.438 INCHES ALL ENDS
THREAD CLASS	3B ALL ENDS

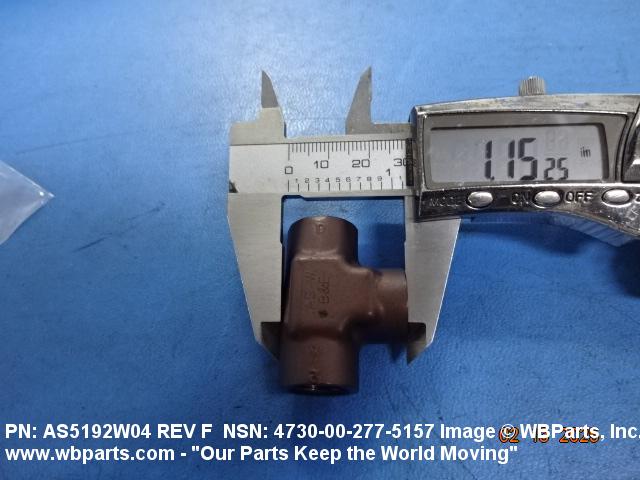

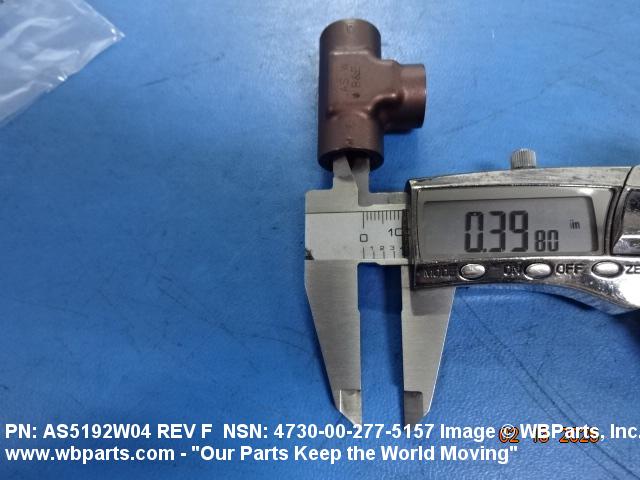

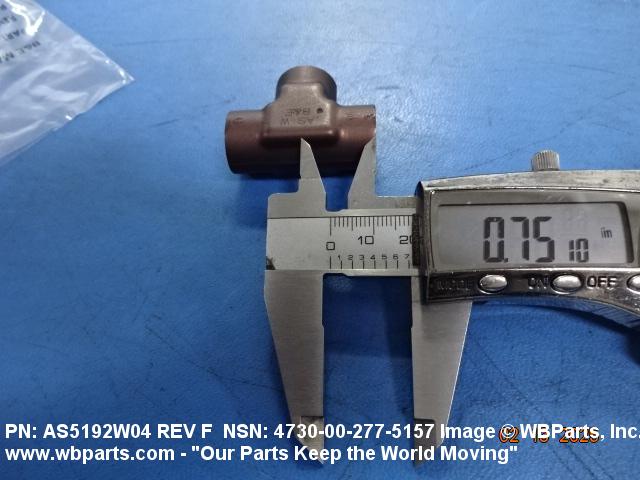

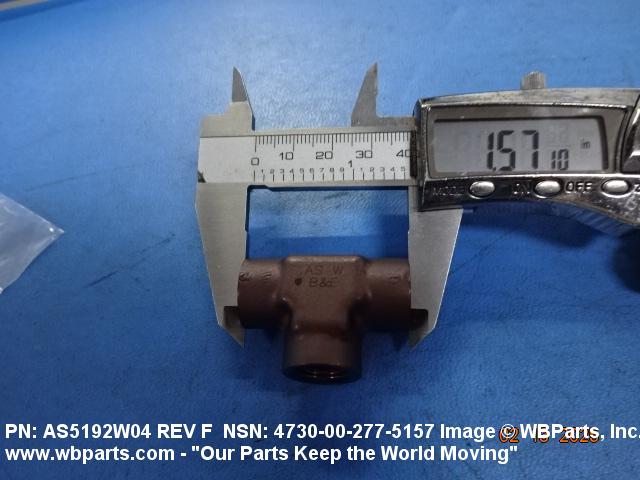

LEG LENGTH	0.750 INCHES NOMINAL ALL ENDS
SPECIAL FEATURES	END ITEM: GRUMMAN A-10 AIRCRAFT
SPECIFICATION/STANDARD DATA	88044-AN938 GOVERNMENT STANDARD AND 81349-MIL-F-5509 GOVERNMENT SPECIFICATION
