NSN 4730-00-278-2781 AN9265, AN926-5, AN9385
Product Details | BOSS TEE
4730-00-278-2781 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have external or internal machine threads (straight threads other than pipe or hose series), and are designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side inlet(s). It is used as a junction at the intersection of a boss or boss fitting on items such as tanks, housings, valve fittings, and the like. Excludes TEE, TUBE.
Part Alternates: AN9265, AN926-5, AN9385, AN938-5, AS4875 , AS519205, AS5192-05 , 4730-00-278-2781, 00-278-2781, 4730002782781, 002782781
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-278-2781 | 22680 ( TEE, BOSS ) |

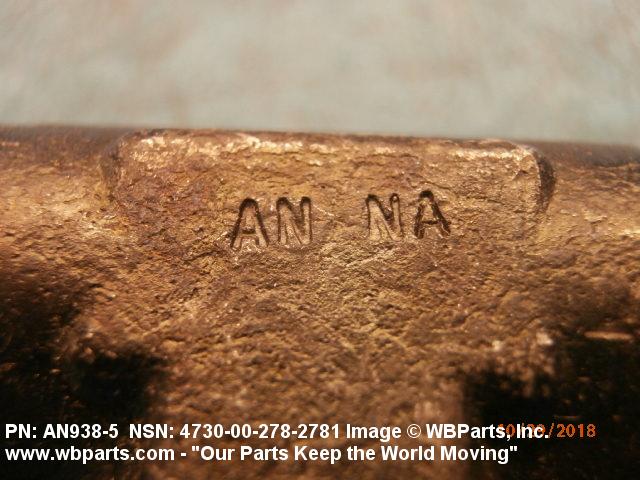

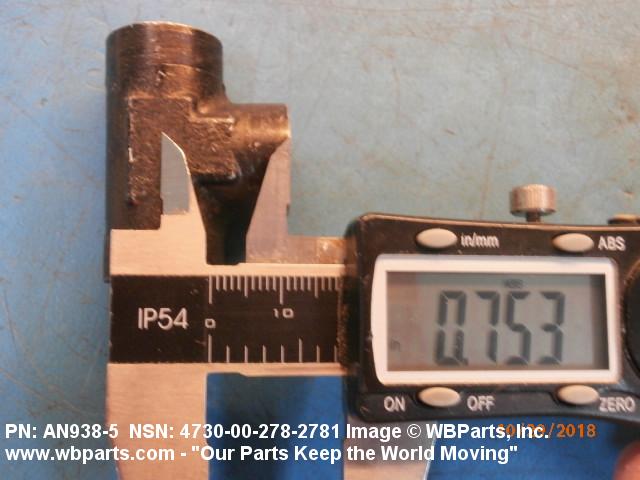

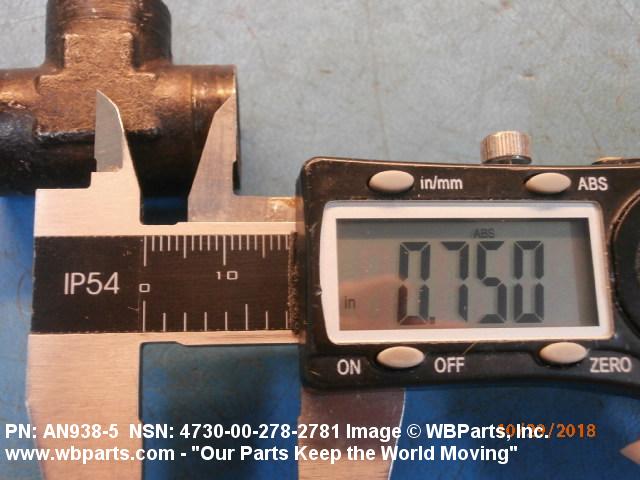

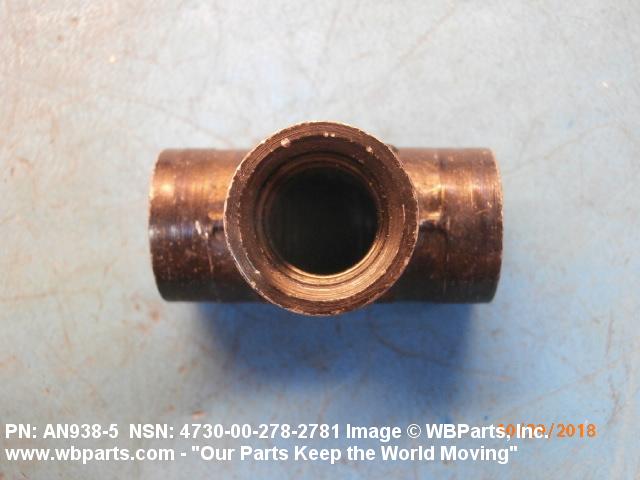

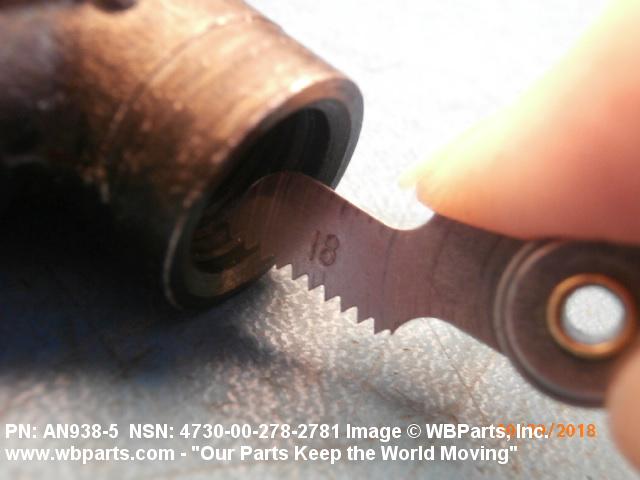

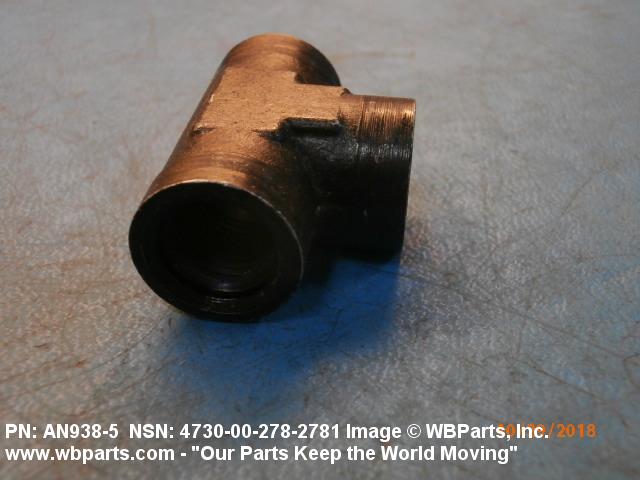

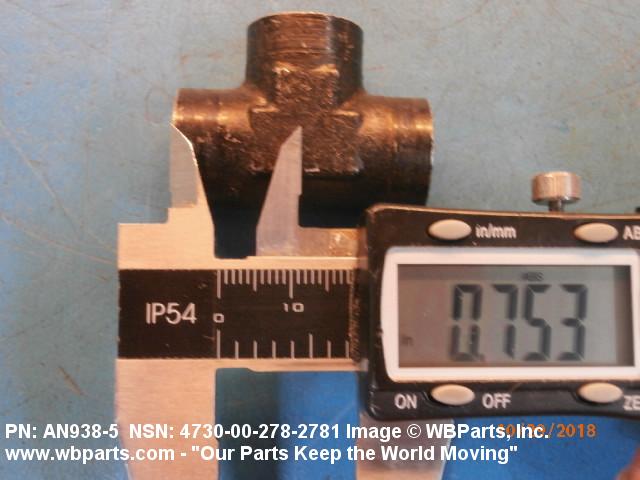

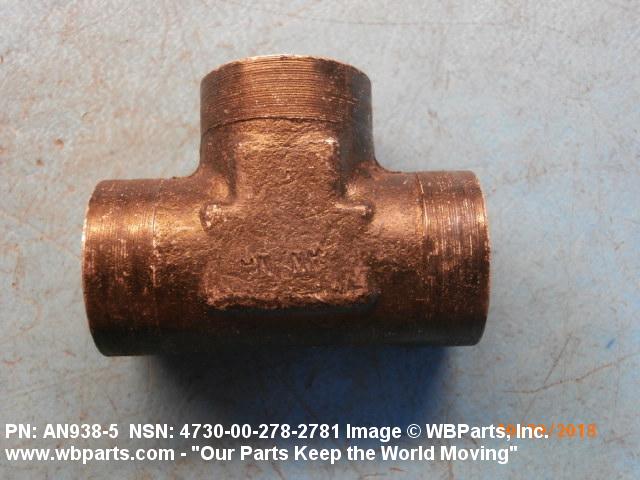

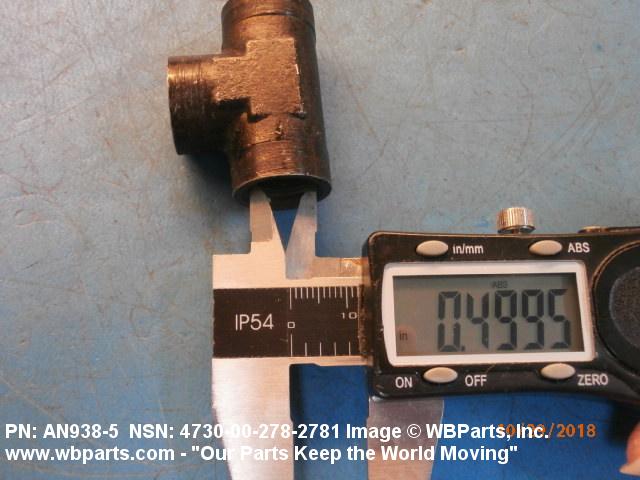

Drawings & Photos | NSN 4730-00-278-2781
Demand History | NSN 4730-00-278-2781
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS519205 | 2018-10-284 | 2 | United States |
| AS519205 | 2018-10-284 | 2 | United States |
| AN9385 | 2018-10-282 | 3 | United States |
| 4730-00-278-2781 | 2013-04-106 | 78 | DIBBS |
| 4730-00-278-2781 | 2012-12-356 | 28 | DIBBS |
Cross Reference | NSN 4730-00-278-2781
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN926-5 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN938-5 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN938-5 | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN938-5 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN938-5 | 14397 | FABER ENTERPRISES, INC. |
| AN938-5 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN938-5 | 22995 | CROWN FITTING CO INC |
| AN938-5 | 30974 | AEROFIT, LLC |
| AN938-5 | 71563 | COLLINS ENGINEERING CORP |
| AN938-5 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4875 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5192-05 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-278-2781
Related Products | NSN 4730-00-278-2781
Technical Data | NSN 4730-00-278-2781
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| CONNECTION TYPE | THREADED INTERNAL BOSS ALL ENDS |
| CONNECTION STYLE | B9 GASKET SEAL ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.500 INCHES ALL ENDS |
| THREAD CLASS | 3B ALL ENDS |
| LEG LENGTH | 0.750 INCHES NOMINAL ALL ENDS |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN938-5 |
Restrictions/Controls & Freight Information | NSN 4730-00-278-2781
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
