NSN 4730-00-277-1534 MR54100T04, MR54100T-04, MR54101T04

Product Details | TUBE COUPLING

4730-00-277-1534 A straight fitting 12 inches (304 mm) long or under having the same or different type of connection of the same size on both ends. It is designed to join a tube or tube fitting to another tube or tube fitting. Excludes fittings with threaded external connections on both ends. Excludes NIPPLE, PIPE.

Part Alternates: MR54100T04, MR54100T-04, MR54101T04, MR54104, MR54104T04, MR54104T-04, AE161694, AE16169-4, AE168244, AE16824-4, AP640T04, ST7M202T4, GC550EY4, 10108312 , 3526504, 35265-04, 7M524, 7M524T4, 4730-00-277-1534, 00-277-1534, 4730002771534, 002771534

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	08 AUG 1973	00-277-1534	06078 ( COUPLING, TUBE )

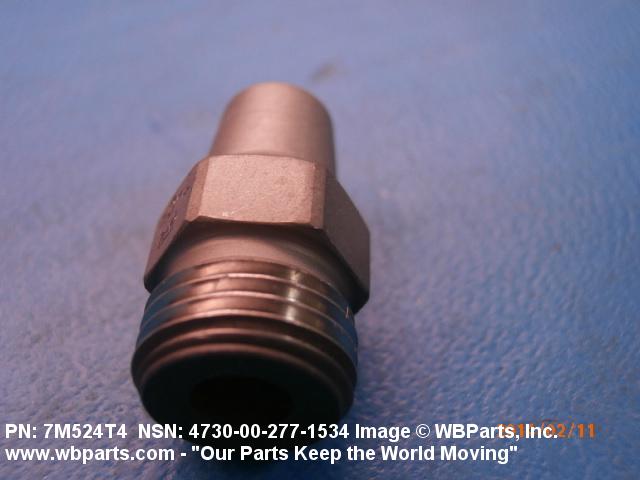

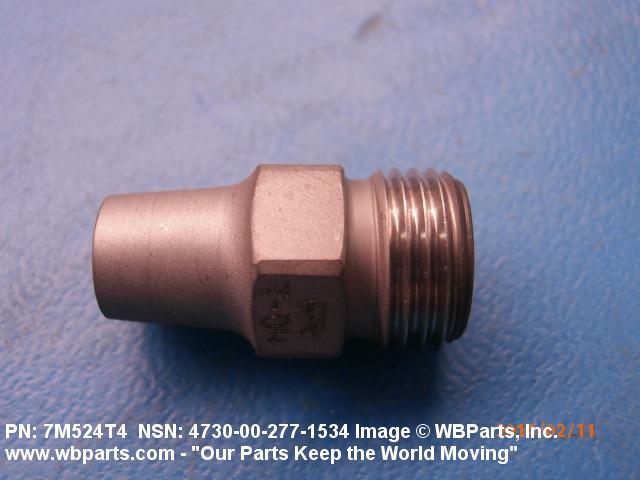

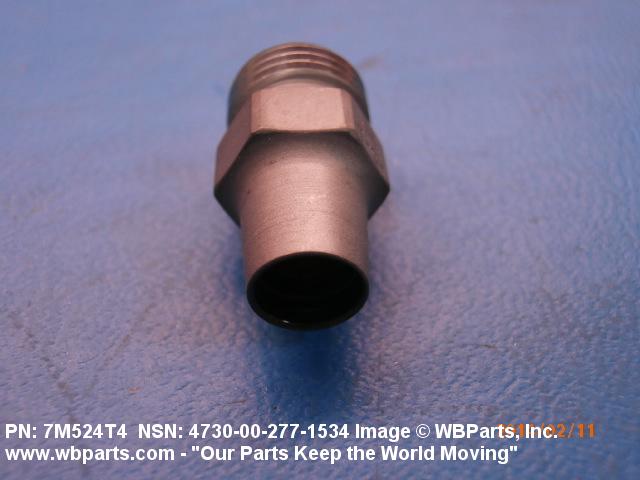

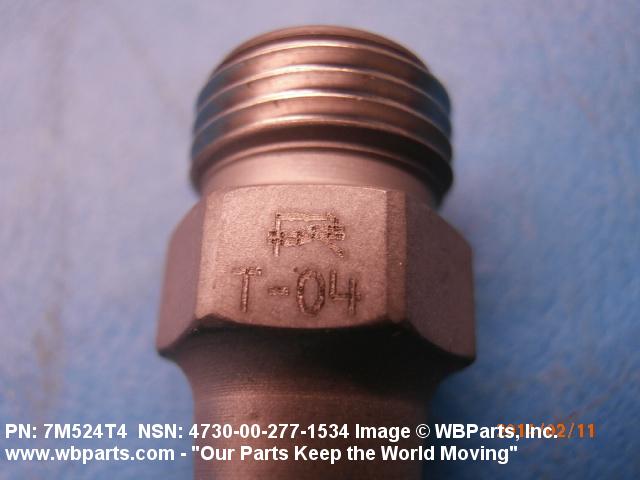

Drawings & Photos | NSN 4730-00-277-1534

Part Number	Request Date	QTY	Origin
35265-04	2022-06-181	98	DIBBS
7M524T4	2022-06-181	98	DIBBS
AE16169-4	2022-06-181	98	DIBBS
AE16824-4	2022-06-181	98	DIBBS
AP640T04	2022-06-181	98	DIBBS
GC550EY4	2022-06-181	98	DIBBS
MR54100T-04	2022-06-181	98	DIBBS
ST7M202T4	2022-06-181	98	DIBBS
35265-04	2022-01-06	101	DIBBS
7M524T4	2022-01-06	101	DIBBS
AE16169-4	2022-01-06	101	DIBBS
AE16824-4	2022-01-06	101	DIBBS
AP640T04	2022-01-06	101	DIBBS
GC550EY4	2022-01-06	101	DIBBS
MR54100T-04	2022-01-06	101	DIBBS
ST7M202T4	2022-01-06	101	DIBBS
35265-04	2021-09-245	48	DIBBS
7M524T4	2021-09-245	48	DIBBS
AE16169-4	2021-09-245	48	DIBBS
AE16824-4	2021-09-245	48	DIBBS
AP640T04	2021-09-245	48	DIBBS
GC550EY4	2021-09-245	48	DIBBS
MR54100T-04	2021-09-245	48	DIBBS
ST7M202T4	2021-09-245	48	DIBBS
35265-04	2021-04-112	48	DIBBS
7M524T4	2021-04-112	48	DIBBS
AE16169-4	2021-04-112	48	DIBBS
AE16824-4	2021-04-112	48	DIBBS
AP640T04	2021-04-112	48	DIBBS
GC550EY4	2021-04-112	48	DIBBS
MR54100T-04	2021-04-112	48	DIBBS
ST7M202T4	2021-04-112	48	DIBBS
35265-04	2020-05-132	93	DIBBS
7M524T4	2020-05-132	93	DIBBS
AE16169-4	2020-05-132	93	DIBBS
AE16824-4	2020-05-132	93	DIBBS
AP640T04	2020-05-132	93	DIBBS
GC550EY4	2020-05-132	93	DIBBS
MR54100T-04	2020-05-132	93	DIBBS
ST7M202T4	2020-05-132	93	DIBBS
35265-04	2020-04-117	93	DIBBS
7M524T4	2020-04-117	93	DIBBS
AE16169-4	2020-04-117	93	DIBBS
AE16824-4	2020-04-117	93	DIBBS
AP640T04	2020-04-117	93	DIBBS
GC550EY4	2020-04-117	93	DIBBS
MR54100T-04	2020-04-117	93	DIBBS
ST7M202T4	2020-04-117	93	DIBBS
35265-04	2019-12-343	129	DIBBS
7M524T4	2019-12-343	129	DIBBS
AE16169-4	2019-12-343	129	DIBBS
AE16824-4	2019-12-343	129	DIBBS
AP640T04	2019-12-343	129	DIBBS
GC550EY4	2019-12-343	129	DIBBS
MR54100T-04	2019-12-343	129	DIBBS
ST7M202T4	2019-12-343	129	DIBBS
35265-04	2019-09-272	47	DIBBS
7M524T4	2019-09-272	47	DIBBS
AE16169-4	2019-09-272	47	DIBBS
AE16824-4	2019-09-272	47	DIBBS
AP640T04	2019-09-272	47	DIBBS
GC550EY4	2019-09-272	47	DIBBS
MR54100T-04	2019-09-272	47	DIBBS
ST7M202T4	2019-09-272	47	DIBBS
35265-04	2019-09-266	35	DIBBS
7M524T4	2019-09-266	35	DIBBS
AE16169-4	2019-09-266	35	DIBBS
AE16824-4	2019-09-266	35	DIBBS
AP640T04	2019-09-266	35	DIBBS
GC550EY4	2019-09-266	35	DIBBS
MR54100T-04	2019-09-266	35	DIBBS
ST7M202T4	2019-09-266	35	DIBBS
35265-04	2019-09-255	35	DIBBS
7M524T4	2019-09-255	35	DIBBS
AE16169-4	2019-09-255	35	DIBBS
AE16824-4	2019-09-255	35	DIBBS
AP640T04	2019-09-255	35	DIBBS
GC550EY4	2019-09-255	35	DIBBS
MR54100T-04	2019-09-255	35	DIBBS
ST7M202T4	2019-09-255	35	DIBBS
4730-00-277-1534	2018-12-336	84	DIBBS
4730-00-277-1534	2015-07-210	400	DIBBS
4730-00-277-1534	2015-05-147	220	DIBBS
7M524T4	2014-12-342	4	United States
4730-00-277-1534	2014-06-174	226	DIBBS
4730-00-277-1534	2014-06-163	226	DIBBS
4730-00-277-1534	2014-01-22	256	DIBBS
7M524T4	2014-01-03	2	United States
4730-00-277-1534	2013-08-220	173	DIBBS
4730-00-277-1534	2013-07-205	173	DIBBS
4730-00-277-1534	2013-07-204	173	DIBBS
4730-00-277-1534	2012-03-62	199	DIBBS
4730-00-277-1534	2012-02-33	205	DIBBS
4730-00-277-1534	2008-10-291	119	DIBBS
4730-00-277-1534	2008-09-253	207	DIBBS

Cross Reference | NSN 4730-00-277-1534

Part Number	Cage Code	Manufacturer
35265-04	08199	EATON AEROSPACE
7M524	76301	BOEING COMPANY, THE DBA BOEING
7M524T4	76301	BOEING COMPANY, THE DBA BOEING
AE16169-4	00624	EATON CORPORATION DBA AEROSPACE DIV
AE16824-4	00624	EATON CORPORATION DBA AEROSPACE DIV
AP640T04	01673	SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS
GC550EY4	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
MR54100T-04	50599	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION
MR54101T04	50599	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION
MR54104	50599	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION
MR54104T-04	50599	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION
ST7M202T4	76301	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-277-1534

Compare

Related Products | NSN 4730-00-277-1534

4730-00-277-1535, 4730-00-277-1536, 4730-00-277-1537, 4730-00-277-1538, 4730-00-277-1539

Technical Data | NSN 4730-00-277-1534

Characteristic	Specifications
MATERIAL	TITANIUM ALLOY UNS R54520 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 4965,6AL-4V ASSN STD SINGLE MATERIAL RESPONSE OVERALL
STYLE DESIGNATOR	A5 RIGID, SHORT CENTER WRENCHING FACILITY
CONNECTION TYPE	UNTHREADED INTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END
CONNECTION STYLE	B40 SOCKET 1ST END B84 CUSHION SEAL 2ND END
SEAT ANGLE	8.4 DEGREES 2ND END

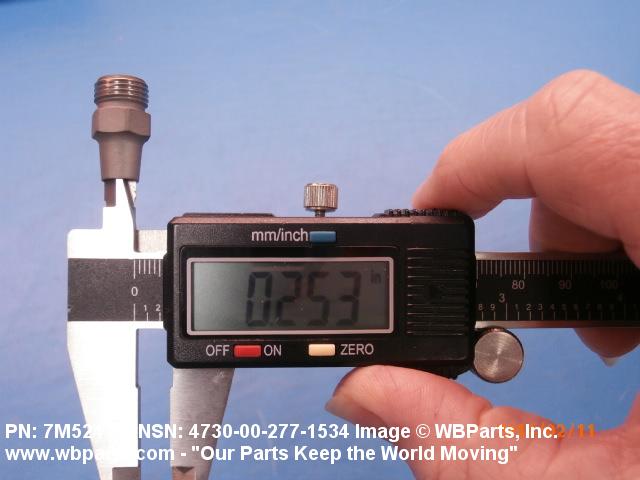

NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.250 INCHES 1ST END 0.250 INCHES 2ND END
THREAD SERIES DESIGNATOR	UNJS 2ND END

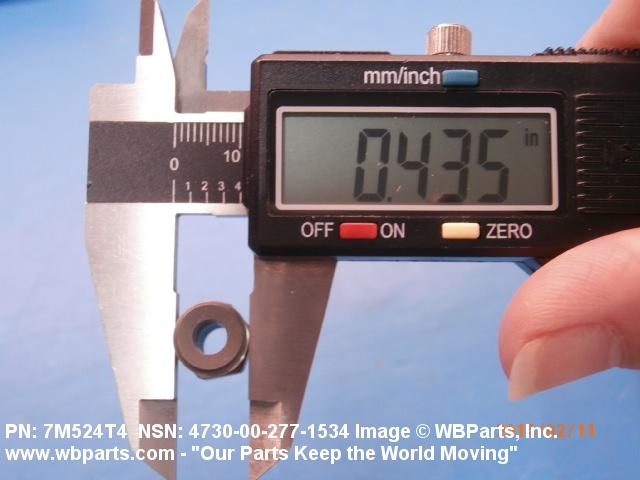

NOMINAL THREAD SIZE	0.437 INCHES 2ND END
THREAD QUANTITY PER INCH	24 2ND END
THREAD CLASS	3A 2ND END

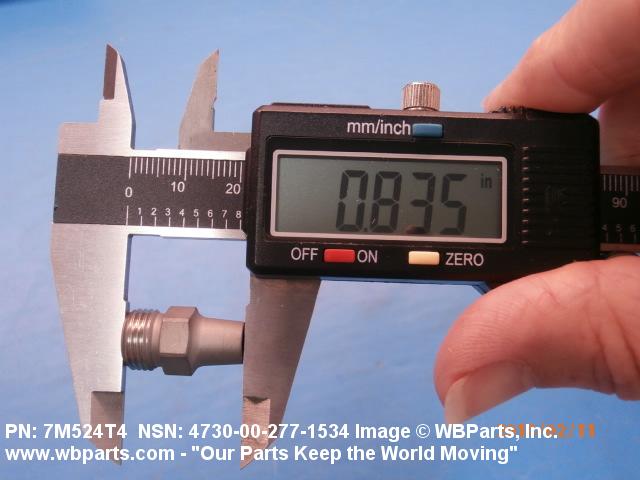

NOMINAL OVERALL LENGTH	0.830 INCHES
III END ITEM IDENTIFICATION	F-16 AND F-18 AIRCRAFT

Restrictions/Controls & Freight Information | NSN 4730-00-277-1534

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-277-1534

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
