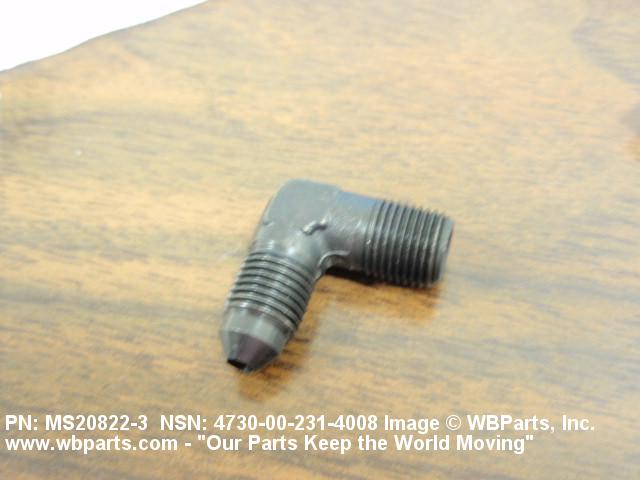

Product Details | PIPE TO TUBE ELBOW
4730-00-231-4008 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS208223, MS20822-3, MS2082244, MS20822-4-4 , A67A14, AN8223, AN822-3, AS4842/1, AS48421, AS51950302, AS5195-0302, CTXS6-1/4 , CTXS6-1/4 ZZ , CTXS614, CTXS614ZZ, MILF5509, MIL-F-5509 , 218491, 218-491 , 4730-00-231-4008, 00-231-4008, 4730002314008 , 002314008
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-231-4008 | 03770 ( ELBOW, PIPE TO TUBE ) |
Drawings & Photos | NSN 4730-00-231-4008
Demand History | NSN 4730-00-231-4008
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN8223 | 2019-09-256 | 4 | Canada |
| 4730-00-231-4008 | 2018-09-264 | 120 | US |
| MILF5509 | 2018-07-201 | 6 | United States |
| 4730-00-231-4008 | 2018-04-116 | 828 | DIBBS |
| 4730-00-231-4008 | 2018-04-113 | 2352 | United States |
| 4730-00-231-4008 | 2018-02-32 | 793 | DIBBS |
| 4730-00-231-4008 | 2017-10-274 | 364 | DIBBS |
| AN8223 | 2015-09-245 | 6 | us |
| AS48421 | 2015-05-132 | 1 | CA |
| MS2082244 | 2013-10-289 | 11 | China |
| 4730-00-231-4008 | 2012-02-41 | 1 | US |
| 4730-00-231-4008 | 2010-12-335 | 129 | United States |
| 4730-00-231-4008 | 2010-12-335 | 74 | United States |
| 4730-00-231-4008 | 2010-10-293 | 203 | DIBBS |
| MILF5509 | 2009-10-301 | 1 | PK |
| MILF5509 | 2009-02-55 | 100 | US |
Cross Reference | NSN 4730-00-231-4008
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4730002314008 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| AN822-3 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4842/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5195-0302 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS20822-3 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| MS20822-3 | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| MS20822-3 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| MS20822-3 | 14397 | FABER ENTERPRISES, INC. |
| MS20822-3 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| MS20822-3 | 22995 | CROWN FITTING CO INC |
| MS20822-3 | 30974 | AEROFIT, LLC |
| MS20822-3 | 71563 | COLLINS ENGINEERING CORP |
| MS20822-3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20822-3 | R1120 | SATAIR A/S |
